VigilLink VLWP-DHU-TR 2x1 18Gbps 1-Gang Wall Plate with Auto-Switching HDBaseT2.0/Mini DP/HDMI2.0/USB2.0 with RX - White

ITEM #: VGL-VLWP-DHU-TR MFG #: VLWP-DHU-TR

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$1,049.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLWP-DHU-TR - Overview

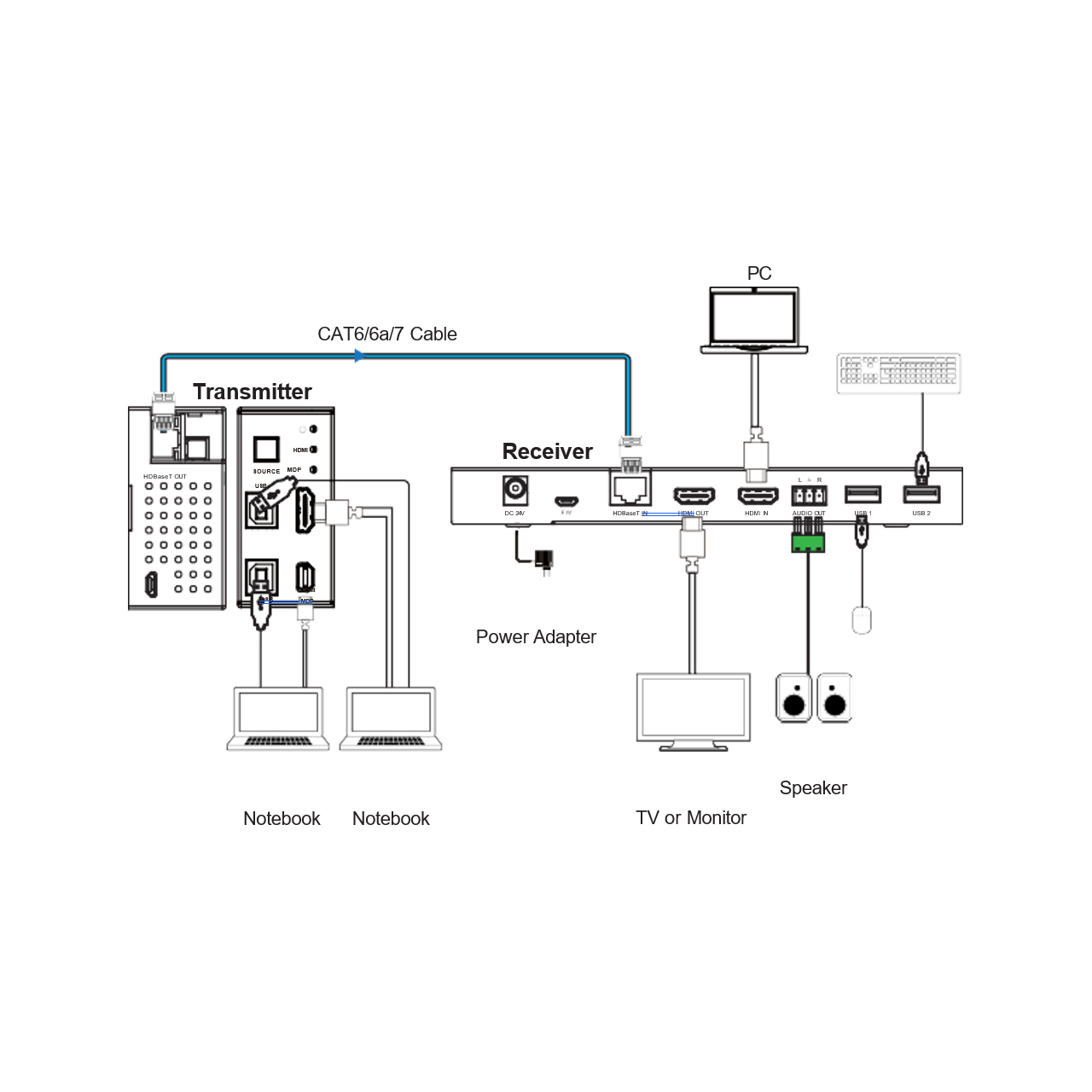

The VigilLink VLWP-DHU-TR wall plate serves as a 2x1 switcher and HDBaseT transmitter, accommodating HDMI and DP inputs. Encased in a US one-gang enclosure designed for Decora-style wall plate openings, it offers interchangeable black and white wall plates and faceplates for added flexibility. Capable of supporting video resolutions up to 4K/UHD@60Hz 4:4:4, this product also boasts USB 2.0 KVM functionality. Furthermore, it can be remotely powered by the receiver or other HDBaseT-equipped devices via POE, ensuring seamless operation.

  • Features:

    • 1-Gang US Decora size wall plate and receiver box
    • Up to 4K/2K @60Hz with 24bit RGB / YCbCr (4:4:4)
    • HDBT up to 230ft/70m (1080p) and 131ft/40m (4K) over CAT6/6a/7 cable
    • Standard PoE power supply (Tx is PD, Rx is PSE)
    • White or black (SO) case optional


  • Specifications:

      Technical
    • HDMI Compliance: HDMI 2.0b, DisplayPort 1.2a
    • HDCP Compliance: HDCP 2.2
    • Video Bandwidth: 18 Gbps
    • Video Resolutions:
      - 4096x2160@24/25/30/50/60Hz
      - 3840x2160@24/25/30/50/60Hz
      - 2048x1080p
      - [email protected]/24/25/29.97/30/50/59.94/60Hz
      - 1080i@50/59.94/60Hz
      - 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
    • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
    • Color Depth: 8/10/12-bit
    • HDR: HDR10, HDR10+
    • HDMI Audio Formats: Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch
    • Transmission Distance: Max distance (1080p) : 230ft / 70m over CAT6/6a/7
    • Max distance (UHD/4K): 131ft / 40m over CAT6/6a/7
    • ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

      Connections

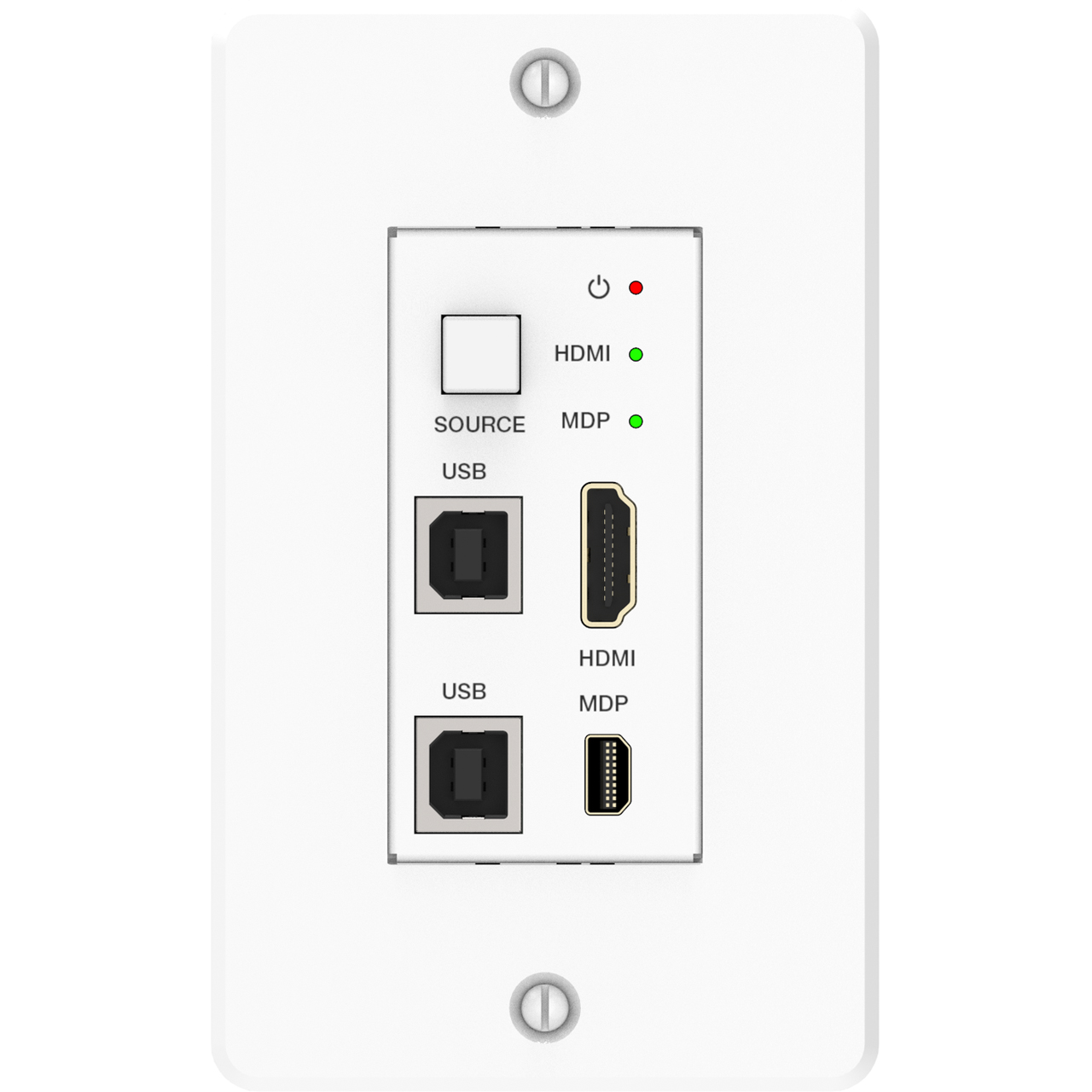

    • Transmitter Inputs:
      - 1x HDMI Type A [19-pin female]
      - 2x USB-B
      - 1x miniDP [20-pin female]
    • Transmitter Outputs:

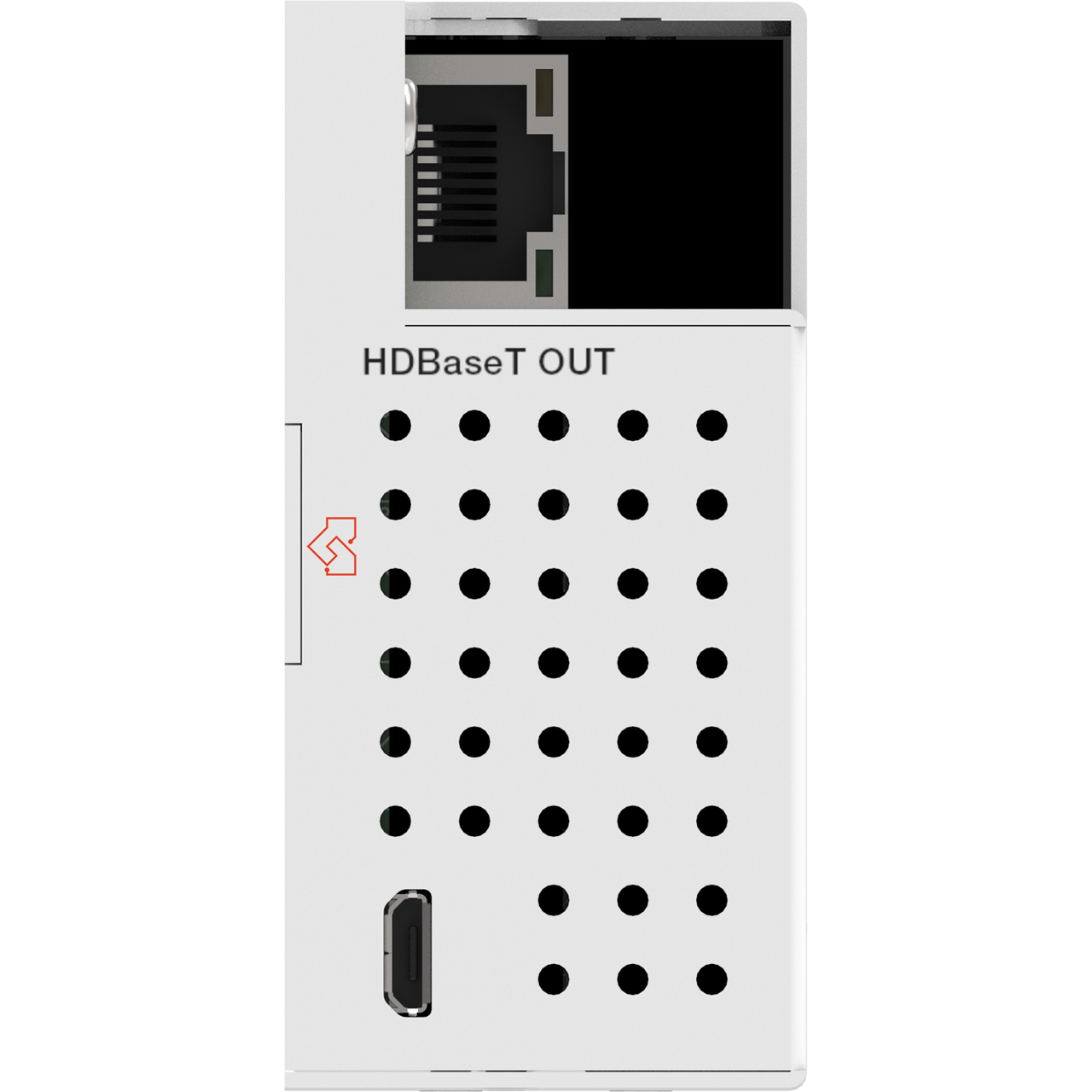

      - 1x HDBaseT Out [RJ45, 8-pin female]
    • Transmitter Controls: 1x Micro USB [Update port]
    • Receiver Inputs:
      - 1x HDMI IN [Type A, 19-pin female]
      - 1x HDBaseT IN [RJ45, 8-pin female]
    • Receiver Outputs:
      - 1x HDMI OUT [Type A, 19-pin female]
      - 1x AUDIO OUT [Phoenix jack]
    • Receiver Controls:
      - 2x USB [USB A TYPE]
      - 1x FW [Micro USB, Update port]

      Mechanical
    • Housing: Metal Enclosure
    • Color: White / Black
    • Dimensions:
      - Wall plate: 2.59 x 1.31 x 2.70 (33.3 x 65.7 x 68.7mm)
      - Faceplate: 0.12 x 2.75 x 4.5 (69.9 x 3 x 114.3mm)
      - Receiver: 3.86 x 7.87 x 0.08 (200 x 98 x 23mm)
    • Weight:
      - Wall plate: 0.43lb (196g)
      - Receiver: 1.12lb (511g)
    • Power Supply: PoE (only from Receiver to Transmitter)
    • Power Consumption: Wall plate: 9W (Max), Receiver: 11W (Max)
    • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
    • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
    • Relative Humidity: 20 - 90% RH (No condensation)


  • Item Includes:

    • 1x 18Gbps HDBaseT 70M with MDP/HDMI & KVM Function Wall
    • Plate Transmitter
    • 1x User Manual


  • Warranty:

    • 6 Years
