VigilLink VLWP-HD70-TR 18Gbps 1-Gang Wall Plate with POC HDBaseT 2.0/HDMI 2.0 - White

VLWP-HD70-TR - Overview

• Features:

  • HDMI 2.0b 18Gbps, HDCP 2.2 compliant
  • Up to 4K2K@60Hz(4:4:4), 4K2K@30Hz, 1080p@120Hz
  • Up to 7.1 channels HD audio
  • HDBaseT™ over a single CAT 6/6a/7 cable up to 230ft/70m distance

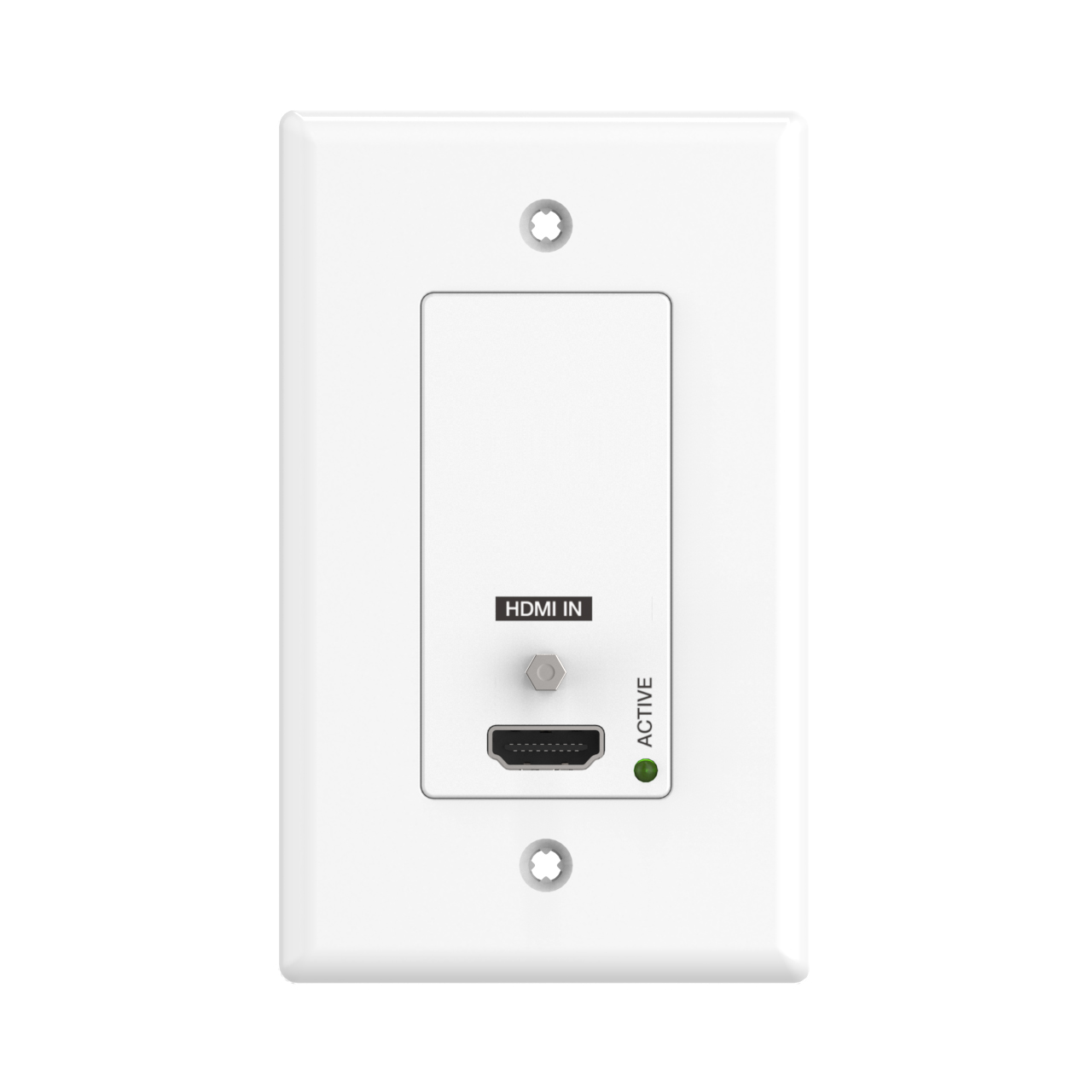

  • One HDMI input, 1 Gang US Decora Wall Plate
  • Two-way IR and RS-232

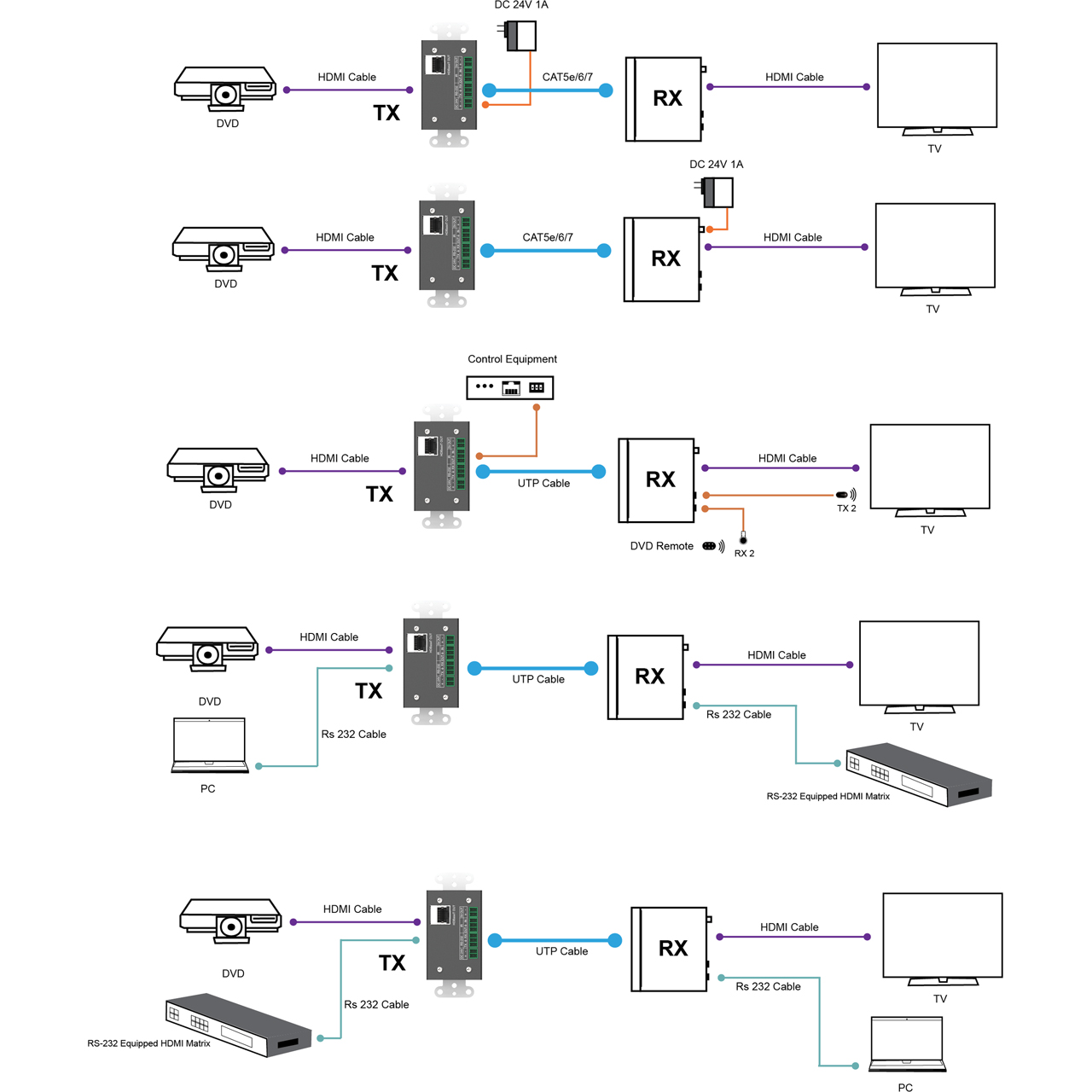

  • POC (Power Over Cable) function is supported, either TX or RX is powered by 24V1A power supply, the another does not need power supply from the DC jack. POC Power consumption is less than 10W.
  • Transfers Bidirectional Infrared control signal together with the HDMI signal.
  • Transfers Bidirectional RS-232 control signal together with the HDMI signal.


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2
  • Video Bandwidth: 18 Gbps
  • Video Resolution: up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
  • Color Space: RGB/YCbCr 4:4:4, YCbCr 4:2:2
  • Color Depth: 10-bit, 12-bit
  • HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  • Optical Audio Formats: LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
  • ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

    Connections
  • Transmitter Inputs:
    - 1x HDMI Type A [19-pin female]
    - 1x IR INPUT [Phoenix jack]
    - 1x RS-232 [Phoenix jack]

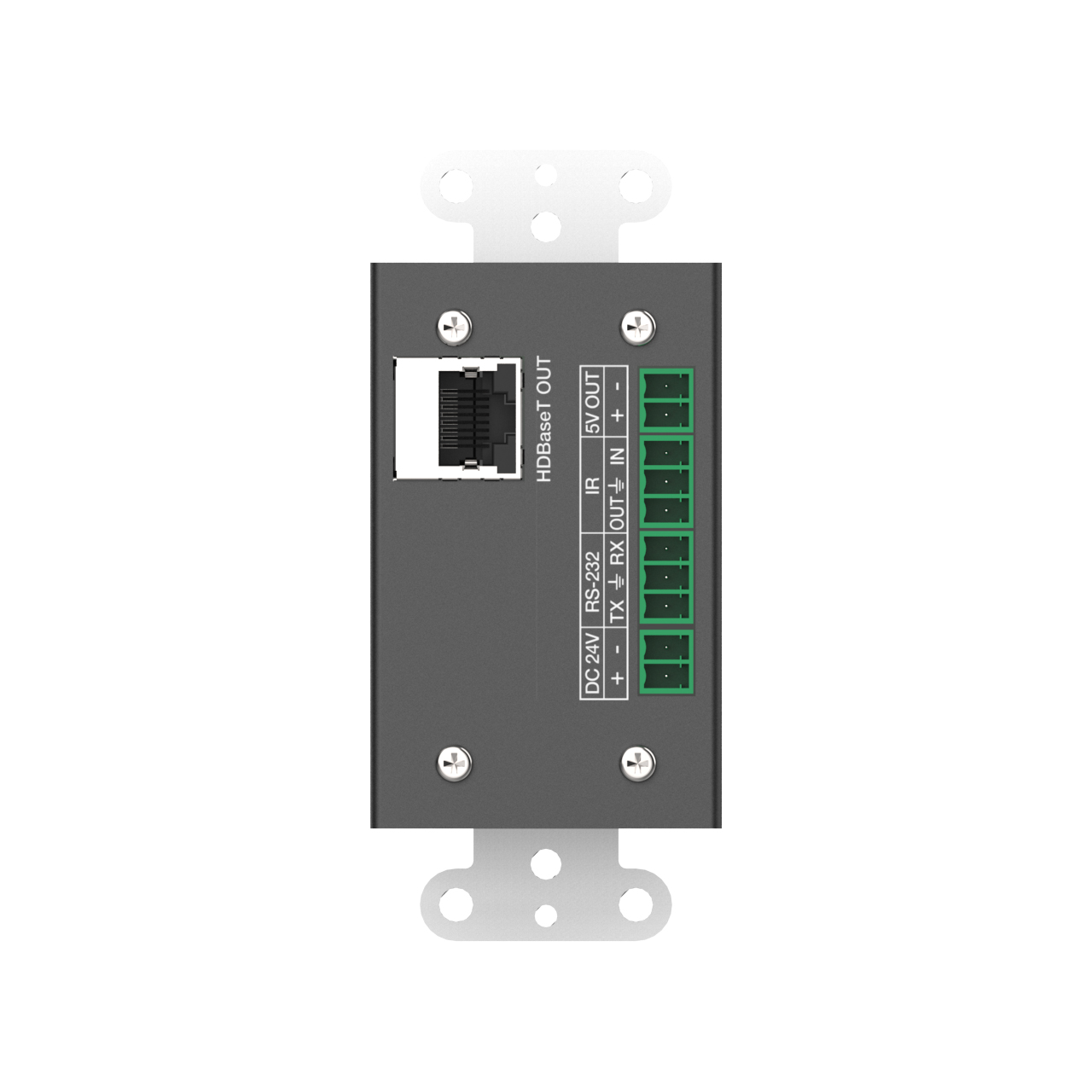

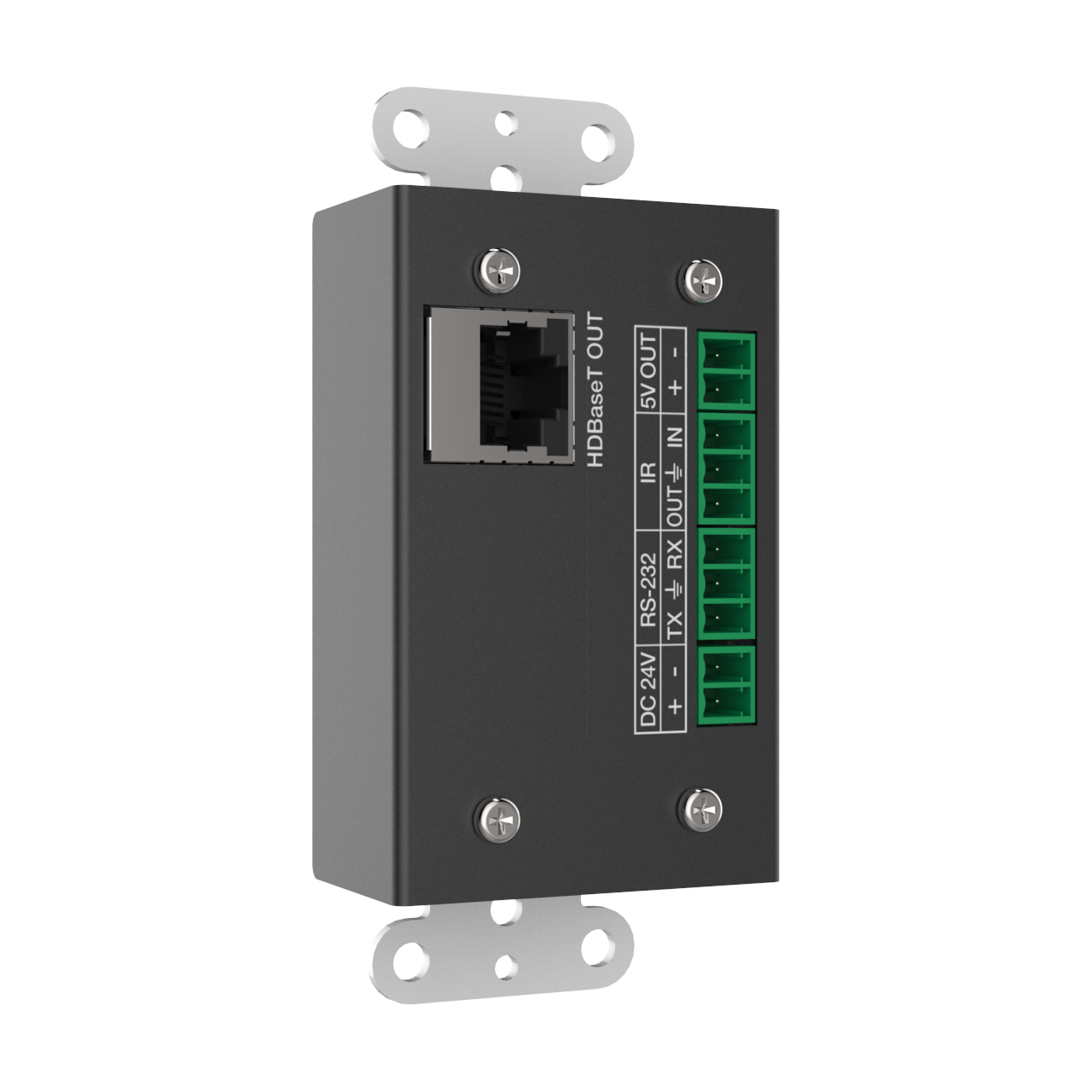

  • Transmitter Outputs:
    - 1x HDBaseT Out [RJ45]
    - 1x IR OUTPUT [Phoenix jack]
    - 1x RS-232 [Phoenix jack]

    Mechanical
  • Housing: Plastic-Front Panel, Metal-Rear Case
  • Color: Transmitter: White, Receiver: Black
  • Dimensions: 1.81 x 4.07 x 1.18" (103.5 x 46 x 30mm)
  • Weight: 0.44lb (163g)
  • Power Supply: Input: AC100 - 240V 50/60Hz, Output: DC 24V/1A
  • Power Consumption: 9W (Max)
  • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
  • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
  • Relative Humidity: 20 - 90% RH (No condensation)


• Item Includes:

  • 1x 18G HDMI Wall Plate Transmitter
  • 2x Phoenix connectors (3 pins)
  • 2x Phoenix connectors (2 pins)
  • 1x User Manual


• Warranty:

  • 6 Years
