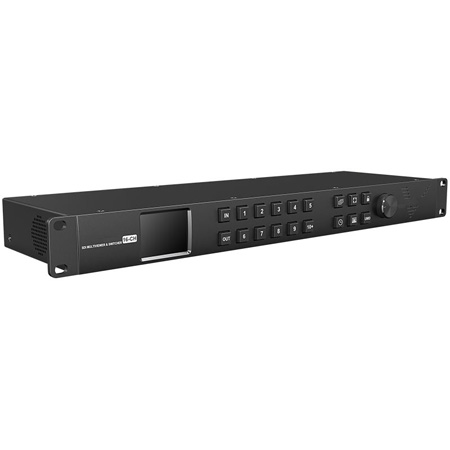

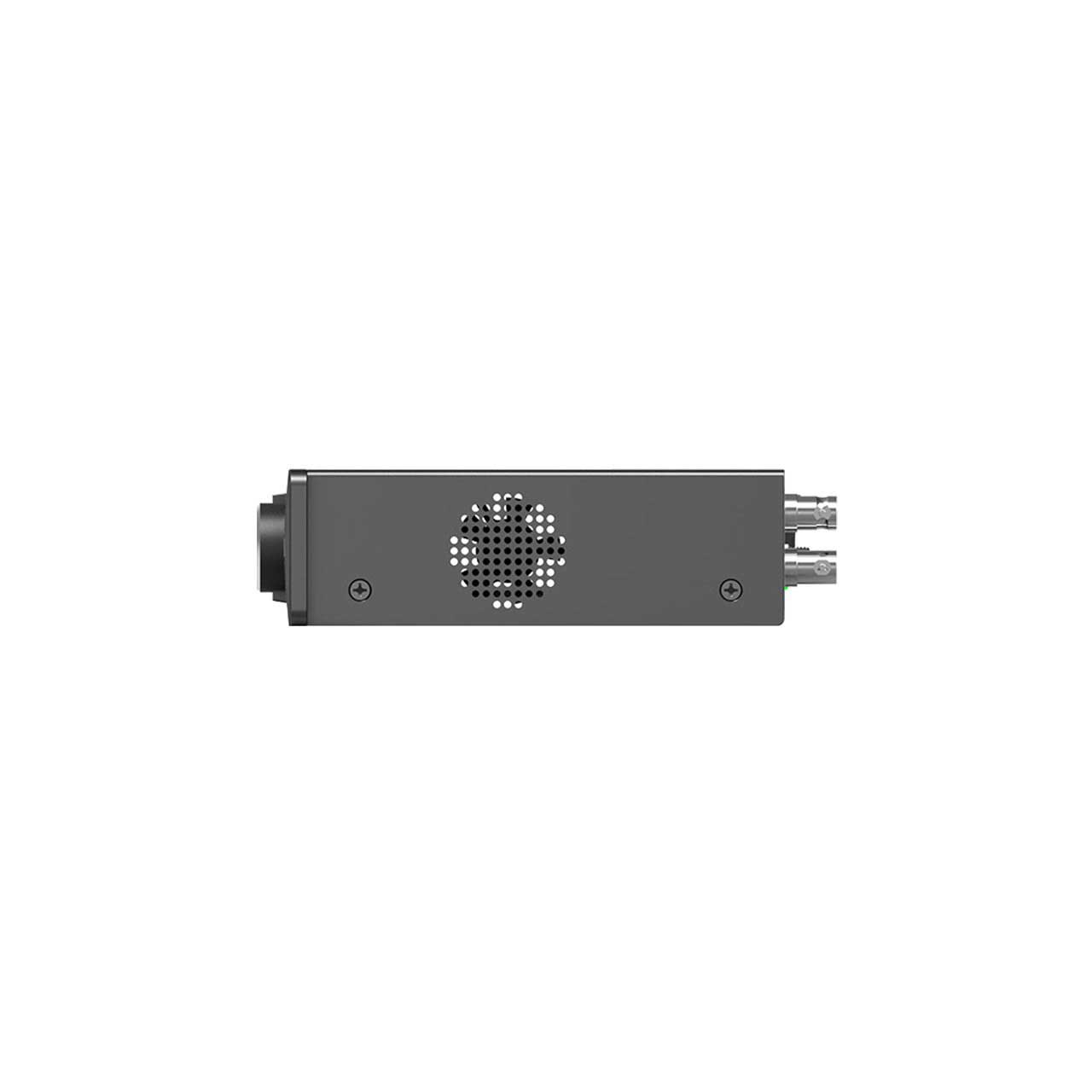

Viewz VZ-MV1602-SDI Dual Mode 16-Channel SDI Multi-Viewer & Matrix Switcher - 1RU - 19 Inch Rack-Mountable

VZ-MV1602-SDI - Overview

• Features:

  • Model Number: VZ-MV1602
  • Dual Modes : 16ch Multiviewer and 16x16 Matrix Switcher
  • 16 x SD/HD/3G-SDI Auto-detected Inputs
  • 2 x SDI & 1 x HDMI Multiview Scaling Outputs with Audio
  • Full Screen and 20 Preset-Multiview Layouts with Clock Display
  • Time Code, UMD, Signal Status & Audio Meter Overlay

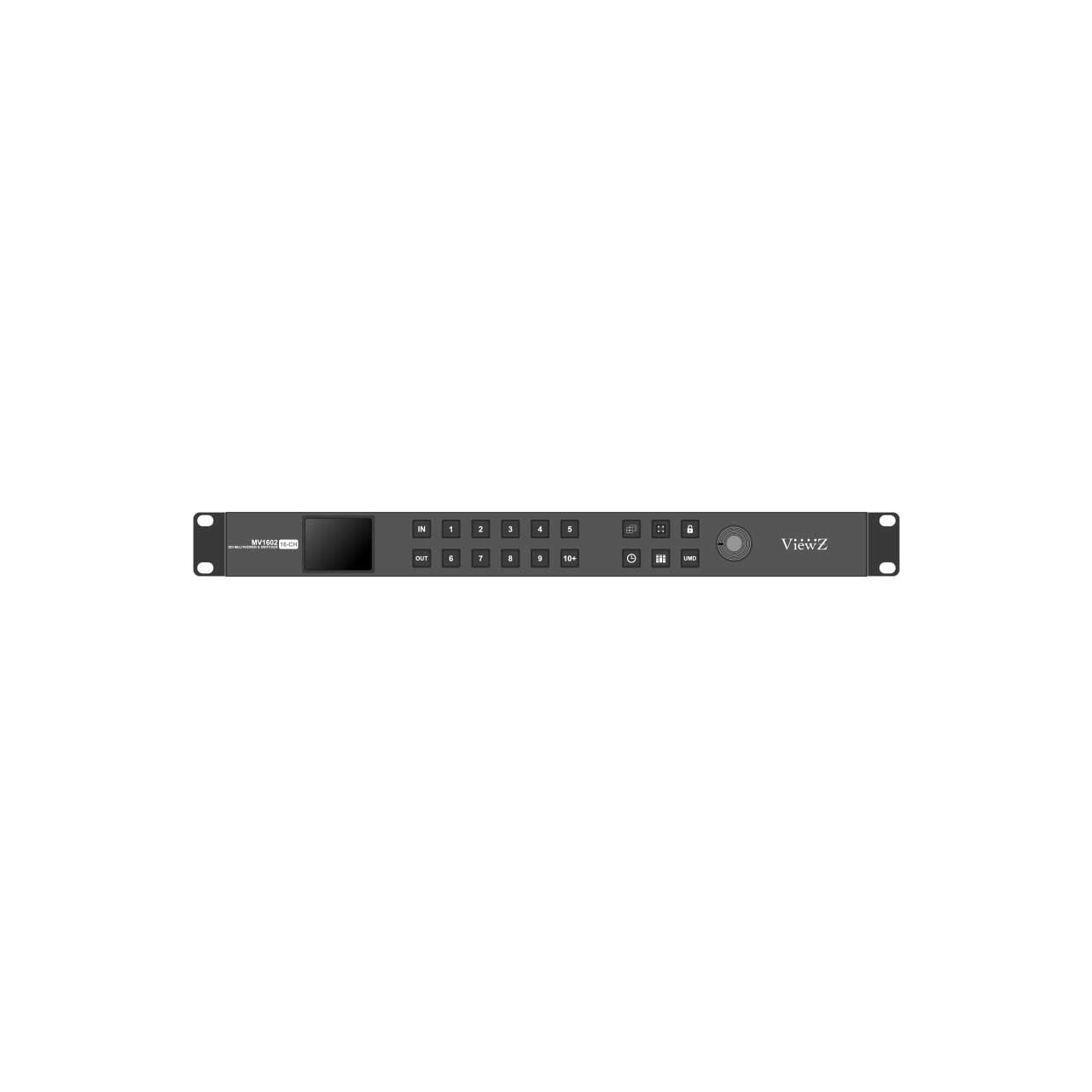

  • Front Panel Buttons & Knob Control with LCD Display
  • Free PC Control S/W via Network, 16CH SDI Loop-through
  • Multiviewer Mode SDI Compliance - SMPTE 292M, SMPTE 259M, SMPTE 424M, SMPTE 352M, SMPTE 296M
  • Multiviewer Mode SDI Color Space & Precision -YUV 4:2:2/4:4:4, RGB 4:4:4 (SDI Inputs), YUV 4:2:2 (SDI&HDMI Inputs)
  • Switcher Mode SDI Compliance - SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 372M, DVB-SDI
  • Switcher Mode SDI Color Space & Precision - YUV 4:2:2/4:4:4 10/12bit, RGB 4:4:4 10/12bit, XYZ 4:4:4 12bit
  • Dual Power Design


• Specifications:

  • Multiviewer Mode - Input/Output Format
  • SDI In - HD:
    1920 x 1080p | 60,59.95,50,30,29.97,25,24,23.98
    1920 x 1080psf | 30,29.97,25,24,23.98
    1920 x 1080i | 60,59.94,50
    1280 x 720p | 60,59.94,50,30,25
    1280 x 720p | 30,29.97,25,24,23.98
  • SDI In - SD: 625i / 50 | 525i / 59.94
  • SD, HDMI OUT: 1920 x 1080p | 60,50,30,25,24 1080i / 60,50 | 720p / 60,50

    Switcher Mode - Input/Output Format
  • SDI - 2K:
    2048 x 1080p | 30,29.97,25,24,23.98
    2048 x 1080psf | 30,29.97,25,24,23.98
  • SDI - HD:
    1920 x 1080p | 60,59.95,50,30,29.97,25,24,23.98
    1920 x 1080psf | 30,29.97,25,24,23.98
    1920 x 1080i | 60,59.94,50
    1280 x 720p | 60,59.94,50,30,25
    1280 x 720p | 30,29.97,25,24,23.98
  • SDI - SD: 625i / 50 | 525i / 59.94

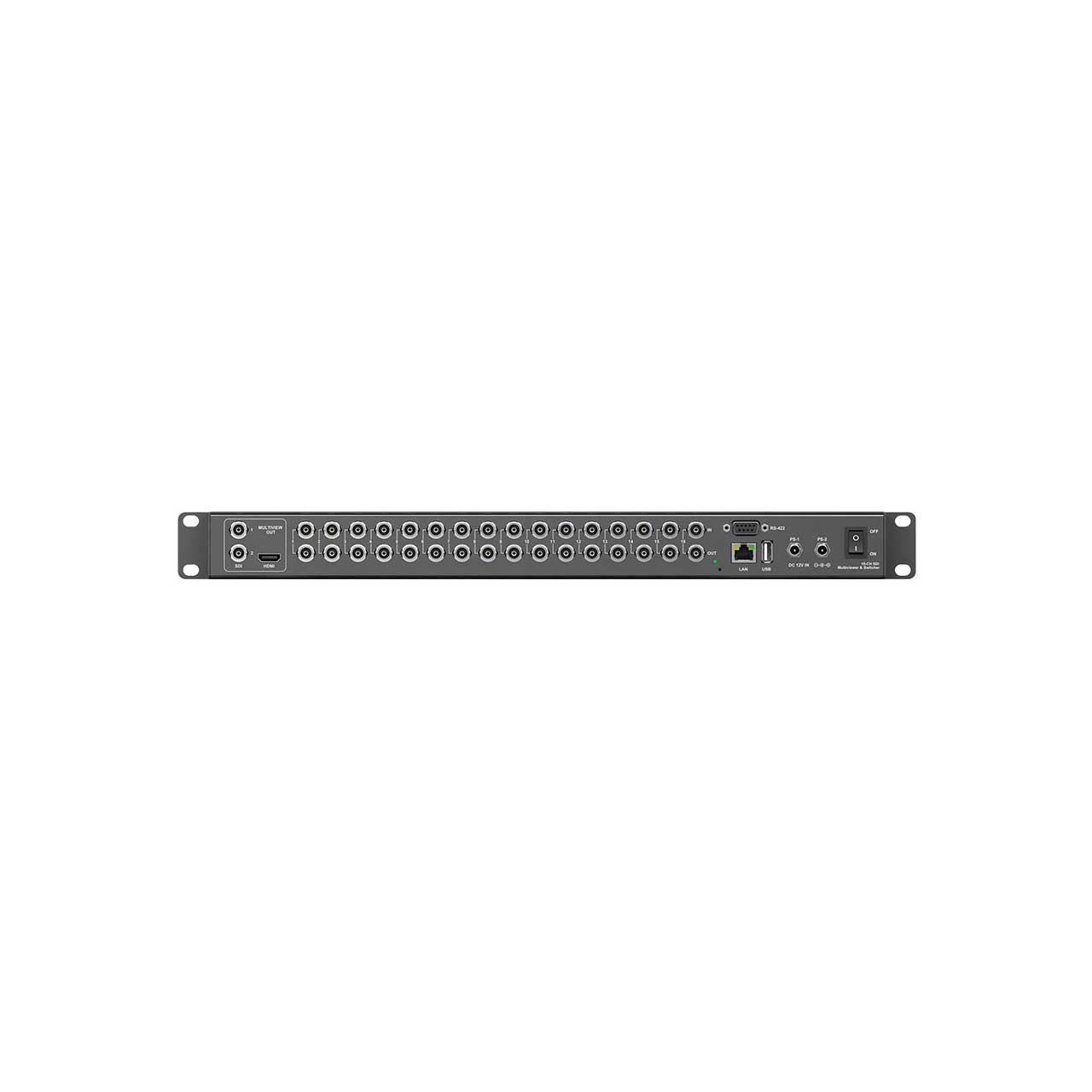

    Interface
  • SDI In / Out: 16 / 16
  • HDMI Output (Multiview): 1
  • SDI Out (Multiview): 2
  • RJ45 (SW Control & Update): 1
  • RS422 (SW Control): 1
  • Power Connector: 2

    Dimensions & Weight
  • Outline Dimension (W x H x D): 17.45 x 5.27 x 1.73" / 443.3 x 134 x 44 mm
  • Net Weight: 4.4 lbs | 2 kg
  • Gross (with case) Weight: 8.37 lbs | 3.8 kg

    Mount
  • Server Chassis: 1U (19")

    General Summary
  • Power - Electrical Ratings: DC 12~24V, 5A
  • Power - Consumption: = 36W
  • Transmitter - IR Remote Control: Yes
  • Operating Temperature: 32 - 140°F / 0 - 60°C
  • Operating Humidity: 0 ~ 90% RH
  • Storage Temperature: -22 - 158°F / -30 - 70°C
  • Package Include: 16ch Multiviewer x 1, Manual x 1, DC 12V 5A Power Adapter x 2


• Item Includes:

  • 1x Viewz VZ-MV1602-SDI Dual Mode 16-Channel SDI Multi-Viewer & Matrix Switcher - 1RU - 19 Inch Rack-Mountable
