Weller WX1010N 1-Channel Soldering Station - 200 Watt

ITEM #: WEL-WX1010N MFG #: WX1010N

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the WEL-WX1010N

WX1010N - Overview

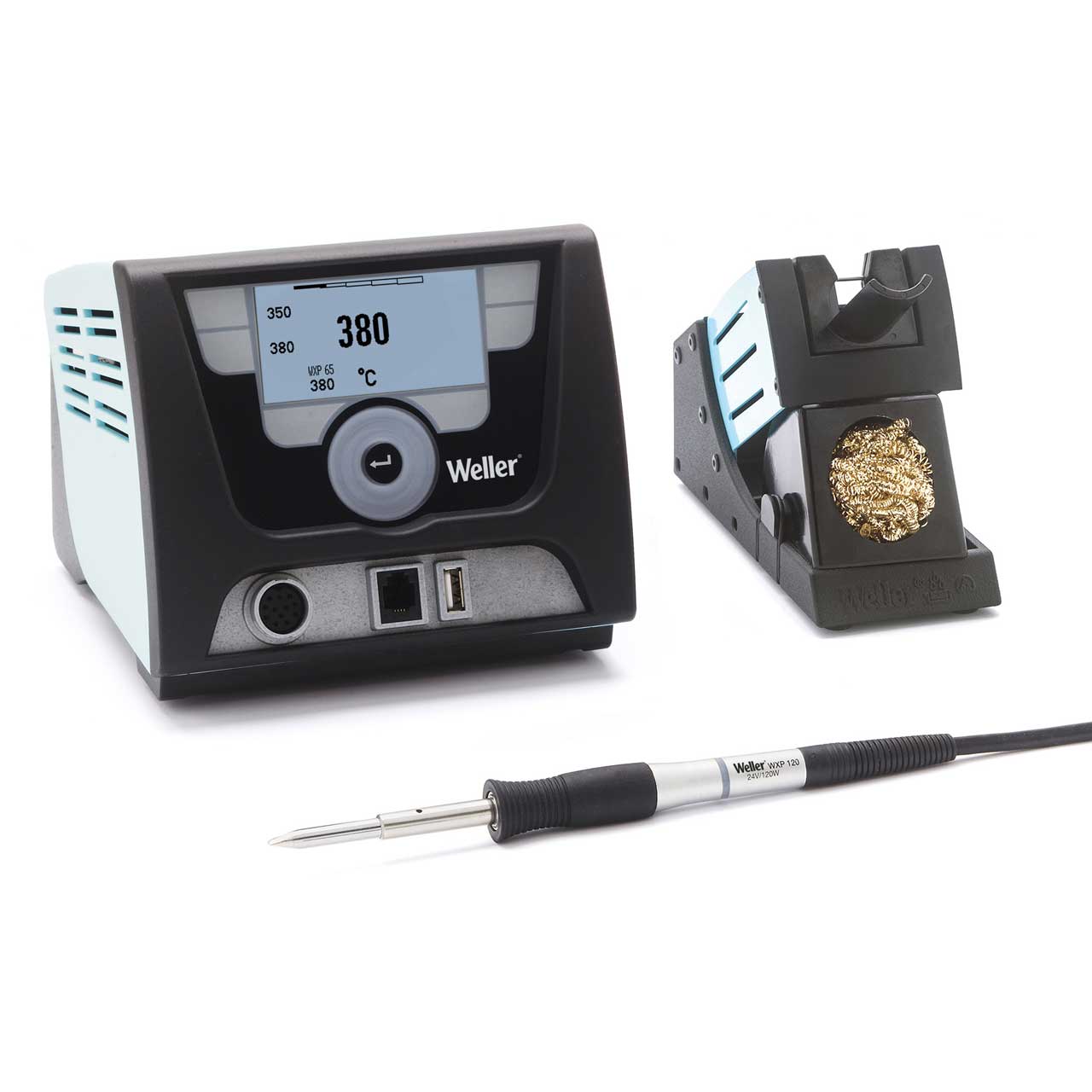

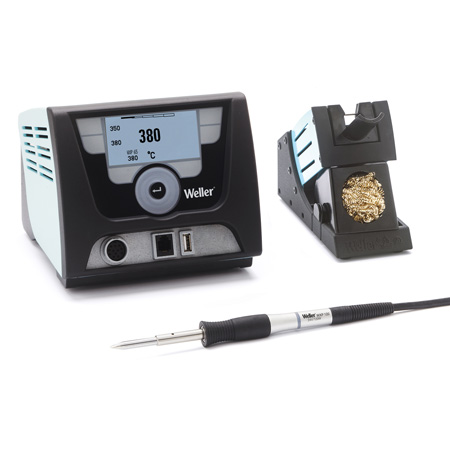

The Weller WX1010 is a 200 watt, single channel soldering station with digital controls and an array of features essential to the modern production environment. As part of the WX family, the WX1010 is compatible with many WX handpieces and peripherals, making it easily customized to your particular application. The WX1010 includes the WXP120 iron, which is 120 watts and uses XT series tips.

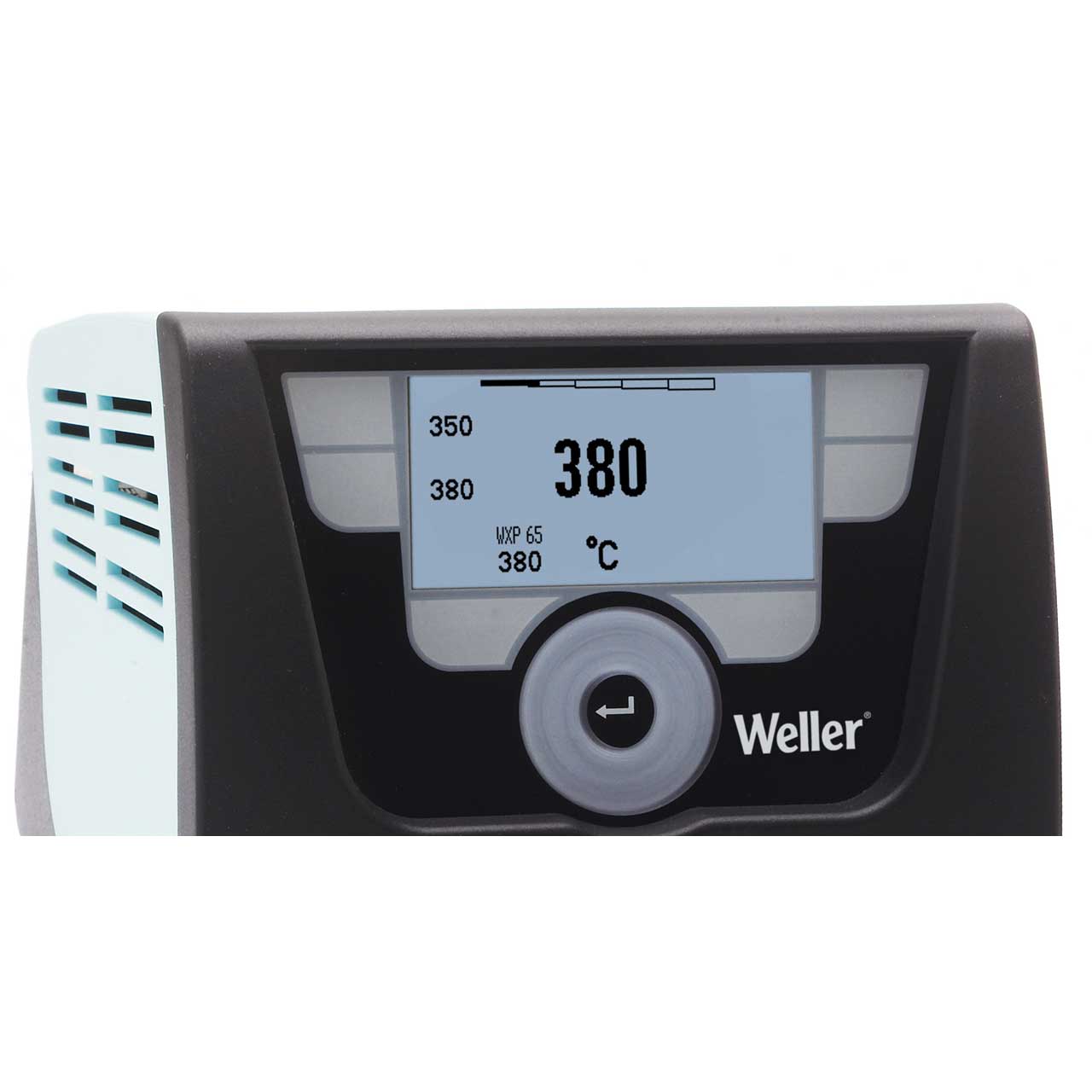

On screen menus are easily navigated through a capacitive touch screen. Made of real glass, the screen is anti-static, temperature resistant and simplifies station usage. A turn and click wheel with confirm button also allows for very intuitive and fast operation.

The WX series was designed for ease of use. Irons contain a visual indicator letting operators know when their tool is ready to use. If the handle's LED is blinking, the device is in standby or heating up. When the light is on, the tip is ready to use. In addition, WX tools contain a motion sensor, so that they only turn on when in use, and go into standby when placed in the stand.

  • Features:

    • 200 watts of power
    • Includes WXP120 iron
    • Uses XT series tips
    • Capacitive touch screen
    • Compatible with WX tools

  • Specifications:

    • Dimensions (LxWxH): 6.69 x 5.94 x 5.12" (170 x 151 x 130mm)
    • Weight (approx.): 7.05Lbs (3.2kg)
    • Voltage: 120 V
    • Power: 200 W
    • Channels: 1
    • Temperature Range (depends on tool): 200° to 999°F (100° to 550°C)
    • Temperature Accuracy: ±17°
    • Temperature Stability: ±4°
    • Equipotential Bonding Socket: Via 3,5 mm pawl socket on back of device
    • Display: 255 x 128 dots / Backlighting
