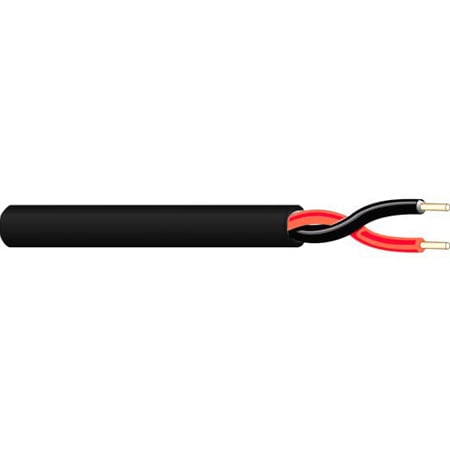

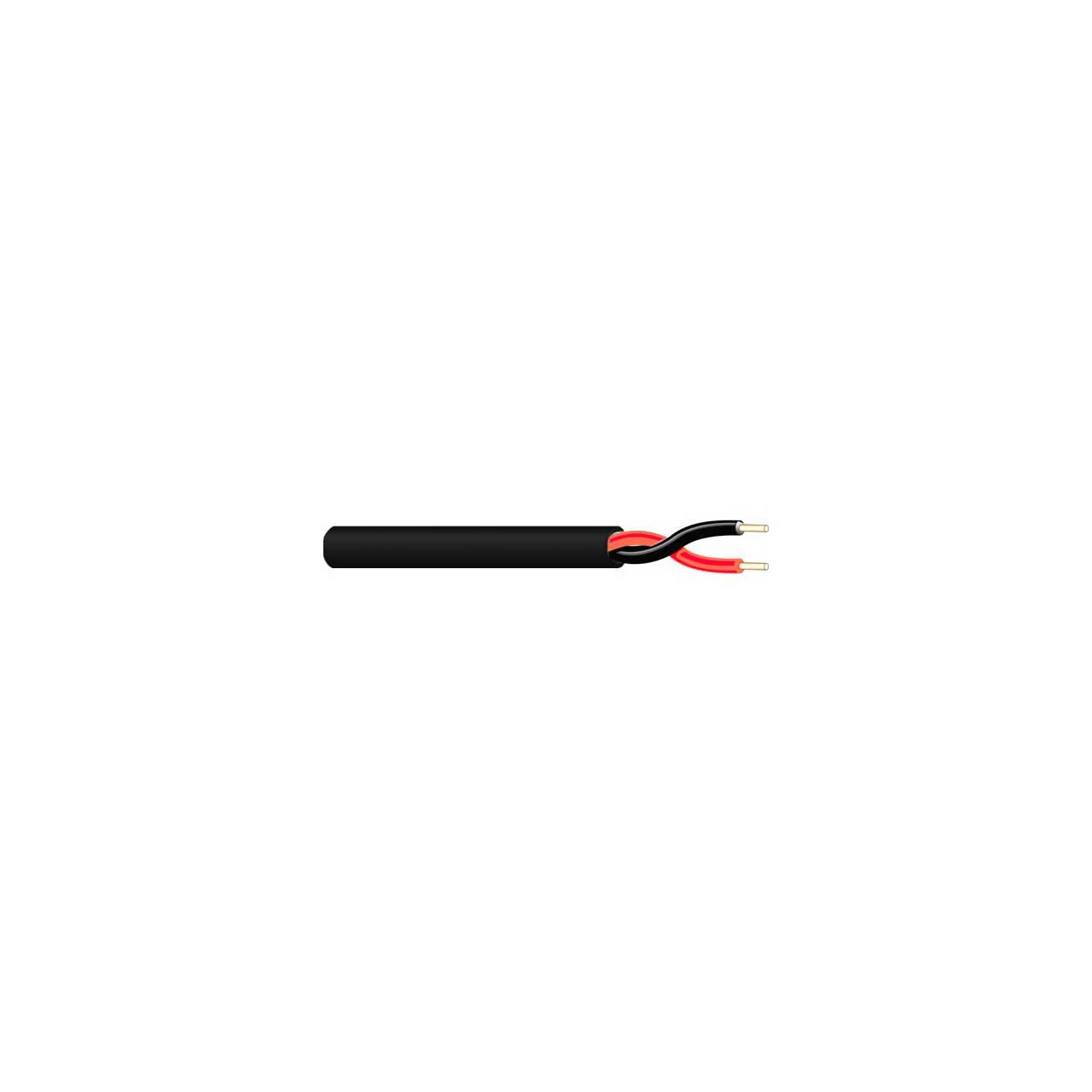

West Penn Wire 25225B Super Plenum Speaker Cable 16AWG - Black - 1000 Foot

25225BBK1000 - Overview

• Features:

  • 1000' Length
  • 16/2 Stranded bare copper conductors
  • Unshielded with an overall jacket


• Specifications:

  • Conductor: 16 AWG Bare Copper
  • Stranding: 19x29
  • Insulation Material: Flex Plenum PVC
  • Insulation Thickness: 0.008'' Nom.
  • Number of Conductors: 2
  • Shield: None
  • Drain: None
  • Jacket Material: Flex Plenum PVC
  • Jacket Thickness: 0.015'' Nom.
  • Overall Cable Diameter: 0.176'' Nom.
  • Approximate Cable Weight: 25 Lbs/1M' Nom.
  • Flame Rating: NFPA 262 Flame Test
  • Temperature Rating: -10°C To +60°C
  • Operating Voltage: 300 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz: 33 pf/ft Nom.
  • DC Resistance per Conductor @ 20deg C: 4.2 Ohms/1M' Nom.
  • Insulation Colors: Black, Red
  • Jacket Color: Gray, Black, Green
  • RoHS Compliant: Yes


• GTIN:

  0612825045595
