West Penn 25226B 14/2 Plenum Speaker Cable - 500 Feet- Black

ITEM #: WP-25226B-500BK MFG #: 25226B-500BK

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$228.10

Our Price:

$194.10

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

25226B-500BK - Overview

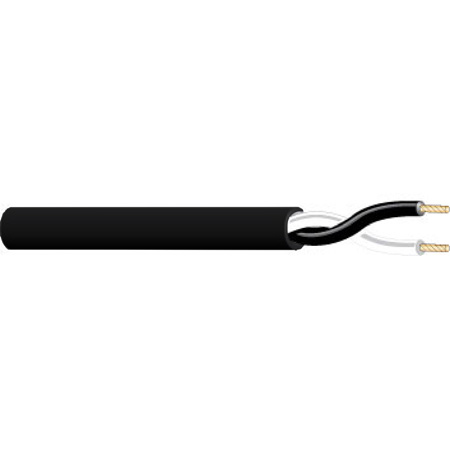

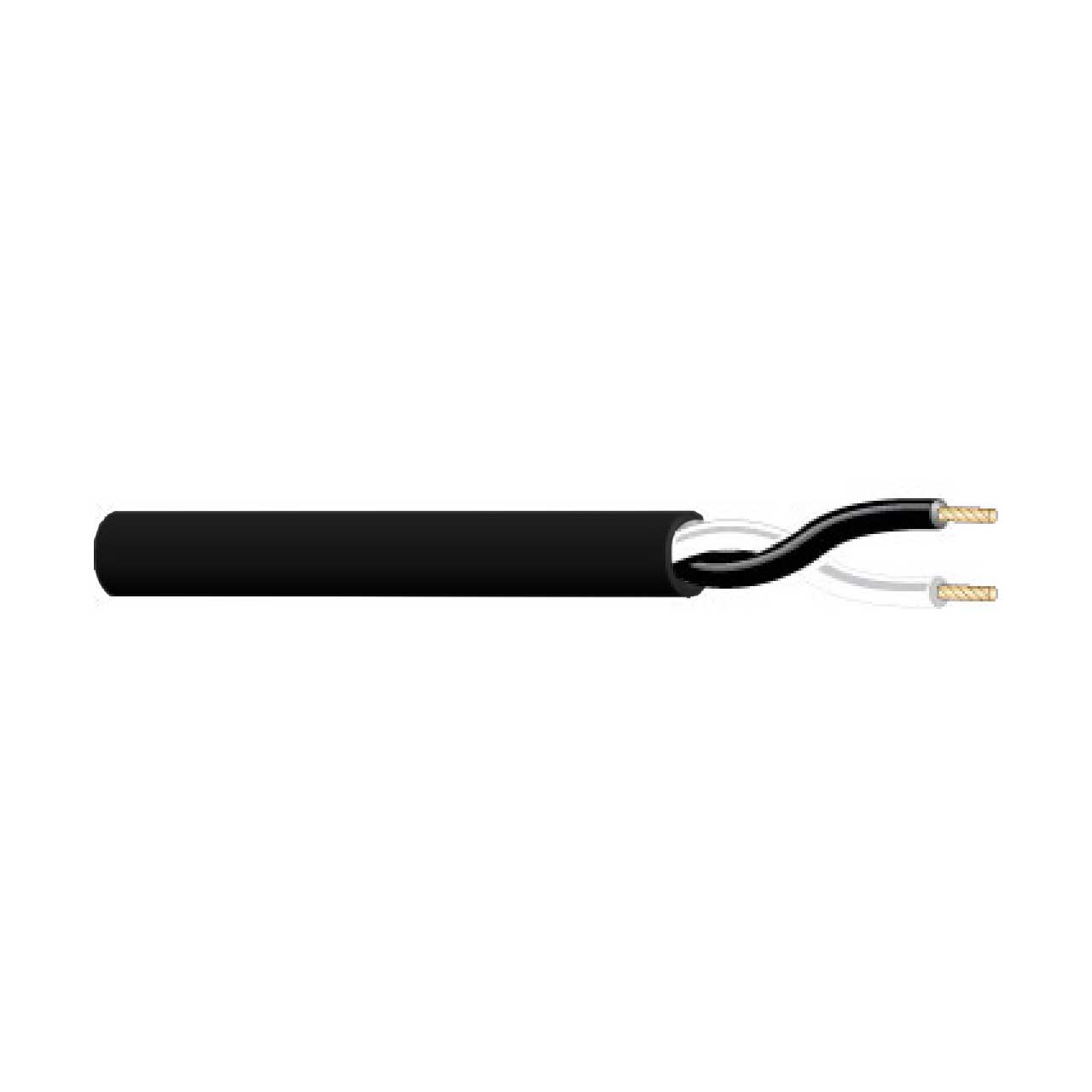

The West Penn 25226B is a 14AWG 2 conductor cable used for audio, control, and low voltage power applications. It is unshielded, has a plenum PVC insulation, and a flexible plenum jacket.

  • Specifications:

    • Number of Conductors: 2
    • AWG Size: 14
    • Conductor Stranding: 19 x 27
    • Conductor Type: Bare Copper
    • Nominal DCR: 2.7Ω/1000ft
    • Cabling Lay Length: 3.75"
    • Twists/Foot: 3.2 twist/ft
    • Insulation Type: Plenum PVC
    • Insulation Thickness: 0.012"
    • Shield Type: None
    • Jacket Type: Flexible Plenum
    • Jacket Thickness: 0.015"
    • Nominal Cable O.D.: 0.223"
    • Plenum: Yes
    • NEC UL Rating: CL3P, FPLP
    • RoHS Compliant: Yes
    • Pull Tension: 84lbs
    • Bend Radius: 2.007"
    • Cable Weight: 36lbs
    • UL Flammability: NFPA 262 Plenum
    • Operating Range: 32°F - 140°F (-0°C - 60°C)
    • UL Voltage Rating: 300


  • GTIN:

    0612825045786
