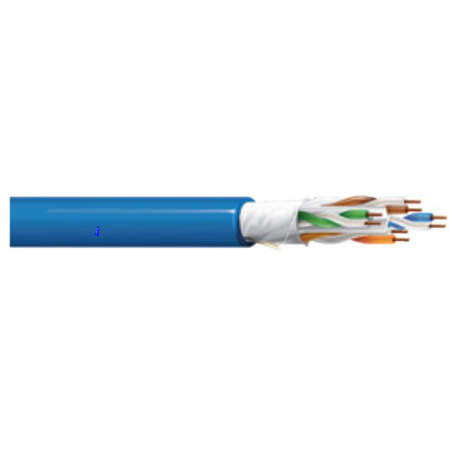

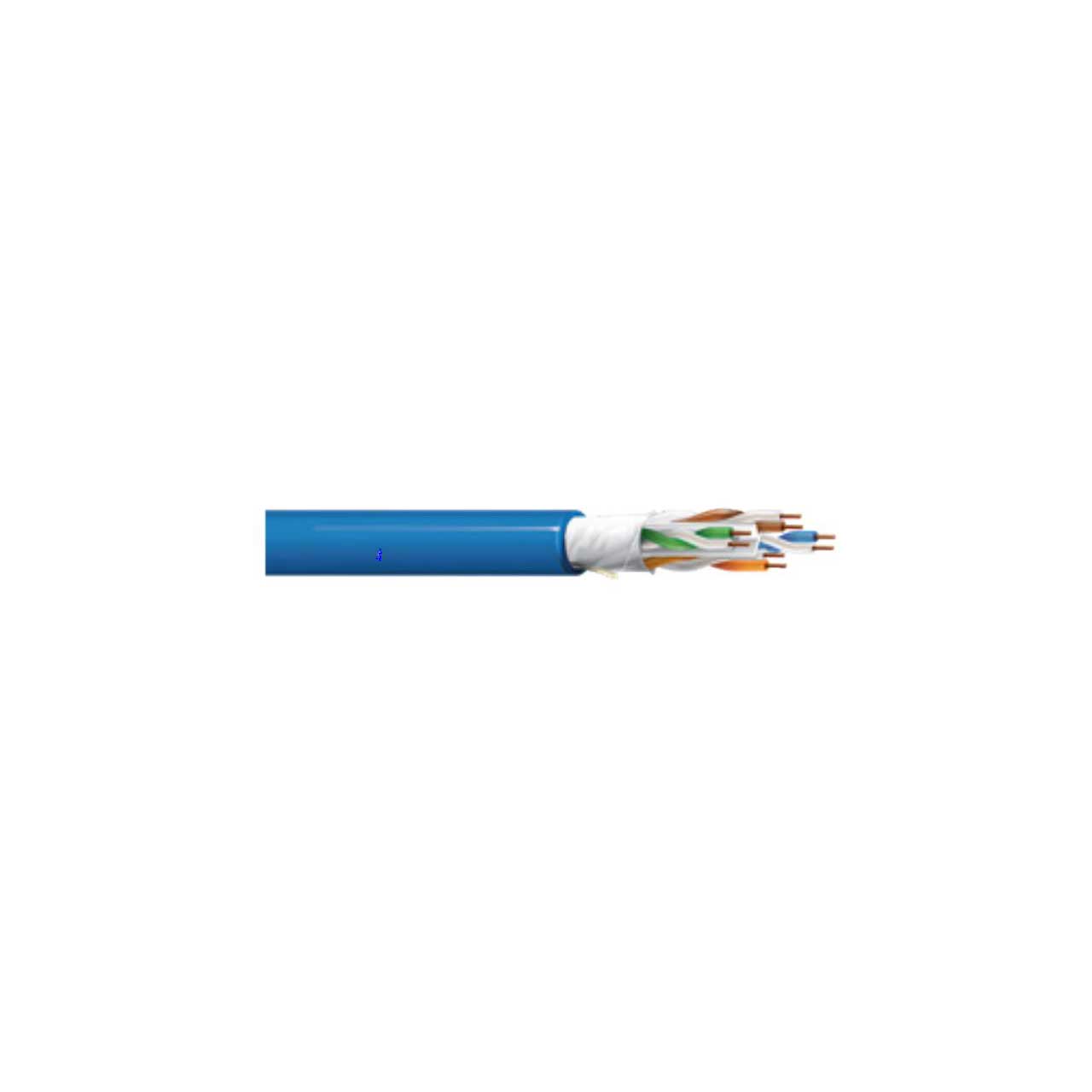

West Penn 254346A 4 Pair 23AWG UTP 10G CMP/Plenum Cat6A Small OD Premise Horizontal Cable - Blue - 1000 Foot

ITEM #: WP-254346A1000BE MFG #: 254346ABL1000

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$745.40

Our Price:

$605.95

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

254346ABL1000 - Overview

The West Penn 254346A is suitable for applications that include: Premise Horizontal Cable, Ethernet 10GBASE-T, Wi-Fi 6, Wi-Fi 5, In-Building Wireless, In-Building Small Cells, Mobile RAN, PoE++, PoE+, PoE, HDBaseT

  • Specifications:

    • Number Of Pairs: 4.
    • AWG Size: 23.
    • Conductor Stranding: Solid.
    • Conductor Type: Bare Copper.
    • Nominal DCR: 21 Ohm/1000ft.
    • Insulation Type: Flouropolymer - FEP.
    • Insulation Color Code: White & Blue, White & Orange, White & Green, White & Brown.
    • Total Number of Conductors: 8.
    • Jacket Type: Flexible Plenum.
    • Nominal Cable O.D.: .250in.
    • Plenum: Yes.
    • NEC UL: Rating: CMP, CMP-LP.
    • RoHS Compliant: Yes.
    • ANSI/TIA Category: ANSI/TIA-568.2-D Category 6A
    • TIA Test: Category 6A.
    • Pull Tension: 25 lbs.
    • Bend Radius: 1.25 in.
    • Cable Weight: 37 lbs.
