West Penn 454 1-Pair 22Awg CM Miniature Line Level Audio Cable 1000 Foot Black

ITEM #: WP-454-1000BK MFG #: 454 BLACK

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$141.81

Availability: In Stock
iAvailability Description Popup


    454 BLACK - Overview

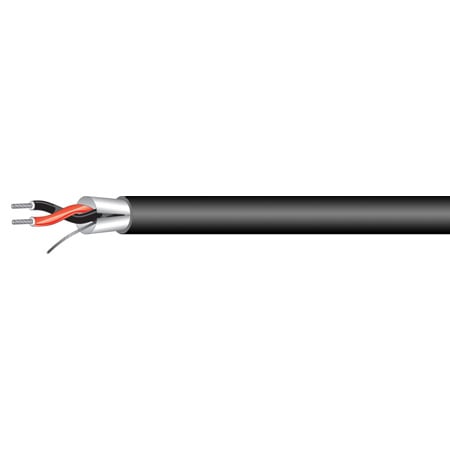

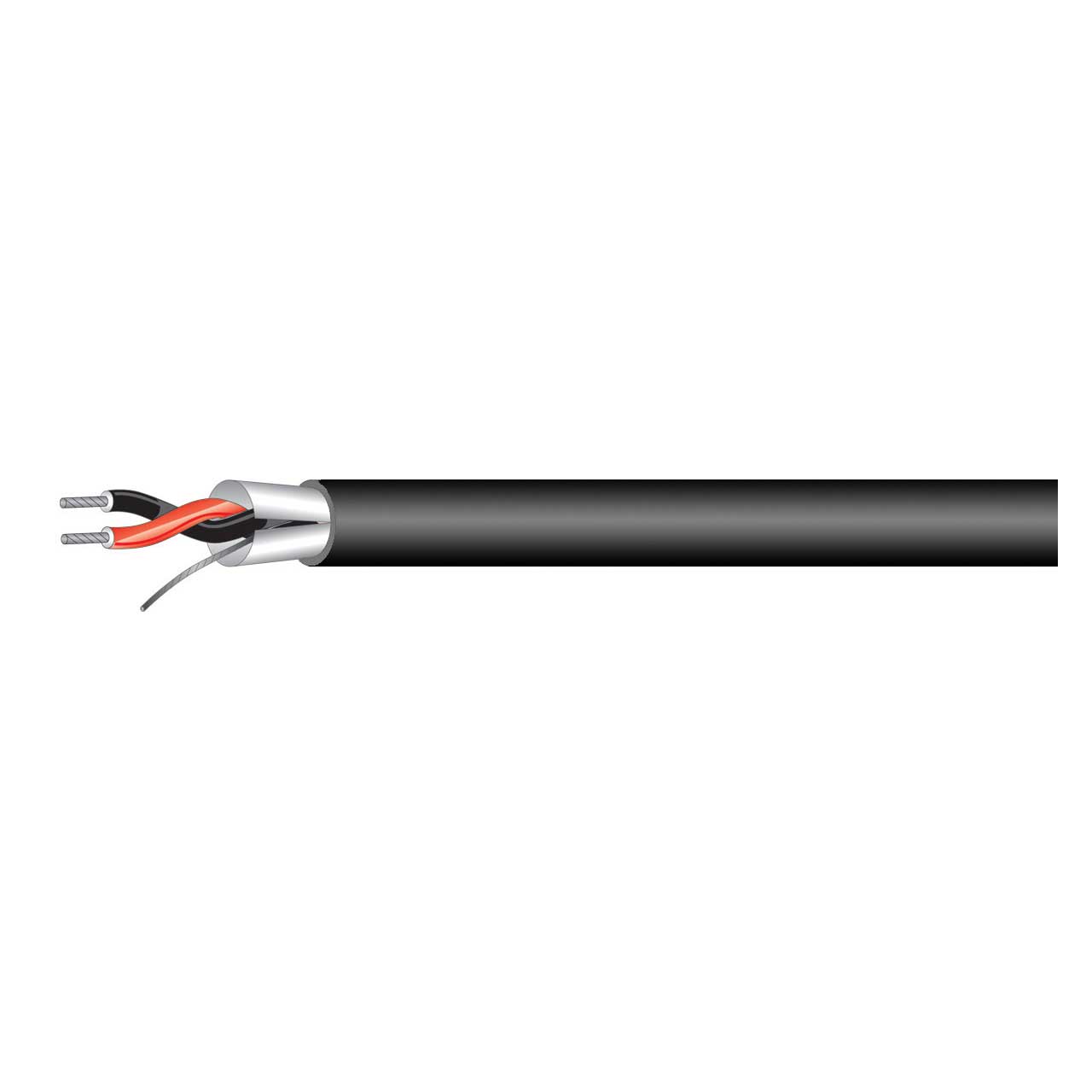

    West Penn 454-1000BK is a Miniature Line Level Audio Cable. 22/2 Stranded tinned copper conductors, shielded with an overall jacket. Rated for Indoor use in Post Production Facilities, Recording Studios, and most all Sound/Audio applications.

    • Specifications:

      • Conductor Parameter
      • Number of Pairs: 1
      • AWG Size: 22
      • Conductor Stranding: 7x30
      • Conductor Type: Tinned Copper
      • Nominal DCR: 17 Ohm/1000ft

        Overall Construction Parameters
      • Jacket Type: PVC
      • Jacket Thickness: 0.02"
      • Nominal Cable O.D.: 0.135"
      • Plenum: No
      • NEC UL Rating: CMR
      • RoHS Compliant: Yes
      • Pull Tension: 28Lbs
      • Bend Radius: 1.215"
      • Cable Weight: 15Lbs

        Insulation Parameter
      • Insulation Type: Polypropylene - PP
      • Insulation Thickness: 0.008"
      • Insulation Color Code: 1. Black 2.Red

        Shielding Parameter
      • Shield Type: Bonded Overall 100% Aluminum Foil
      • Drain Wire Type: Tinned Copper
      • Drain Wire AWG: 22 AWG

        Electrical Characteristics
      • Nominal Impedance: 45 Ohm
      • Nom. Cap. Between Conductors: 34 pF/ft
      • Nom. Cap. Conductor to Shield: 67 pF/ft

        Overall Electrical/Optical Characteristics
      • Nominal Velocity of Propagation (VP): 66 %
      • UL Flammability: UL1666 Vertical Shaft
      • CSA Flammability: FT4
      • Operating Range: -4° to 140°F (-20 to 60°C)
      • UL Voltage Rating: 300
      • Color: Black
      • Length: 1000'

    • GTIN:

      0612825054733
