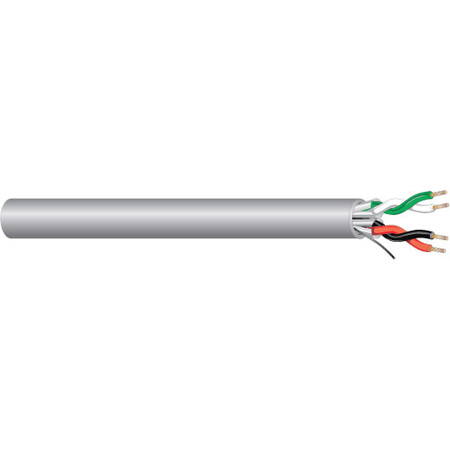

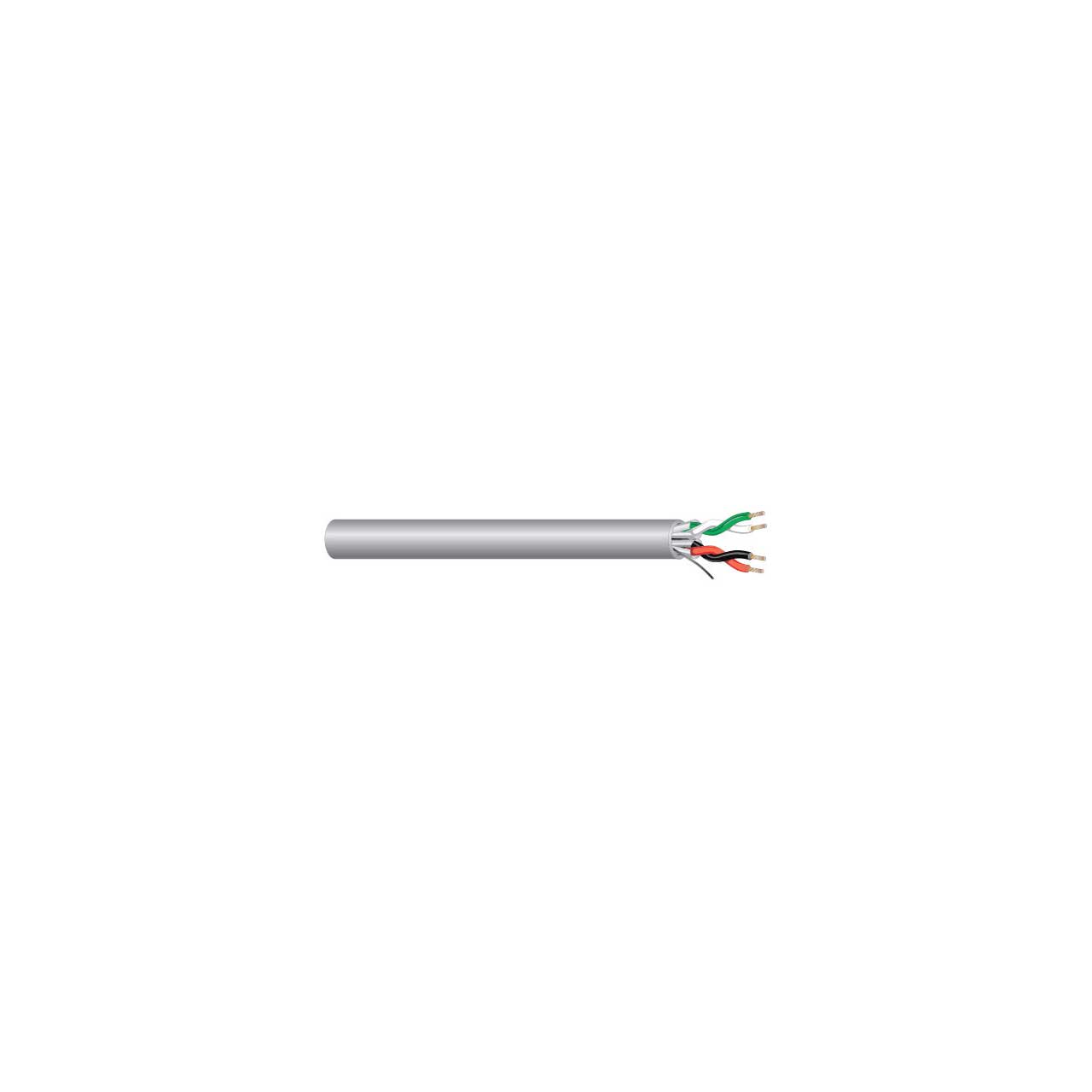

West Penn Wire D25510 Plenum 2pr 22Awg Data Cable 1000ft Grey Jacket

ITEM #: WP-D25510-1000 MFG #: D25510

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$509.30

Our Price:

$410.81

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

D25510 - Overview

NEC RATING: CMP, NEC Article 800
APPROVALS: (UL)- C(UL) Listed or c(ETL)us Listed
APPLICATION: Indoor data cable for: Control, Signaling, Electronic, Microprocessor Based.

  • Specifications:

    • Conductor: 22 AWG Tinned Copper
    • Stranding: 7x30
    • Insulation Material: Teflon
    • Insulation Thickness: 0.010'' Nom.
    • Number of Conductors: 4 (2 Pair)
    • Shield: 100% Aluminum Polyester Foil
    • Drain: Solid Tinned Copper
    • Jacket Material: Copolymer
    • Jacket Thickness: 0.015'' Nom.
    • Overall Cable Diameter: 0.204'' Nom.
    • Approximate Cable Weight: 24 Lbs/1M' Nom.
    • Flame Rating: NFPA 262 Flame Test


  • GTIN:

    0612825028437
