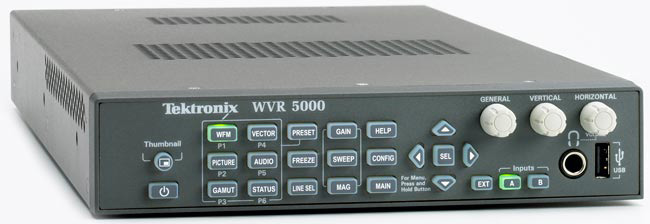

Tektronix WVR5000 HD/SD-SDI Waveform Rasterizer

ITEM #: WVR5000 MFG #: WVR5000

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the WVR5000

WVR5000 - Overview

The WVR5000 and WVR4000 Compact Video Rasterizers provide an ideal solution for basic video and audio monitoring needs in a convenient 1 RU half- rack form-factor, suitable for space-constrained environments.

These versatile instruments provide options to accept power from a 12 VDC source or a 100-240 VAC converter

Both models come standard with support for 16 channels of Embedded Audio and 1 input for 2 channels of Digital AES audio.

WVR5000
Supports HD-SDI (SMPTE 292M) and SD-SDI (ITU-R BT.601) monitoring applications. It provides HD/SD format autodetect.

WVR4000
Supports SD-SDI (ITU-R BT.601) monitoring only.

These instruments provide the reliability of the Tektronix waveform monitors family in a compact, basic monitoring product.

  • Features:

    • Convenient 1 RU Half-rack Instrument, Ideal for Space-constrained Environments
    • AC and DC Power Options
    • Patented Gamut Displays Facilitate Compliance Verification
    • The Sharpest CRT-like Waveform Trace Quality
    • Error Log for 10,000 Events Simplifies Error Correction Tasks
    • Fully Digital Processing for Accurate, Repeatable, Drift-free Operation
    • Ethernet Port Allows for Easy Download of Screen Shots and Error Log
    • Freeze Mode for Trace and Picture Displays
    • Equipped Standard with Monitoring Capacity for 16 Channels of Embedded Audio (up to 8 Simultaneously) and 1 AES Audio Input
    • Front Panel Headphone Port for Easy Monitoring of Audio Channels
    • Audio Bars and Lissajous Displays for Verification of Audio on the Same Instrument
    • 32 User-configurable Presets for Quick Recall of Commonly Used Configurations.
    • User-definable Safe Area Graticules Facilitate Editing Tasks
    • Picture Thumbnail With Line-select Marker
    • Intuitive User Interface, Backlit Buttons, And Online Help
    • High-resolution DVI-I Output for Crisp, Easy-to-read Displays
    • Passive Loop-through Inputs for Transparent Monitoring at any Point of the Signal Path even when Instrument Power is off
    • Front Panel USB Port for Easy Transfer of Instrument Presets
