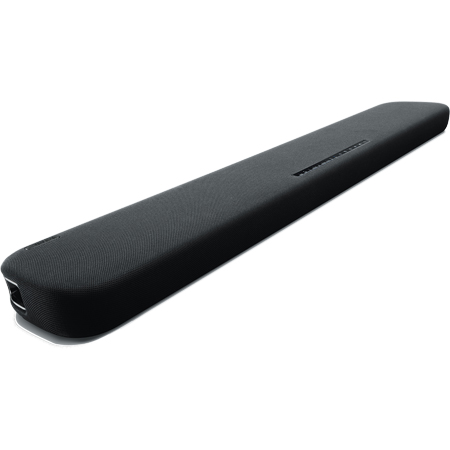

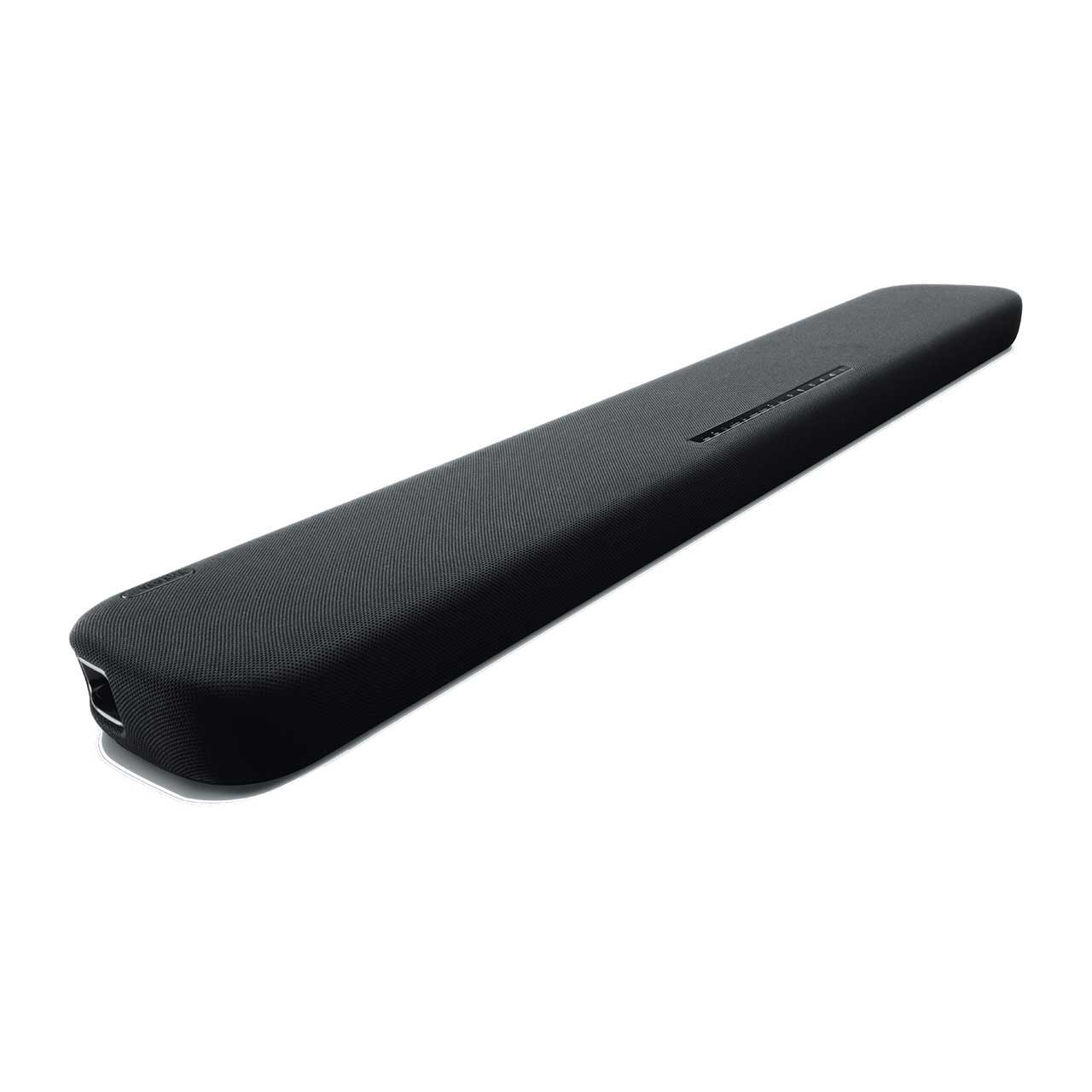

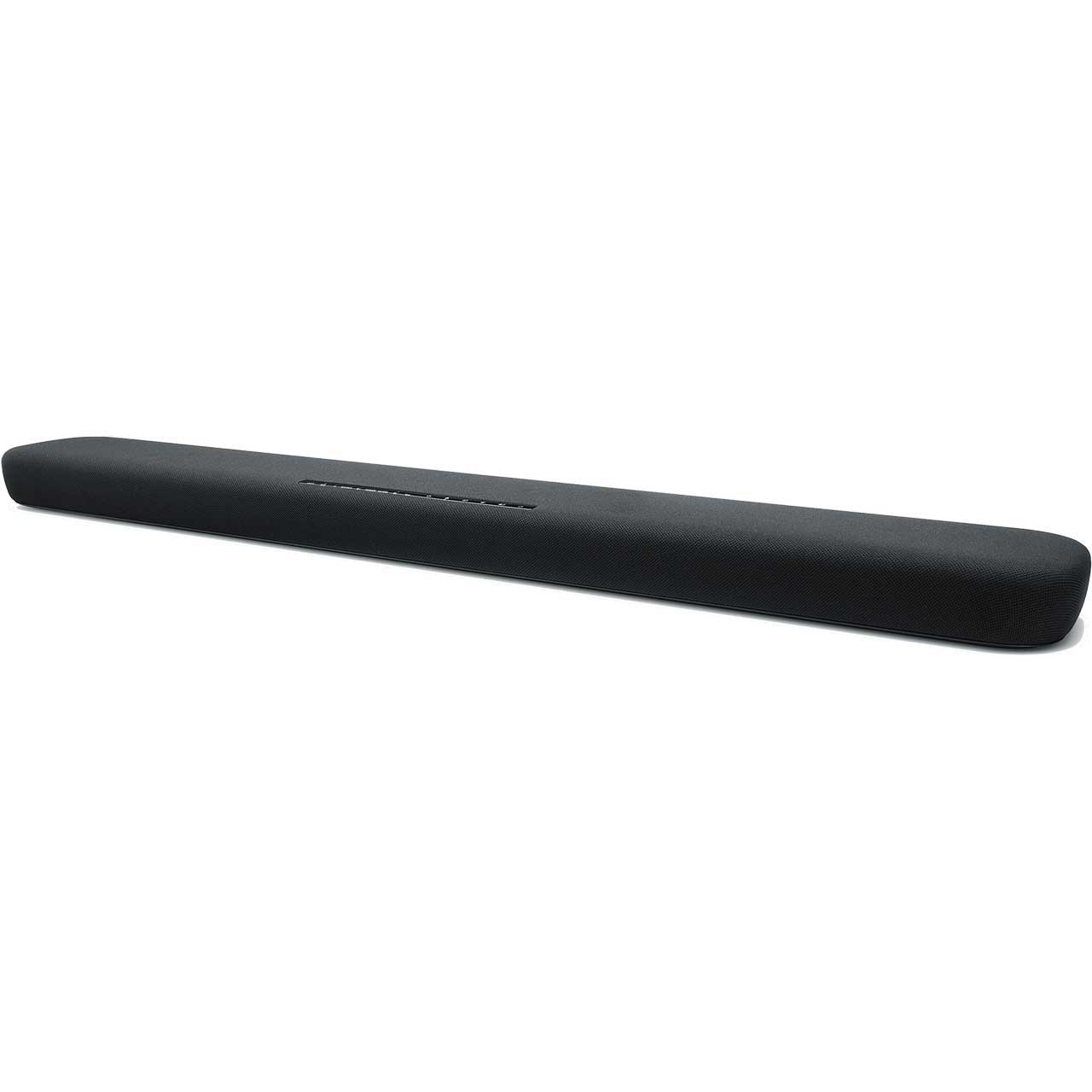

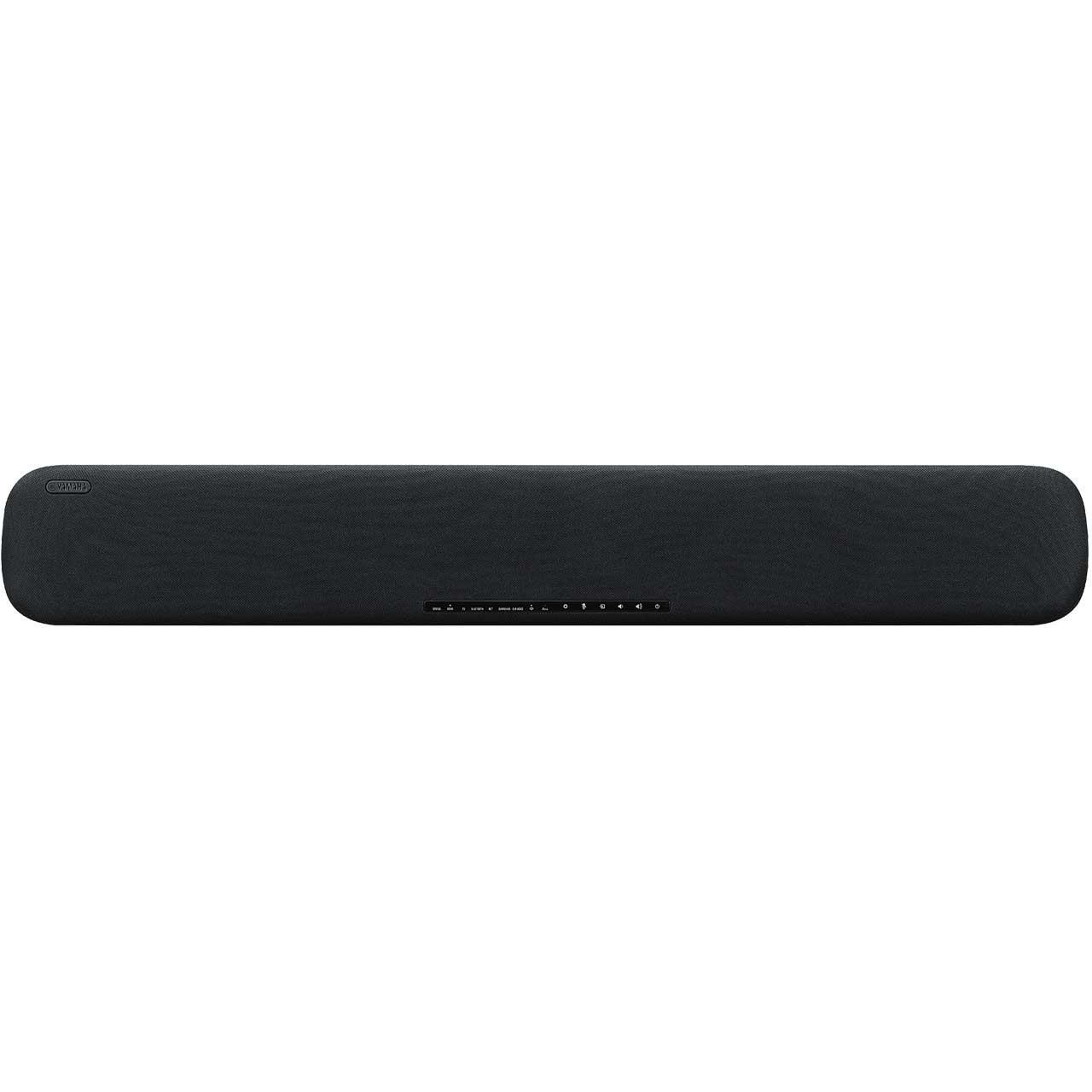

Yamaha 10-ESB1090 Enterprise Soundbar with Clear Dynamic Full-range Speaker Output

10-ESB1090 - Overview

• Features:

  • Rich sound output and premium sound quality enhance remote conferencing and content sharing
  • Two built-in subwoofers, dome tweeters and full range speakers
  • 3 preset modes optimize the sound and operability for offices, schools and hotels
  • Flexible install with both flat and wall-mount options
  • Blends into modern room designs


• Specifications:

  • Drivers:
  • Front L/R: 5.5 cm (2-1/8") cone x 2,
  • Tweeter: 2.5cm (1") dome x 2, Built-in
  • subwoofer: 7.5cm (3") cone x 2

    Output Power:
  • 120 W (Front L/R: 30 W x 2
  • Built-in subwoofer: 60 W

    Power Supply:
  • [U.S.A. and Canada models] AC 100 V to 120 V, 50/60 Hz [U.K., Europe and Russia models ] AC 100 V to 240 V, 50/60 Hz
  • Power Consumption: 30 W (Rated)
  • Standby Power Consumption: 4.3 W (Voice Control Ready) 0.2 W (HDMI control off, network standby off) 1.7/1.9/1.7 W (HDMI control off, network standby on [Wired/Wi-Fi/Bluetooth]) 0.6 W (HDMI control on, network standby off) 2.2 W (HDMI control on, network standby on)
  • Maximum Volume: Max SPL: 96 dB at 1 m

    General:
  • Dimensions (WxHxD): Installing the unit in front of a TV, etc.: 890 x 53 x 131 mm (35" x 2-1/8" x 5-1/8") Mounting the unit on a wall, with spacers: 890 x 131 x 62 mm (35" x 5-1/8" x 2-1/2")
  • Weight: 3.4 kg (7.5 lbs)
  • Operating Environment: Temperature: 5°C to 40°C (41°F to 104°F) Humidity: 30% to 90% (no condensation)
  • Storage Environment: Temperature: -20°C to +60°C (-4°F to 140°F) Humidity: 30% to 90% (no condensation)

    Decoder:
  • Supported Audio Signal: PCM, Dolby Digital, DTS Digital Surround (up to 5.1ch)

    Interface:
  • HDMI: 4k/60p 4:4:4, HDR (HDR10, Hybrid Log-Gamma), HDCP2.3, 3D, ARC, CEC
  • Input Jacks: HDMI 1 (HDMI IN), Digital Optical 1, Network (Ethernet1, Wireless1)
  • Output Jacks: HDMI 1 (HDMI OUT (ARC)), Analog 1 (Subwoofer out)
  • Other Jacks: USB 1 (update only)
  • Bluetooth: Version: 4.2 Supported profiles: A2DP Supported codecs: SBC, AAC Class: Bluetooth Class2 Range (line-of-sight): Approx. 10m (33ft) Supported content protection method: SCMS-T [U.K., Europe and Russia models] Radio frequency 2402 MHz to 2480 MHz Maximum output power (EIRP) 9.5 dBm (8.9 mW)
  • Wired Network Ethernet standard: 100BASE-TX/10BASE-T
  • Wi-Fi Network: Wireless LAN standards: IEEE 802.11b/g/n Radio frequency band: 2.4 GHz Available security method: WEP, WPA2-PSK (AES), Mixed Mode [U.K., Europe and Russia models] Radio frequency: 2.4 GHz band 2402 MHz to 2482 MHz (20 MHz) Maximum output power (EIRP): 2.4 GHz band 18.8 dBm (75.9 mW)

    Compliance:
  • Classification: Class B Device
  • Safety: CB (IEC62368-1, IEC60065), CE (EN62368-1, EN60065), UL/CSA (UL62368-1, CSA62368-1)
  • EMC: FCC (Part 15 Subpart B (SDoC)), ICES-003, CE (EN61000-3-2, EN61000-3-3, EN55035, EN55032)
  • Radio: FCC (Part 15 Subpart C), RSS-247, CE (EN300328, EN62311, EN301 489-1, EN301 489-3, EN301 489-17)
  • Environment: RoHS compliant


• Item Includes:

  • 1x 10-ESB1090 Soundbar
  • 1x Remote Control
  • 1x Power Cord
  • 1x Optical Digital Audio Cable
  • 1x Mounting Template
  • 2x Spacers (2/sheet)
  • 1x Owners Manual


• Warranty:

  • 2 Year Warranty


• GTIN:

  0889025141321
