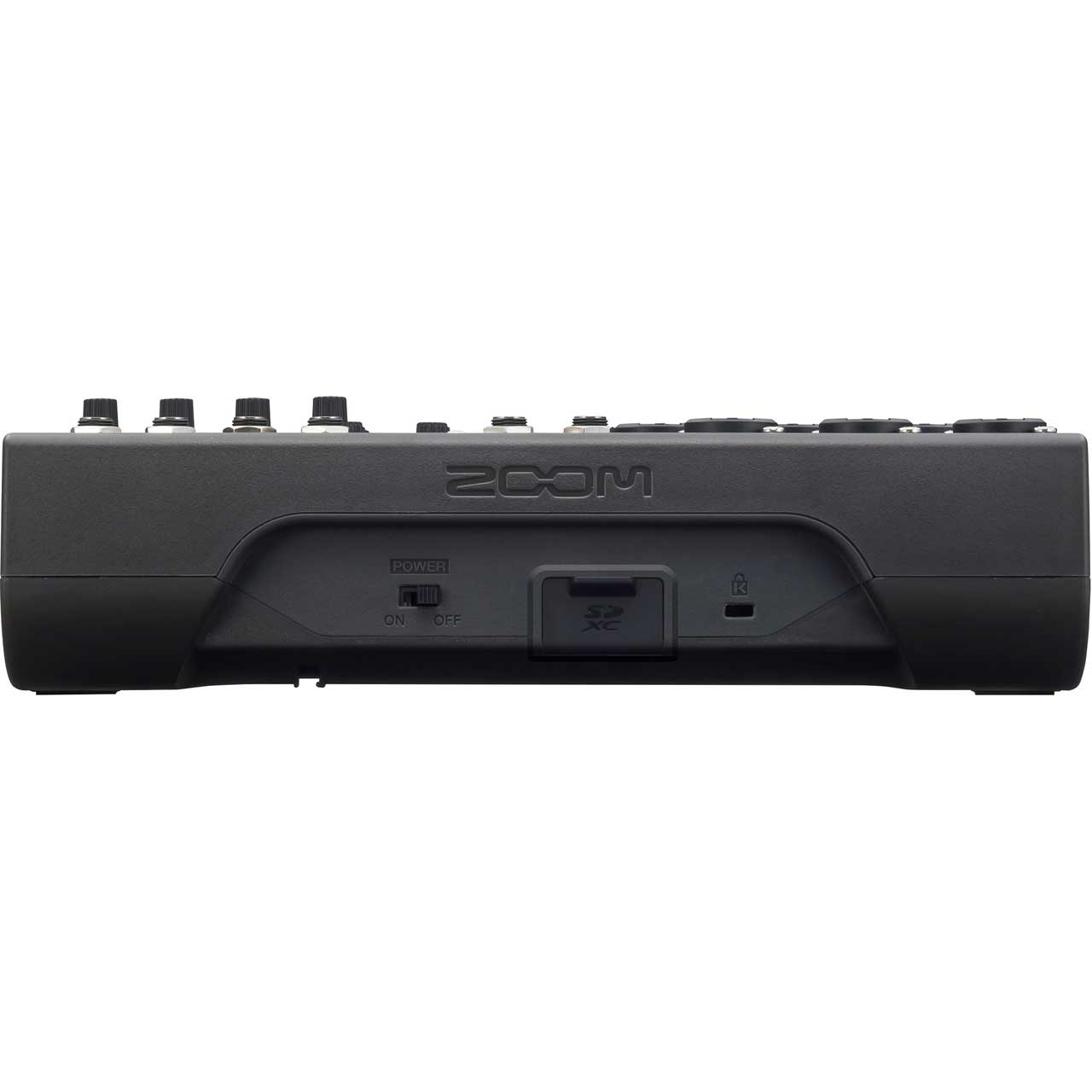

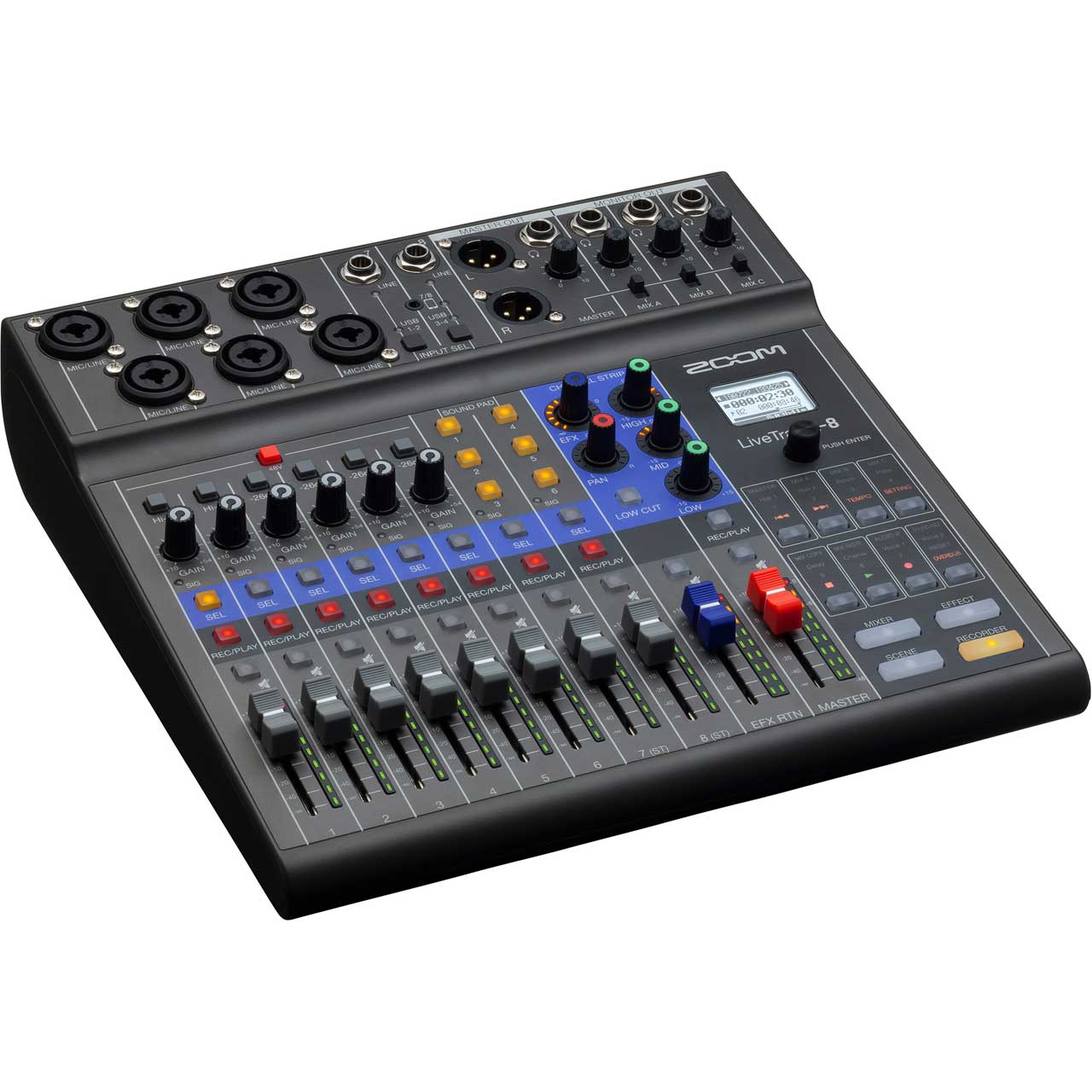

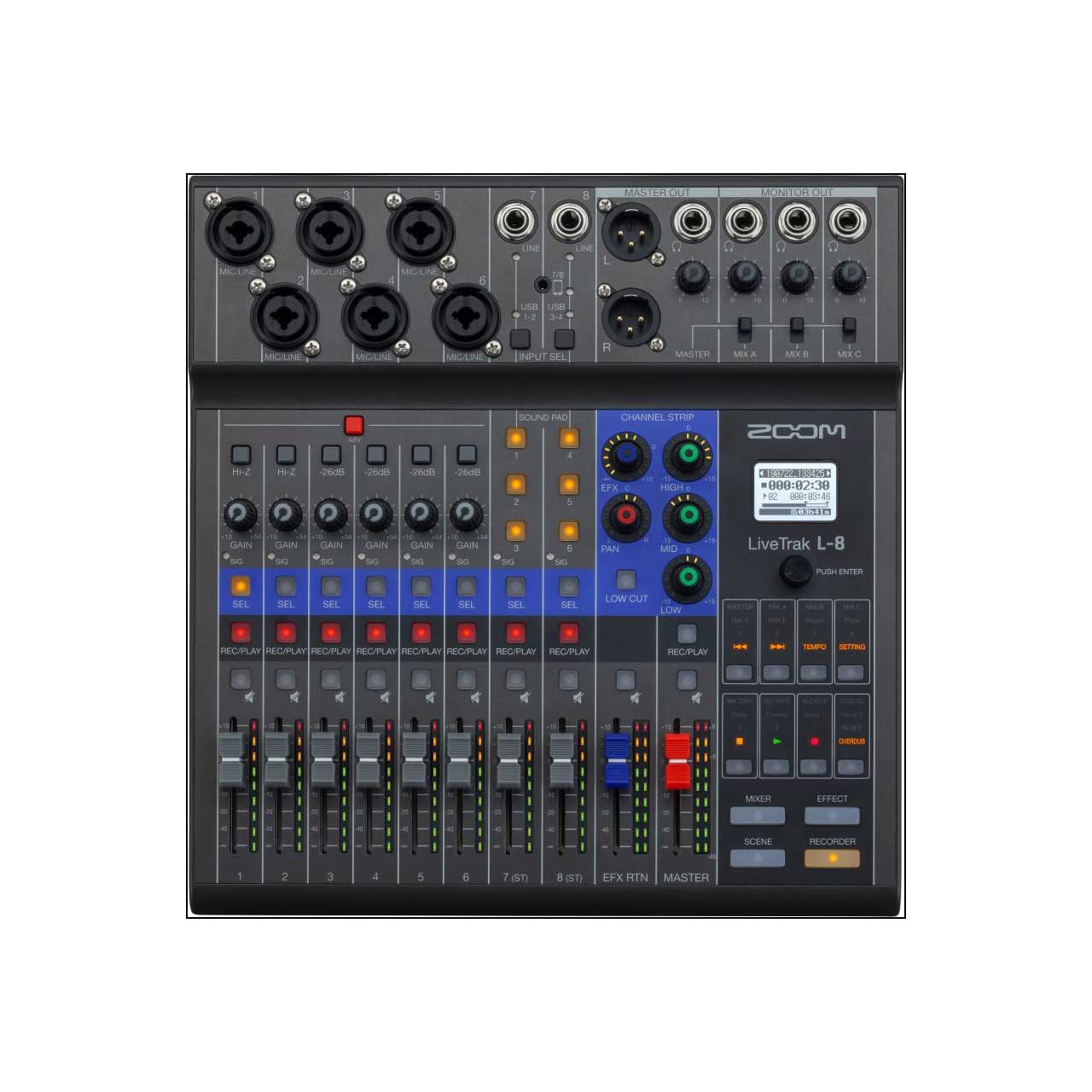

ZOOM LiveTrak L-8 8-Channel Digital Mixer and Multitrack Recorder

ZOOM-L8 - Overview

• Features:

  • 8-channel mixer (6 combo, plus 2 TS)
  • 12-Track simultaneous recording, 10-track playback
  • Mix-Minus function preventing audio feedback from dial-in guests
  • TRRS connection and included TRRS cable for phone connectivity
  • 6 assignable Sound Pads, with 13 preset sounds
  • 4 headphone outputs, consisting of 3 custom monitor mixes, plus one main mix
  • 3-band EQ and a low-cut function
  • 7 scene memories for storing mixes
  • 12-in/4-out USB audio interface
  • Class-compliant mode (for iOS compatibility)
  • Battery operated with four AA batteries or a USB power supply
  • Record up to 24-bit/96kHz, record up to 48kHZ to computer and SD Card simultaneously


• Specifications:

  • Mic/Line Inputs
  • Number of Inputs: 6
  • Type: XLR/TRS combo jacks
  • Input Gain: 10dB - 54dB
  • Input Impendance:
    XLR: 3kΩ
    TRS: 3kΩ/510kΩ (when Hi-Z ON)
  • Max Input Level:
    -2dBu when -26dB switch OFF (@ 0 dBFS)
    +24dBu when -26dB switch ON (@ 0 dBFS)
  • Phantom Power: 48V

    Line Inputs
  • Number of Inputs: 2
  • Specifications: TS phone jack/TRRS mini jack
  • Input Impendance: 3kΩ
  • Max Input Level: 4dBu

    Outputs
  • Master Out: 1
    Type: XLR Jacks (Balanced)
    Maximum Output Level: 14.5dBu
    Output Impedance: 100Ω
  • Master Out (Phones): 1
    Type: Standard stereo phone jack
    Maximum Output Level: 10mW + 10mW (60Ω load)
    Output impedance: 10Ω
  • Monitor Out (Phones): 3
    Type: Standard stereo phone jack
    Maximum Output Level: 10mW + 10mW (60Ω load)
    Output Impedance: 10Ω

    Buses
  • Master: 1
  • Monitor: 3
  • Send EFX: 1

    Channel Strip
  • Low Cut: 75Hz, 12dB/OCT
  • EQ:
    HIGH: 10kHz, ±15dB, shelving
    MID: 2.5kHz, ±15dB, peaking
    LOW: 100Hz, ±15 dB, shelving
  • Level Meter: 9 segments
  • Send Effects: 8 types

    Recorder
  • Maximum Simultaneous Recording Tracks: 12 @ 44.1/48/96kHz
  • Maximum Simultaneous Playback Tracks: 10
  • Recording Format: WAV 44.1/48/96kHz, 16/24-bit, mono/stereo
  • Recording Media: 4GB - 32GB SDHC-compliant cards (Class 10 or higher) 64GB - 512GB SDXC-compliant cards (Class 10 or higher)

    Audio Interface
  • 44.1/48kHz: Recording: 12 channels Playback: 4 channels
  • Bit depth: 24-bit
  • Interface: USB 2.0

    Other
  • Card Reader Class: Mass storage USB 2.0 High Speed
  • Sampling Frequency: 44.1/48/96kHz
  • Frequency Response:
    20Hz - 20kHz: -1dB @ 44.1kHz
    20Hz - 40kHz: -3dB @ 96kHz (when +48dB)
  • Equivalent Input Noise: Actual measurements: 121dB EIN (IHF-A) at +54dB/150Ω input
  • Display: LCD with backlight (96x64 resolution)
  • Power:

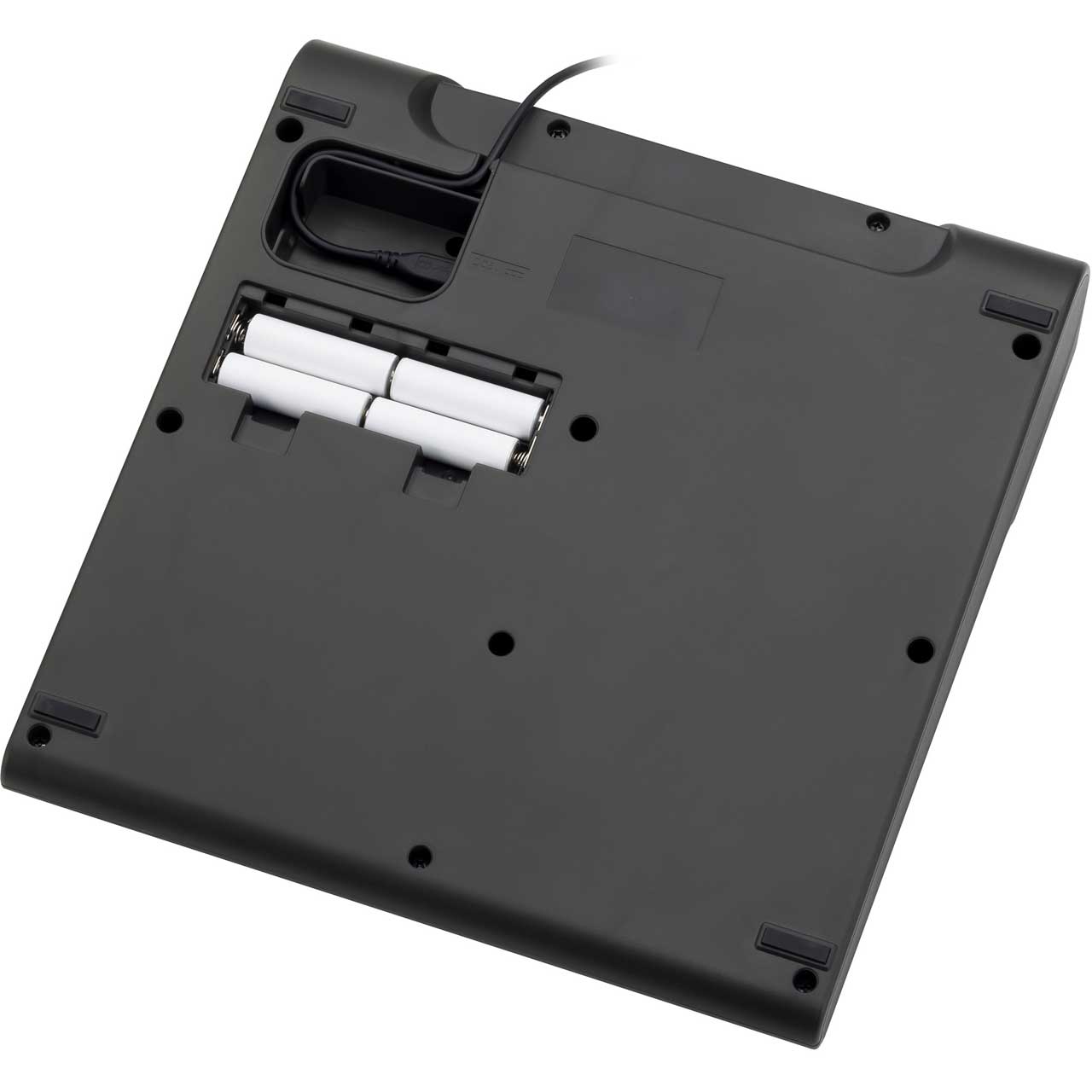

    4x AA batteries (alkaline, NiMH or lithium)
    AC adapter (ZOOM AD-17): DC 5V/1A
    USB bus power
  • Estimated Continuous Operation Times Using Batteries: 2 hours for alkaline or 3 hours for NiMH when battery saving mode on/48V off
  • Power Consumption: 5W
  • Dimensions (HxWxD): 2.91" x 10.55" x 11.10" (74mm x 268mm x 282mm)
  • Weight: 3.44lbs (1.56kg)


• Item Includes:

  • 1x LiveTrak L-8 Mixer/Recorder
  • 1x TRRS Cable
  • 1x USB Cable
  • 1x AD-17 AC Adapter
  • 1x Quick Start Guide


• GTIN:

  0884354021146
