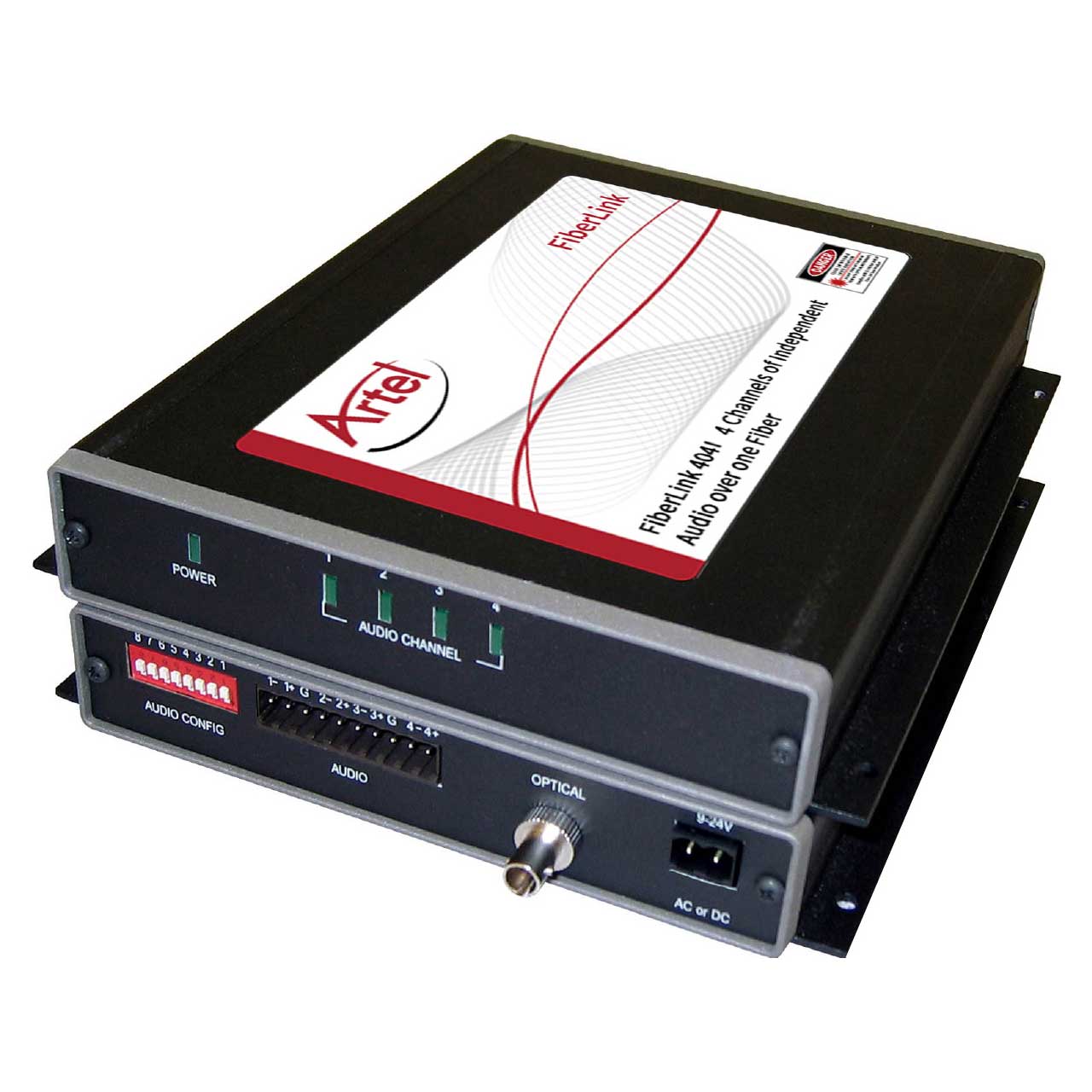

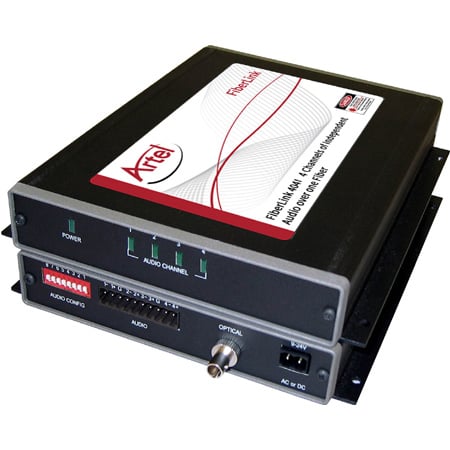

Artel FiberLink 4041-B1S 850nm Multimode 4-Channel Analog Line Level Audio Box with ST Connectors - Receiver

ITEM #: 4041-B1S MFG #: 4041-B1S

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Artel
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,083.50

Our Price:

$936.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

4041-B1S - Overview

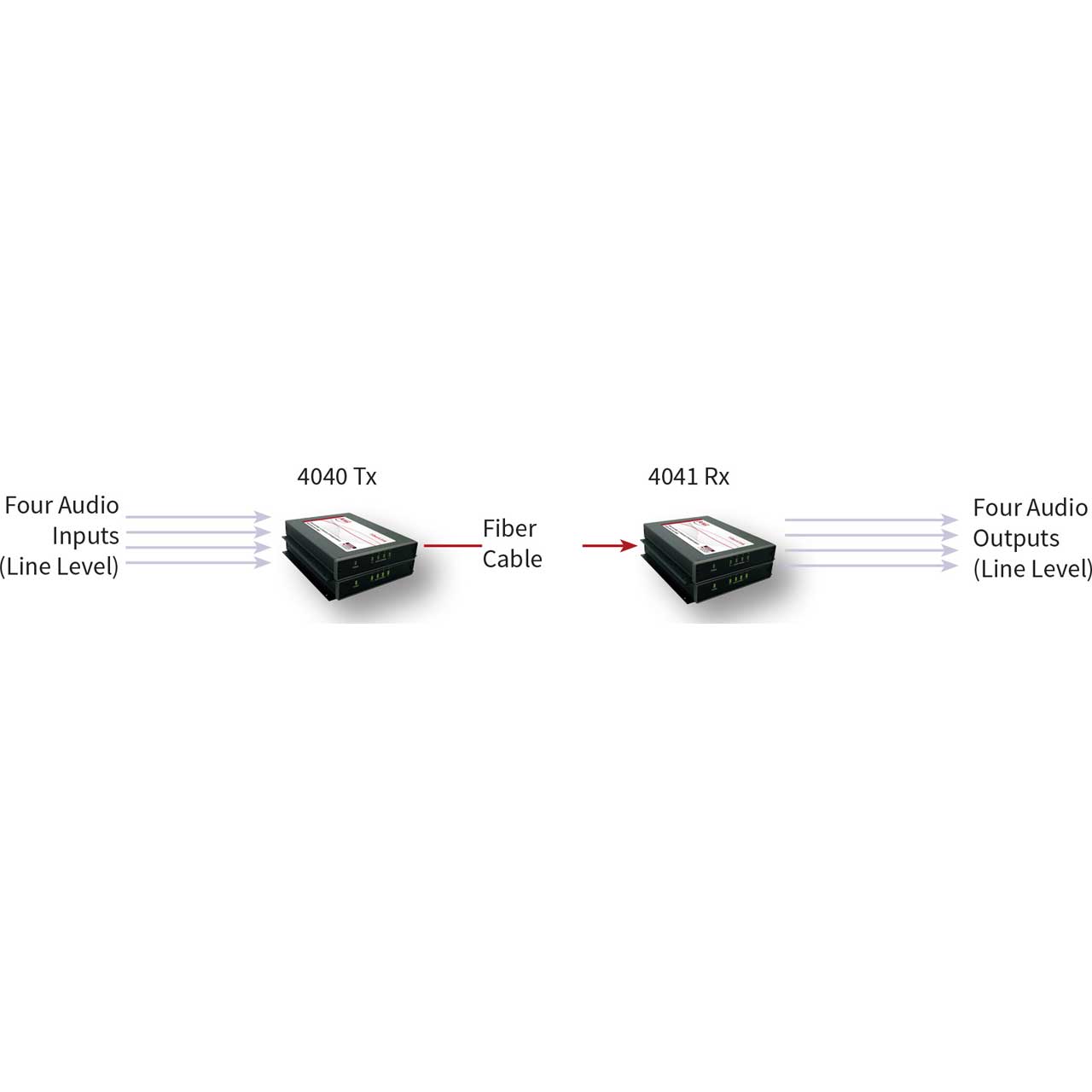

The Artel FiberLink 4041-B1S series optical transmission system is a configurable, adjustment-free transmitter/receiver pair that employs digital processing and transmission techniques to convey up to four 1-way channels of audio.

The use of digital encoding assures high-quality noise-free transmissions that retain all of their initial parameters regardless of fiber optic cable attenuation. In addition, integral LED indicators are provided on each unit to continuously signify the presence of audio signals and, thus, the proper operation of each side of the system.

Receiver only. Transmitter sold separately.

  • Features:

    • Transmits over one multimode or single mode fiber at 850, 1310 or 1550 nm
    • No adjustments; processing and transmission
    • 24 bit/96 kHz sampling; maximum audio level +24 dBu
    • 20 Hz to 20 kHz frequency response
    • Line level, balanced or unbalanced audio operation

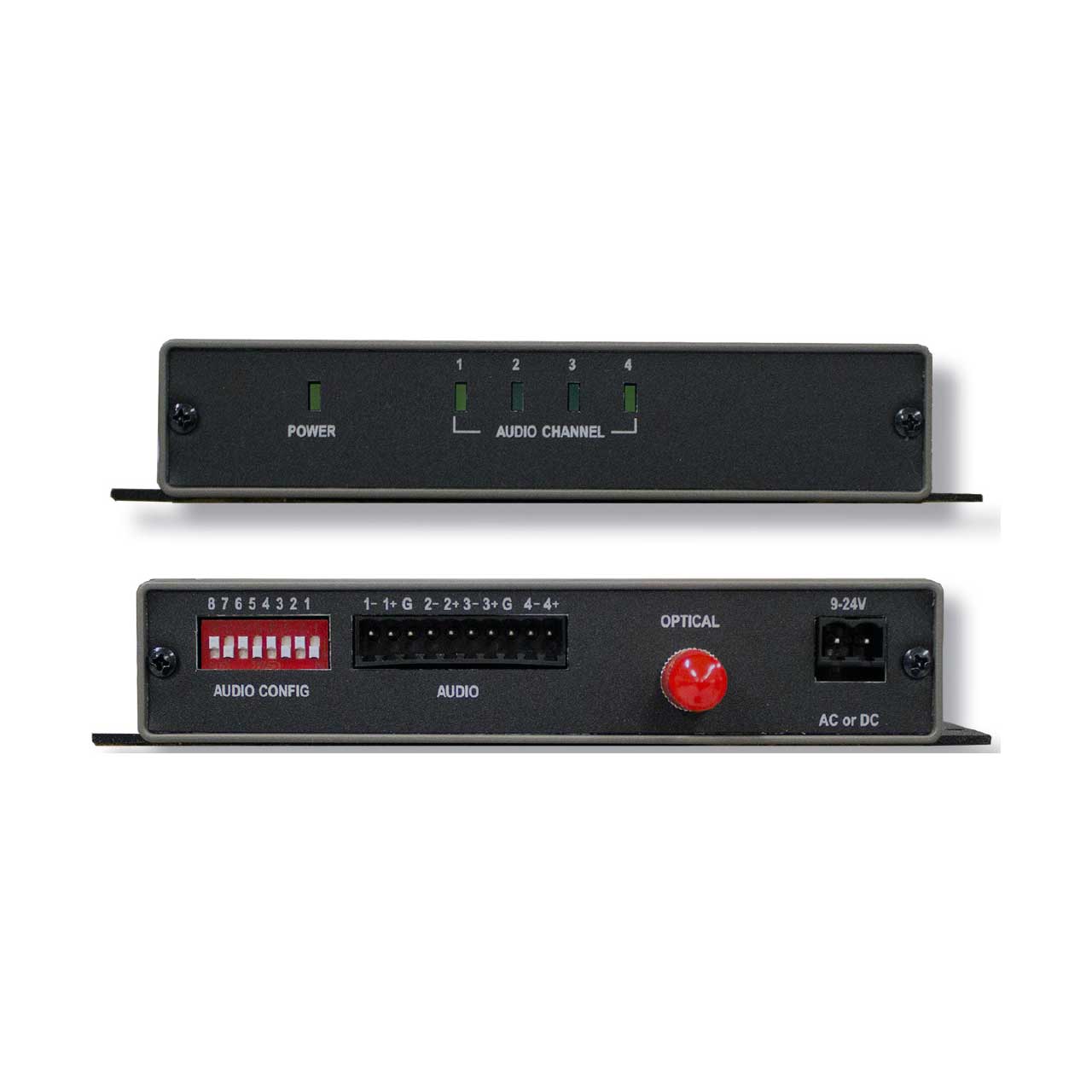

    • Indicator LEDs monitor audio signals and power
    • Wide range power supply allows operation from low voltage AC and DC sources
    • Card version fills one slot in 6000A card cage
    • System consists of transmitter and receiver unit; card or box version.
    • RoHS Compliant


  • Specifications:

    • LED Indicators: Power; Audio Present (per channel)
    • Alarm: LED (card version only)
    • Power Requirements*: 9-24 volts AC or DC, 5 watts
    • Operating Temperature Range: -35°C to +60°C
    • Relative Humidity: 10%-90% (non-condensing)
    • Optical Connectors: ST or FCPC
    • Operating Wavelength: 850, 1310 or 1550 nm
    • Physical Size: 6.5 W x 1.15 H x 8 L (inches) 165 W x 29 H x 203 L (mm)
    • Weight approx.: 1 lb.; 0.45 kg
    • Slots Filled in 6000A Card Cage: 1
    • MTBF: 83,000 Hours

    • Audio Specifications:
    • Number of Audio Channels: 4, balanced or unbalanced
    • Frequency Response: +0/-0.5 dB, 20 Hz - 20 kHz
    • Bits-per-Sample/Sampling Rate: 24 bits; 96 kHz
    • Maximum Audio Level: +24 dBu
    • SNR (A-Weighted): 95 dB
    • THD+N: 0.002%, 20 Hz - 20 kHz
    • Channel Phase Differential: +0.1§
    • System Latency: 200 uS + fiber cable propagation delay (typically 5 uS/km of fiber)
    • Crosstalk Min.: 95 dB (1 kHz)
    • Input Impedance: 600 Ohms terminated; >24 k Ohms unterminated
    • Output Impedance: 50 Ohms
    • Audio Connectors: Removable screw terminal
    • Switches: Dip switches to select input termination, balanced or unbalanced input/output. Selectable on a per-channel basis

      Operating Loss Budget & Maximim Useable Distance:
    • 850nm Multimode: 0-20 dB - 0-2 km
    • 1310nm Multimode: 0-25 dB - 0-10 km
    • 1310nm Single Mode: 0-23 dB - 0-55 km
    • 1550nm Single Mode: 0-25 dB - 0-80 km


  • Item Includes:

    • 1x FiberLink 4041-B1S Receiver
    • 1x User's Manual
