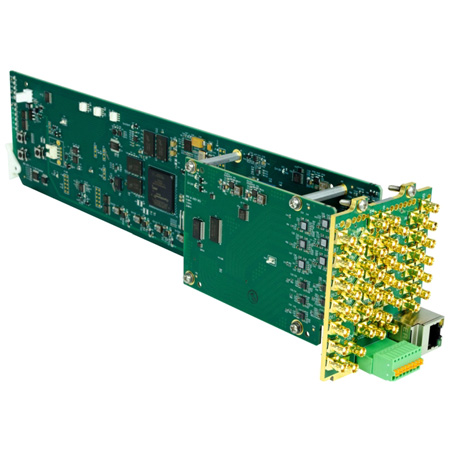

9942-RTR-24X24-12G openGear 12G/3G/HD/SD-SDI / ASI / MADI 24x24 Router
Cobalt introduces the 9942-RTR series of SDI/ASI /MADI routers for the openGear® form factor. Using the openGear platform, the 9942-RTR series provides a high-density card-based solution that offers unprecedented flexibility and ease of use and integration that makes it an exclusive within the openGear platform.
In addition to standard DashBoard™ support, The 9942-RTR series offer a built-in Ethernet port for IP-based protocols such as Cobalt's ReFLEX and SW-P-08. The 9942-RTR series also offer serial and GPIO interfaces. The 9942-RTR series is available in 24x24 and 12x12 sizes.

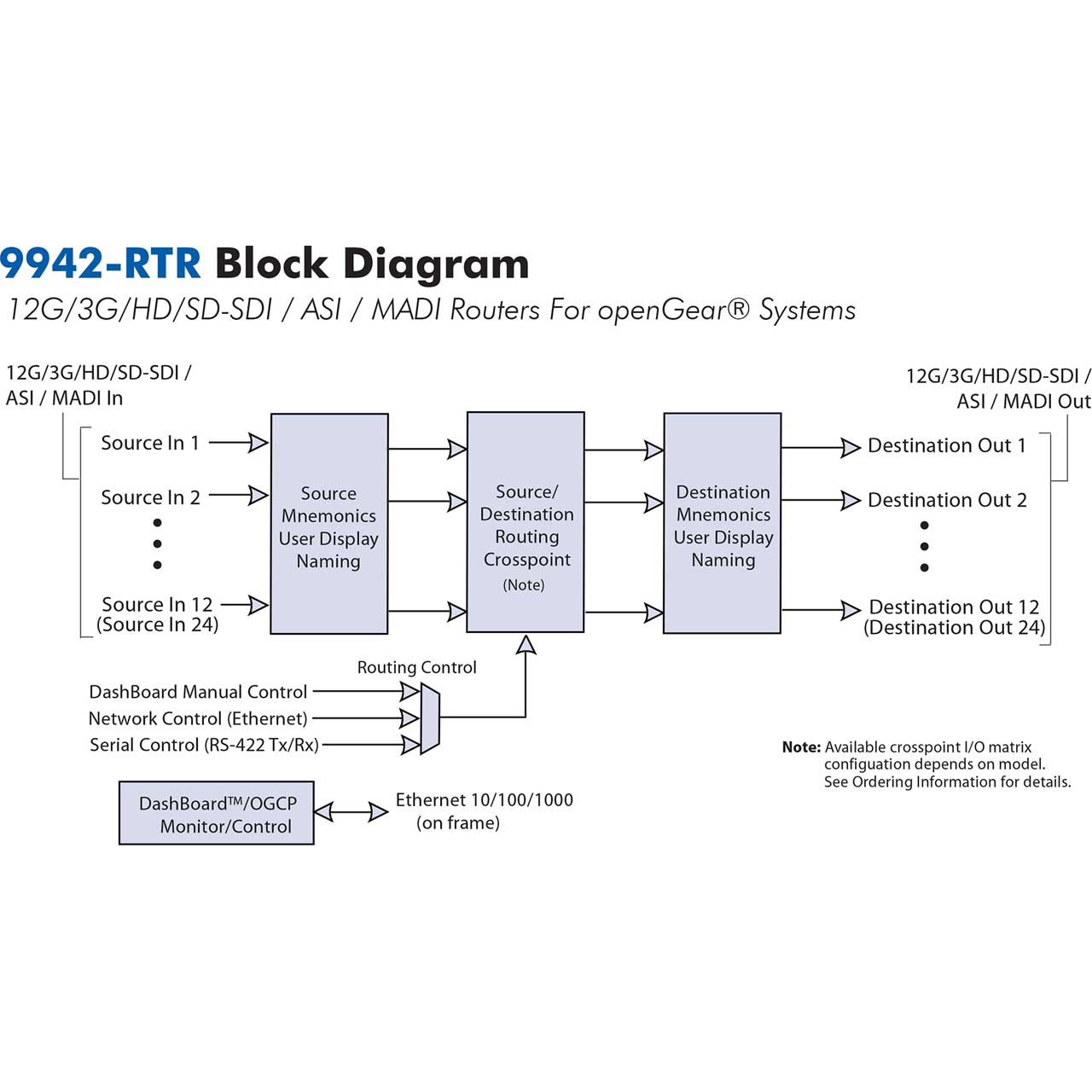

DashBoard user matrix provides easy to use manual routing setup. Routing setups can be saved as presets, allowing one-button engage with DashBoard or OGCP-9000 Remote Control Panel. Full user DashBoard™ and Remote Control Panel remote control allows full setup, status, and local control across a standard Ethernet network.
Note: RM20-9942-24x24-A-HDBNC is compatible with 9942-RTR-12x12-12G and 9942-RTR-24x24-12G models. When used with the 12x12 model, IN 13 thru IN 24 and OUT 13 thru OUT 24 ports are NC.
