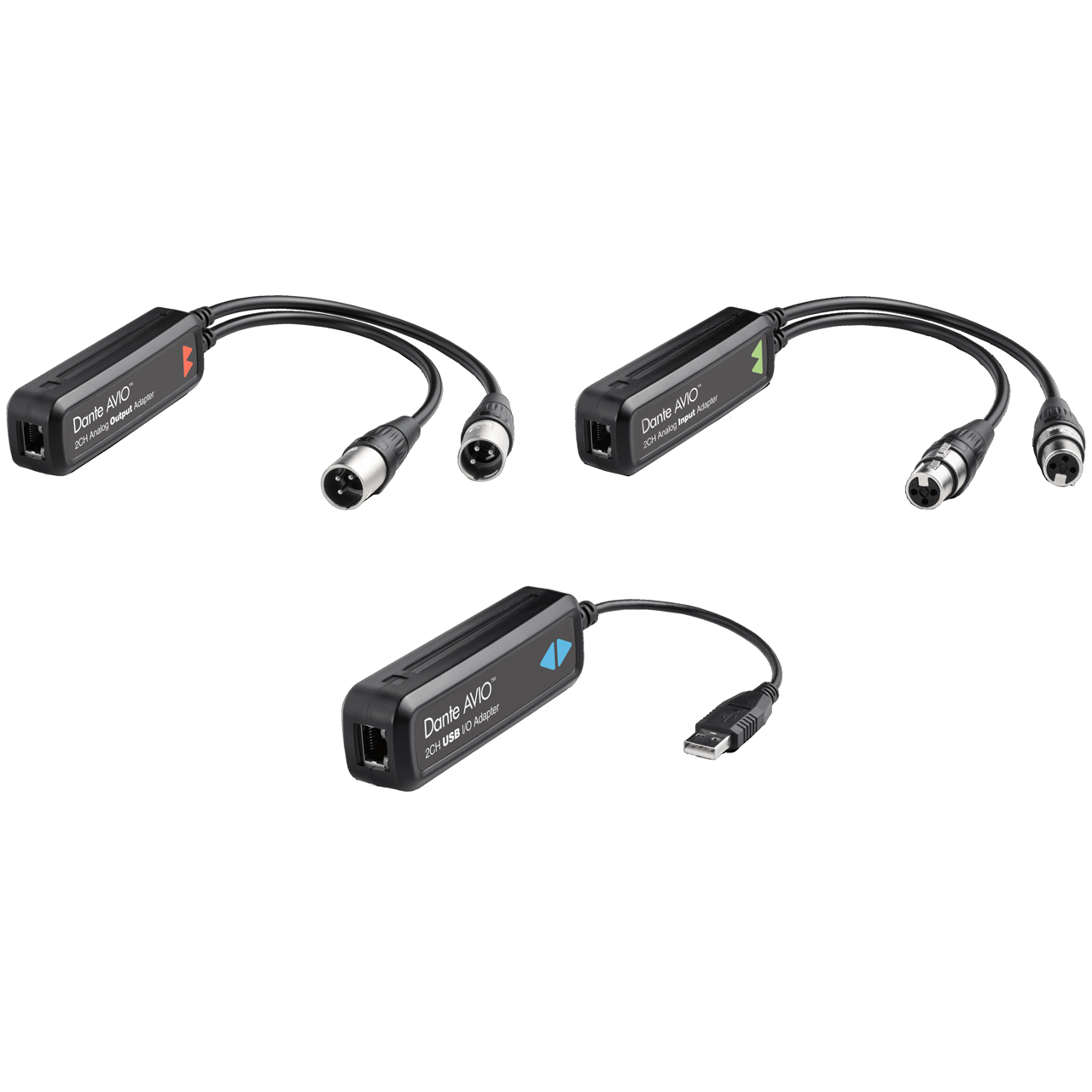

Audinate AVIO Dante USB Adapter Kit with ADP-DAO-AU-0X2/ADP-DAI-AU-2X0/ADP-USB-AU-2X2

ITEM #: ADN-AVIO-USBKIT1 MFG #: ADN-AVIO-USBKIT1

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Audinate
Free Shipping with $49 Minimum Order

List Price:

$727.00

Our Price:

$557.00

After Savings:

$495.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Audinate Essentials Pack Now on Sale!Buy a Dante AVIO Essentials Pack at 30% Off of MSRP. This is a limited time offer, only while supplies last!
Report Lower PriceLarge Quantity Quote

ADN-AVIO-USBKIT1 - Overview

Satisfy all your Dante adapter needs in one place! With Audinate's AVIO Dante Adapters you'll have everything you need to connect a full system together.

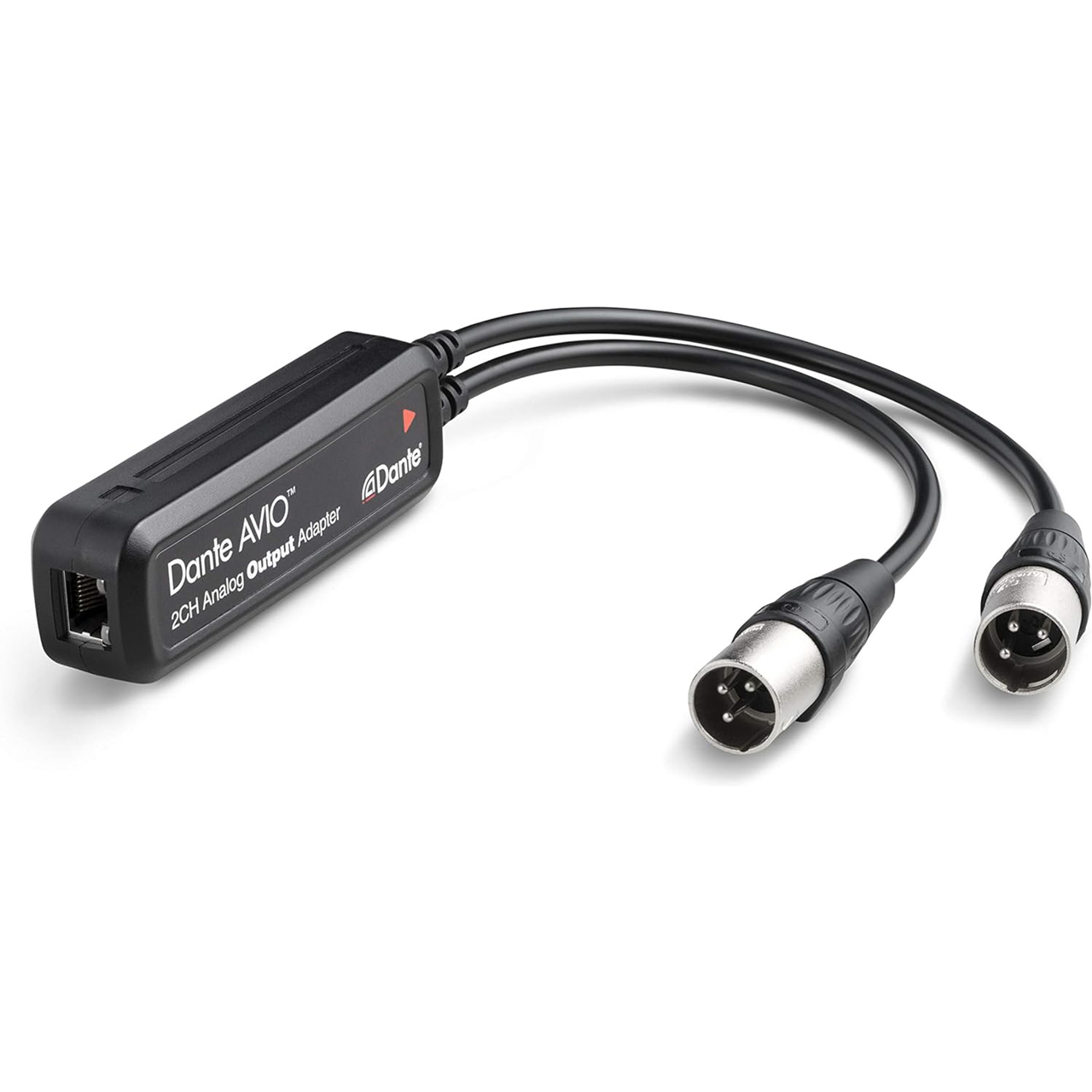

ADP-DAO-AU-0X2 2-Channel Analog Output Adapter
The Audinate ADP-DAO-AU-0X2 Dante AVIO Analog Output Adapter allows you to use the audio gear you already own with your Dante network. Don't abandon trusted studio monitors or analog power amplifiers - adapt them to the world of audio networking with Dante AVIO.

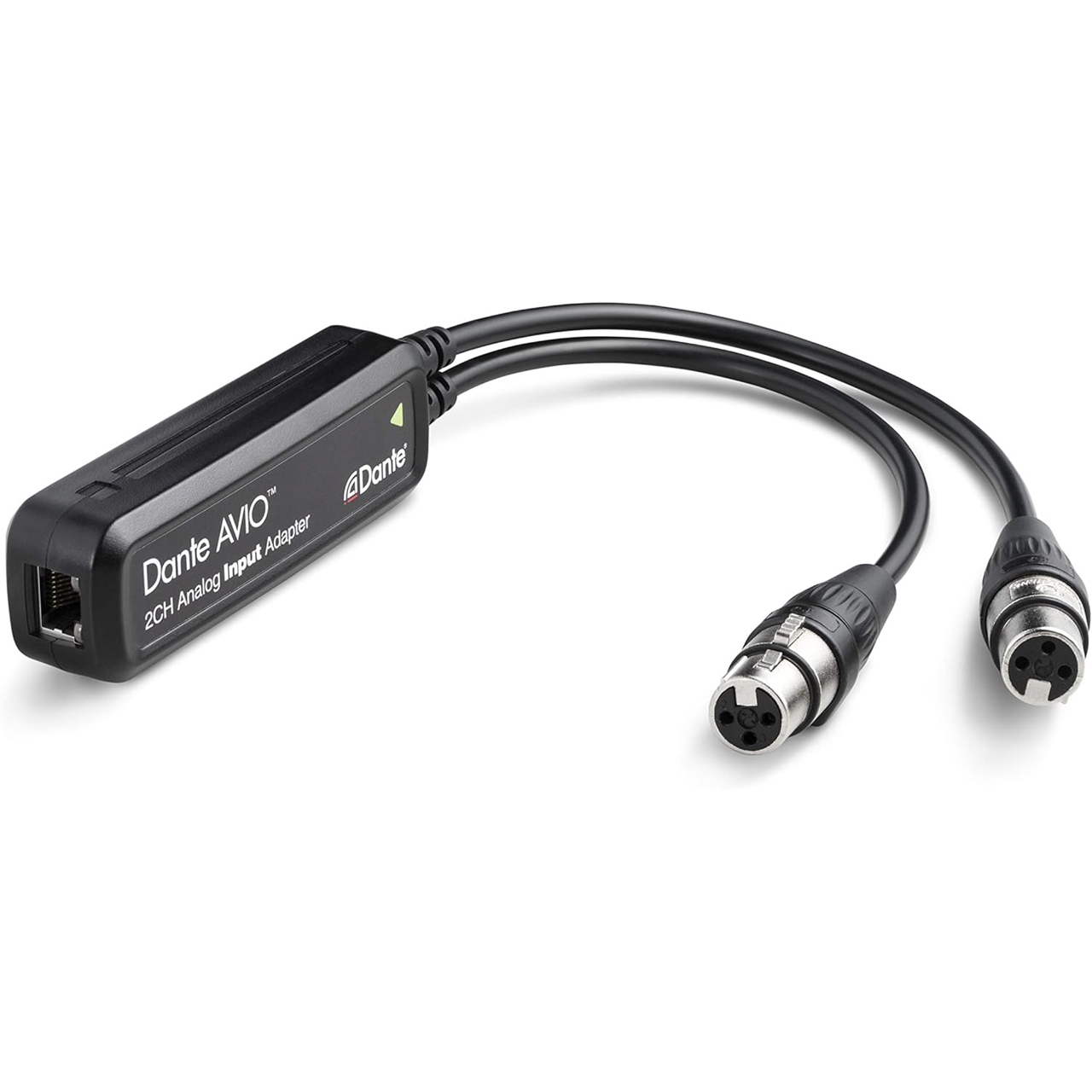

ADP-DAI-AU-2X0 2-Channel Analog Input Adapter
The Audinate ADP-DAI-AU-2X0 is a 2 Channel Dante AVIO Analog Input Adapter with RJ45 and 2 XLR females and connect your legacy mixers and consoles to a Dante network! You can even patch your favorite DSPs, analog compressors and equalizers into a Dante system using a combination of the Input and Output adapters.

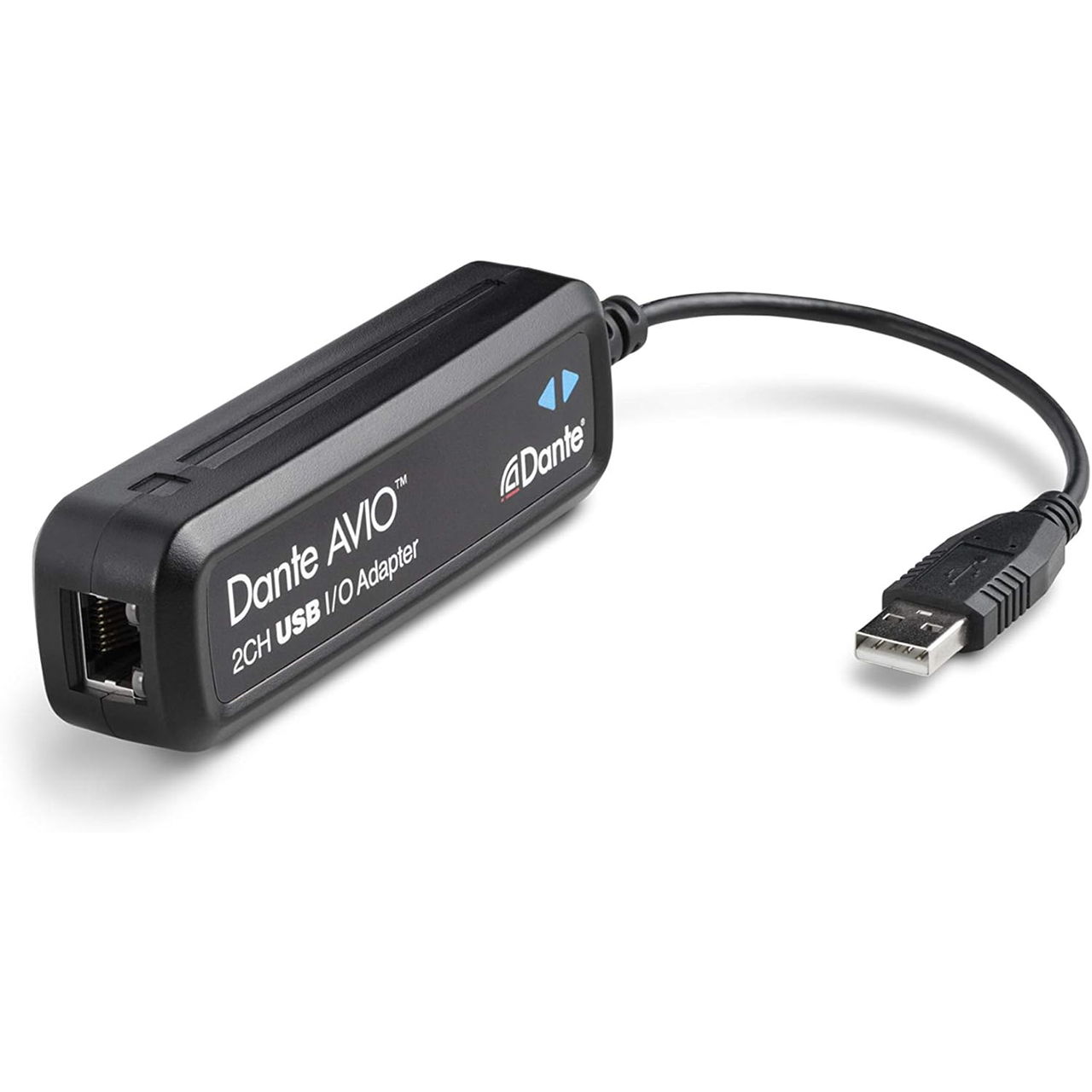

ADP-USB-AU-2X2 USB I/O Adapter
The Audinate ADP-USB-AU-2X2 Dante AVIO USB Adapter with RJ45 and USB Type A. Powered by USB or PoE the adapter lets you connect any computer to a Dante audio network with zero software installation, and can be used with any audio application for playout or recording.

  • Features:

    • Excellent dynamic range, SNR and THD performance
    • Plug & play operation
    • Built for the road
    • Dante Domain Manager ready
    • Dante Audio over IP and AES67 RTP transport formats
    • Power over Ethernet (PoE) support


  • Specifications:

    • ADP-DAO-AU-0X2
    • Channels: 2
    • Max Signal Level (balanced): +18dBu/+4dBu/0dBu; 0dBV/-10dBV
    • Frequency Response: 20Hz - 20kHz (±0.5dB)
    • Impedance: 150Ω balanced; 75Ω unbalanced
    • Dynamic Range: > 100dB
    • Signal to Noise Ratio: > 100dB
    • Total Harmonic Distortion: < 0.01% @ +4dBu
    • Connectors: RJ45 & 2 XLR-M
    • Power: Class 1 802.3af PoE
    • Sample Rates: 44.1, 48, 96kHz
    • Bit Depth: 24
    • Network Transport: Dante Audio over IP AES67 RTP

      ADP-DAI-AU-2X0
    • Channels: 2
    • Max Signal Level(balanced): +24dBu/+4dBu/0dBu; 0dBV/-10dBV
    • Frequency Response: 20Hz - 20kHz (±0.5dB)
    • Impedance: 20kΩ balanced, 10kΩ unbalanced
    • Dynamic Range: > 100dB
    • Signal to Noise Ratio: > 100dB
    • Total Harmonic Distortion: < 0.01% @ +4dBu
    • Connectors: RJ45 & 1 XLR-F
    • Power: Class 1 802.3af PoE
    • Sample Rates: 44.1, 48, 96kHz
    • Bit Depth: 24
    • Network Transport: Dante Audio over IP AES67 RTP

      ADP-USB-AU-2X2
    • Channels: 2 in, 2 out
    • Connectors: RJ45 & USB Type A
    • Power: Class 1 802.3af PoE or USB
    • Sample Rates: 48kHz
    • Bit Depth: 24
    • Network Transport: Dante Audio over IP AES67 RTP
    • USB: Class Compliant


  • Item Includes:

    • 1x ADP-DAO-AU-0X2 Dante AVIO Analog Output Adapter with RJ45 and 2 XLR Male - 2 Channel Version
    • 1x ADP-DAI-AU-2X0 Dante AVIO Analog Input Adapter with RJ45 and 2 XLR Female - 2 Channel Version
    • 1x ADP-USB-AU-2X2 Dante AVIO USB IO Adapter with RJ45 and USB type A
