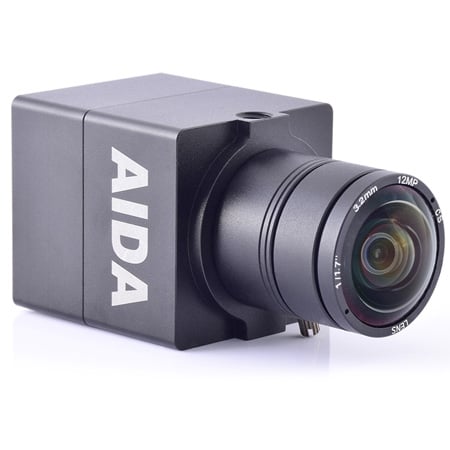

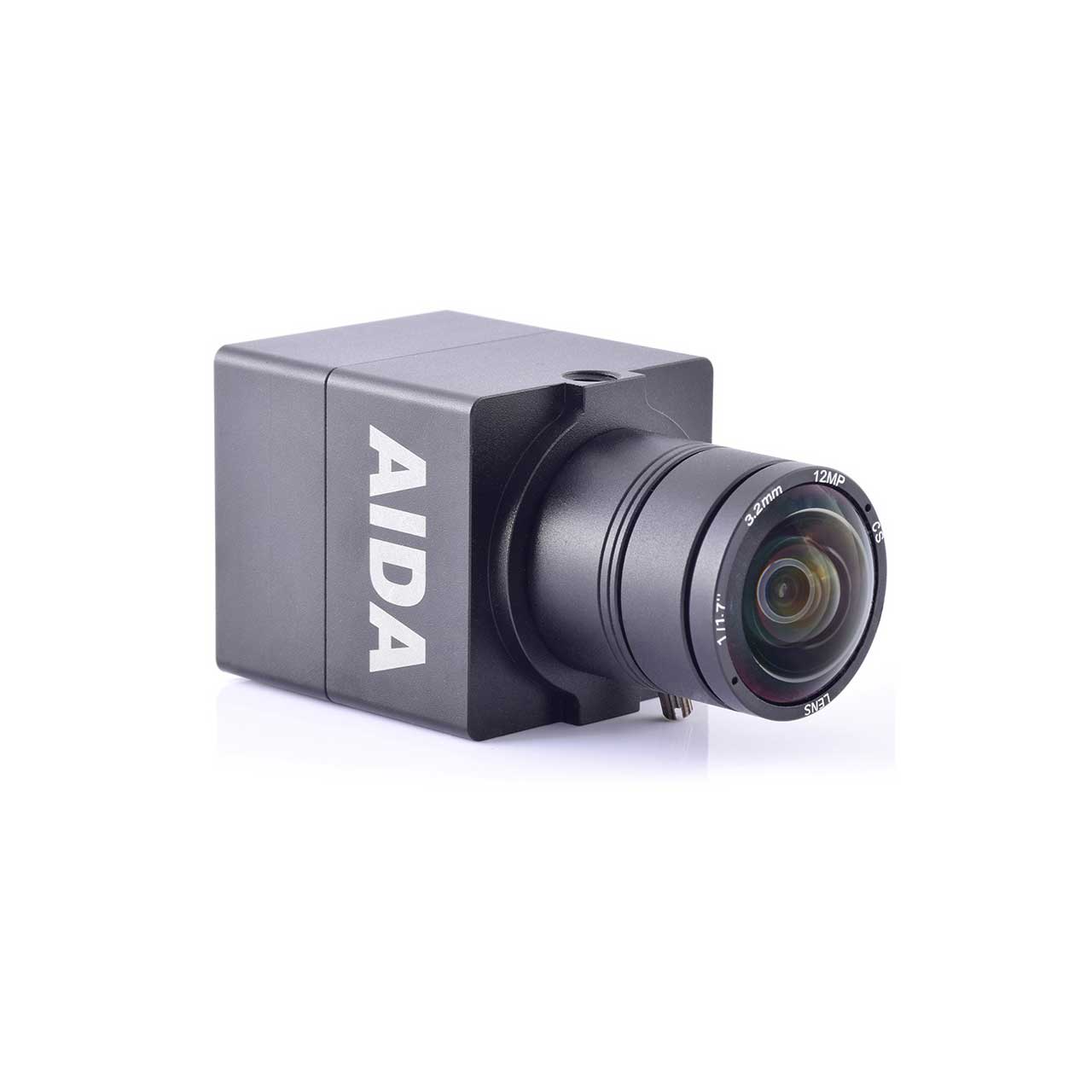

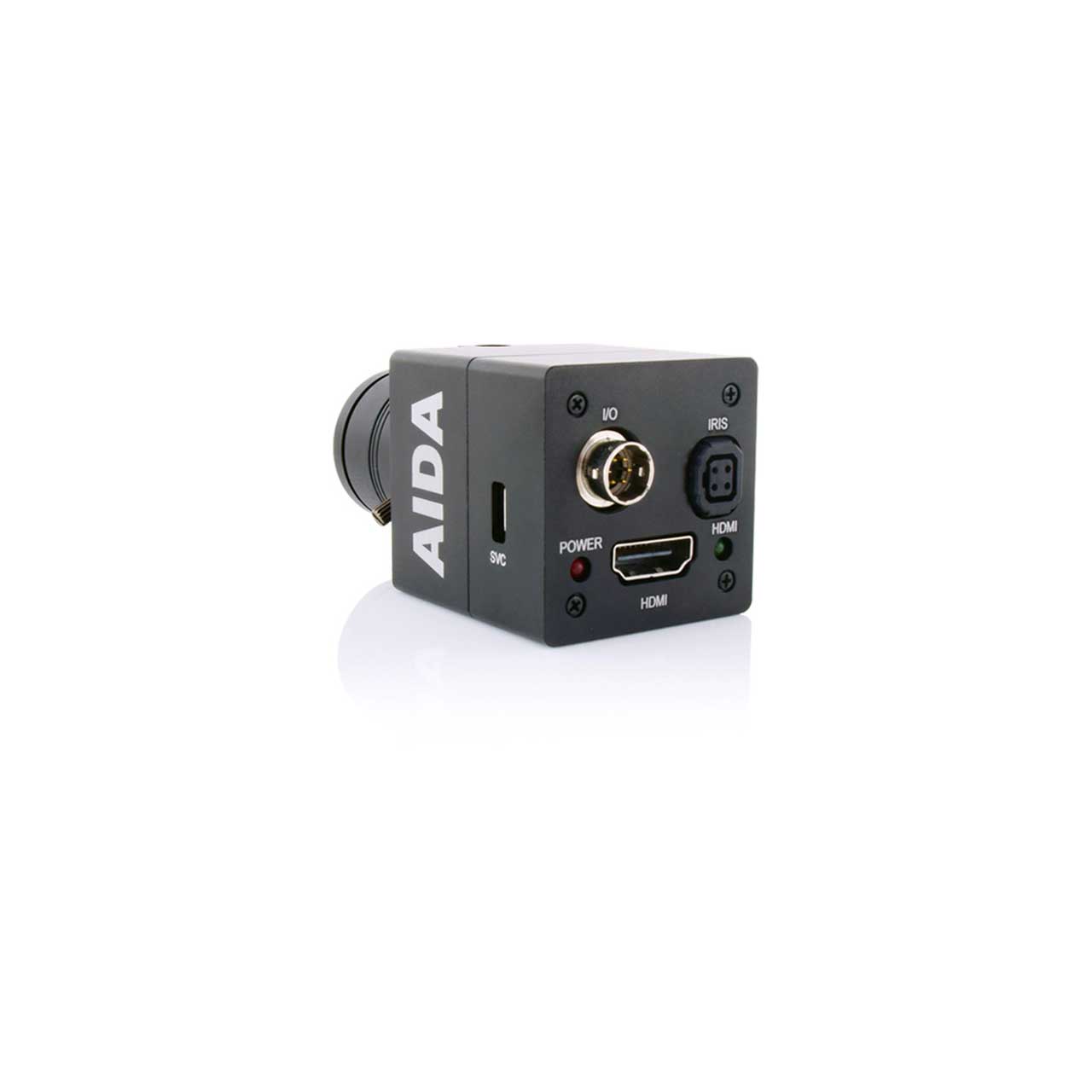

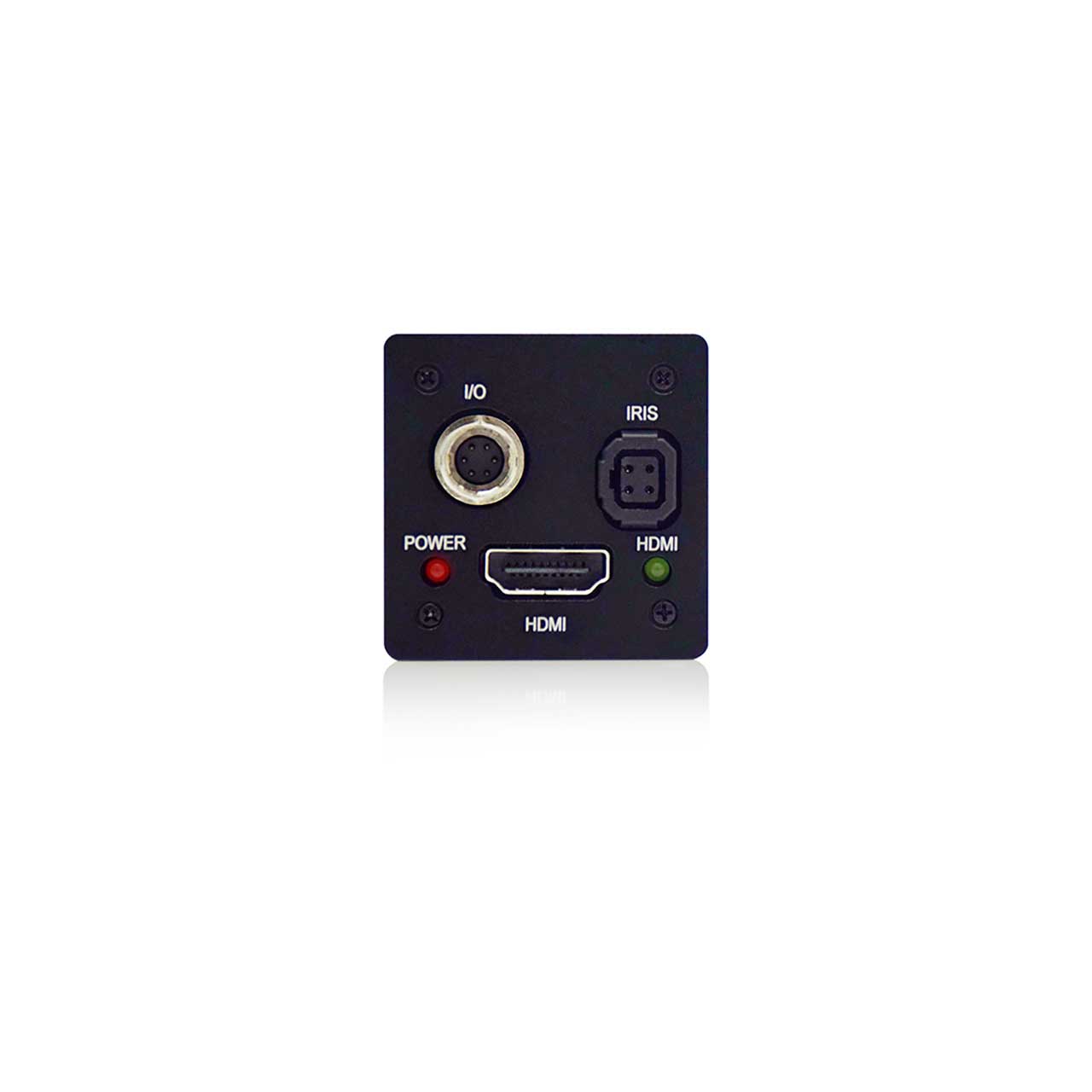

AIDA Imaging UHD-100A Micro UHD HDMI EFP Camera with TRS Stereo Audio Input

ITEM #: AIDA-UHD-100A MFG #: AIDA-UHD-100A

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Aida Imaging
Free Shipping with $49 Minimum Order

Our Price:

$595.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

AIDA-UHD-100A - Overview

Micro UHD 4K HDMI POV Camera - The World's Smallest and Cost Effective 4K POV Camera
The AIDA UHD-100A is the world's most cost effective 4K POV camera solution. With its 4K UHD Progressive Scan CMOS sensor and Digital Image Processor, the UHD-100A produces detailed videos that are sharp and true to color, while also being able to utilize Dynamic Range, Adaptive White Balance, and motion-compensated temporal noise reduction filter for reduced noise even under low light conditions. The UHD-100A features a compact and rugged form factor with interchangeable lens capabilities, making it highly versatile for various video applications.

Applications:
Broadcast
Education
Medical
Live Production
Racing
Sports
Theater
Worship

  • Features:

    • 4K UHD 1/2.5 Progressive Scan CMOS sensor captures sharp and vivid UHD video even under very low light conditions.
    • Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
    • Superb motion-compensated temporal noise reduction filter for motion video without blurring.
    • OSD control breakout cable with power input and RS-485 for remote communication.
    • Interchangeable lens design compatible with CS and C mount lenses.
    • Perfectly suited for broadcast, pro audio/video, and security.
    • Versatile, compact, and rugged design.
    • With TRS Stereo Audio Input for embedded audio over HDMI.


  • Specifications:

    • Video
    • Image Sensor: 1/2.5" Progressive CMOS
    • Sensor Size: Diagonal 7.20mm
    • Effective Pixels: Horizontal: 3840, Vertical: 2160
    • Pixel Size: 1.62 µm (H) x 1.62 µm (V)
    • Resolution:
      2160 30p/29.97p/25p/24p
      1080 60p/59.94p/50p/30p/29.97p/25p/24p
      1080 60i/59.94i/50i
      720 60p/59.94p/50p/30p/25p
    • Output: HDMI 1.4
    • Color Space: 4:2:2 (YCbCr) 10bit

      Function
    • White Balance: AWB / AE / AF
    • Exposure: Full Auto, Bright, Shutter Priority, Iris Priority, Manual
    • Other: WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction, Digital Slow Shutter, Black Level Compensation, Flicker Detection

      Lens
    • Lens: C/CS Mount (Default UHD 3.2mm Lens)

      Audio
    • Input: 3.5mm TRS Stereo Mic-in & Line in over I/O Cable
    • Sample Rate: 16/24/32 Bits

      Physical
    • Camera Control: RS-485
    • OSD Button
    • Operation Temp: 32°F - 104°F
    • Dimension: 39mm x 39mm x 50.50mm / 1.53" x 1.53" x 1.99"
    • Weight: 140g / 0.30lbs
    • Power: 12VDC (+9 - +15VDC)


  • Item Includes:

    • 1x UHD-100A Micro UHD HDMI EFP Camera with TRS Stereo Audio Input
    • 1x I/O Breakout cable
    • 1x DC12v Power supply & Socket adaptor
    • 1x 3.2mm 12MP 4K Lens (Pre-installed)
    • 1x Sensor cap
    • 1x C-Mount lens adaptor
    • 1x Hex. wrench
    • 1x Terminal power connector


  • GTIN:

    0682863380156
