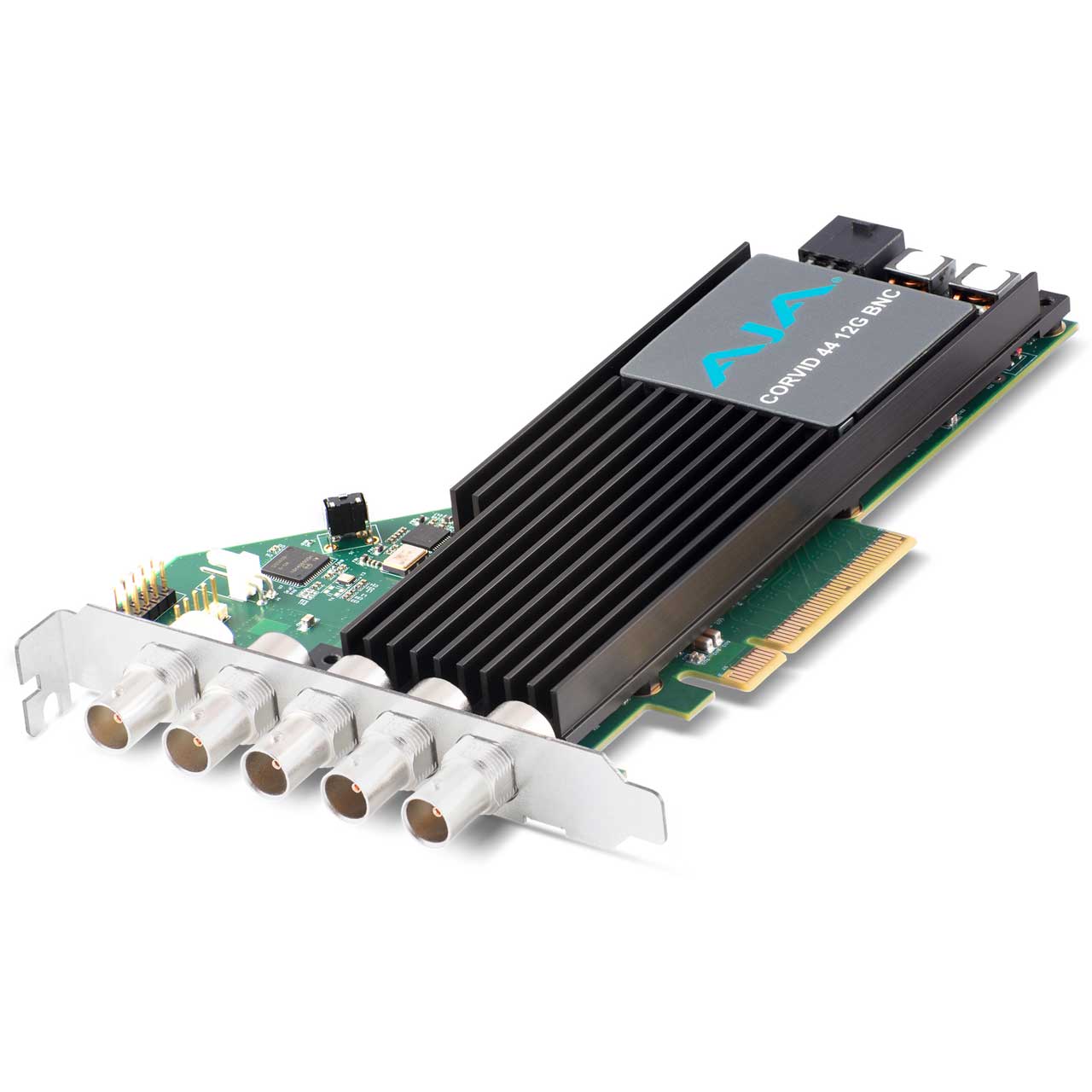

AJA Corvid 44 CRV44-12G-R0-21 12G-SDI PCIe 3.0 4 Channel I/O Card - Tall Bracket - BNC with Fan - No Cables

ITEM #: AJA-CRV4412GR021 MFG #: CRV44-12G-R0-21

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
AJA Video
Free Shipping with $49 Minimum Order

Our Price:

$3,795.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

CRV44-12G-R0-21 - Overview

12G-SDI Multi-Format PCIe I/O Card!

AJA Corvid 44 12G BNC boasts four bidirectional 12G-SDI spigots with a Reference Input. 8K Input or Output is possible using quad 12G-SDI cables and 4K/UltraHD I/O can be achieved with either a single 12G-SDI or 6G-SDI cable, or quad 3G-SDI cables. 2K/HD I/O can be achieved with a single SDI cable or dual link SDI, while allowing capture and monitoring via SDI to take place simultaneously.

Corvid 44 12G BNC supports 8K (8192 x 4320) and UltraHD2 (7680 x 4320) High Frame Rate (HFR) workflows up to 50/60p for the most demanding applications. Film rates of 23.98, 24, 47.95 and 48p are also supported across 8K, 4K, and 2K.

High frame rates are also available on multiple I/O 4K, UltraHD, 1080p and 720p HD up to 50/60p, making Corvid 44 12G BNC extremely flexible for your current and future needs. The built-in hardware downstream keyer allows graphics and images to be easily overlaid on the input video in real time up to 4K. Corvid 44 12G BNC also provides one external, switchable LTC/Reference Input connection on the back of the card.

  • Features:

    • 8K/UltraHD2/4K/UltraHD/2K/HD/SD, including multi-channel 4K up to 50/60p
    • 4x full-size bidirectional 12G-SDI spigots with 16-channel embedded audio
    • RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows supported
    • Dynamic FPGA Firmware Reconfiguration
    • 4K Closed Caption Support
    • VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
    • PQ, HLG, HDR10, HDR10+ and Dolby Vision Support
    • HDR Metadata Capture and Auto Playback Detection
    • Ref/LTC input on internal header (Analog black burst or Tri-level)
    • RS-422 on internal header
    • Active or passive heatsink


  • Specifications:

    • Video Formats
    • (8K) 8192 x 4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD2) 7680 x 4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (2K) 2048 x 1080PsF 23.98, 24, 25
    • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1080i 50, 59.94, 60
    • (HD) 720p 50, 59.94, 60
    • (SD) 625i 50
    • (SD) 525i 59.94
    • Note: High Frame Rate and 8K/UltraHD2 capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates and raster sizes.

      Video Inputs Digital
    • 12G-SDI, SMPTE-2082, 12-bit*, 10-bit
    • 6G-SDI, SMPTE-2081, 10-bit
    • 3G-SDI, SMPTE 425
    • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
    • 1.5G-SDI, SMPTE 292M
    • Single Link HD-SDI YCbCr 4:2:2 10-bit
    • Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
    • 270 Mbps SDI, SMPTE 259M-C
    • YCbCr 4:2:2 10-bit, 8-bit
    • *Bit depth support is application dependent. Check with your software manufacturer for compatibility.
    • Note: Corvid 44 12G BNC SDI connectors are full-size BNC

      Video Outputs Digital
    • 12G-SDI*, SMPTE-2082, 12-bit*, 10-bit
    • 6G-SDI*, SMPTE-2081, 10-bit
    • 3G-SDI, SMPTE 425
    • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
    • 1.5G-SDI, SMPTE 292M
    • Single Link HD-SDI YCbCr 4:2:2 10-bit
    • Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
    • 270 Mbps SDI, SMPTE 259M-C
    • YCbCr 4:2:2 10-bit, 8-bit
    • *Bit depth support is application dependent. Check with your software manufacturer for compatibility.
    • Note: Corvid 44 12G BNC SDI connectors are full-size BNC

      HDR
    • SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance

      SDI I/O
    • SDI connections are bidirectional
    • 2K/HD, capture and monitoring is simultaneous
    • 4K/UltraHD with 12G-SDI, capture and monitoring is simultaneous
    • 4K/UltraHD with 3G-SDI, all four connections must be used for either Input or Output
    • 8K/UltraHD2 with 12G-SDI, connections must be used for either Input or Output
    • Note: When connections are configured for 12G-SDI or 6G-SDI, only UltraHD/4K/UltraHD2/8K formats are supported.

      Audio Inputs Digital
    • 16-channel, 24 and 16-bit SDI embedded audio, 48 kHz sample rate, synchronous

      Audio Outputs Digital
    • 16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous

      Downstream Keyer
    • Supports graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte up to UltraHD/4K

      Reference
    • Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V) via 1x full-size BNC on PCIe bracket
    • Reference input is terminated into 75 ohms when Genlock is set to Ref In

      Timecode
    • LTC timecode input via 2-pin header on PCIe card, or via full-size BNC Ref In connector (switchable) on PCIe bracket

      Electrical Interface
    • 8-lane PCIe 3.0

      Machine Control
    • RS-422, Sony 9-pin protocol via header on PCIe card


  • Warranty:

    • 3 Year Warranty


  • GTIN:

    0812321032000
