AJA FiDO-TR-MM 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver

ITEM #: AJA-FIDO-TR-MM MFG #: FIDO-TR-MM

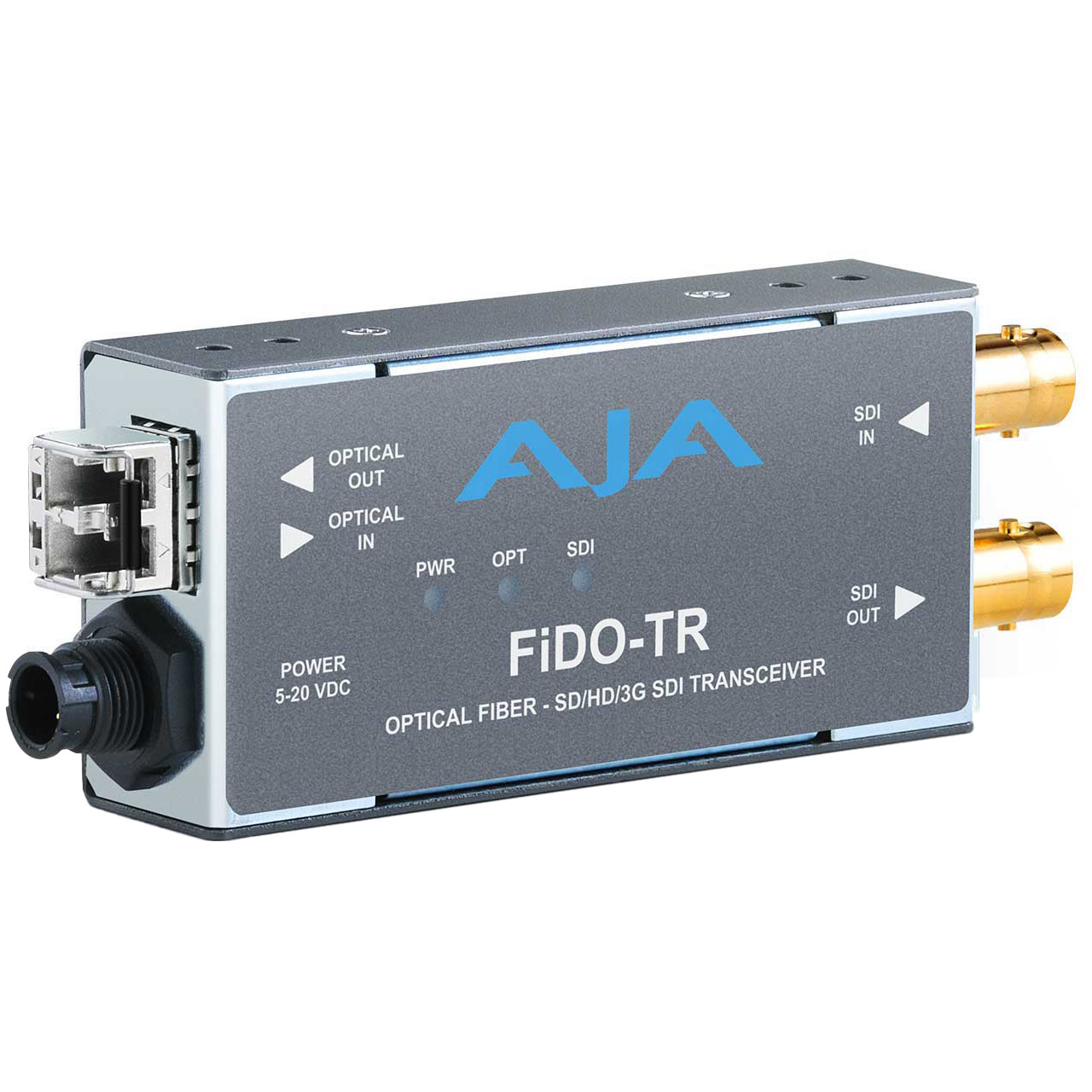

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,109.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


FIDO-TR-MM - Overview

The AJA FiDO-TR-MM offers unmatched flexibility and cost efficiency for 3G-SDI Fiber conversion, allowing for cable runs up to 700 m (2296 ft) for OM4 and 300 m (984 ft) (OM3) for Multi-Mode fiber optic cables, useful for eliminating ground loop problems. FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world. AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad and iPhone is available now in the Apple iTunes Store.

  • Features:

    • 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver
    • Duplex connection (LC connector)
    • 3G/HD/SD-SDI input and output
    • Bidirectional, dual channel fiber
    • Uses 5-20VDC power (DWP-U-R1 universal power supply included)

  • Specifications:

    • Video Formats
    • 150 Mbps - 3 Gbps, format agnostic

      Video Input Digital
    • 1-Channel independent 3G-SDI BNC, SMPTE-259/292/424
    • 1-Channel Multi-Mode LC Fiber connector, SMPTE-297
    • Nominal Wavelength: 850 nm
    • Optical Sensitivity: -15dBm (min)
    • Optical Power: -7dBm (min), -2dBm (max)
    • Extinction Ratio: 7.5dB (Typ)

      Video Output Digital
    • 1-Channel independent 3G-SDI, SMPTE-259/292/424
    • 1-Channel Multi-Mode LC Fiber connector, SMPTE-297
    • Nominal Wavelength: 850 nm
    • Optical Sensitivity: -15dBm (min)
    • Optical Power: -7dBm (min), -2dBm (max)
    • Extinction Ratio: 7.5dB (Typ)

      General
    • Reclocking: 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select; All other rates are passed through and not reclocked
    • Dimensions (w x d x h): 4.6" x 1.71 " x.85"
    • Power: 3 watts max; Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)
    • Operating Temperature: 32 to 104° F
    • Storage Temperature (Power OFF): -40 to 140° F
    • Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)

  • Warranty:

    • 5 Year

  • GTIN:

    0812321030471
