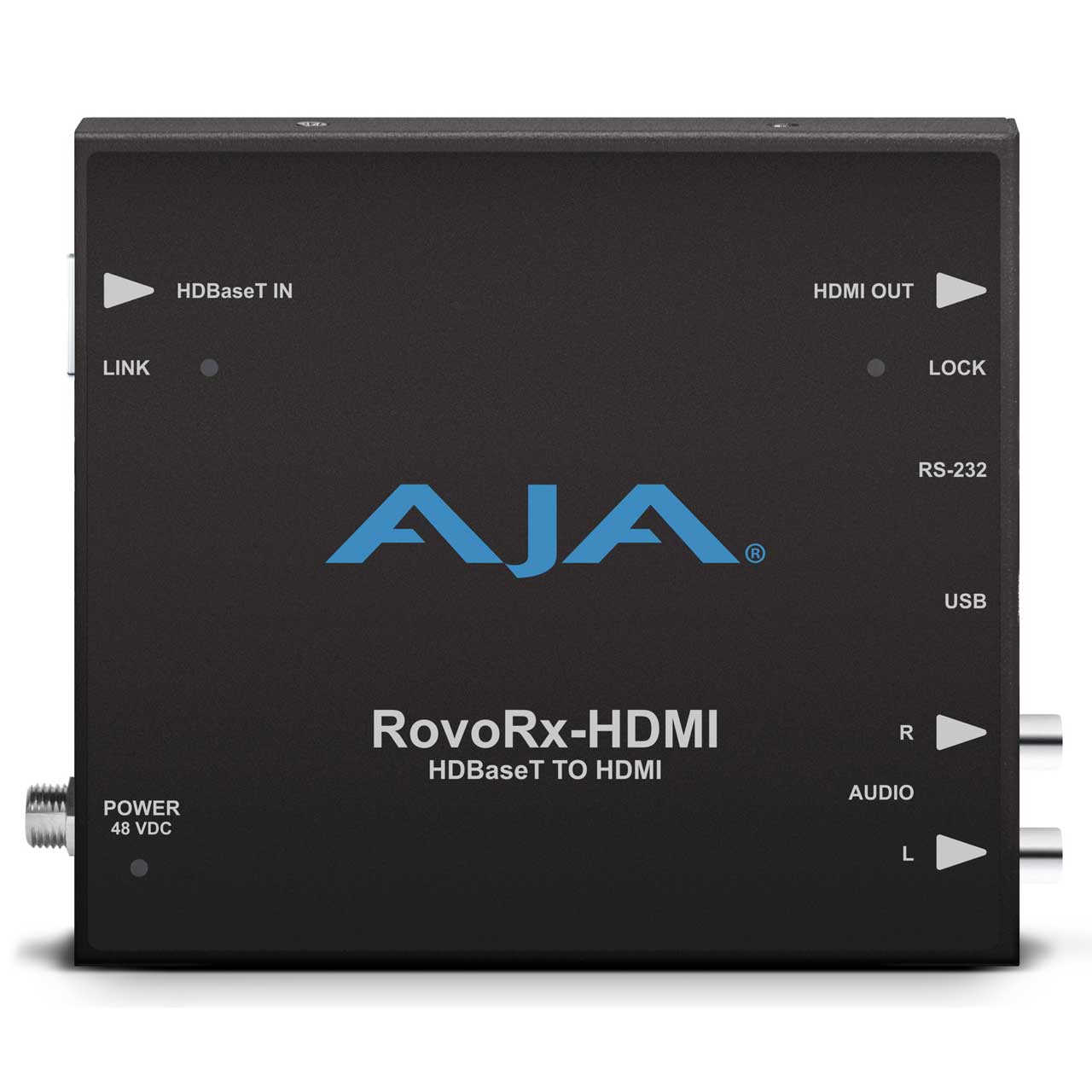

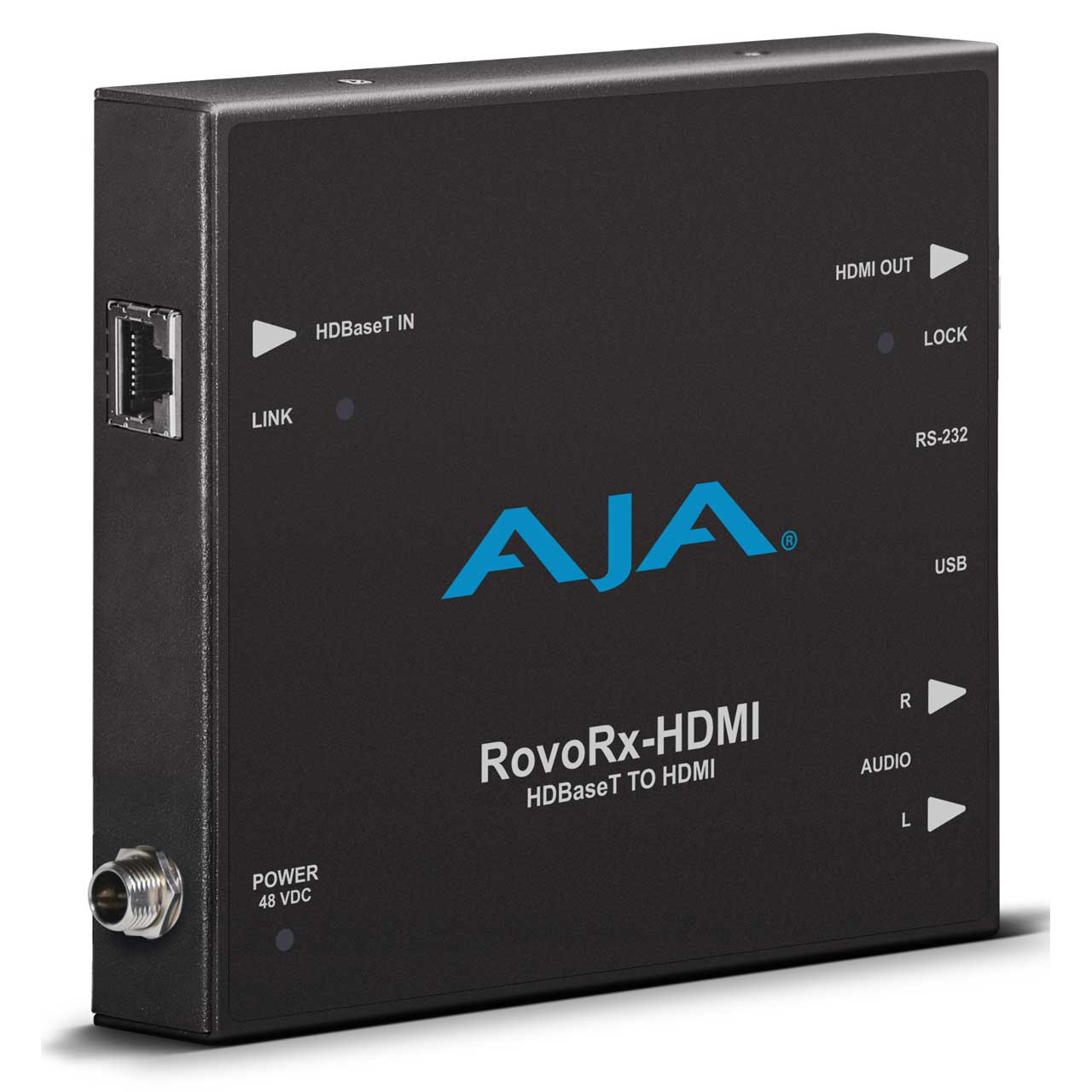

AJA RovoRx-HDMI UltraHD/HD HDBaseT Receiver to HDMI with PoH

ITEM #: AJA-ROVORX-HDMI MFG #: ROVORX-HDMI

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$625.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ROVORX-HDMI - Overview

The AJA RovoRx-HDMI is an UltraHD/HD HDBaseT receiver with integrated HDMI video and audio outputs specifically designed to receive RovoCam's output. Receive the RovoCam's video and audio up to 100m away from the camera, and output to HDMI TVs and devices. RovoRX-HDMI is also suitable for use with any 3rd party compatible device providing support for uncompressed video, audio, power, and control, all over a single Cat 5e/6 cable, greatly simplifying cabling and systems integration.

RovoRx-HDMI offers a lot of power for HDBaseT workflows, receiving uncompressed video and audio, offering bidirectional VISCA support and PoH for powering RovoCam, all across a single Cat 5e/6 cable. With an HDMI output, your options for distribution of RovoCam's UltraHD or HD imagery simplify any project's needs.

  • Features:

    • HDBaseT (RJ-45), Analog Video reference terminating Input
    • 1x HDMI 1.4 Output
    • 1x RCA Stereo Output*
    • 1x REF In/Out
    • 1x 3.5mm TRS Input for RS-232 bidirectional signals
    • 1x RS232 for RovoControl software
    • *RovoCam Audio is not carried over to the HDMI output on RovoRx-HDMI, it is only output via the RCA 2 channel connection

  • Specifications:

    • Video Formats
    • (UltraHD) 3840 x 2160p 25, 29.97
    • (HD) 1080p 50, 59.94
    • (HD) 1080i 50, 59.94
    • (HD) 720p 50, 59.94
    • (SD) 625i
    • (SD) 525i

      Video Input
    • HDBaseT (RJ-45)

      Video Output
    • HDMI 1.4b
    • *No embedded audio

      Audio Output Analog
    • 1x RCA connector, 2-channel unbalanced
    • Note: This feature only works when used in conjunction with RovoCam

      RS-232
    • 1x 3.5mm TRS Input for RS-232/VISCA Bidirectional signals

      User Interface
    • AJA RovoControl software (macOS and Windows)
    • Third party VISCA software or hardware controllers

      USB
    • 1x USB for firmware and additional control

      Size (WxDxH)
    • 4.03" x 5.2" x 0.94" (102.37 x 132.08 x 23.88 mm)

      Weight
    • 0.7 lbs (0.4 kg)

      Power
    • RovoRx-HDMI only: 48V @ 125mA = 6W typical, 48V @ 156mA = 7.5W max
    • RovoRx-HDMI powering RovoCam: 48V @ 271mA = 13W typical, 48V @ 312mA = 15W max
    • Environment
    • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
    • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)

  • GTIN:

    0892448000847
