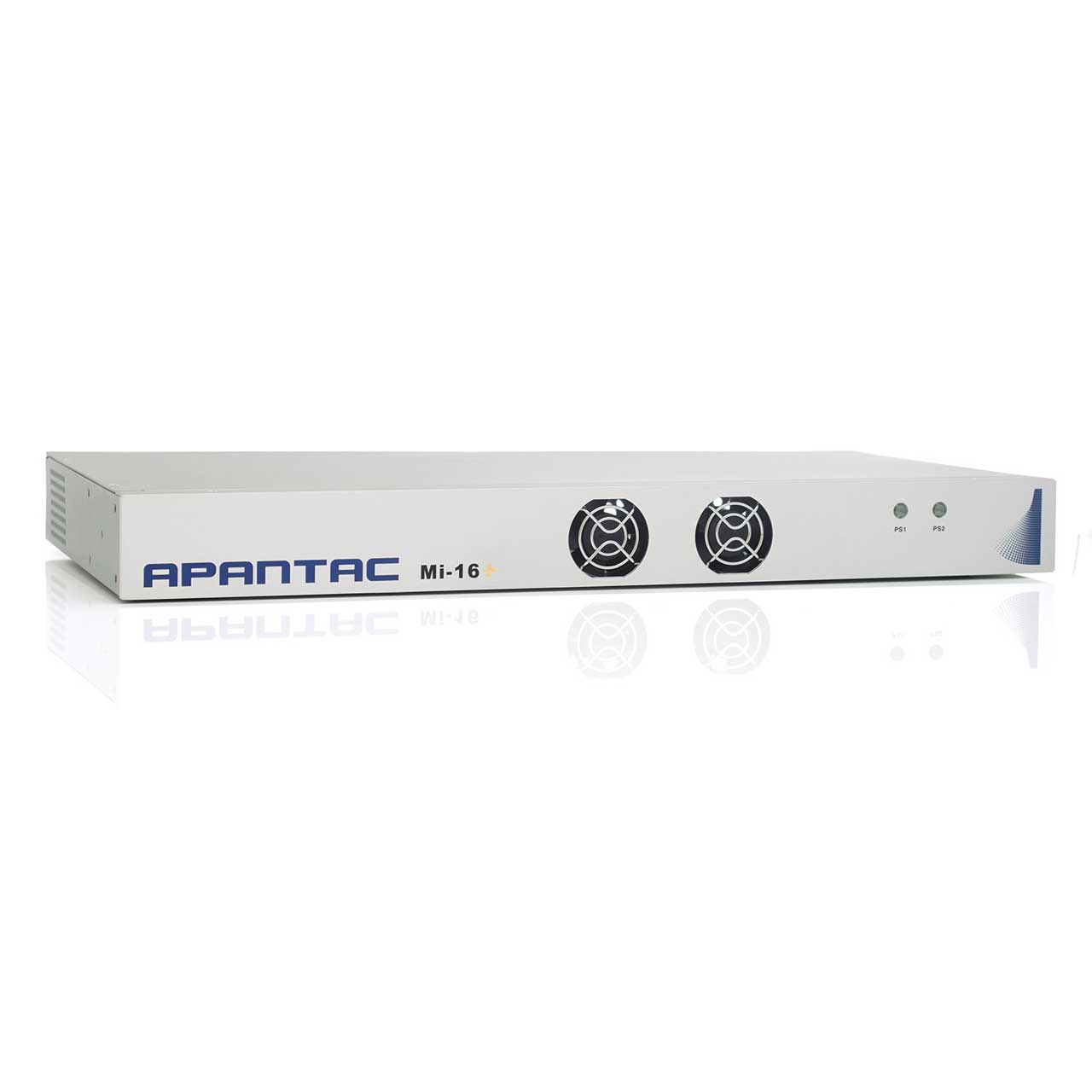

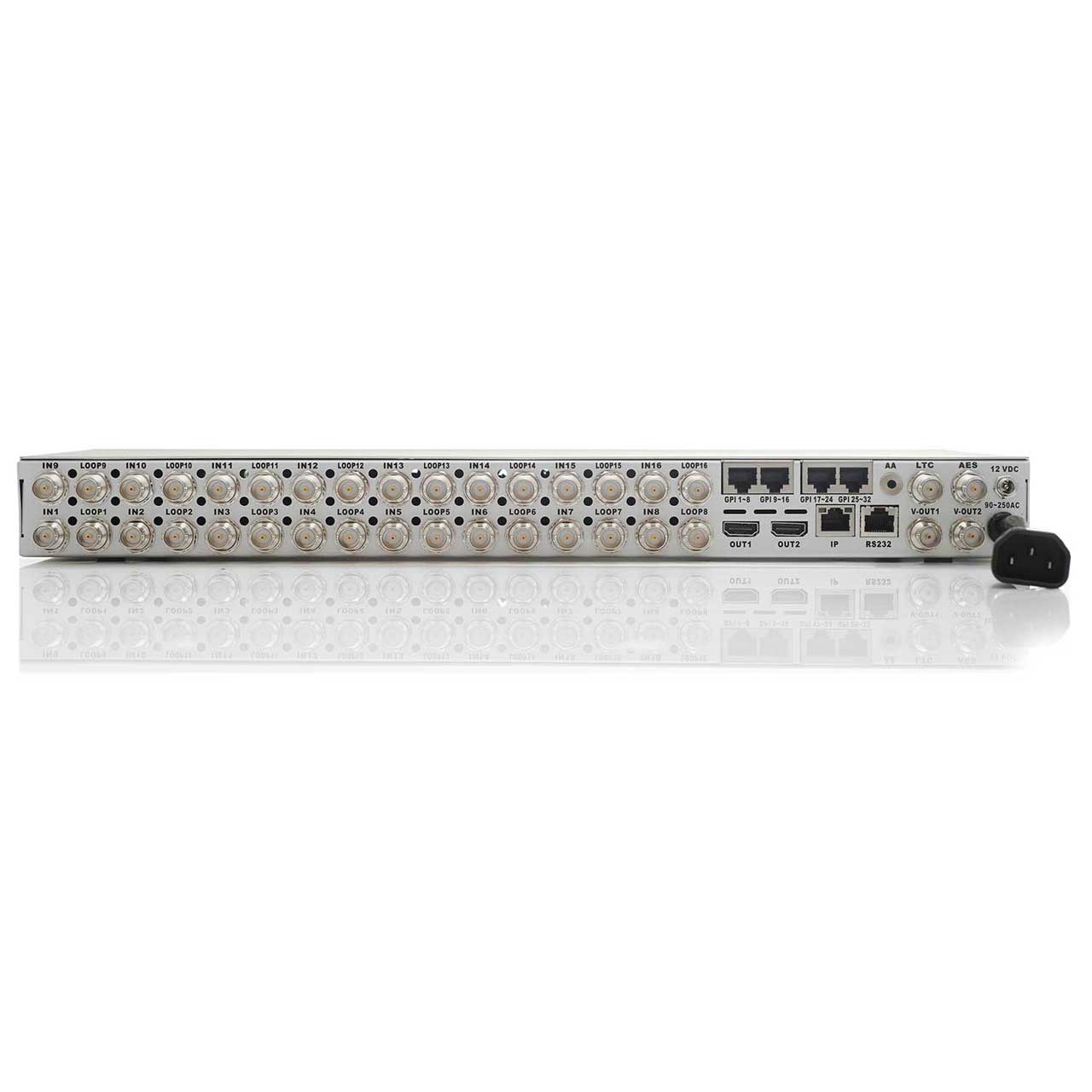

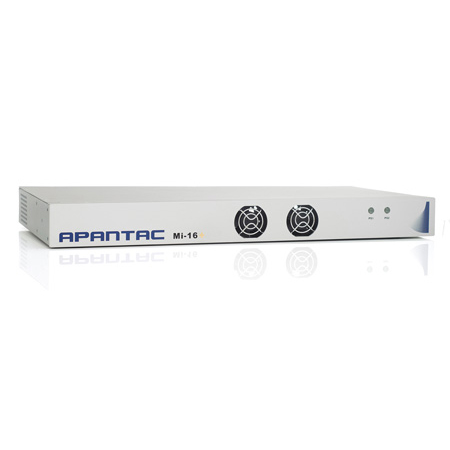

Apantac MI-16 PLUS 8x2 Multiviewer - 16 SD/HD-SDI/3G Video Inputs with Passive Loop Outs

MI-16-PLUS - Overview

• Features:

  • Low latency - single frame processing delay
  • Accepts 16 auto-detect 3G/HD/SD-SDI inputs
  • 16 Passive input loop through
  • Windows can be sized and moved freely
  • Decode up to 16 embedded audio per SDI input
  • 2 separate independent outputs with 8 inputs each
  • Simultaneous HDMI and SDI outputs
  • Ethernet for configuration and external control
  • Dynamic UMD/labels & Tallies (TSL)
  • Stand alone labels, customizable logos
  • 32 GPIs for tallies, count up/down triggers or alarms
  • 2 digital and 2 analog clocks can be sync'd with LTC or NTP
  • Borders can be turned on or off
  • Safe area markers
  • Visual Alarm tags for video/audio alarm detection
  • Stereo analog audio monitoring output
  • Optional redundant power supply
  • 3 year limited warranty


• Specifications:

  • Video Inputs: 16 3G/HD/SD-SDI
  • Video Outputs: 2 identical DVI/HDMI, SDI
  • Loop outs: 16 passive loop outs
  • Audio Outputs: AES and Analog audio monitor outputs
  • Connectors: BNC IEC 61169-8 Annex A
  • Output Resolution: 1920 x 1080p 50/60Hz
  • Total Windows: 16
  • On-Screen Display: Borders, labels, tally UMD, OMD, IMD, dynamic UMD
  • Serial Digital: SMPTE 424M, 292M, 259M
  • General Purpose IO: Up to 32 inputs with RJ50 - DB9 connectors
  • Equalization: 120m at 2.97 Gbps, 140m at 1.48 Gbps, 400m at 270 Mbps with Belden 1694A
  • Serial Port: Connector: RJ45, Baud Rate up to 115200 Format, TSL, TSI, AXP
  • Return Loss: > 15db up to 1.485 Gbps, > 10db up to 3G
  • IP: 100 Base-Tx, TSL, AXP, Connector: RJ45
  • Embedded Audio: SMPTE-272M-A
  • Electrical: 50W, 90-250V 50/60 Hz
  • Alarms: No audio, audio high/low, no video, video black, video frozen, WSS, AFD
  • EMI/RFI: Complies with FCC Part 15 Class A, CE, EU EMC, C-tick
  • Power: 90-250 AC / 12 DC
  • Size: 1 RU, 25 cm (10")


• Item Includes:

  • MI-16 PLUS 8x2 multiviewer
  • Rack mount
  • 4 x RJ50 to DB9 for GPI
  • 4 x breakout terminal blocks
  • RJ45 to DB9 for serial
  • Analog audio breakout cable
  • CD (software, manual)


• Warranty:

  • 3 Years
