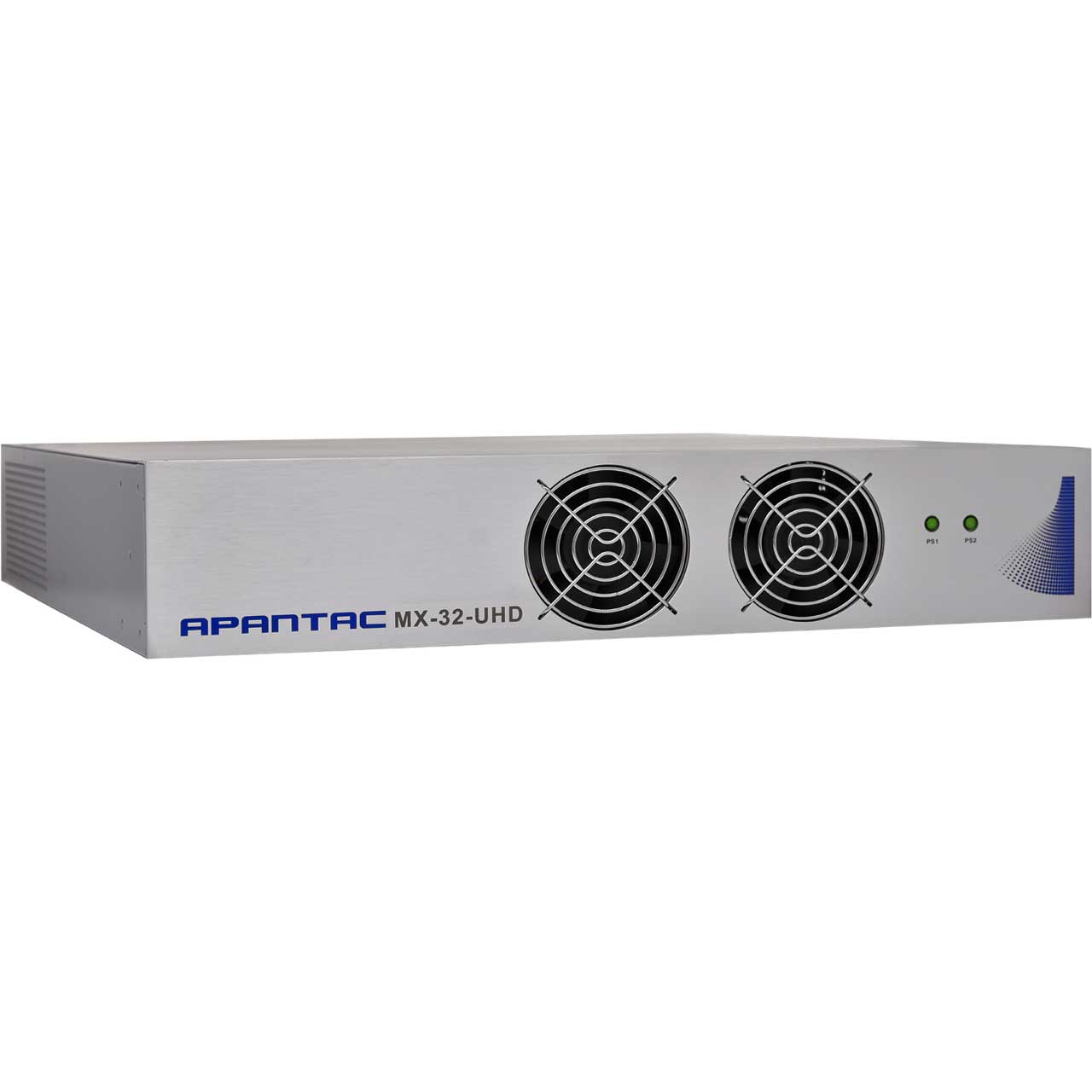

Apantac MX-32X2-UHD CRESCENT MX 2RU 32x2 3G/HD/SD-SDI Multiviewer with 2 UHD Outputs

MX-32X2-UHD - Overview

• Features:

  • Low latency - single frame processing delay
  • Low energy - only uses 75W of power
  • Accepts 32 auto-detect 3G/HD/SD-SDI Inputs
  • Maxmum of 16 windows per Output
  • Every Input can be duplicated up to 32 times
  • Every Input is available to both Outputs
  • Windows can be sized and moved freely
  • Decodes up to 16 embedded audio per SDI Input
  • Total of 256 audio meters
  • 2 independent HDMI 2.0 and SDI (12G and 3G)Outputs
  • Output resolution up to UHD@60Hz
  • Ethernet for configuration and external control
  • Dynamic UMD/Label and Tallies (TSL)
  • Standalone labels and 2 customizable logos
  • 2 digital and 2 analog clocks can by synced with LTC or NTP
  • 64 GPIs for tallies, count up/down triggers or preset recalls
  • Borders can be turned on or off
  • 2 sets of safe area markers
  • Visual alarm tags for format, video/audio presence
  • Audio monitoring Outputs - stereo, AES, SDI or HDMI
  • 2 RU with redundant power supply
  • 3 year limited warranty


• Specifications:

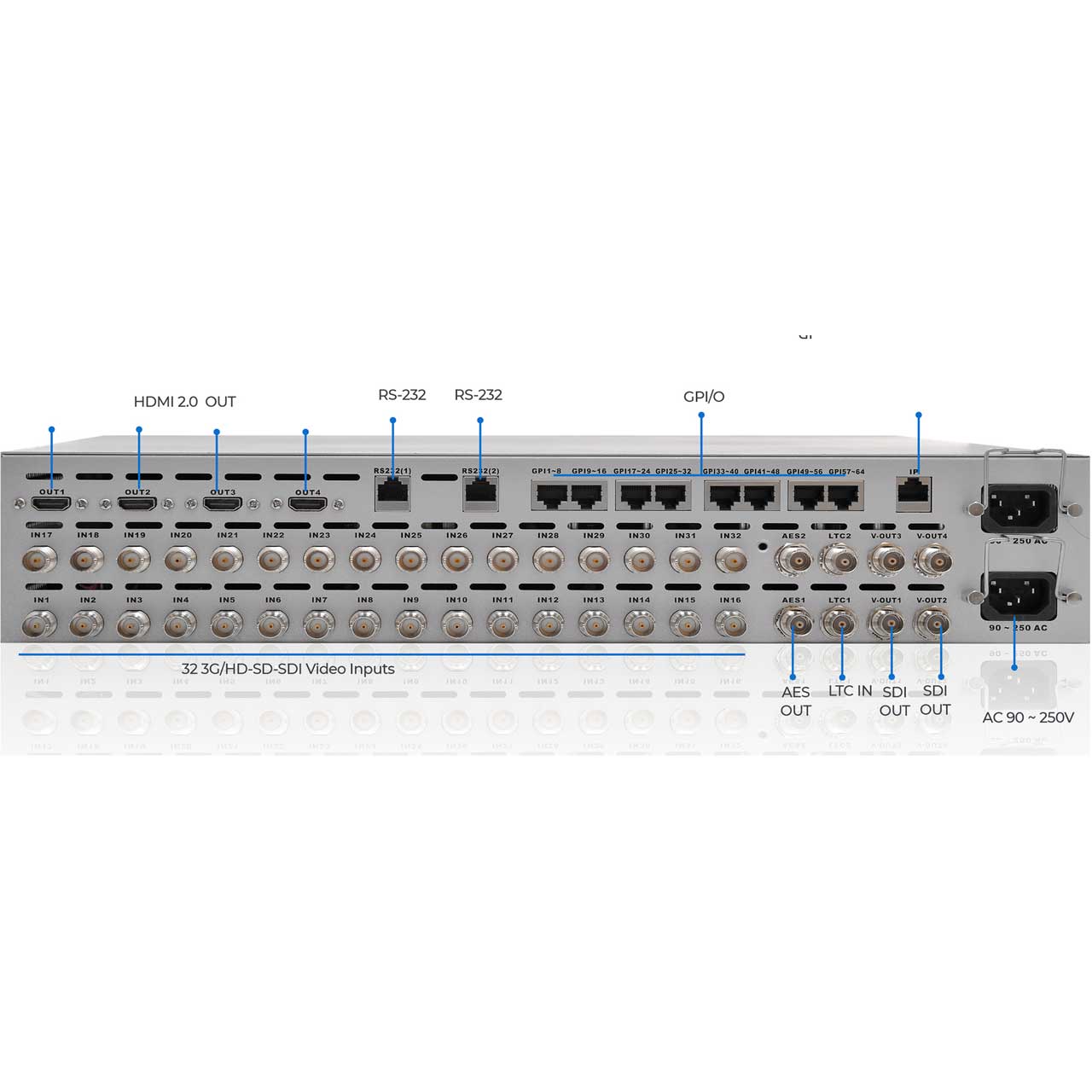

  • Video Inputs: Up to 32 3G/HD-SD-SDI. Supports 3G Level A&B Outputs 2 independent HDMI 2.0
  • Connectors: BNC IEC, 61169-8 Annex A Output Resolutions UHD@50/60Hz
  • Total Windows: 16 per each Output
  • On Screen Displays: Borders, labels (4 per window), fonts, tally LED, analog and digital clocks, logos, UMD, OMD, IMD
  • Serial Digital: SMPTE 424M, SMPTE 292M, SMPTE 259M
  • General Purpose IO: Borders, labels (4 per window), fonts, tally LED, analog and digital clocks, logos, UMD, OMD, IMD
  • Equalization: 120m at 2.97 Gbps, 140m at 1.485 Gbps, 400m at 270 Mbps, with Belden 1694A
  • Serial Port: RS-232. Connector - RJ45, Baud Rate up to 115,200. Format: TSL, AXP
  • Return Loss: > 15db up to 1.5 Gbps, > 10db up to 3G
  • Electrical: 100 W, 90 ~ 250 V 50/60 Hz
  • EMI/RFI: Complies with FCC Part 15 Class A, CE, EU, EMC, C-tick
  • Size: 2RU. 446 x 452 x 44 mm (L x W x H)
  • Alarms: No audio, no video, video formats Environment
  • Operating Temperature: 0 ~ 45 C
  • Operating Humidity: 20 ~ 90% RH
  • Storage Temperature: -20 ~ 60 C


• Item Includes:

  • 1x Apantac MX-32X2-UHD 2RU 32x2 3G/HD/SD-SDI Multiviewer with 2 UHD Outputs
  • 1x Rack-mounts
  • 8x RJ50 to DB9 cables for GPI
  • 8x Breakout terminal blocks
  • 2x RJ45 to DB9 cable for serial (RS-232)


• Warranty:

  • 3 year limited warranty
