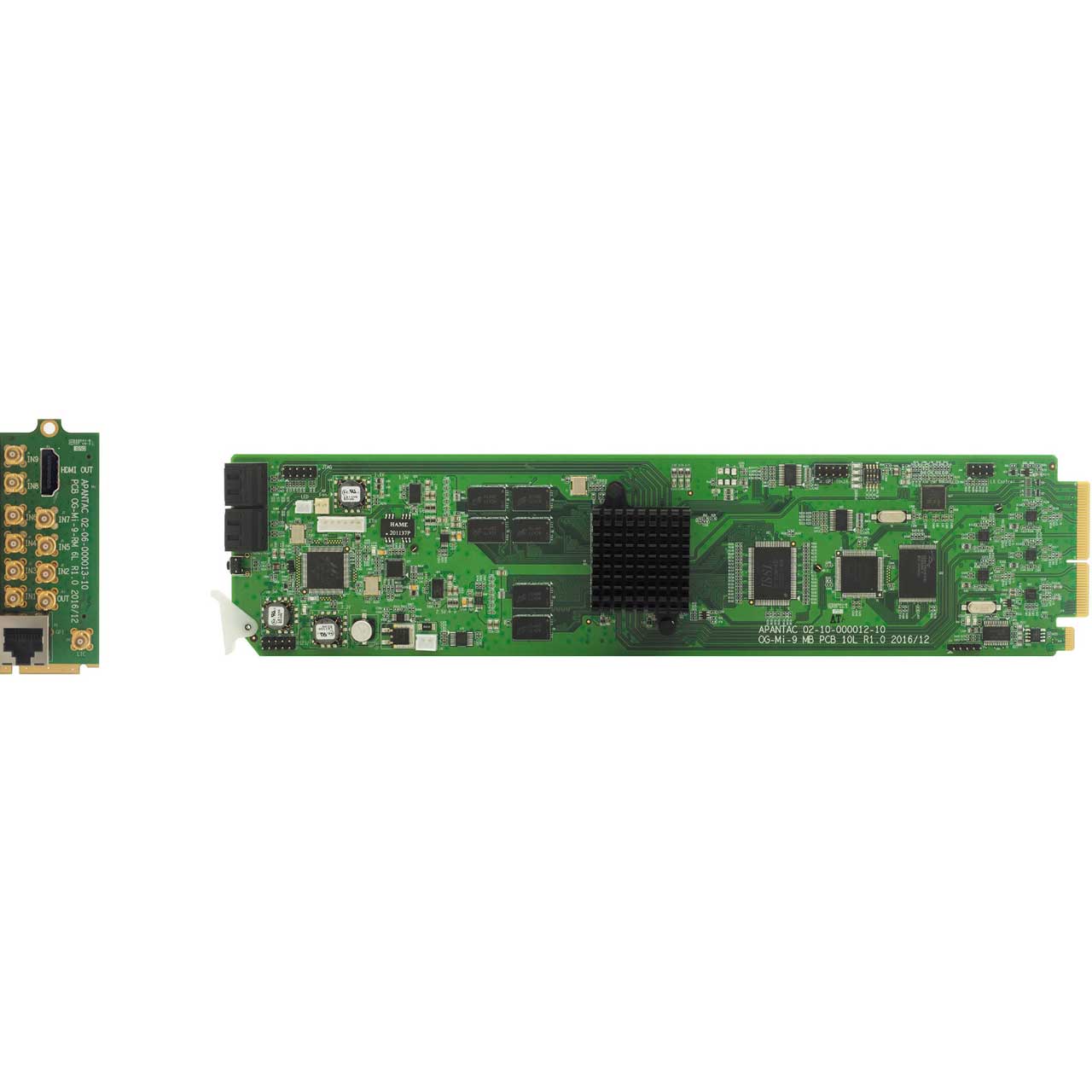

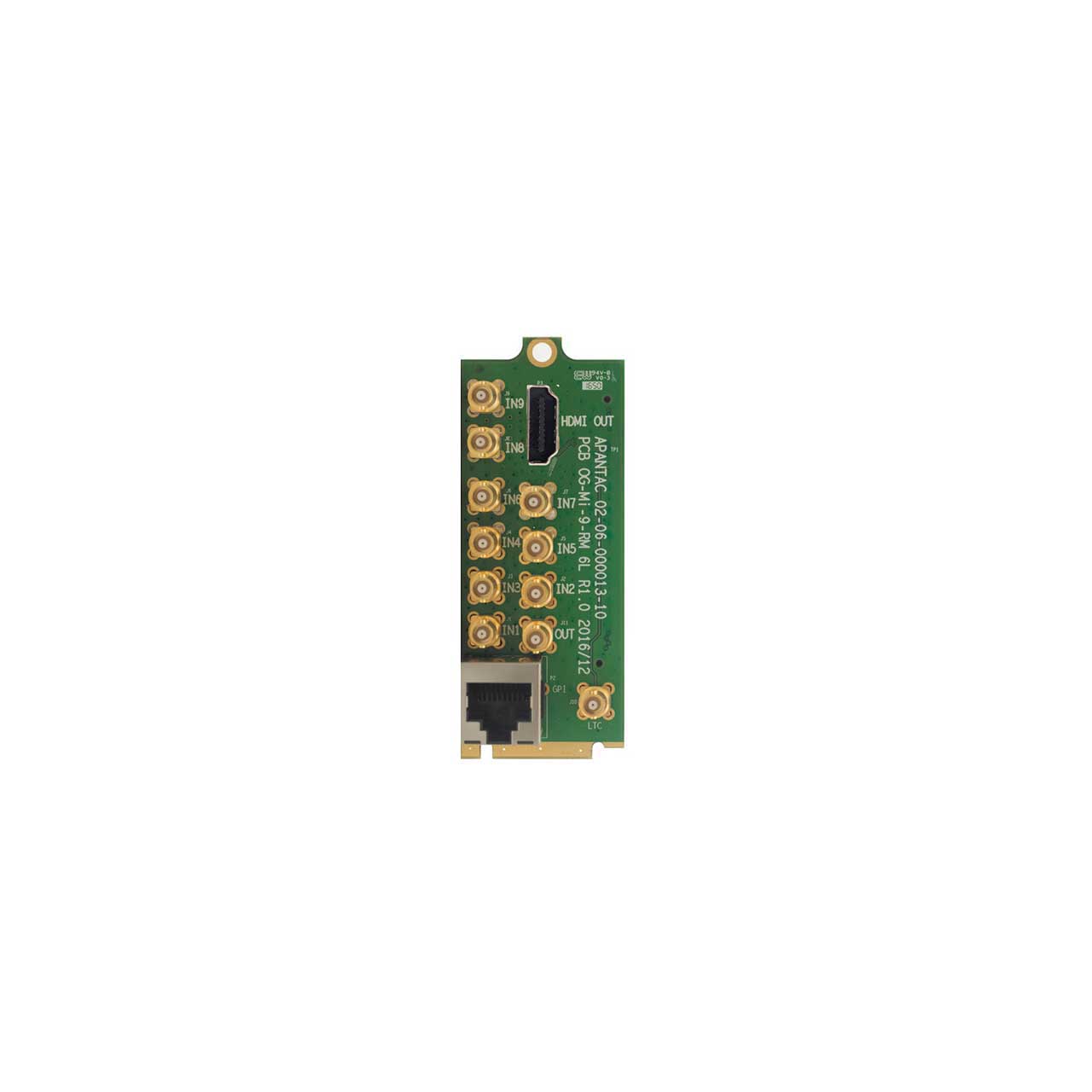

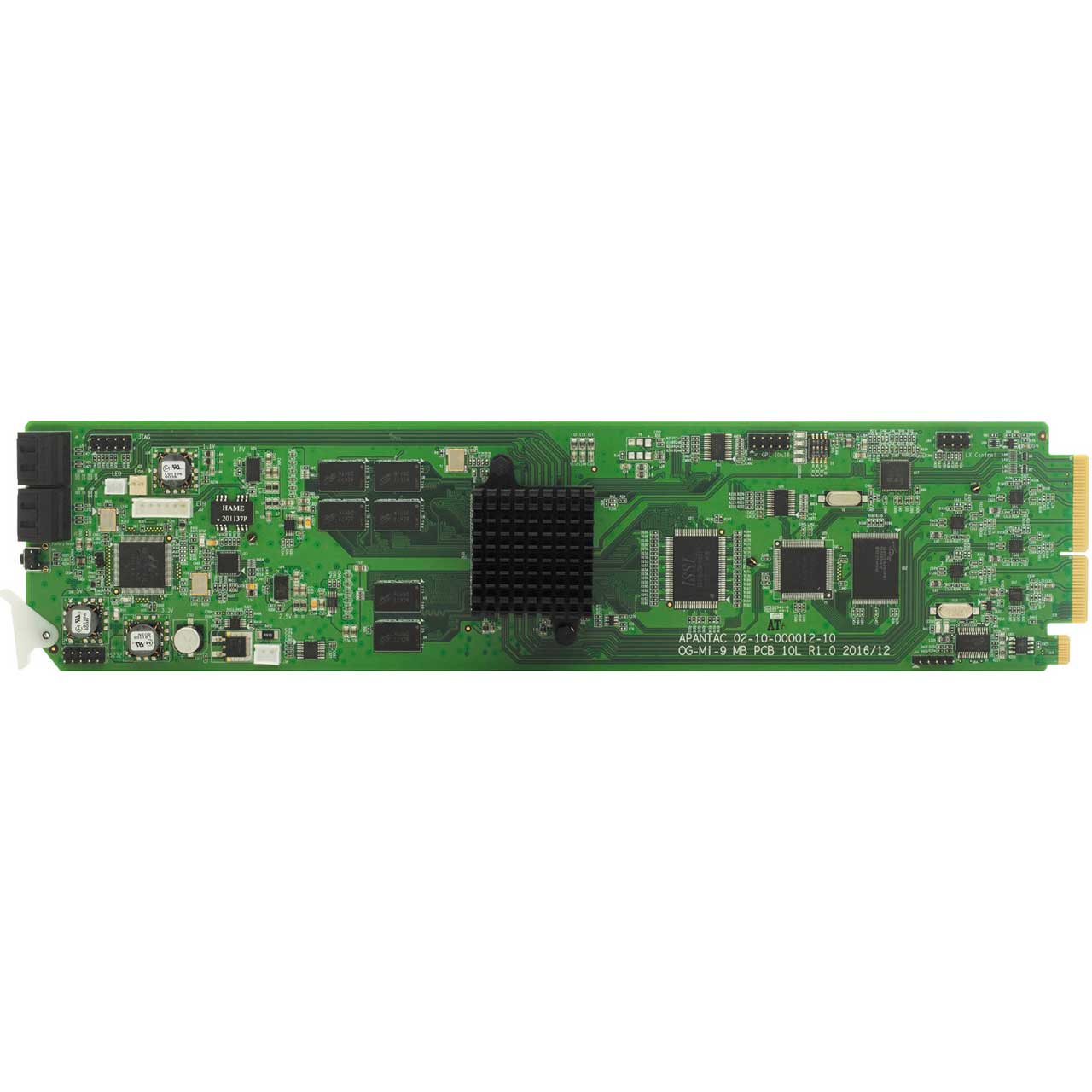

Apantac OG-Mi-9-SET-2 Bundle - OG-Mi-9-MB & OG-Mi-9-RMC Occupies 2 Slots in OpenGear Frame - 11x HDBNc - BNC Cables

OG-MI-9-SET2 - Overview

• Features:

  • OGX/3.0 card-based form factor
  • Low latency - single fram processing delay
  • 9 auto-detect 3G(Level A/B)/HD/SD-SDI inputs
  • Low power consumption - 15W
  • Ethernet for configuration, dynamic labels & Tallies (TSL)
  • Standalone labels, customizable logo
  • 9 GPIs for tallies, count up/down trigger or preset recall
  • Built-in analog/digital clocks can synn with LTC/NTP
  • Border can be turned on or off
  • Two sets of safe area makers
  • Visual alarm tags for video/audio alarm
  • HDMI and SDI outputs have embedded stereo audio pair


• Specifications:

  • Inputs: 9x 3G (level A/B)/HD/SD-SDI
  • Connector Type: HDBNC
  • Total Windows: 9
  • Serial Digital: 3G/HD/SD-SDI in 50/59.94/60Hz
  • Equalization:
    120m at 2.97 Gbps, 140m at 1.48 Gbps
    400m at 270 Mbps with Belden 1694A
  • Return Loss:
    > 15db up to 1.485 Gbps
    > 10db up to 3G
  • Embedded Audio: SMPTE-272M-A
  • Alarms: No audio, auio high/low, no video, video format display
  • Video Outputs:
    1x HDMI/DVI
    1x SDI
  • Audio Output: Embedded HDMI and SDI
  • Output Resolution: 1920x1080P 50/60Hz
  • On Screen Display: Borders, Labels, Tallies, Audio meters, Alarm tags, Safe area markers
  • GPI: 8 for tally or AXP (ASCII command)
  • Serial Port: N/A
  • IP: 100 Base-T, TSL, AXP_Lite protocol
  • Electrical: 15 W


• Item Includes:

  • 5 year limited warranty
