AudioPressBox APB-008 OW-EX 8 Line/Mic Out Passive On-wall AudioPressBox Extender - Black

ITEM #: APB-008-OW-EX-BK MFG #: APB-008 OW-EX BK

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$769.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup

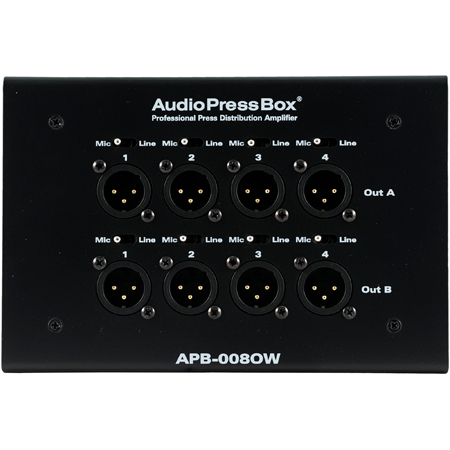

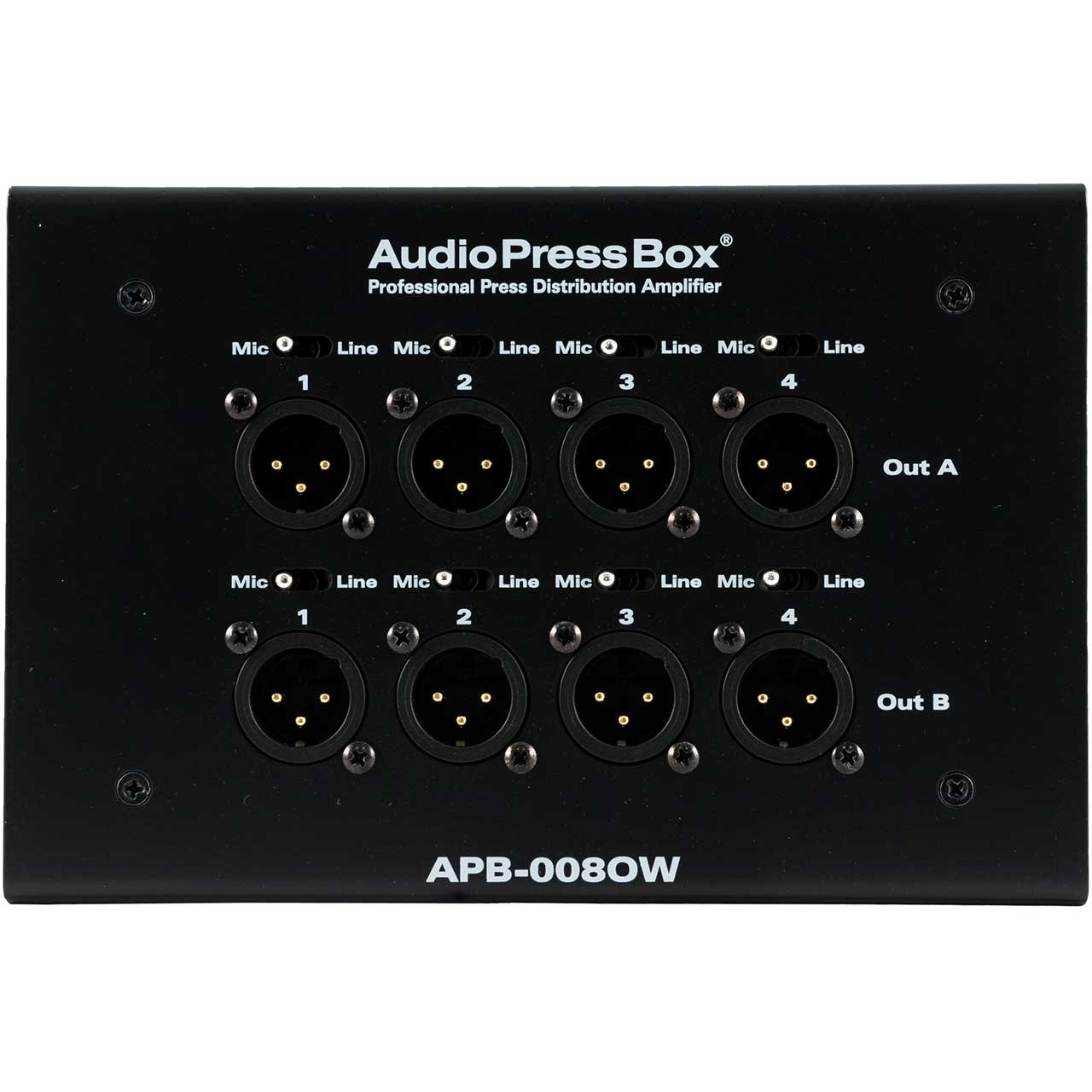

APB-008 OW-EX BK - Overview

AudioPressBox APB-008 OW-EX is a professional press box (Audio Splitter) expander featuring 8 Line/MIC outputs designed for system integrators for fixed installation. The OW stands for ON WALL as it is for surface mounting. Outputs are divided to channel A and channel B so it can also be used for bilingual conferences.

Each Output is independent transformer balanced and isolated. It has 2 inputs with 3-pin phoenix connectors, one for each Output channel.

You can route each Input to Output Channel A or B or both via jumpers.

Professional

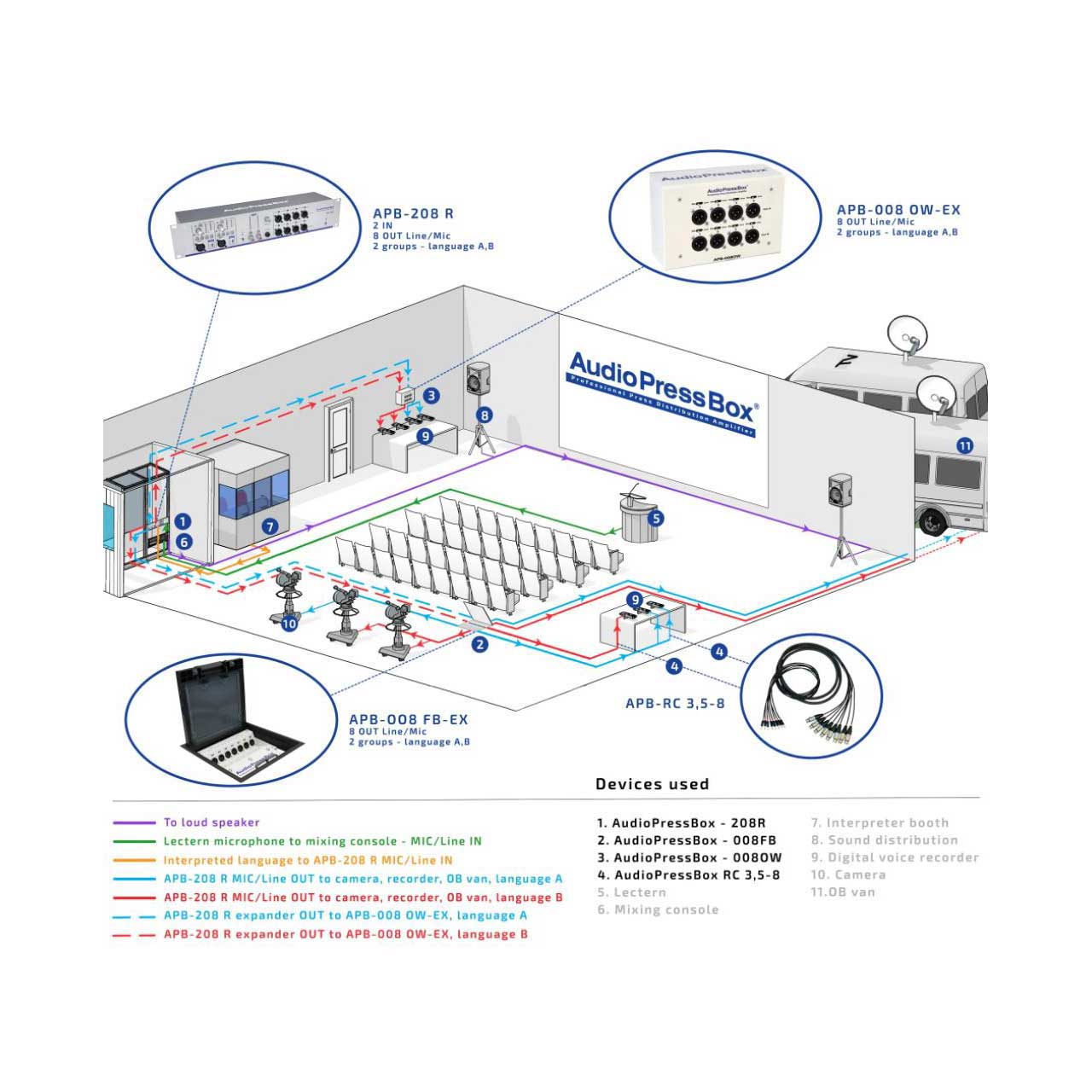

APB is a sophisticated tool for professional audio distribution at press conferences, presentations and other events.

Easy to use
Perfect signal conditioning means securing a high quality, constant and identical signal for all connected users, without possibilty of interacting.

FIxed installation
AudioPressBox expanders are a perfect solution for any fixed installation. Whether it is an on-wall, in-wall or a floor box solution, you always get the same, perfect functionality.

Please Note: Requires A Drive Unit: APB-D100, APB-D100 R, APB-D116 R-DANTE, APB-D200 R, APB-D200 R-DANTE, APB-D216 R-DANTE, APB-208 R, APB-400 R

  • Features:

    • 8 High quality balanced Outputs, each Output is independent transformer isolated
    • Each Output is switchable between LINE or MIC Output level
    • 2 internal Output Groups: 4x Output A and 4x Output B

  • Specifications:

    • Type: Expander
    • Groups: 2
    • Inputs: 1x Bus A, 1x Bus B
    • Input connectors: ballanced, 3-pin phoenix connector
    • Ouputs: 4x Bus A, Line/MIC level, 4x Bus B, Line/MIC level
    • Output connectors: ballanced, XLR-M connector
    • Transfomer isolated outputs: Yes (each output)
    • Nominal Output level: MIC: -20dBu, LINE: +6 dBu
    • Output Impedance: MIC: 220Ω, LINE: 600Ω
    • Dimensions (WxHxD): 180x120x70mm
    • Weight: 1700g

  • Item Includes:

    • 1x AudioPressBox APB-008 OW-EX 8 Line/Mic Out Passive On-wall AudioPressBox Extender - Black

  • GTIN:

    8588007614274
