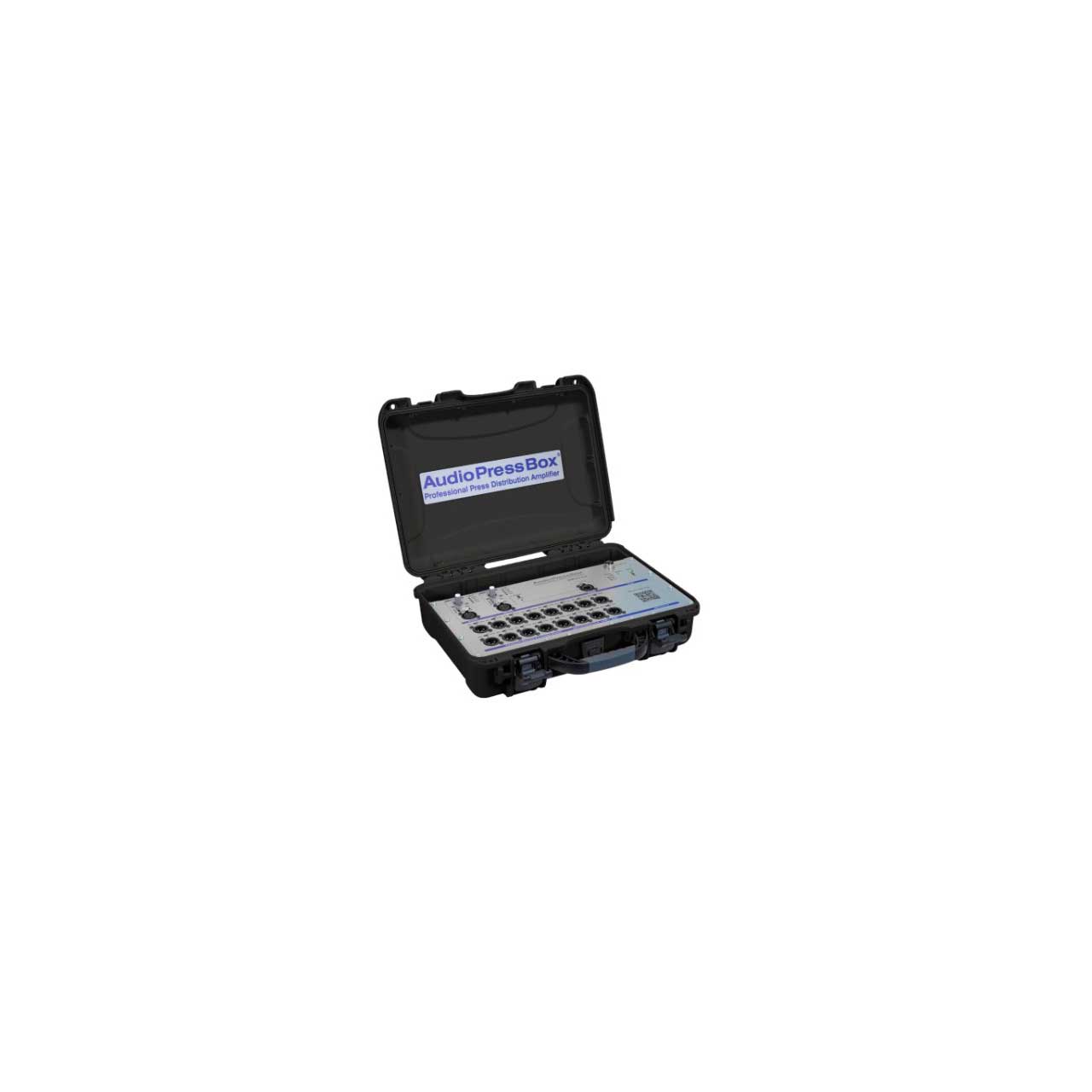

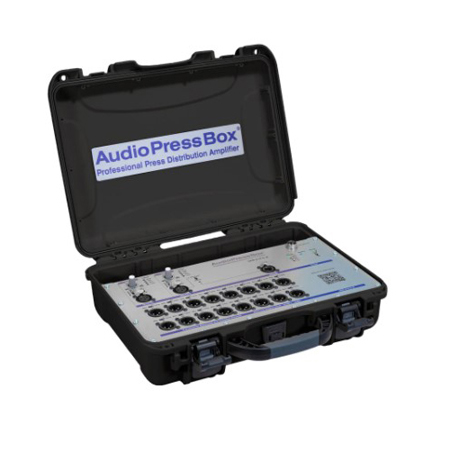

AudioPressBox APB-216-C-D Portable Active Dante-Enabled Pressbox w/ 2 Line/Mic Inputs & 16 Line/Mic Outputs - Black

APB-216-C-D-BK - Overview

• Features:

  • 2 MIC (phantom power) / LINE Inputs - balanced with gain control and 26dB PAD
  • 1 Channel DANTE Input - RJ45 ethercon, requires PoE
  • 16 balanced and individually transformer isolated outputs
  • Each Output is switchable between MIC or LINE output level
  • Built-in Compressor and Limiter for each Input
  • Li-Ion AccuPack with microprocessor controlled battery management
  • 10 hours battery operation time. Note: AccuPack is placed (built-in) inside the unit
  • On unit printed QR code for online acces to manual, user guide and video guide


• Specifications:

  • Type: 2 in 16 out
  • Groups: 1
  • Inputs: 2 Analog, 1 Dante
  • Input Connectors: Balanced, XLR
  • Input Gain:
    Mic: +22/+62 dB
    Line: -4/+36 dB
  • Max. Input Level:
    Mic: -10/-30dBu
    Line: +36/-4dBu
  • Phantom Voltage: 48V
  • Input Impedance:
    Mic: 2.4 kOhm
    Line: 3.5 kOhm
  • Number of Dante Channels: 1
  • PoE Requirement: Yes
  • Reference level: -18dBFS
  • Input connector: RJ45
  • Outputs: 16 Line/MIC level
  • Output Connectors: Balanced, XLR
  • Nominal Output Level: +6dBu
  • Maximum Output Level: +20dBu (no load) +14dBu (600kOhm)
  • Output Impedance:
    Mic: 220 Ohm
    Line: 600 Ohm
  • Transformer Isolated Outputs: Yes (each output)
  • SNR: 86dB
  • Frequency Response: 120Hz to 30kHz/-1dB
  • Controls:
    Input Section: 26dB PAD, Input gain, Phantom
    Output Section: Power switch, Output PAD
  • Indicators: Input section: Phantom power, Input level
  • Power Supply: 24V DC, 1A external adaptor
  • Battery: Li-Ion, 14,4 V 2200mAh
  • Battery Operation Time: up to 8 hrs
  • Dimensions (WxHxD): 14.6 x 4.72 x 11.81" (370 x 120 x 300mm)
  • Weight: 10.36Lbs (4.7kg)
  • Color: Black
