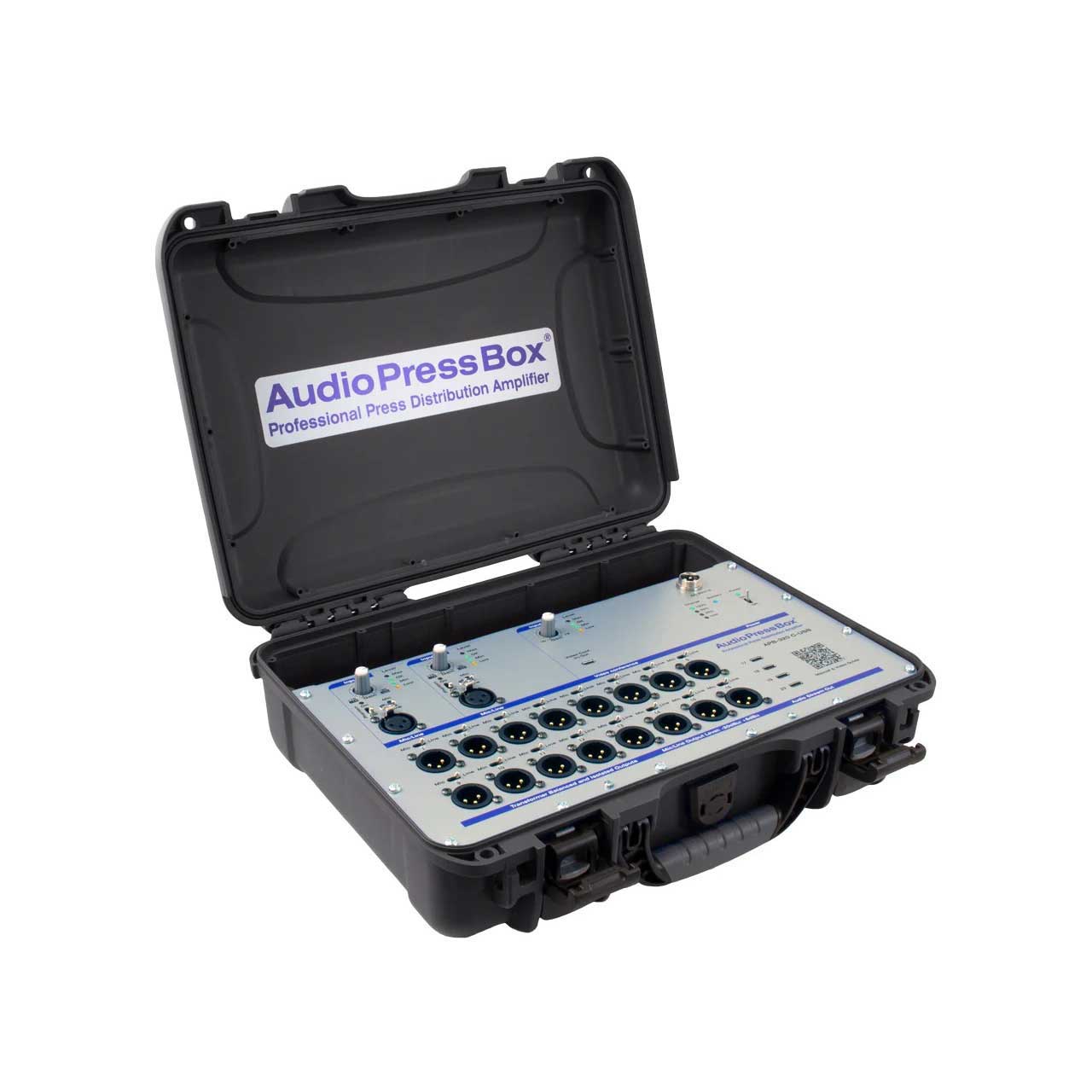

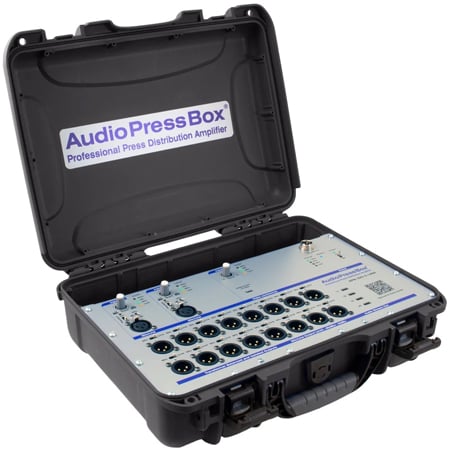

AudioPressBox APB-320 C-USB Portable Pressbox - 2x Analog Mic/LINE XLR & 4 Digital USB-C - w/ Internal AccuPack - Black

APB-320 C-USB (BLACK) - Overview

• Features:

  • 2 Analog MIC (phantom power) / LINE Inputs - balanced with gain control and 26dB PAD
  • 1 Digital USB-C input & output
  • 16 Analog High quality independent transformer balanced and isolated outputs
  • 4 Digital USB-C outputs
  • Analog Outputs are switchable between MIC or LINE level
  • Built-in Compressor and Limiter for analog Inputs
  • On unit printed QR code for online acces to manual, user guide and video guide
  • Li-Ion AccuPack with microprocessor controlled battery management
  • 20 hour full load capacity. Note: AccuPack is placed inside the unit
  • Black Color


• Specifications:

  • General Specifications
  • Type: 3 in 20 out
  • Groups: 1

    Input Selection
  • Inputs: 2 analog, 1 digital

    Analog Inputs
  • Input Connectors: Balanced, XLR
  • Input Gain: Mic: +22/+62dB, Line: -4/+36dB
  • Max. Input Level: Mic: -10/-30dBu, Line: +36/-4dBu
  • Phantom Voltage: 48V
  • Input Impedance: Mic: 2,4 kΩ Line: 3,5 kΩ

    Digital Inputs
  • Input connector: USB Type C
  • Compliant USB Specification: USB 2.0
  • Input Gain: -∞/ +6 dB
  • Supported Sampling Rates: 32kHz, 44.1kHz, 48kHz
  • Bit Depth: 16-Bit

    Output Selection
  • Outputs: 16 Analog with Line/ MIC level, 4 Digital

    Analog Outputs
  • Output connectors: Balanced, XLR
  • Nominal Output Level: +6dBu
  • Maximum Output Level: +20dBu (no load)
  • +14dBu (600Ω)
  • Output impedance: Mic: 220Ω Line: 600Ω
  • Transformer isolated outputs: Yes (each output)
  • SNR: 86dB
  • Frequency Response: 120Hz to 30kHz/ -3dB

    Digital Outputs
  • Output connector: USB Type C
  • Compliant USB Specification: USB 2.0
  • Supported Sampling Rates: 8kHz, 11.025kHz, 16kHz, 22.05kHz, 32kHz, 44.1kHz, 48kHz
  • Bit Depth: 16-Bit
  • Interface Powering: Internal

    Controls
  • Input section: 26dB PAD, Input gain, Phantom
  • Output section: Power switch, Output PAD

    Indicators
  • Input Selection: Phantom Power, input level

    Power
  • Power Supply: 24V DC, 1A external adapter
  • Battery: Li-Ion, 14,4V 2200mAh
  • Battery Operation Time: up to 20 hours

    Physical
  • Color: Black
  • Dimensions (WxHxD): 14.56 x 4.72 x 11.81" (370x 120x 300mm)
  • Weight: 10.36lb (4.7kg)


• Item Includes:

  • 1x AudioPressBox APB-320 C-USB Portable, active pressbox with Digital USB-C Input/Output - Black
