AudioPressBox APB-416-C Portable Pressbox 4x MIC/LINE Routable Input (A/A+B/B) 16x LINE/MIC Outputs - Internal AccuPack

ITEM #: APB-416-C MFG #: APB-416-C

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
AudioPressBox
Free Shipping with $49 Minimum Order

Our Price:

$5,360.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Item restricted to Contiguous United States ground shipment only.
Report Lower PriceLarge Quantity Quote

APB-416-C - Overview

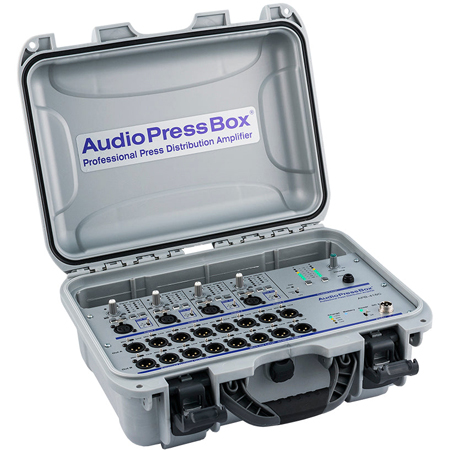

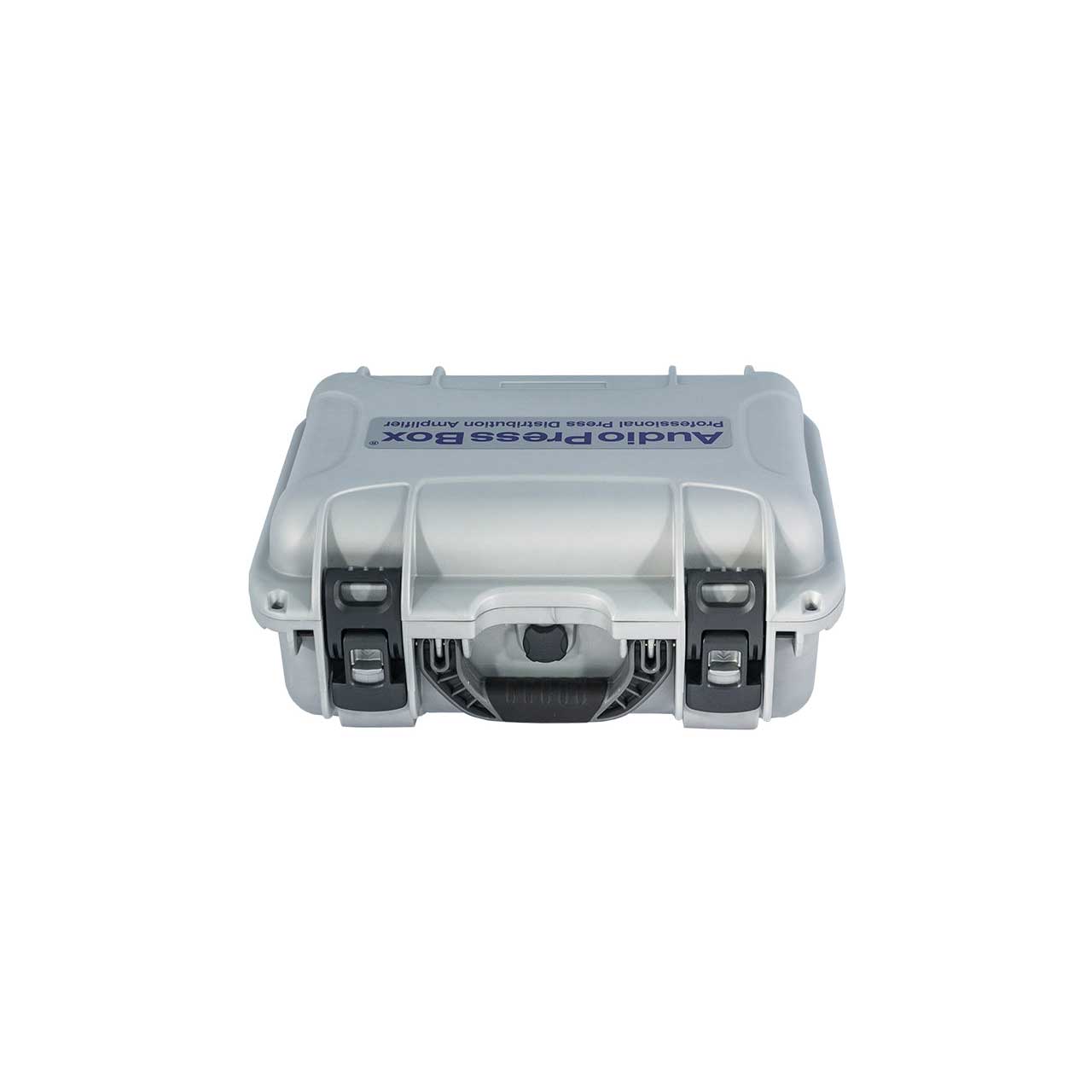

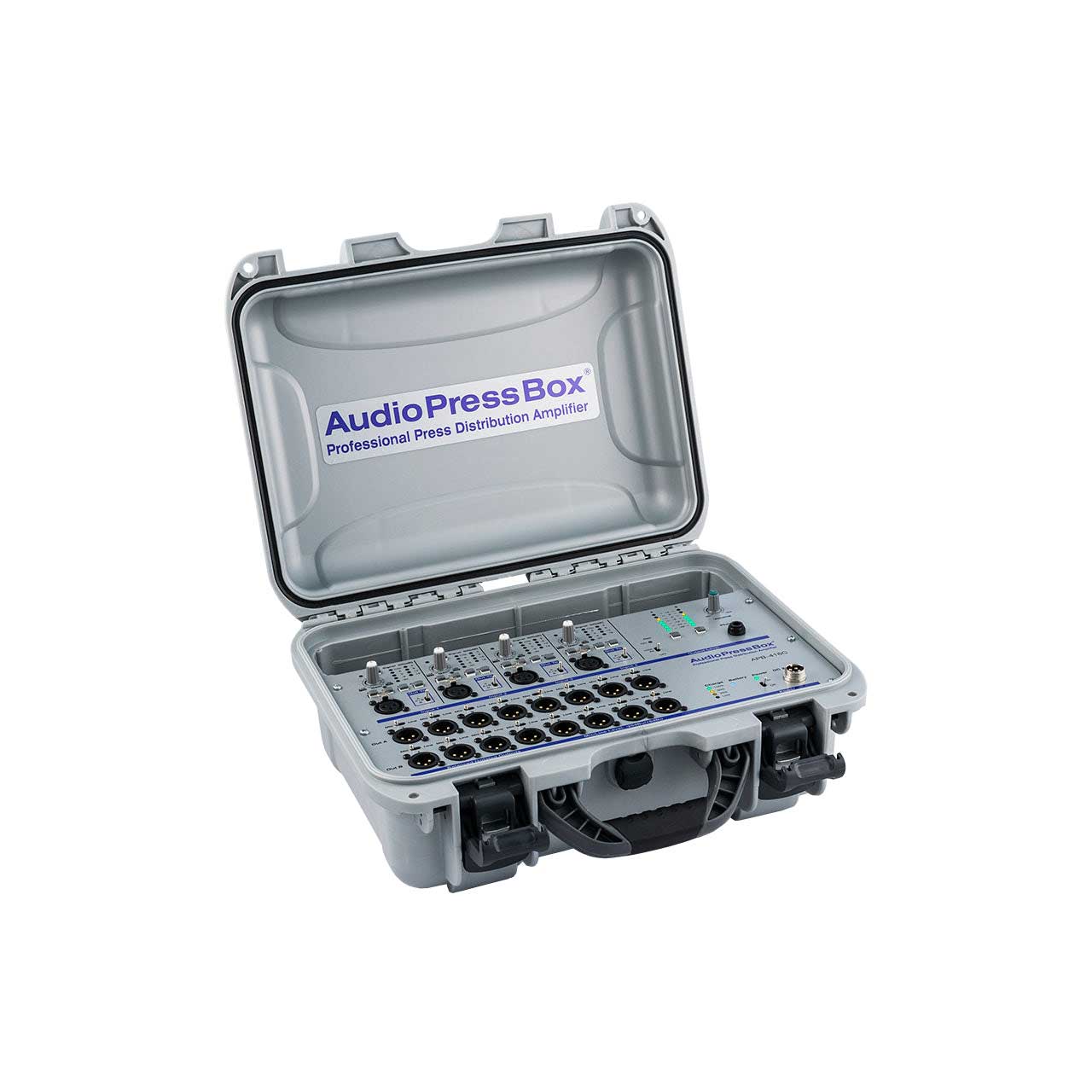

This AudioPressBox APB-416-C is a professional portable active press box (Audio Splitter) suitable for both indoor and outdoor press conferences. It features 4 MIC/Line Inputs (A,A+B,B) and 16 Line/Mic Outputs. Each Output is an independent transformer balanced and isolated. What is more, it can also be used for bilingual conferences as it features 2 separate channels A and B. Each input can be routed to channel A or channel B or both at the same time. There is a bus A with 8 Line/MIC outputs and bus B with 8 Line/MIC outputs. The APB-416 C also includes a rechargeable AccuPack so it can run on its own up to 10 hours. All of this placed in a waterproof, heavy duty Nanuk case.
PLEASE NOTE: This product contains Lithium-Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • 4 MIC (phantom power) / LINE Inputs - balanced with gain control and 26dB PAD
    • Each Input is routable to A/(A+B)/B Outputs Group
    • 16 High quality independent transformer balanced and isolated outputs
    • Each Outputs is switchable between MIC or LINE level
    • 2 internal Output Groups: 8x Output A and 8x Output B
    • Switchable High-Pass filter for each Input channels
    • Switchable Compressor and Limiter for each Input channel
    • PFL/AFL for each Input/Output channels
    • Constant level Test signal oscillator with no mistake switch operation
    • Headphones control Output for PFL/AFL
    • Li-Ion AccuPack with microprocessor controlled battery management
    • 10 hour full load capacity. Note: AccuPack is placed inside the unit


  • Specifications:

    • Type: 4 in 16 out
    • Groups: 2
    • Inputs: 4
    • Input Connectors: Balanced, XLR
    • Input Gain: MIC +22/+62 dB: LINE -4/+36 dB
    • Max. Input Level: Limiter ON
    • Mic: -10/-30dBu
    • Line: +36/-4dBu: Limiter OFF
    • Mic: -2/-42dBu
    • Line: +24/-16dBu
    • Phantom Voltage: 48V
    • Input Impedance:
      Mic: 2,4 kOhm
      Line: 3,5 kOhm
    • Outputs: 16 Line/MIC level (8x Output A, 8x Output B)
    • Output Connectors: Balanced, XLR
    • Nominal Output Level: +6dBu
    • Maximum Output Level:
      +20dBu (no load)
      +14dBu (600kOhm)
    • Output Impedance:
      Mic: 220 Ohm
      Line: 600 Ohm
    • Transformer Isolated Outputs: Yes (each output)
    • SNR: 86dB
    • Frequency Response: 30/160Hz (filter) to 30kHz/-1dB
    • Controls:
      Input Section: 26dB PAD, Input gain, Phantom, High-pass filter, Compressor, PFL, routing switch
      Output Section: Oscillator, Output level for Bus A and Bus B, AFL for Bus A and Bus B, Phones level, Power, Output PAD
    • Indicators:
      Input Section: Input clip, Phantom power, Input level, Gain reduction, PFL
      Output Section: Output level for Bus A and Bus B, Oscillator, Power, Battery status

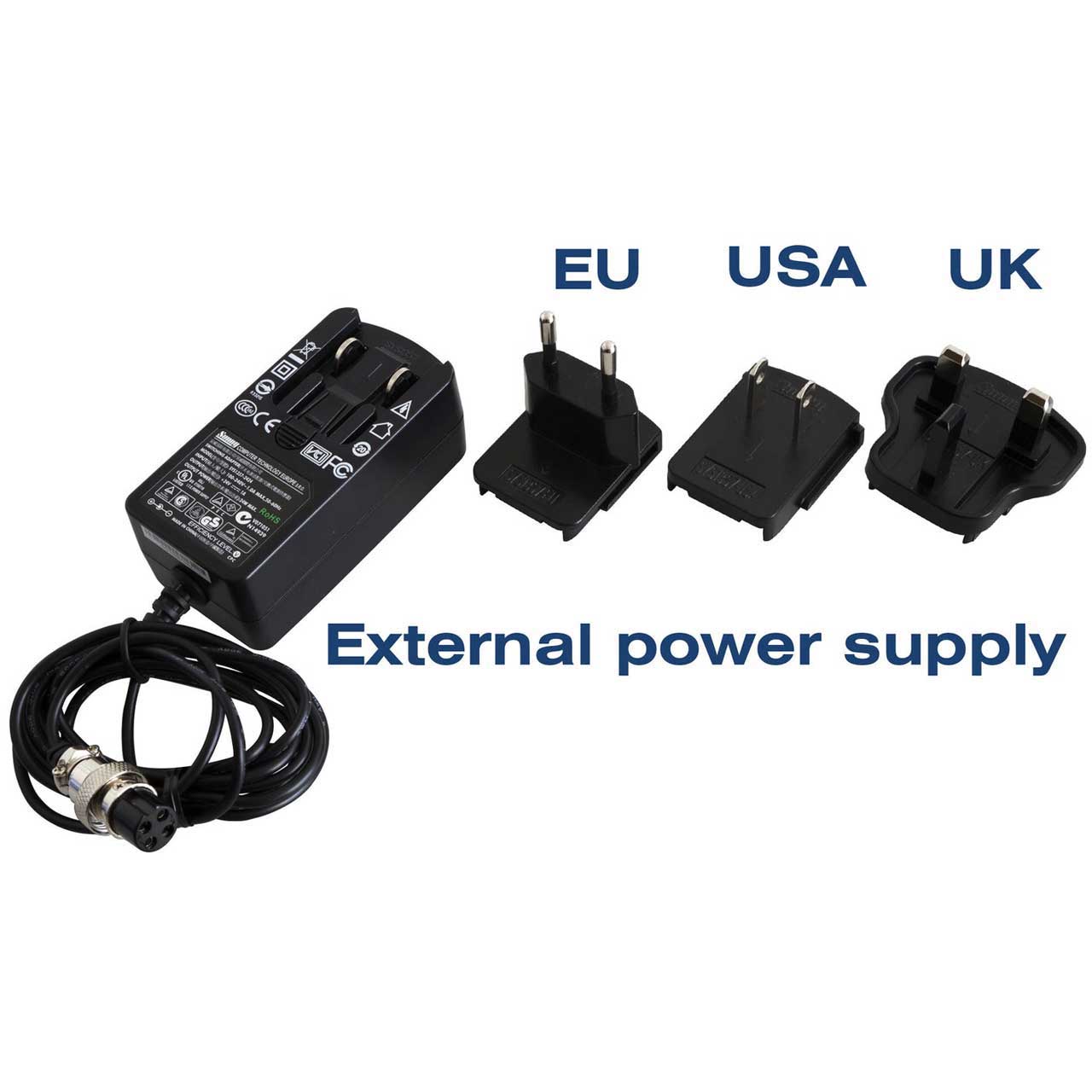

    • Power Supply: 24V DC, 1A external adapter
    • Battery: Li-Ion, 14,4 V 2200mAh
    • Battery Operation Time: min.8 hrs
    • Dimensions (WxHxD): 15.35 x 12.40 x 6.89" (390 x 315 x 175mm)
    • Weight: 15.43Lbs (7kg)
