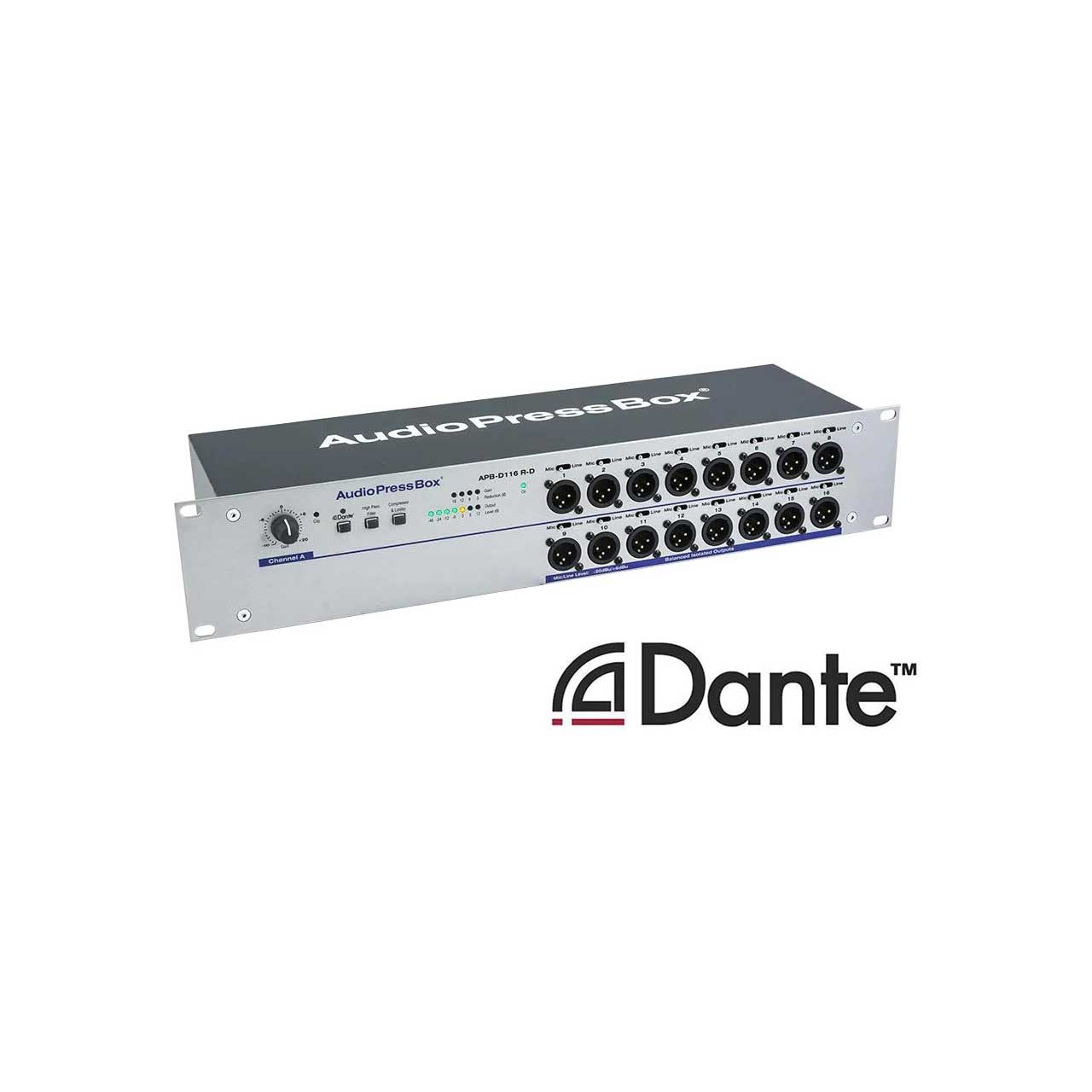

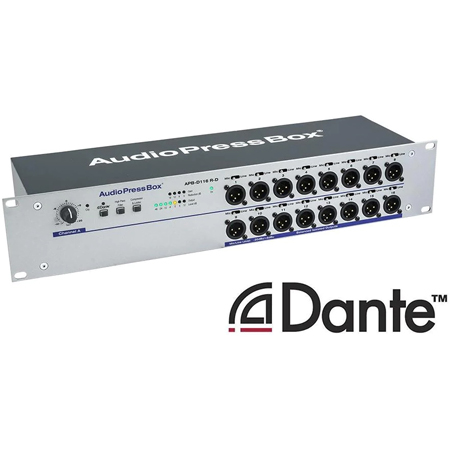

AudioPressBox APB-D116 R-D is an active 19" rack, AudioPressBox Drive Unit with 1 LINE Input, 1-channel Dante Interface, 16 Line/MIC Outputs, and 1 buffered Output for up to 3 AudioPressBox expanders.

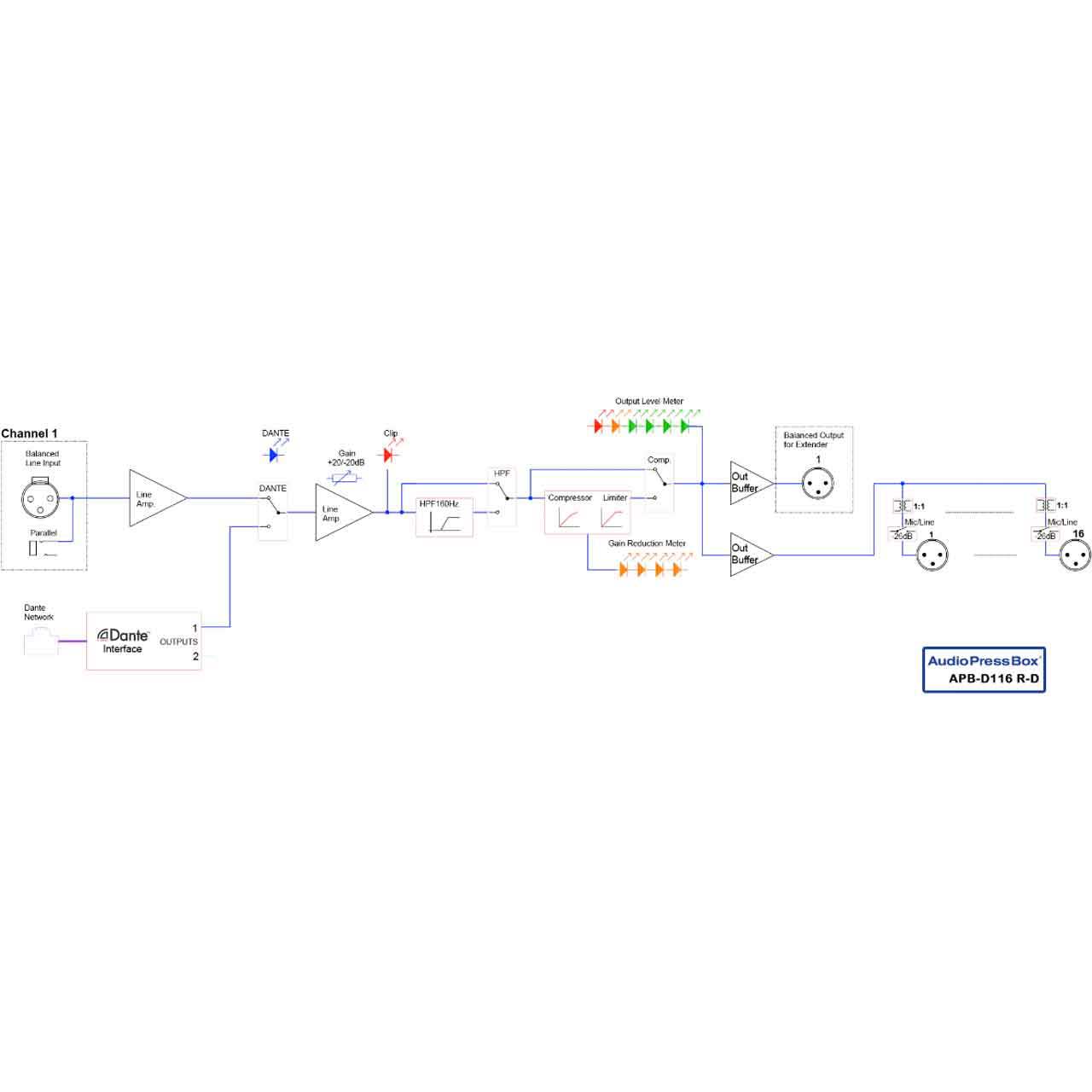

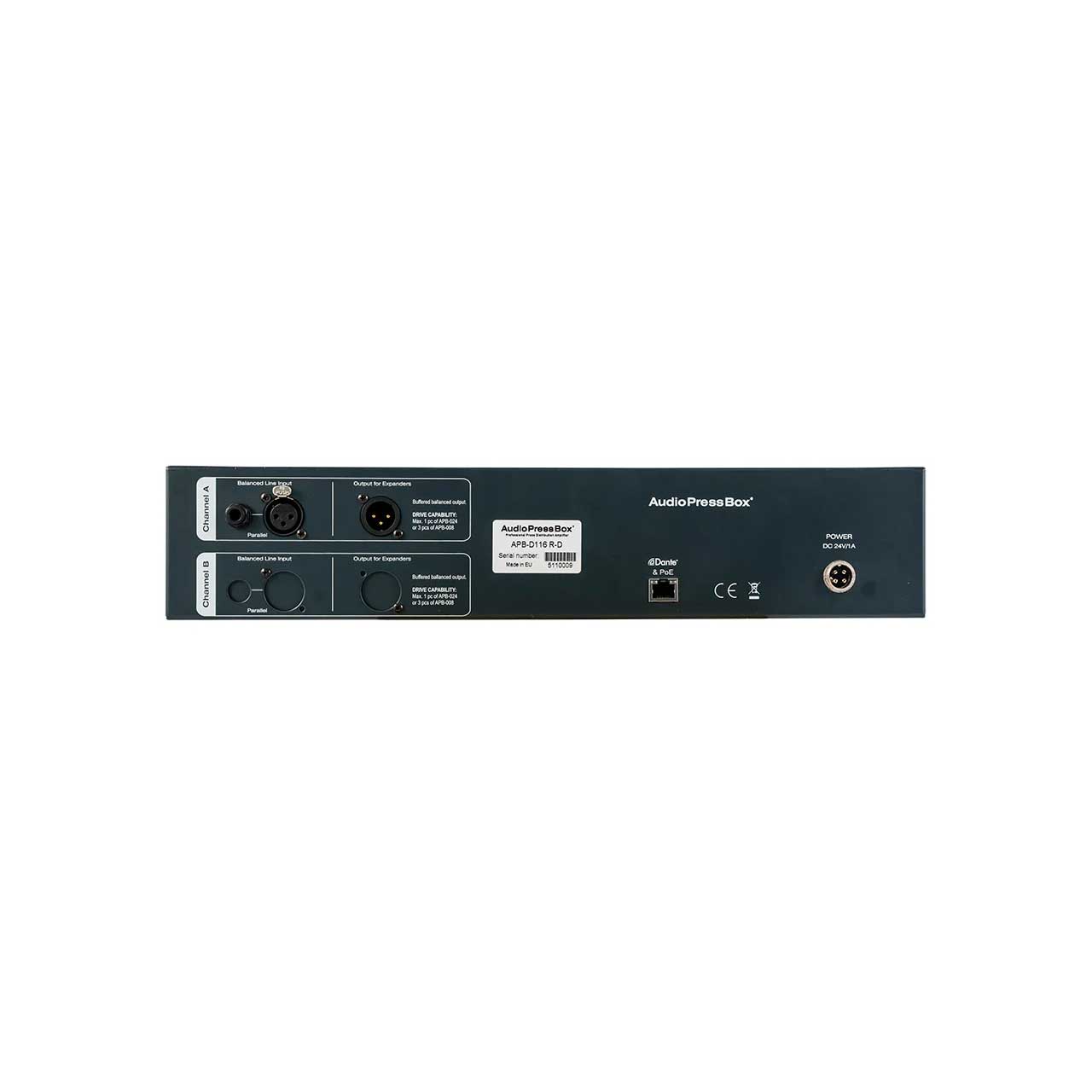

1-channel active drive unit features 1 Analogue and DANTE input with high-quality digital-to-analogue converter. You can switch between Line or Dante input, depending on your needs. It offers 16 Line/MIC Level Outputs on the front and one output for expanders on the rear.
Front outputs are balanced and individually transformer isolated with selectable output level for each output. You can expand the number of outputs with AudioPressBox expanders with up to 24 additional Line/MIC outputs per channel.
As is AudioPressBox standard, you can use our signal processing like high-pass filter and compressor with limiter to achieve the perfect audio signal for all connected journalists.
APB-Dante products uses Power over Ethernet (PoE). Power can be provided through the Ethernet cable from a PoE-capable network switch, or from a separate PoE injector.
CAUTION- If using a PoE injector, it must be IEEE 802.3af compliant. Use of a non-compliant PoE injector can terminally damage the device and may void the warranty.
