AudioPressBox APB-D200 R-D 19RU Active Distribution Drive Unit - DANTE Interface - 2 Channels 2x LINE Inputs

APB-D200 R-D - Overview

• Features:

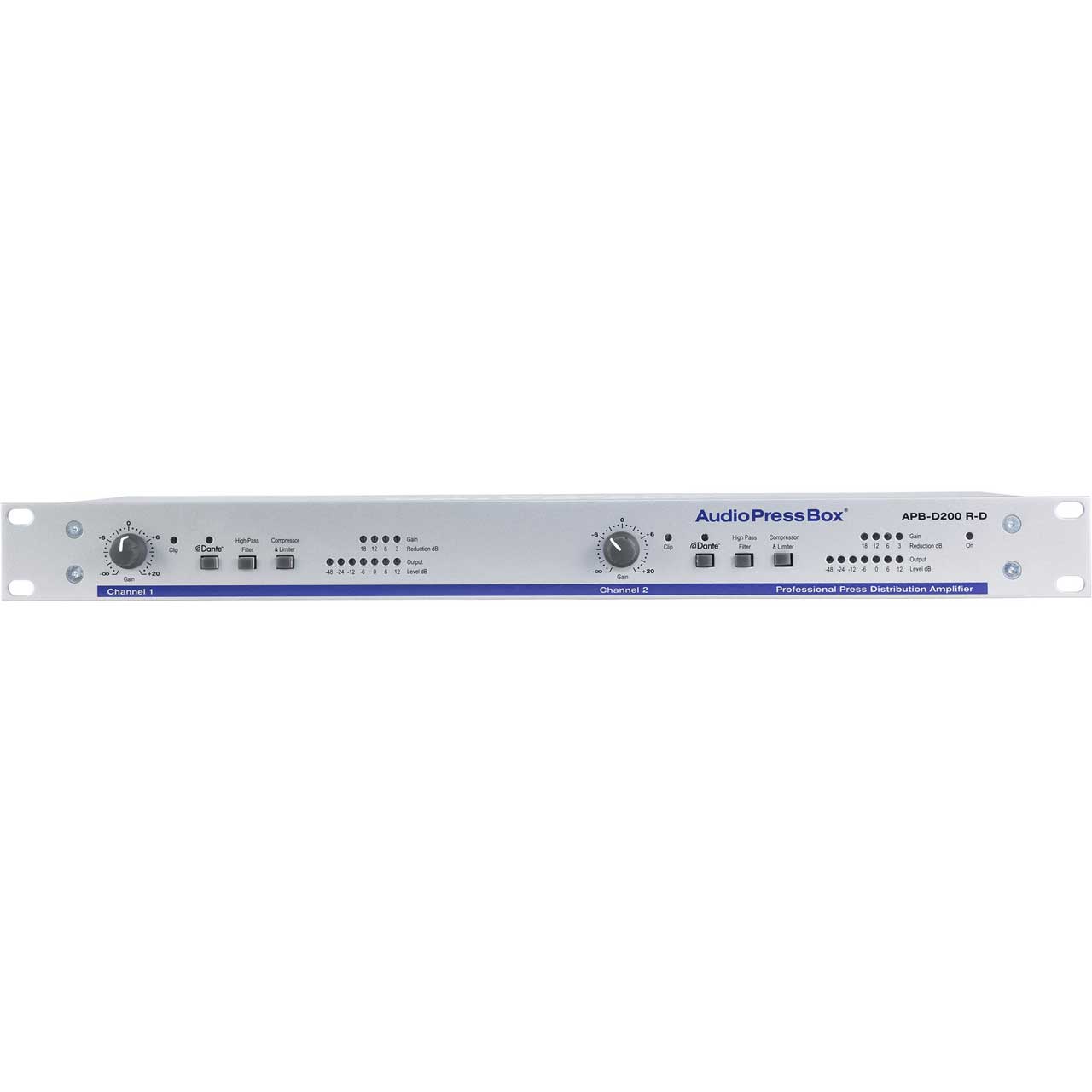

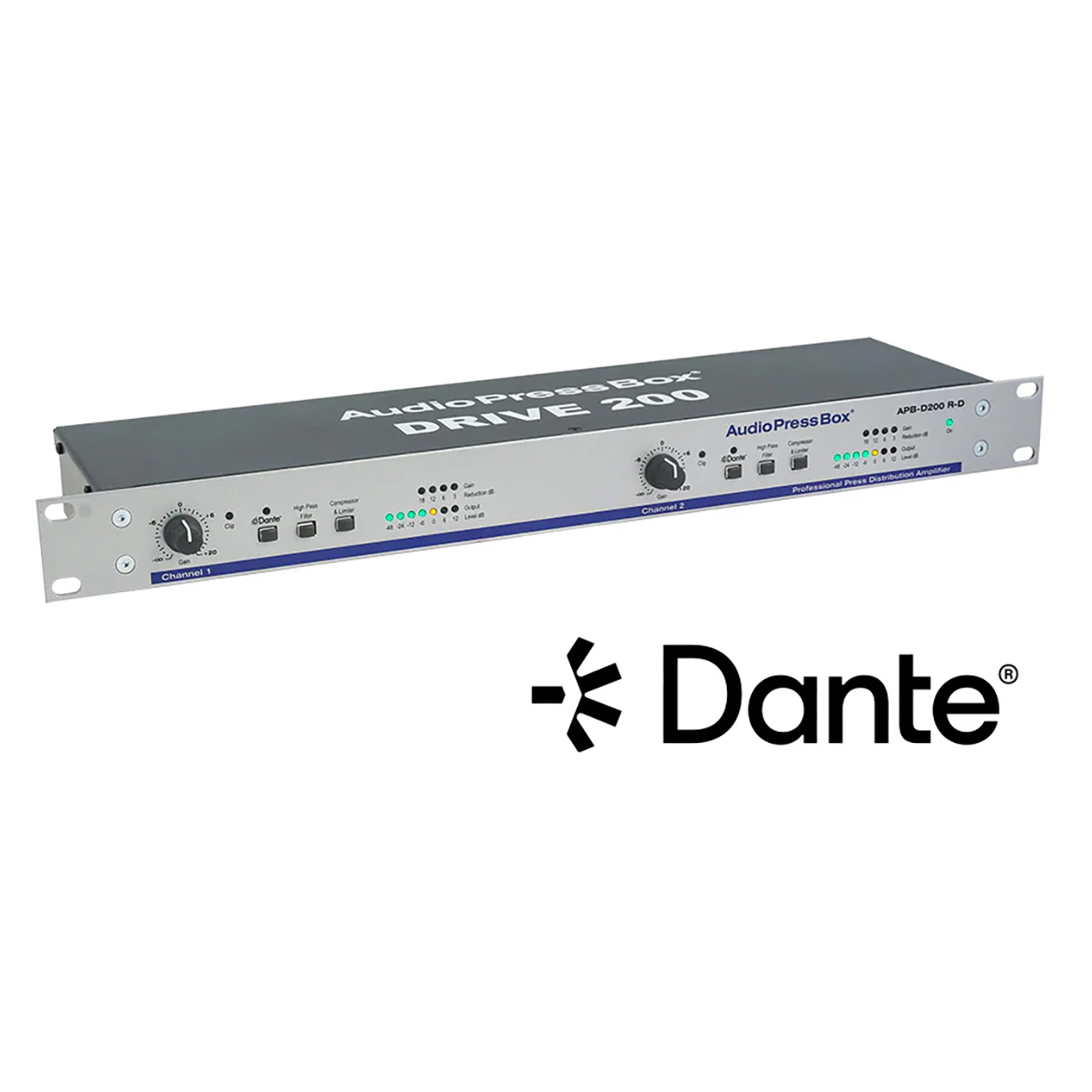

  • Professional active 19" rack AudioPressBox Drive unit
  • DANTE interface - 2 channels
  • 2 Channels (balanced LINE Input / DANTE)
  • Switchable High-Pass filter for for each Input channel
  • Switchable Compressor and Limiter for for each Input channel
  • 4 separately buffered Outputs (2 for each channel) that can drive 6x APB-008 or 2x APB-024 Output expanders.
  • Maximum drive capacity 96 Line or Mic Outputs.


• Specifications:

  • General
  • Type: 2 Line/DANTE input channels
  • 4 Drive OUT for 12xAPB 8-Output expanders or 4xAPB 24-Output expander
  • Note: Total capacity: 96 Line/Mic outputs (12x APB-008 xx-EX or 4x APB-024 R-EX)
  • Groups: 2

    Input Section
  • Inputs: 2 LINE / 2 DANTE
  • Input connectors: Balanced, XLR, RJ45 - DANTE
  • Max. input level: Line: +32/+2dBu
  • Input Impedance: >5 kOhm

    Output Section

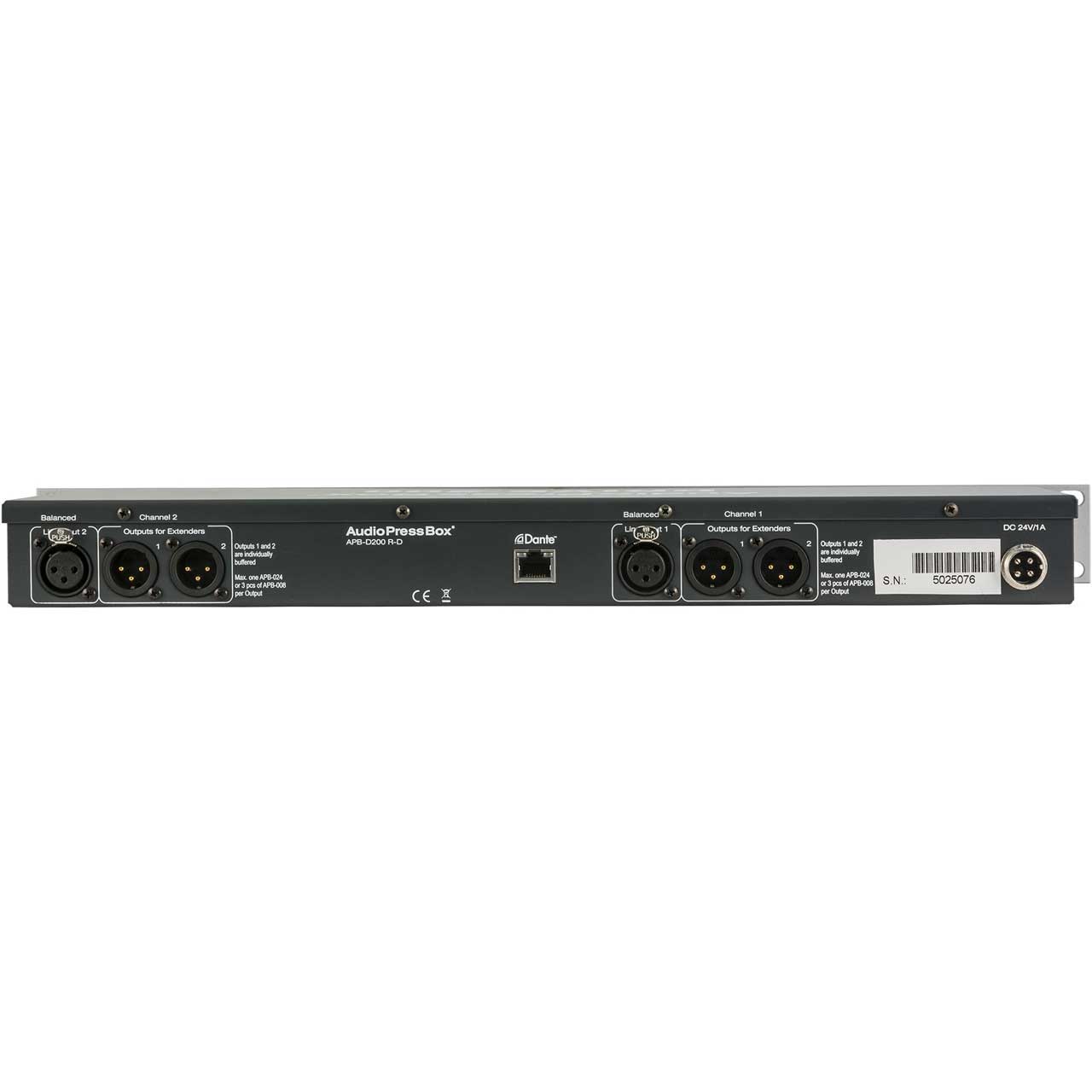

  • Outputs: 4 separately buffered, balanced outputs for AudioPressBox expanders
  • Output connectors: Balanced, XLR
  • Nominal Output Level: +6 dBu
  • Maximum Output Level: +20dBu with 48 Outputs in use
  • +16dBu (600kOhm)
  • Output impedance: Mic: 220 Ohm Line: 600 Ohm
  • Transformer isolated outputs: Yes (each EXPANDER output is Independent Transformer Isolated)
  • SNR: 86dB at 0dB Gain; 78dB at +20dB Gain
  • Frequency Response: 30/160Hz (filter) to 60kHz/-1dB

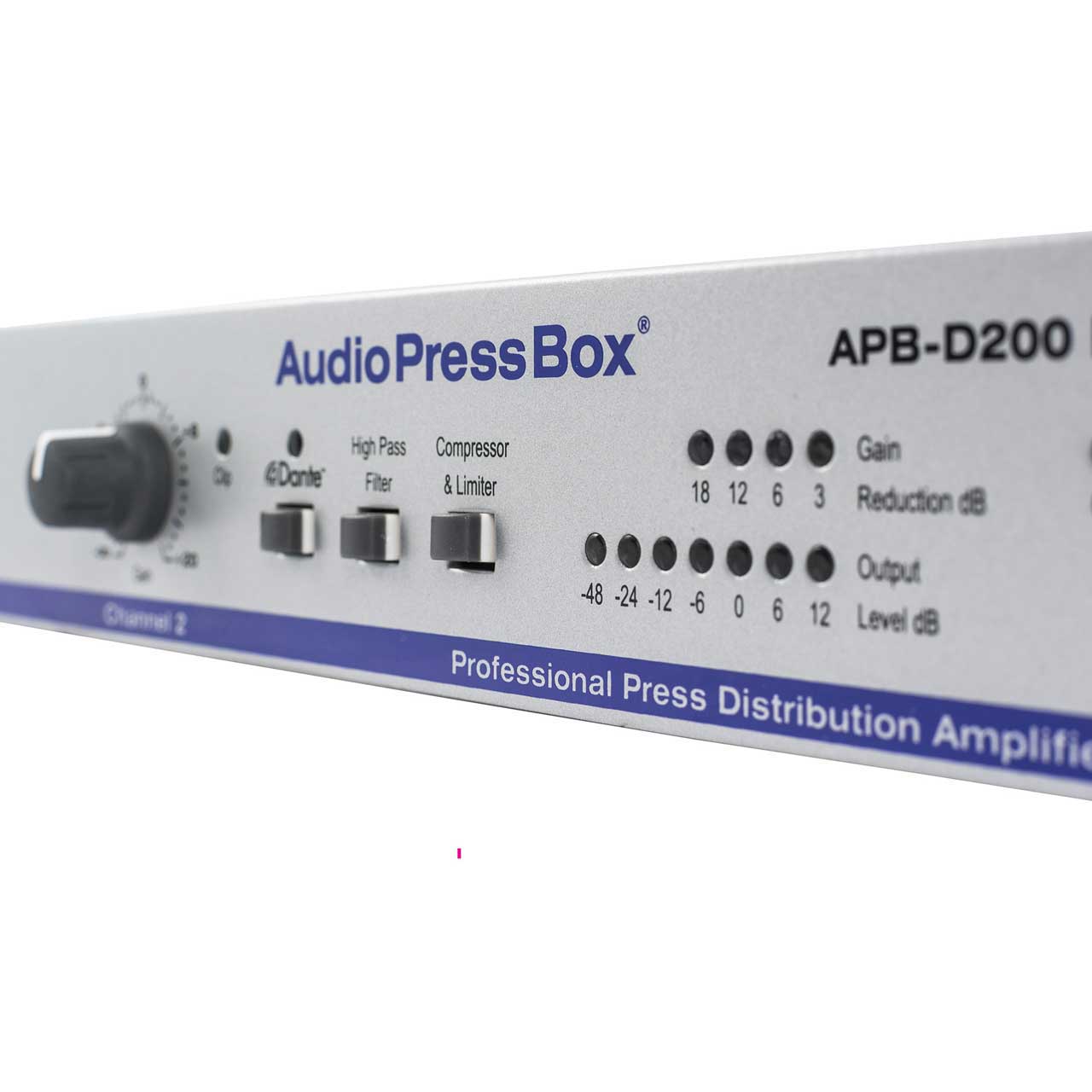

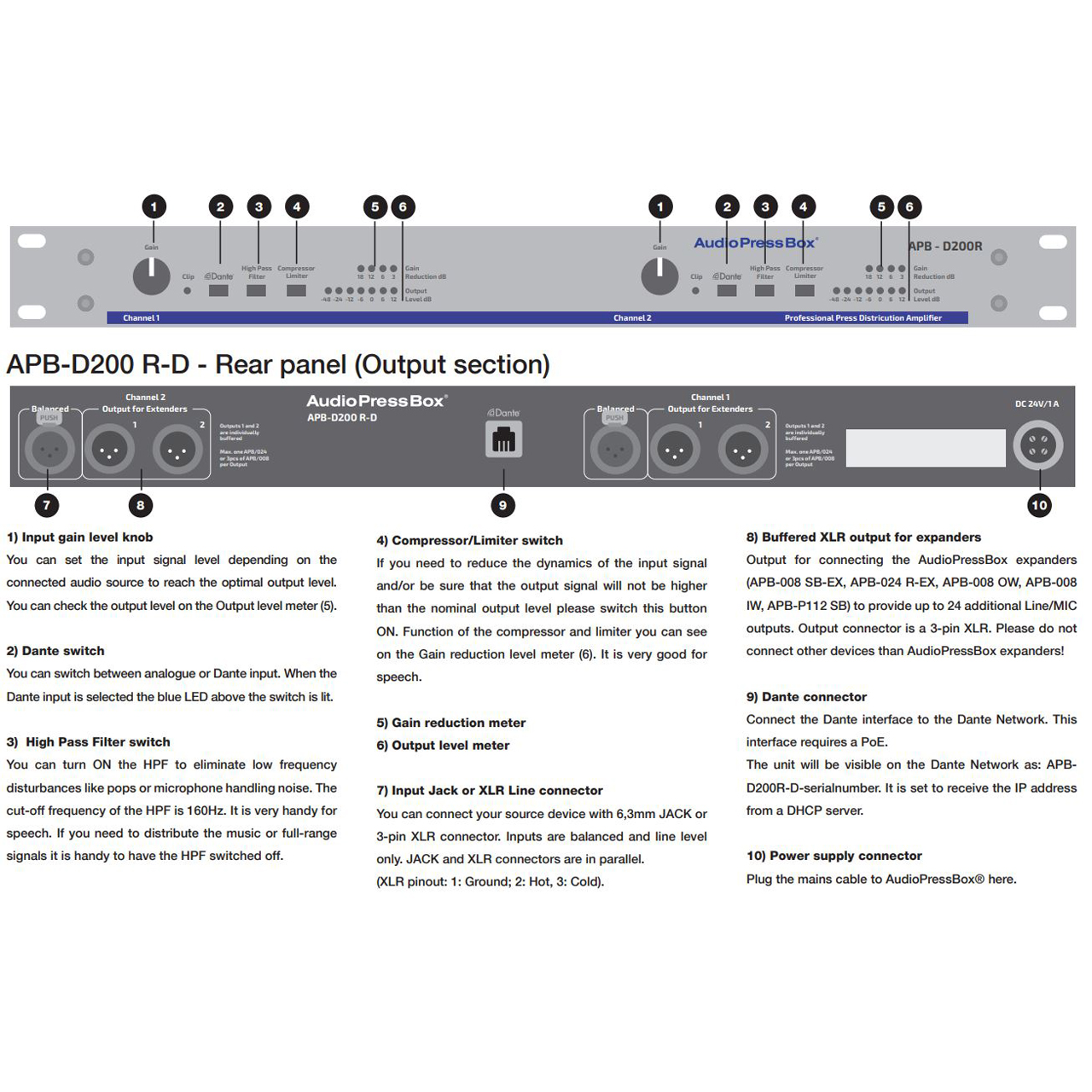

  • Controls: Input gain, Compressor and Limiter, High Pass Filter, Power
  • Indicators: Input clip, Output level, Gain reduction, Power
  • Power Supply: 24V DC, 1A external adaptor
  • Dimensions (WxHxD): 18.89 x 4.72 x 1.73" (480 x 120 x 44mm)
  • Weight: 4.6lbs (2090g)


• Item Includes:

  • 1x Active Portable AudioPressBox Drive Unit
  • 1x LINE Input
  • 2x Buffered Outputs for 6
  • 1x AudioPressBox Expanders (6x8 or 2x24 Outputs)


• GTIN:

  8588007614168
