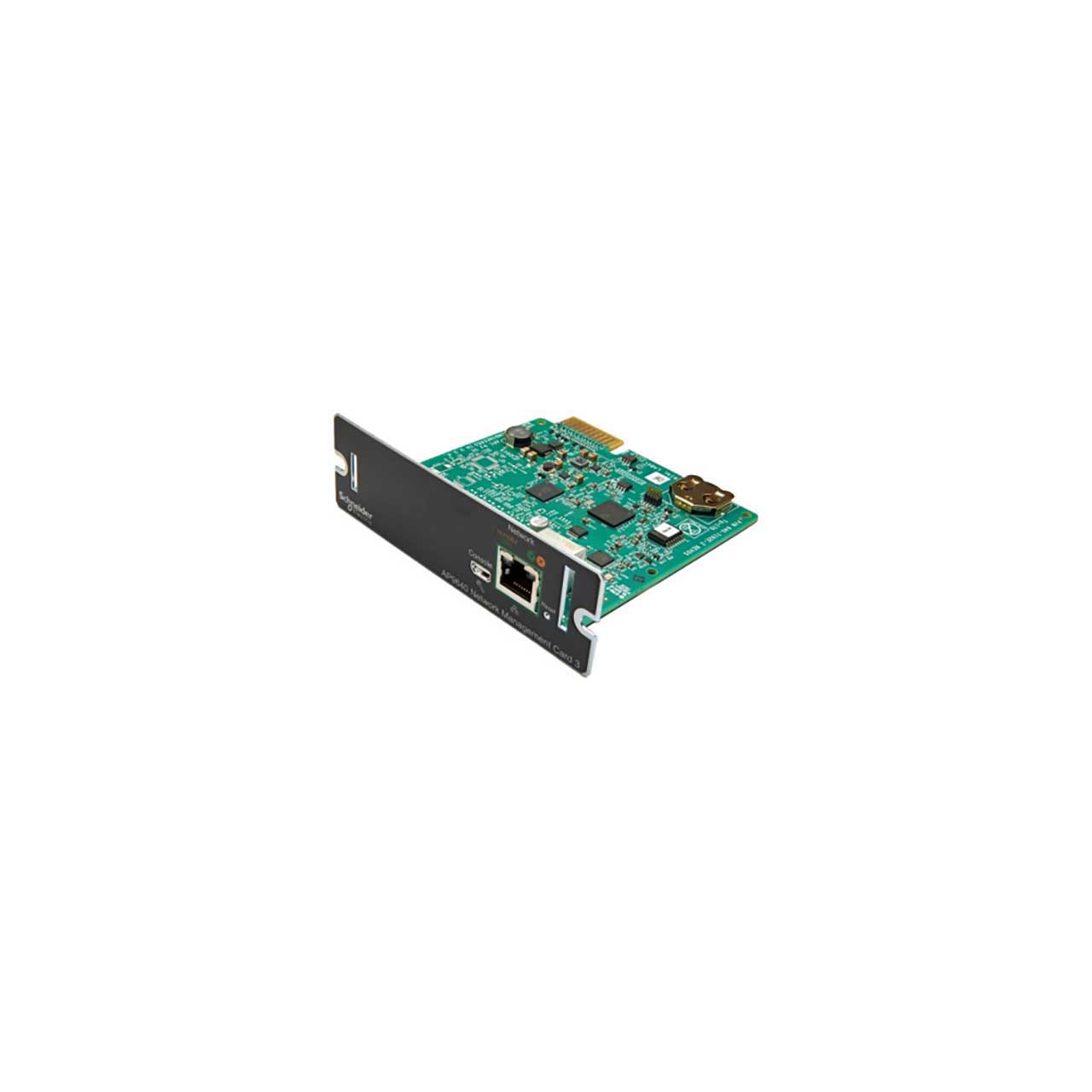

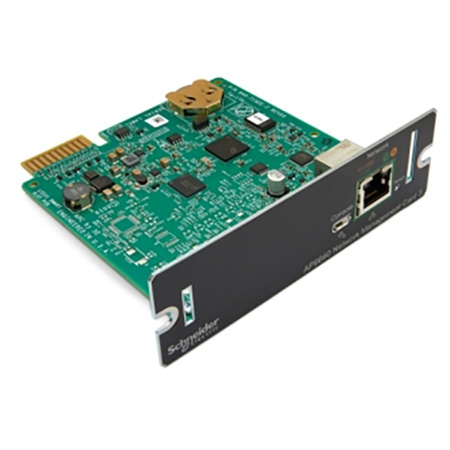

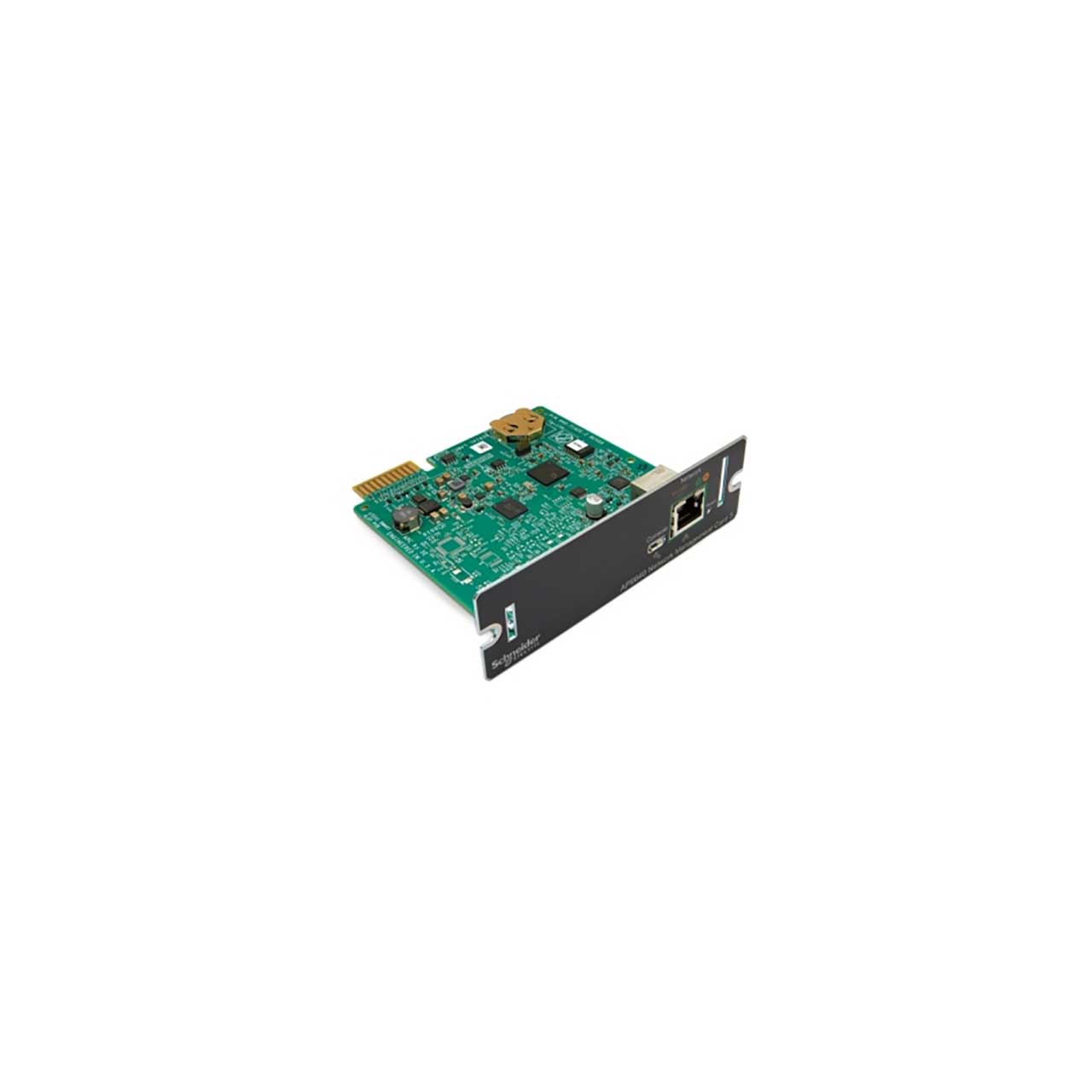

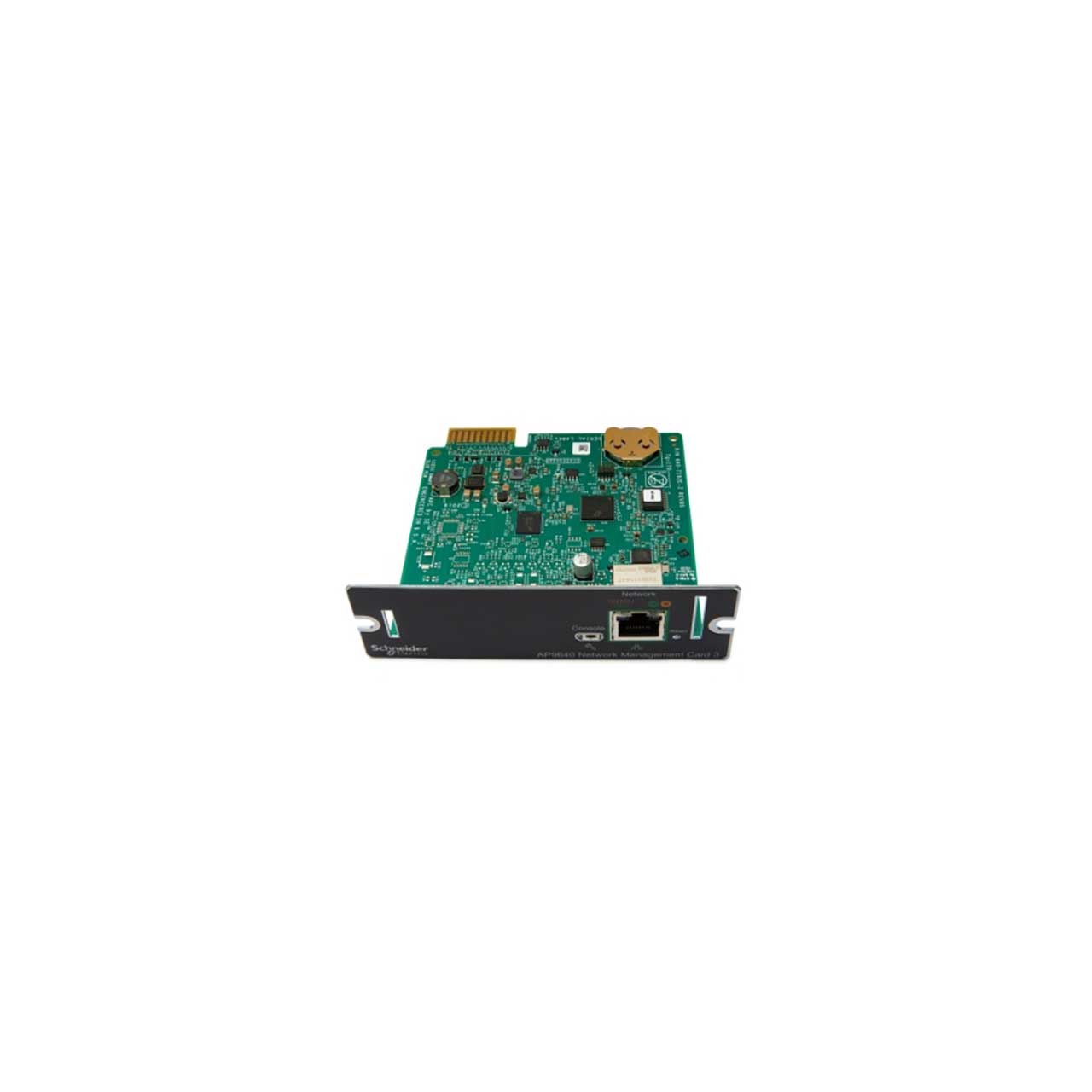

APC AP9640 UPS PCIe Network Management Card 3

AP9640 - Overview

• Features:

  • BACnet/IP Support for Smart-UPS: Supports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP (BTL certified) (Single Phase Smart-UPS only)
  • Command line interface: Offers simultaneous remote management access through Telnet and SSH
  • Compatible with Smart-UPS systems
  • Device Encryption: Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3
  • Gigabit Ethernet Support: Supports faster Communication at 1 Gbps (Gigabit per second) over Network.
  • IPv6 Support: Capable of operating on a network using IPv6 protocol
  • Micro-USB based Console Support: For faster and easier Troubleshooting and Configuration.
  • Modbus TCP Support: Supports reporting UPS information to Building Management Systems or other third party management systems via Modbus TCP.
  • Multiple language support: Web browser interface available in English, French, Russian, Chinese, Japanese, Korean, German, Italian, Spanish, Portuguese
  • Multiple user access: Supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users
  • Root of Trust Support: Supports Secure Boot with Root of Trust for enhanced Security.
  • Smart Battery Management Support: Detailed battery information including battery cartridge parameters provides early-warning fault analysis to simplify management of the entire battery system (SRT Smart-UPS only).
  • Standard UPS RFC 1628 MIB Compatible: Make UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB.
  • UPS Firmware Update: User friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only).


• Specifications:

  • Communications & Management
  • Authentication: Radius
  • Physical (HxWxD): 1.5 x 4.76 x 4.49" (38 x 121 x 114mm)
  • Net Weight: 0.18Lbs (0.08kg)
  • Shipping Weight: 0.75Lbs (0.34kg)
  • Shipping (HxWxD): 2.01 x 9.25 x 6.26" (51 x 235 x 159mm)

    Environmental
  • Operating
    Temperature: 32° to 113°F (0° to 45°C)
    Relative Humidity: 0 to 95%
    Elevation: 0 to 10000' (0 to 3048m)
  • Storage
    Temperature: 23° to 113°F (-5° to 45°C)
    Relative Humidity: 0 to 95%
    Elevation: 0 to 50000' (0 to 15240m)

    Conformance
  • Approvals: AS/NZS 3548 (C-Tick) class A, EN 55022 class A, EN 55024, FCC part 15 class A, GOST, ICES-003, VCCI class A
  • Standard warranty: 2 years repair or replace

    Sustainable Offer Status
  • RoHS: Compliant


• GTIN:

  0731304355533
