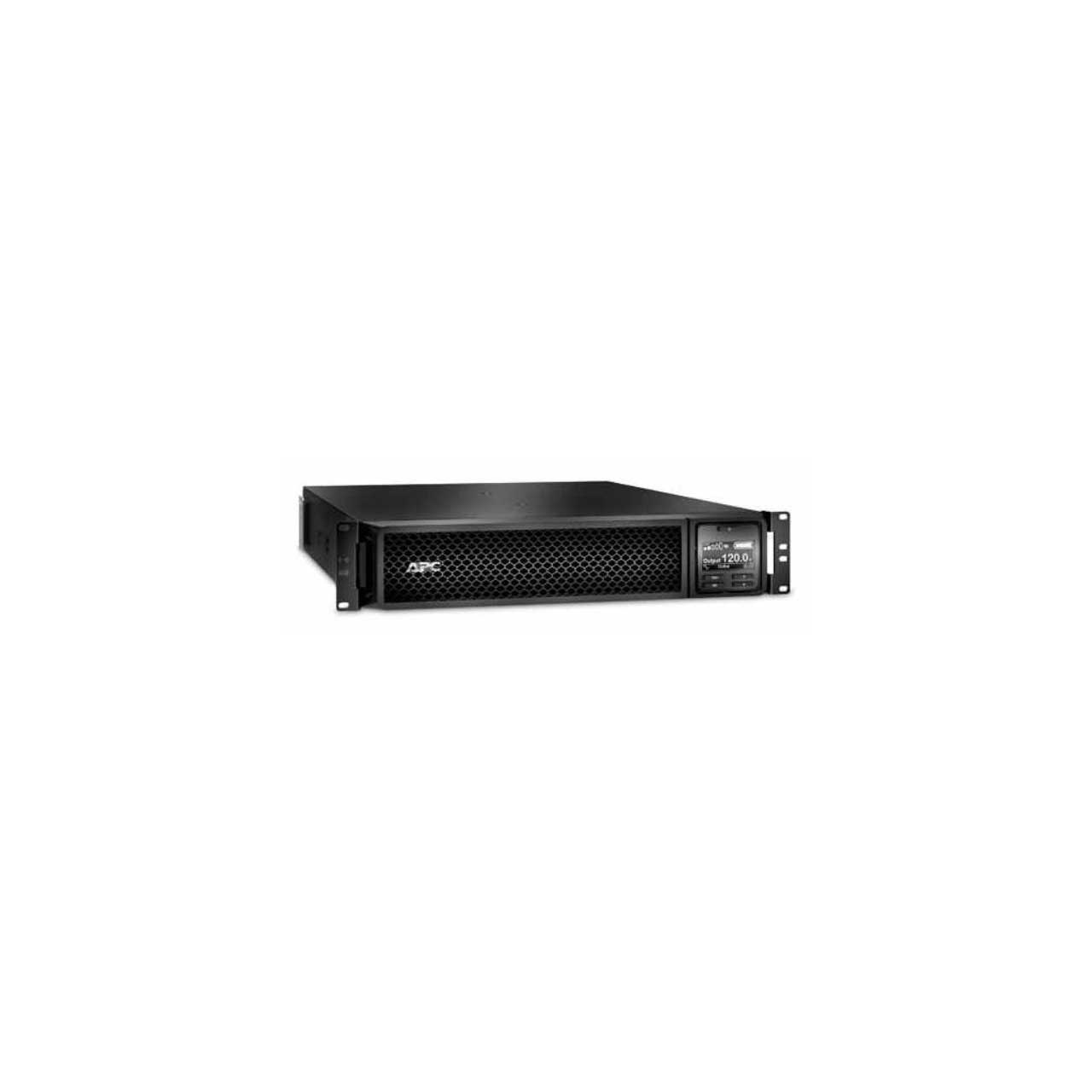

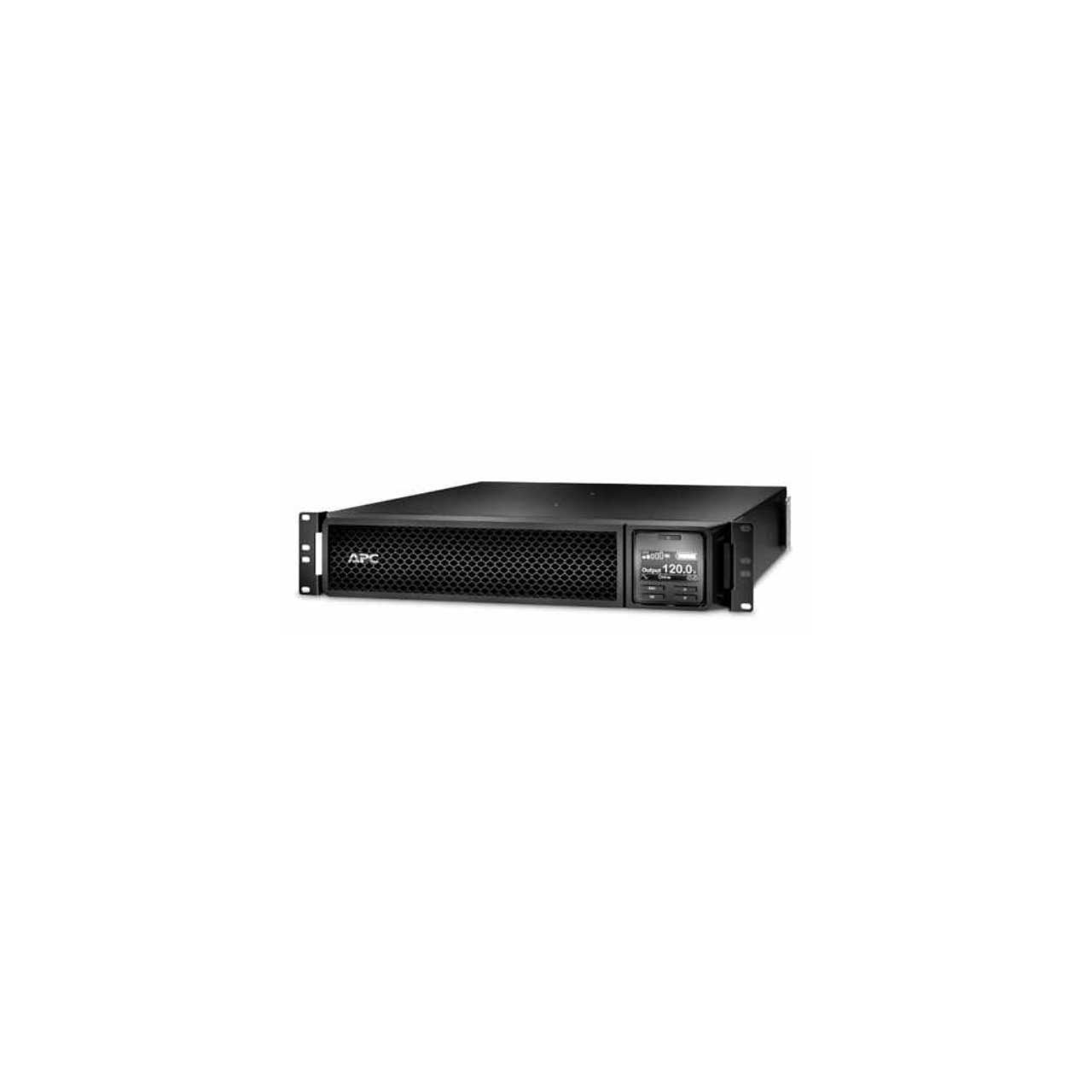

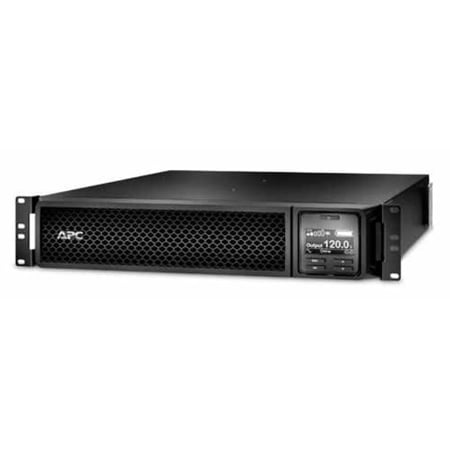

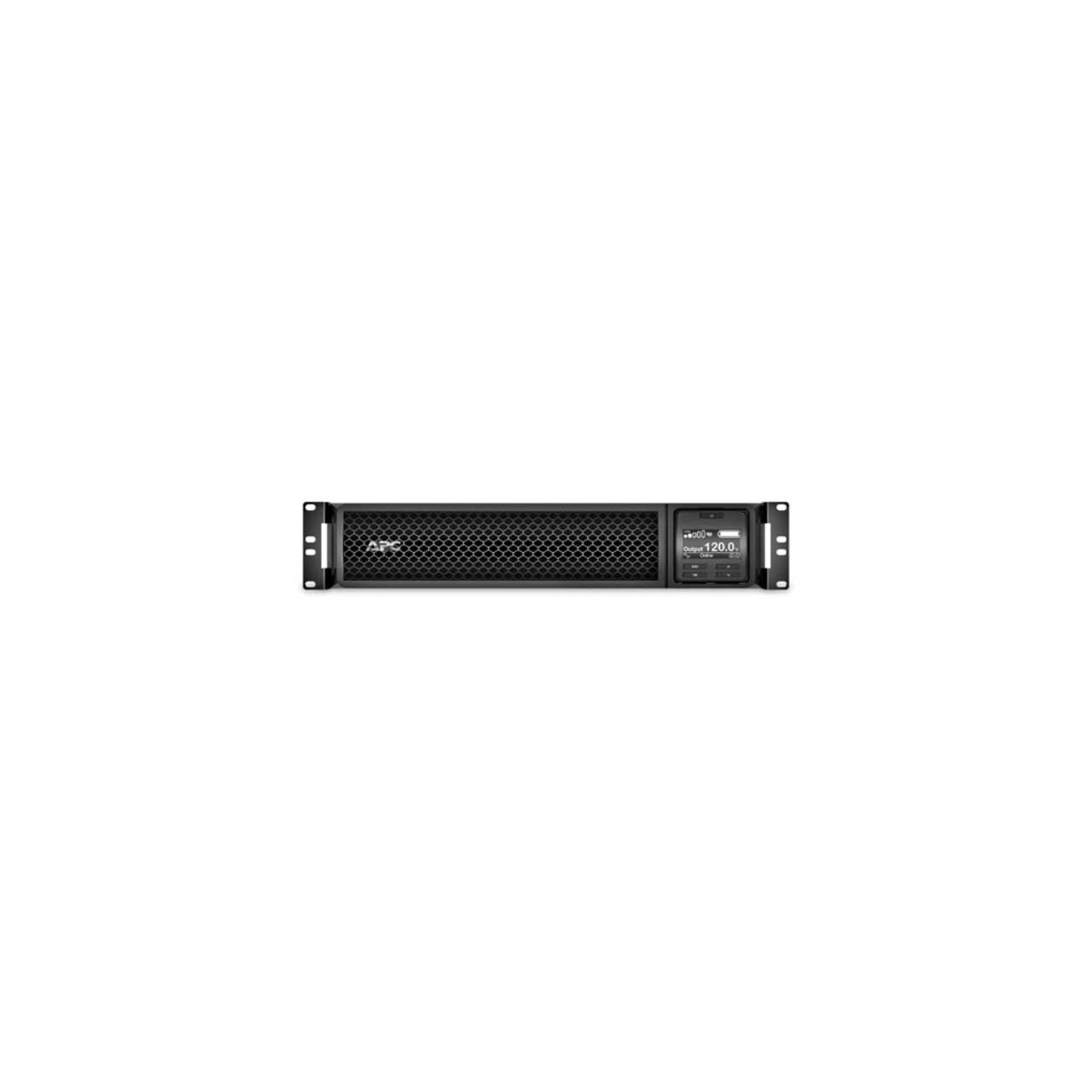

APC SRT1500RMXLA Smart-UPS SRT 1500VA RM 120V

ITEM #: APC-SRT1500RMXLA MFG #: SRT1500RMXLA

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,210.00

Our Price:

$1,600.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    SRT1500RMXLA - Overview

    The SRT1500RMXLA is a Smart-UPS SRT 1500VA RM 120V power supply backup. With an industry leading single phase on-line UPS with new Smart Management options, it offers power and protection for network closets, server rooms, retail offices, banking, medical labs, and industrial applications.

    The next generation Smart-UPS On-Line models are for customers who want a more Powerful and Efficient UPS with smart management options. These models feature Unity Power Factor and a unique Graphical LCD Interface that provides detailed information for a better customer experience. The next generation on-line exemplify why APC is the worldwide market leader in server class UPSs and ensure that APC's Smart-UPS On-Line will remain the benchmark of the industry.

    • Features:

      • Best-in-class power density: More real power in watts, .9pf on the SRT1500RMXLA
      • High-efficiency "Green Mode": Achieves 95% efficiency, which saves utility and cooling costs without compromising performance or reliability. Energy Star compliant
      • Operate without battery: Ability to immediately protect equipment when power returns after a complete discharge of the battery
      • Built-in energy meter: Measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking
      • Rack Mountable: Ability to easily mount into a rack or enclosure
      • Smart-slot: Allows the ability to add in a network management card to manage and monitor the UPS remotely (card sold separately)
      • Optional additional battery packs: can be added to increase runtime

    • Specifications:

      • Output
      • Output power capacity: 1.35 KWatts / 1.5 kVA
      • Max Configurable Power (Watts): 1.35 KWatts / 1.5 kVA
      • Nominal Output Voltage: 120V
      • Output Voltage Distortion: Less than 2%
      • Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
      • Load Crest Factor: 3 : 1
      • Topology: Double Conversion Online
      • Waveform type: Sine wave

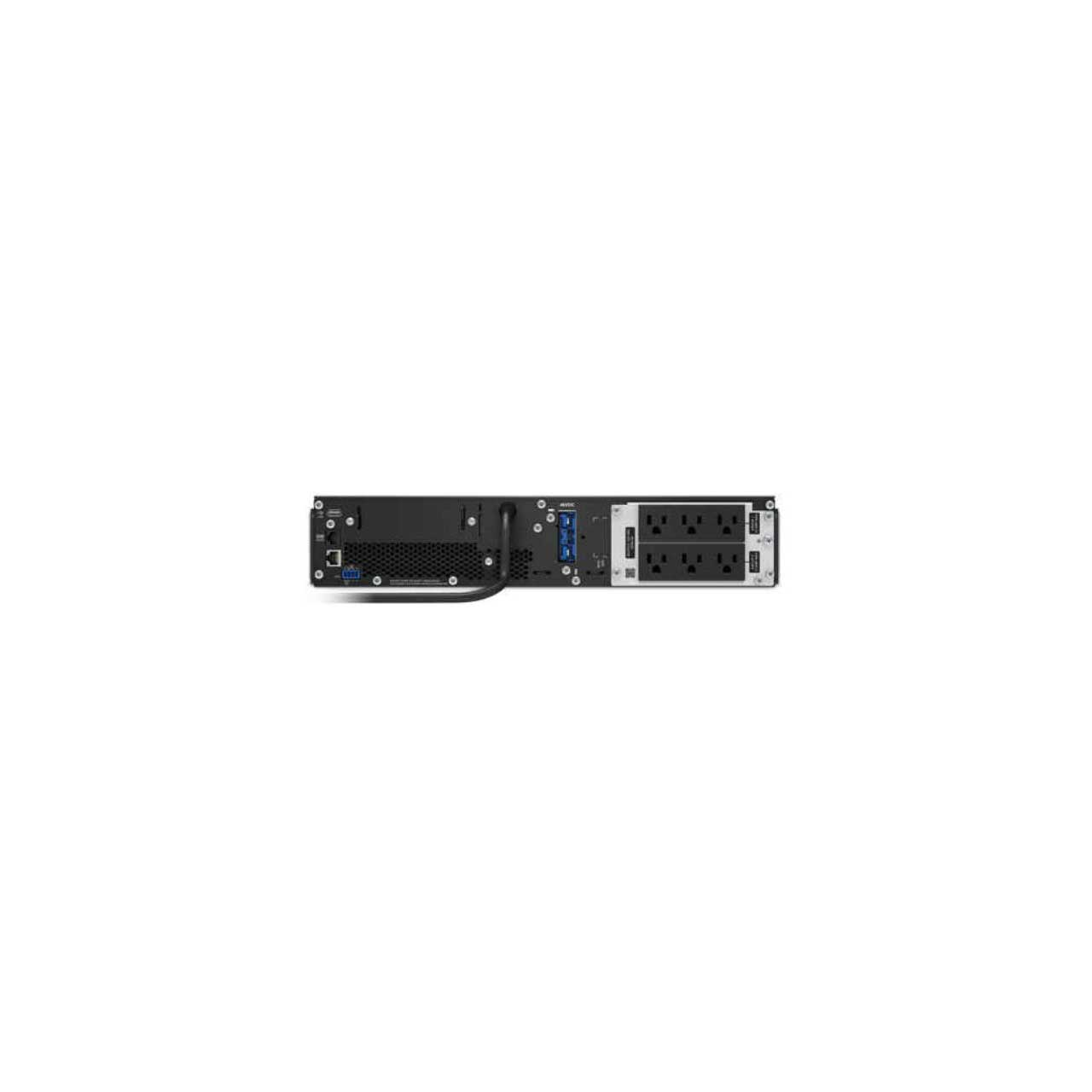

      • Output Connections: (6) NEMA 5-15R (Battery Backup)
      • Bypass: Built-in Bypass

        Input
      • Nominal Input Voltage: 120V
      • Input frequency: 47 - 70 Hz (auto sensing)
      • Input Connections: NEMA 5-15P
      • Cord Length: 6 ft
      • Input voltage range for main operations: 90 - 150V
      • Number of Power Cords: 1

        Batteries & Runtime
      • Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
      • Included Battery Modules: 1
      • Typical recharge time: 3 hour(s)
      • Replacement Battery: APCRBC155
      • Expected Battery Life (years): 3 - 5
      • RBC Quantity: 1
      • Extendable Run Time: 1
      • Extended Run Options: APC-Smart-UPS-SRT-1500VA-RM-120V

        Communications & Management
      • Interface Port(s): RJ-45 Serial, Smart-Slot, USB
      • Control panel: Multi-function LCD status and control console
      • Audible Alarm: Audible and visible alarms prioritized by severity
      • Emergency Power Off (EPO): Yes
      • Available SmartSlot Interface Quantity: 1

        Physical & Environmental
      • Dimensions (H x W x D): 3.35" x 17.0" x 20.0"
      • Shipping Dimensions (H x W x D): 9.7" x 23.4" x 29.5"
      • Rack Height 2U
      • Weight 48.5lbs.
      • Shipping weight 65.26lbs.
      • Color: Black
      • Surge energy rating: 480Joules
      • Operating Environment: 0 - 40° C
      • Operating Relative Humidity: 0 - 95% non-condensing
      • Operating Elevation: 0-10000 ft
      • Storage Temperature: -20 - 50° C
      • Storage Relative Humidity: 0 - 95% non-condensing
      • Storage Elevation: 0-50000 ft
      • Audible noise at 1 meter from surface of unit: 50.0dBA
      • Online thermal dissipation: 463.0BTU/hr
      • Protection Class: IP 20

    • Item Includes:

      • Smart-UPS Online SRT1500RMXLA
      • User manual

    • GTIN:

      0731304330073
