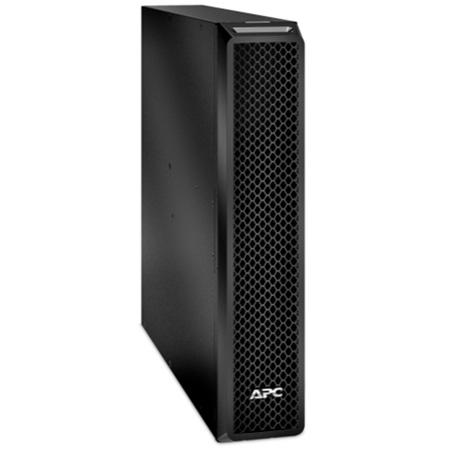

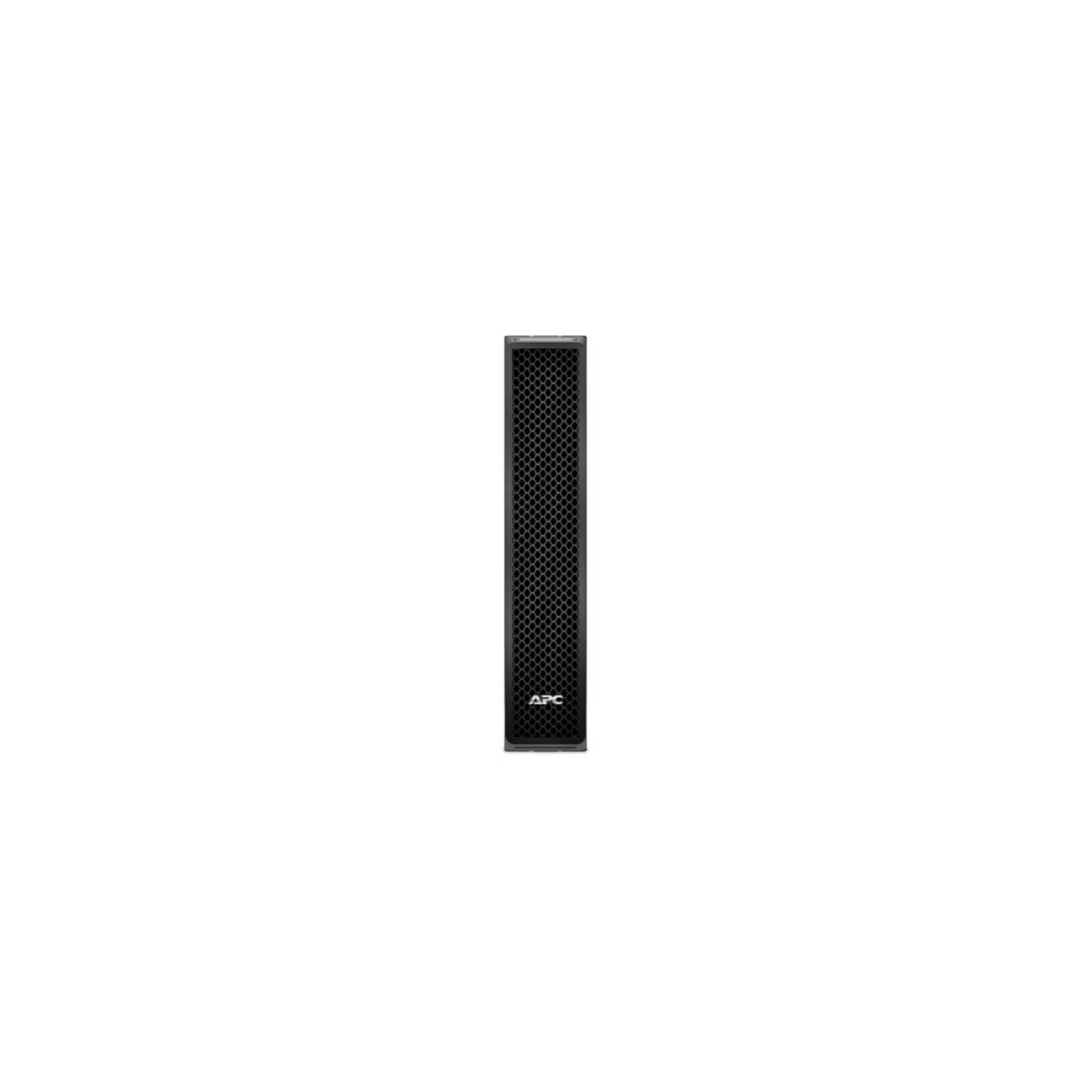

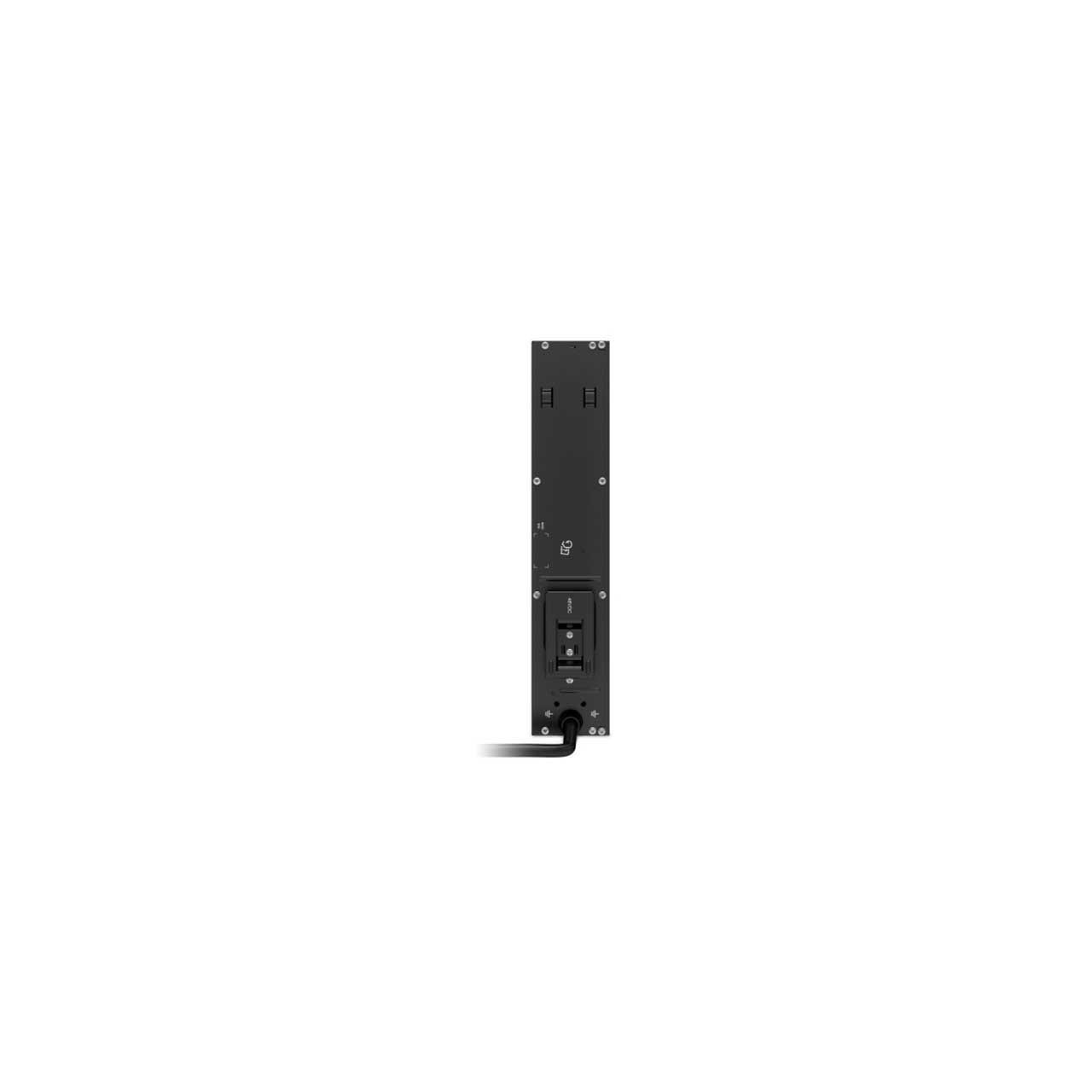

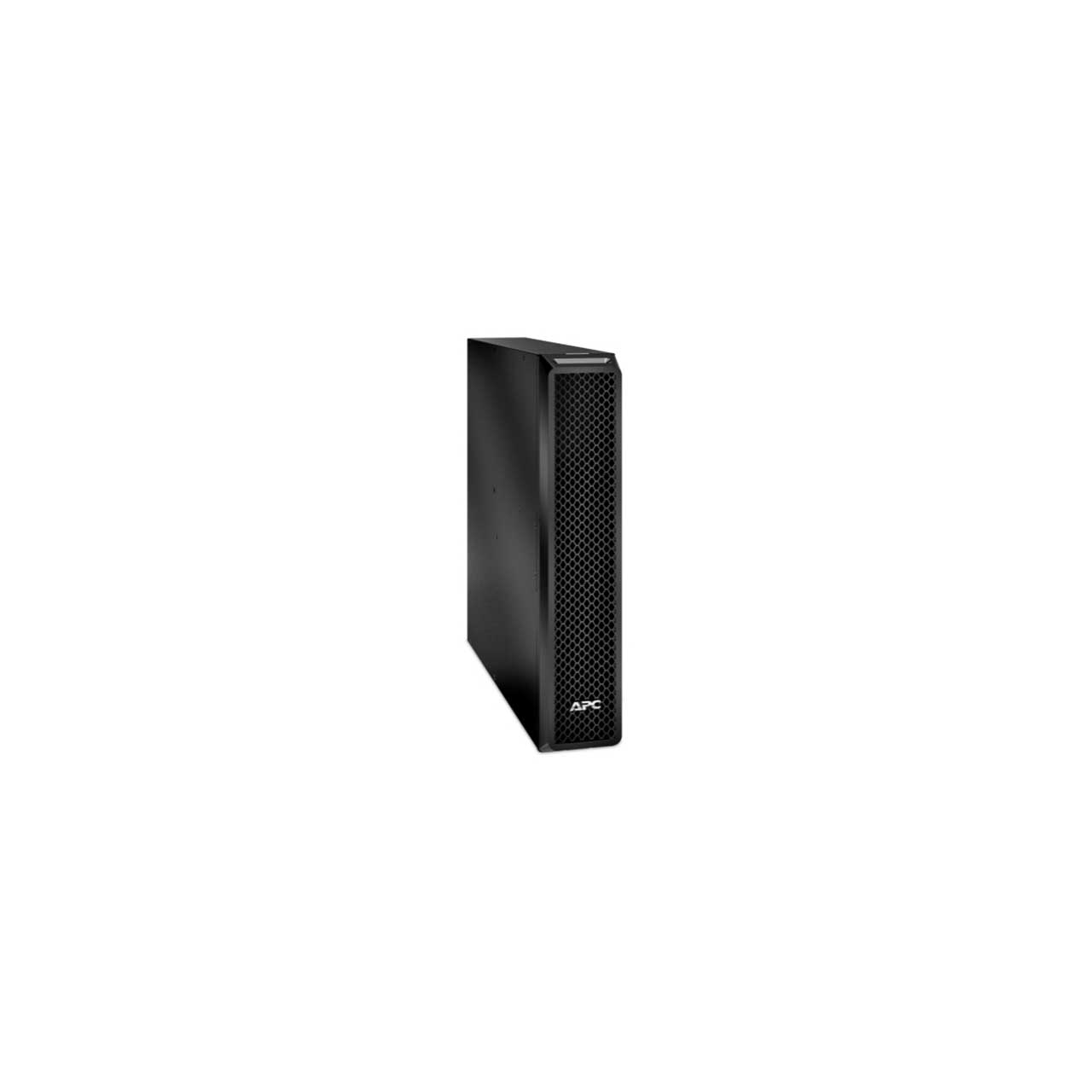

APC SRT48BP External Battery Pack For SRT1500 VA Series

ITEM #: APC-SRT48BP MFG #: SRT48BP

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
APC
Free Shipping with $49 Minimum Order

List Price:

$1,130.00

Our Price:

$819.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.
Report Lower PriceLarge Quantity Quote

SRT48BP - Overview

APC SRT48BP is a Smart-UPS SRT 48V 1kVA 1.5kVA external battery pack. SRT48BP has an extended-run battery system that provides flexible run-time to critical Smart-UPS applications.Multiple battery pack configuration where you can connect up to 10 battery packs for extended runtime applications. Advanced battery management is included. Embedded monitoring at the cell, module, and cabinet level provides a clear picture of battery runtime and health, with the added benefits of predictable, consistent runtime performance and stable cell health.

  • Features:

    • Multiple battery pack configuration
    • Advance Battery Management Included
    • Extended-run battery systems provide flexible runtime to critical Smart-UPS applications


  • Specifications:

    • Output
    • Battery Output Voltage: 48

      Batteries & Runtime
    • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
    • Battery Mounting: Stand alone battery stack
    • Expected Battery Life (years): 3 - 5
    • RBC Quantity: 2
    • Battery Volt-Amp-Hour Capacity: 594

      Physical
    • Maximum Height: 17.0" (432mm, 43.2cm)
    • Maximum Width: 3.35" (85mm, 8.5cm)
    • Maximum Depth: 21.1" (536mm, 53.6cm)
    • Net Weight: 65.92Lbs (29.9kg)
    • Shipping Weight: 81.57Lbs (37kg)
    • Shipping Height: 9.6" (244mm, 24.4cm)
    • Shipping Width: 23.4" (594mm, 59.4cm)
    • Shipping Depth: 29.5" (749mm, 74.9cm)
    • Color: Black
    • Units per Pallet: 6

      Environmental
    • Operating Temperature: 32° to 104°F (0° to 40°C)
    • Operating Relative Humidity: 0 to 95% (non-condensing)
    • Operating Elevation: 0 to 10000' (0 to 3000m)
    • Storage Temperature: 5° to 113°F (-15° to 45°C)
    • Storage Relative Humidity: 0 to 95% (non-condensing)
    • Storage Elevation: 0 to 50000' (0 to 15000m)

      Conformance
    • Standard warranty: 2 years repair or replace

      Sustainable Offer Status
    • RoHS: Compliant
    • REACH: Contains SVHCs


  • Item Includes:

    • APC SRT48BP External Battery Pack
    • Documentation CD
    • Installation guide
