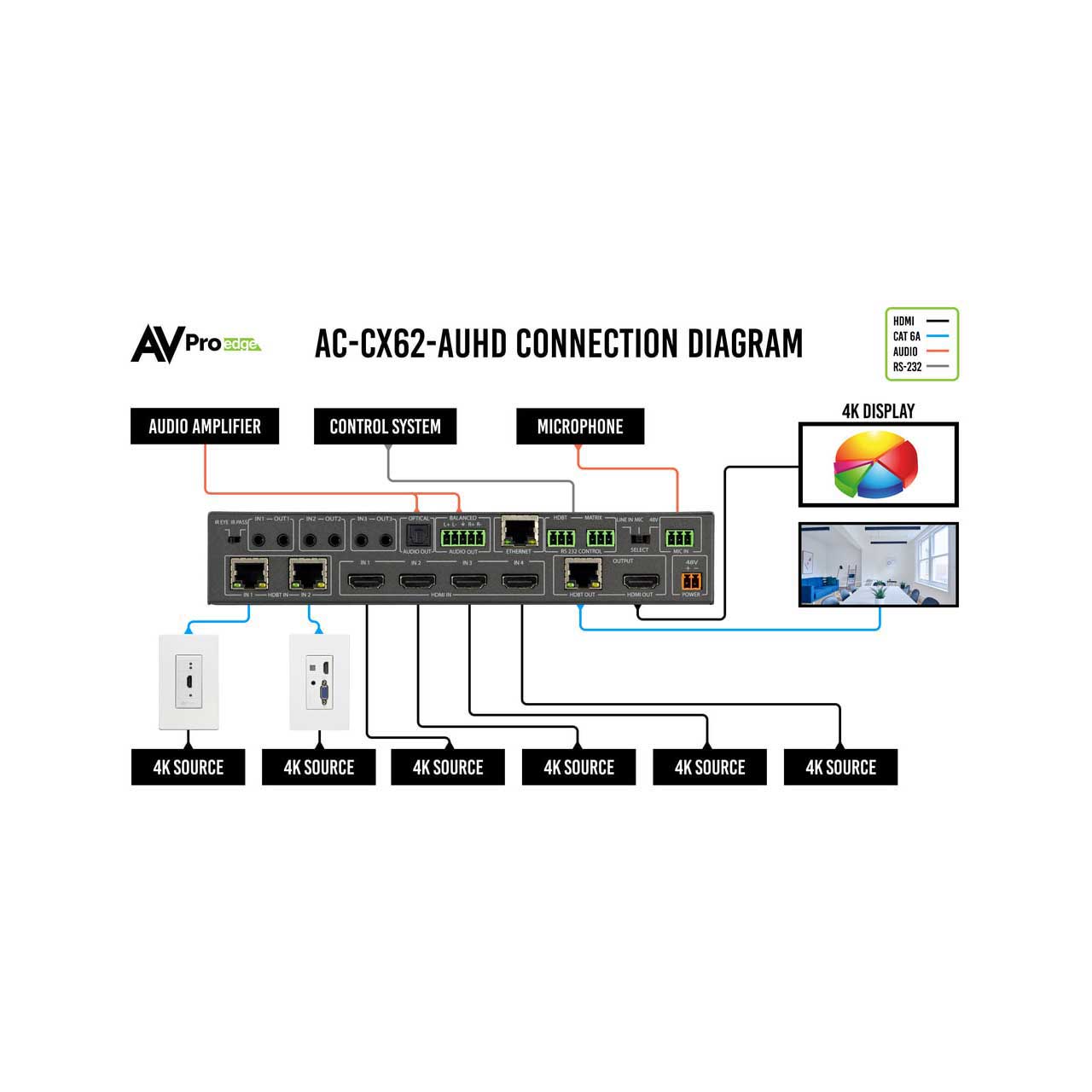

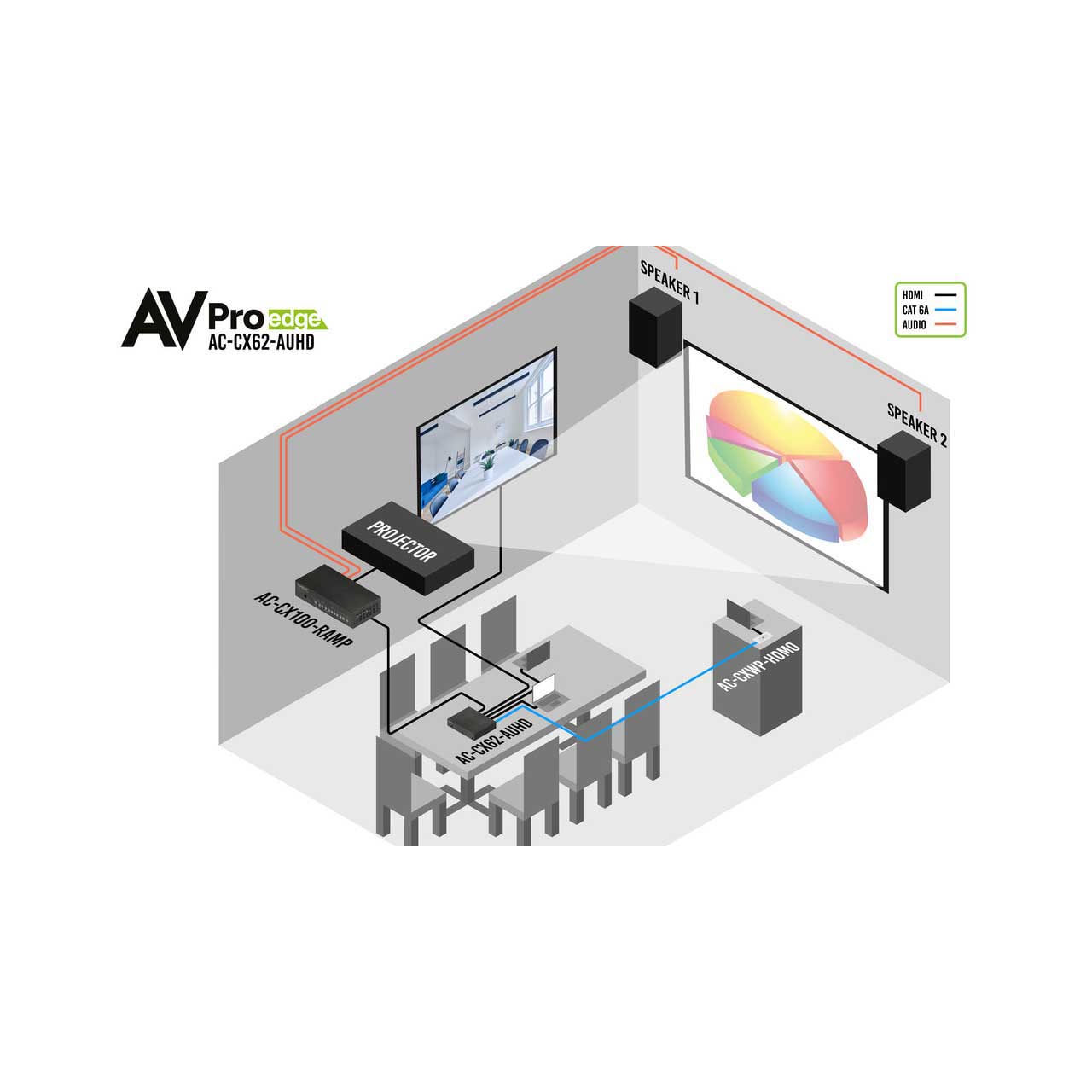

The AVPro Edge AC-CX62-AUHD ConferX 6x2 Matrix is the ideal solution for any conference room, classroom, or huddle space. This 4K switcher can display any six sources through the HDBaseT and HDMI output port. Each of these outputs is entirely independent of each other, allowing it to show two sources simultaneously. You will have no problems working with a microphone or intercom system with additional audio inputs and outputs. When you need a stable solution for video distribution, look to the entire line of ConferX products.
Extend the reach and versatility of any system with HDBaseT. With two HDBaseT inputs, this matrix switcher works well with two ConferX HDBaseT Wall Plate Transmitters. ConferX Wall Plate Transmitters include video inputs for Mini DisplayPort, HDMI, VGA, or USB-C and can be located up to 100 meters away from the AC-CX62-AUHD. The AC-CX62-AUHD gives end-users a simplified experience and the inputs they need for sharing their ideas even at a great distance.
Simple, intuitive, and automatic control makes this unit the ideal "leave in the room" matrix. The unit features an "Auto" option that defaults to the last plugged-in device or simple one-button control for each output. Prefer a control system? No problem, with a built-in web-based GUI and a complete set of management commands, you can make this switch work for you.
Ultra-High-Definition
This unit supports 4K60 (4:4:4) 18Gbps video signals for modern visual systems. With this ultra-high-definition matrix switcher, integrators can design video distribution solutions to handle high-resolution sources and sinks.
Distance
Using the HDBaseT inputs with any ConferX 100 meter HDBaseT Wall Plate Transmitter. The transmission distance for HD 1080P video is 100 meters (330ft) & 4K is up to 70 meters (230ft) into the matrix. Additionally, the transmission distance on the HDBaseT output goes 100M for 1080P and 70M for 4K to an HDBaseT capable display or the AVPro Edge RNE receiver.
Auto Sensing
This matrix switcher is a "Set it & Forget it" piece of hardware. When the user plugs in their device (BYOD), the matrix automatically senses the signal and makes it active. Actively use multiple input sources and switch between them by pressing the unit's output selection buttons or connecting a new source.
Control

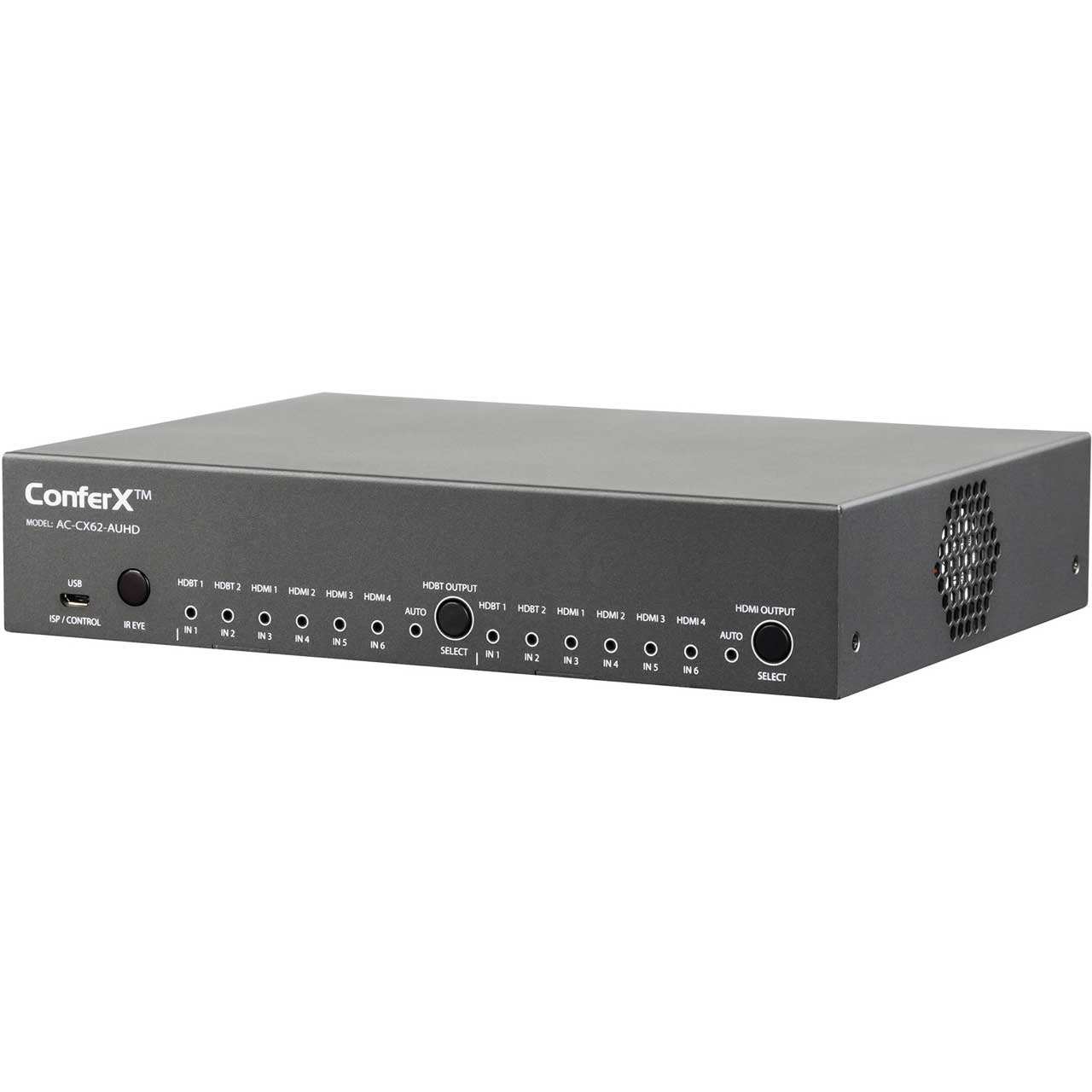

Switching and controlling this matrix switcher is simple with output selection buttons, the built-in web GUI, IR, and RS232 control options.
Power Over HDBaseT
The ConferX 6x2 can power the HDBaseT transmitters and the HDBaseT receiver with PoH. We are eliminating the need for unnecessary HDBaseT transmitter and receiver power supplies and cleaning up the look of your installation.
Interoperability

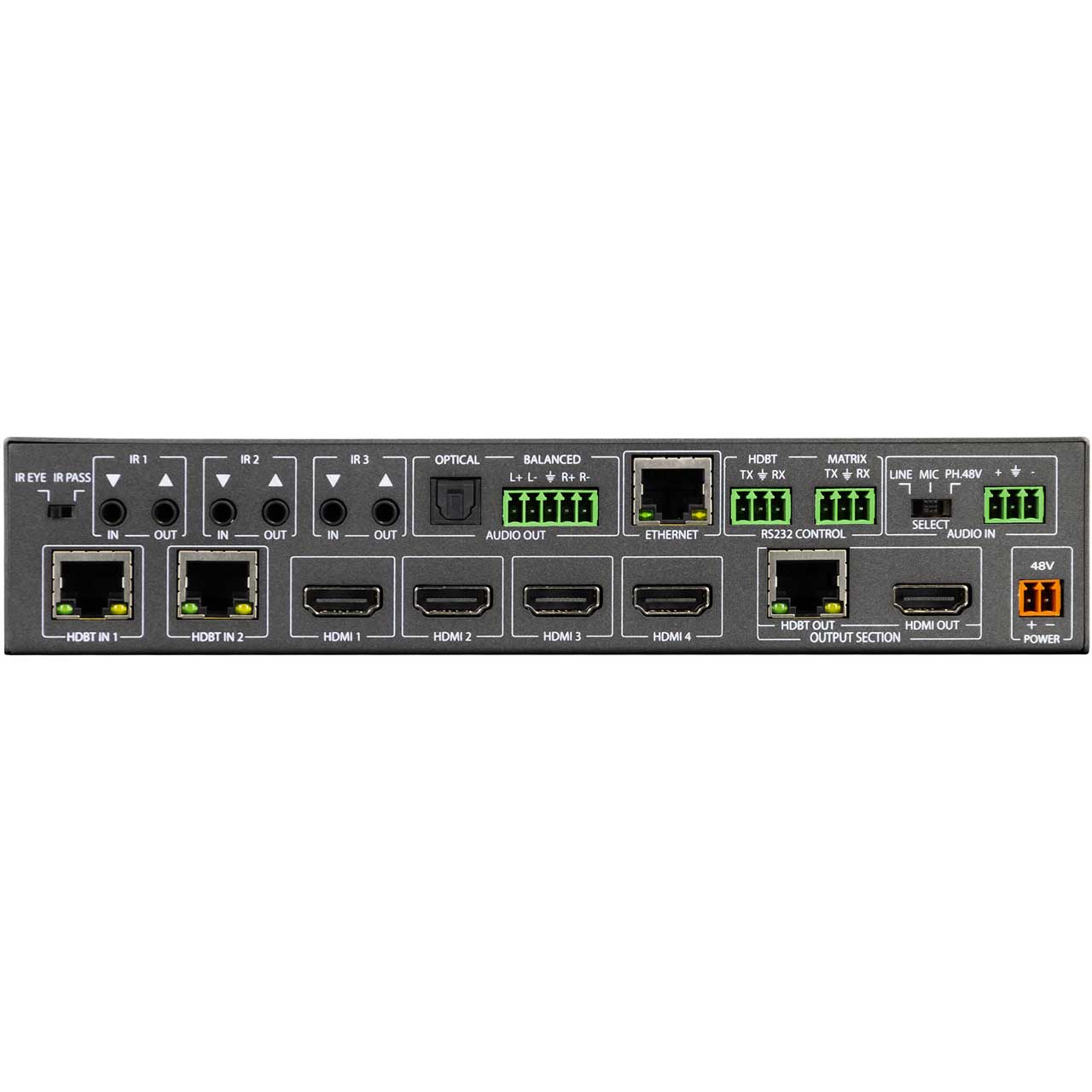

This matrix switcher has HDMI and HDBaseT inputs and outputs. It can work alongside any standard HDBaseT equipment. Most importantly, it can work with any of the HDBaseT transmitters or receivers from AVPro Edge & ConferX.
