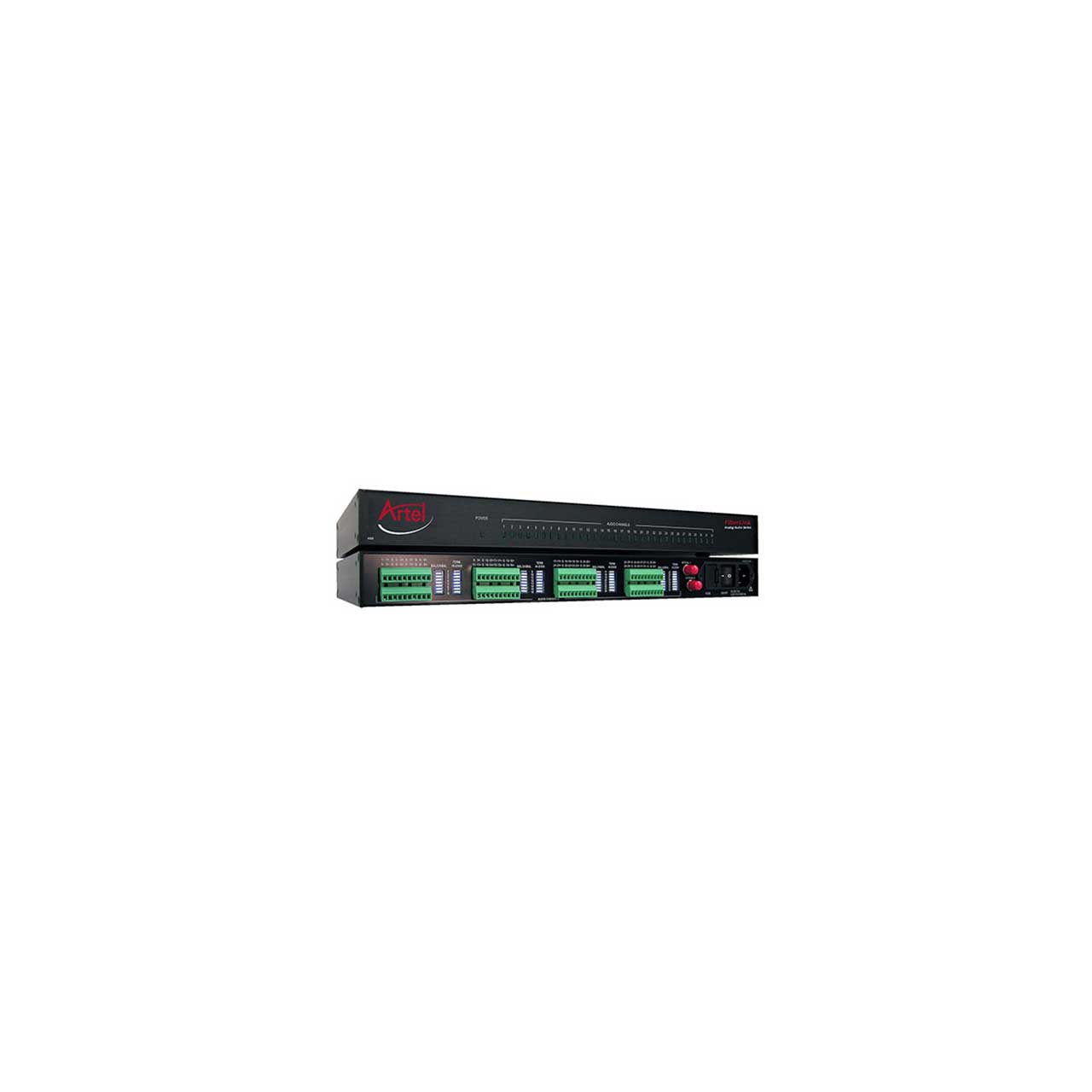

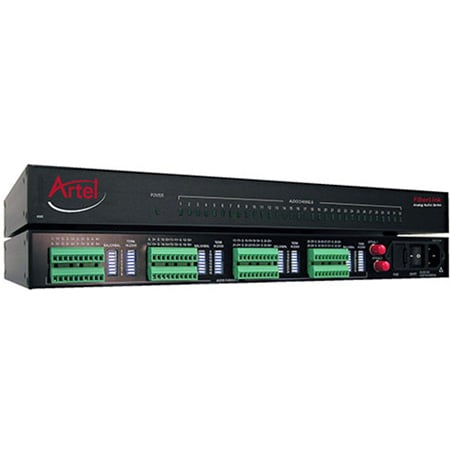

Artel FiberLink 4320-SS11-NA 32Ch Audio Transmitter - 850nm MM - Dual Output - ST Connector

ITEM #: ARTL-4320-SS11NA MFG #: 4320-SS11NA

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$6,891.50

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


4320-SS11NA - Overview

The Artel Video Systems 4320-SS11-NA Fiberlink 4320 Series digitally transmits thirty-two independent audio channels over one multimode or single mode fiber at 850, 1310 or 1550 nm, with optional redundancy. It is ideal for Rental, Staging, Theater, Stadiums, Theme Parks and Broadcast applications.

  • Features:

    • System consists of transmitter and receiver unit
    • No adjustments; pure digital processing and transmission
    • Optional redundant optical input/output 24 bit/96 kHz sampling; maximum audio level +24 dBu 20 Hz to 20 kHz frequency response
    • Line level, balanced or unbalanced audio operation
    • Indicator LEDs monitor audio signals and power
    • Wide range internal power supply
    • Unit stands 1 RU high
    • Rackmount ears are included
    • Single Mode and Multimode Fiber - This product supports both Single Mode and Multimode fiber types in the same unit with no special ordering, configuration or tweaks.
    • Multiple Audio Channels - This product supports multiple channels of audio. Refer to the datasheet for more information.

  • Specifications:

    • NOTE FOR SPECS: *Distance specifications are only approximate and are not guaranteed. Operating loss budget must not be exceeded.

      General Specifications
    • LED Indicators: Power; Audio Present (per channel)
    • Power Requirements*: 95-250 volts AC, 47-63 Hz
    • Operating Temperature Range: 95 to 131°F
    • Relative Humidity: 10%-90% (non-condensing)
    • Optical Connectors: ST
    • Operating Wavelength: 850, 1310, or 1550 nm
    • Physical Size (HxWxD): 1.75 x 16.75 x 10" / Unit stands 1 RU high
    • Weight Approximately: 5 lbs.

      Audio Specifications
    • Number of Audio Channels: 32, balanced or unbalanced
    • Frequency Response: 20 Hz - 20 kHz, +0/-0.5 dB
    • Bits-per-Sample/Sampling Rate: 24 bits; 96 kHz
    • Maximum Audio Level: +24 dBu
    • SNR (A-Weighted): 95 dB
    • THD+N: 0.002%; 20 Hz - 20 kHz
    • Channel Phase Differential: 0.1o
    • System Latency: 200 us + fiber cable propagation delay (typically 5 us/km of fiber)
    • Input Impedance: 600 Ohms terminated; 24 k Ohms unterminated
    • Output Impedance: 50 Ohms
    • Audio Connectors: Removable screw terminal
    • Switches: Dip switches to select input termination, balanced or unbalanced input/output, Selectable on a per-channel basis

      Operating Loss Budget & Maximum Usable Distance*
    • SM = Single Mode Fiber / MM = MultiMode Fiber
    • Wavelength: 850 MM Loss(dB): 0-20 Distance(km): 0-2
    • Wavelength: 1310 MM Loss(dB): 0-25 Distance (km): 0-10
    • Wavelength: 1310 SM Loss(dB): 0-23 Distance (km): 0-55
    • Wavelength: 1550 SM Loss(dB): 0-25 Distance (km): 0-80
