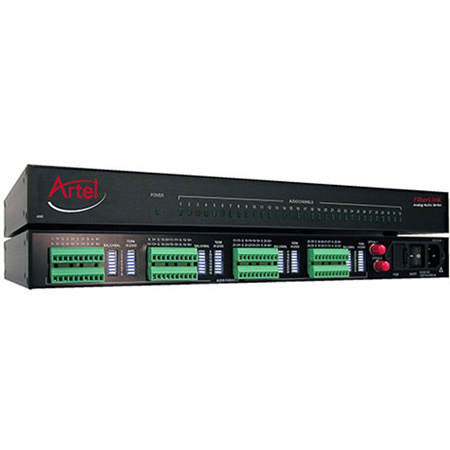

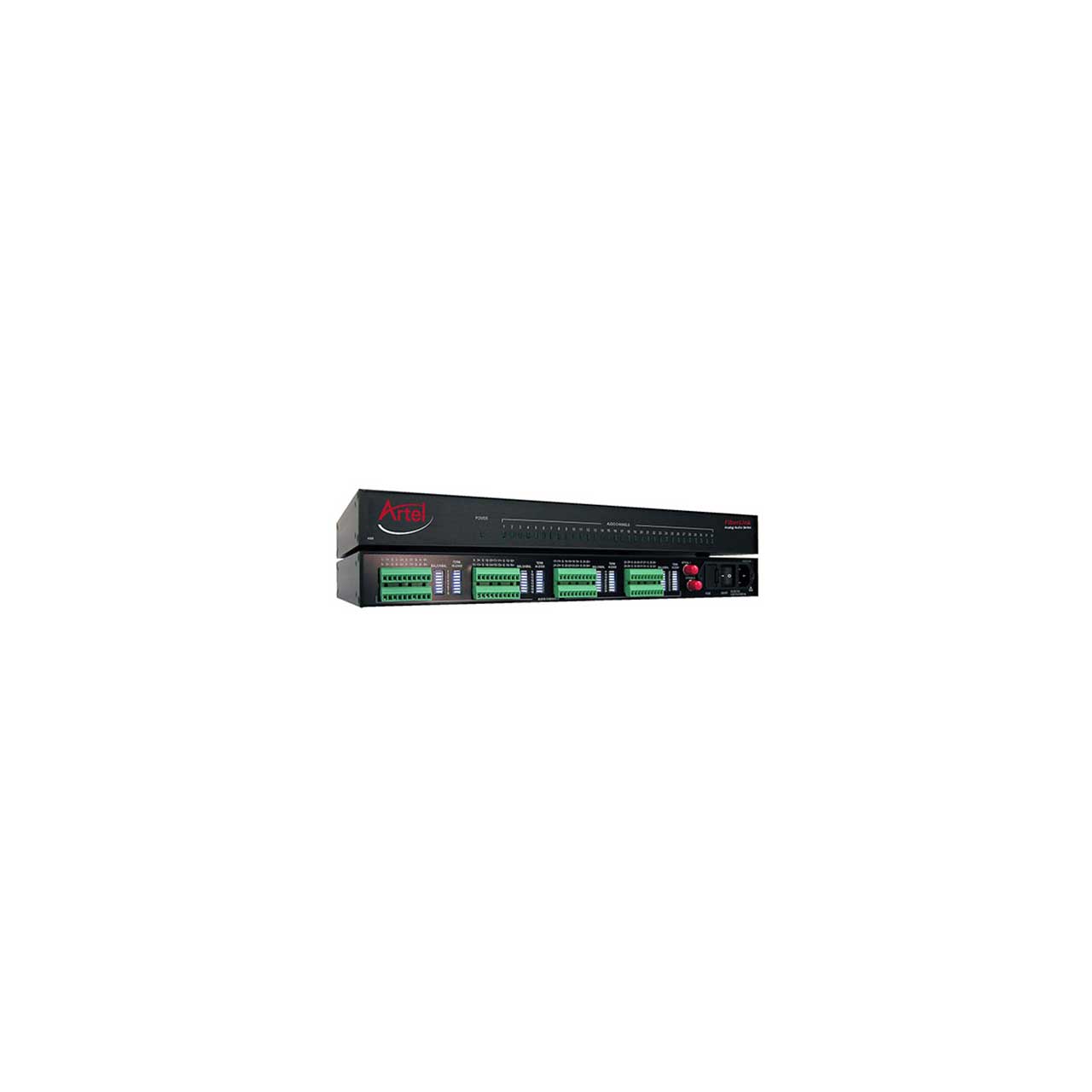

Artel FiberLink 4321-SS11-NA 32Ch Audio Receiver - 850nm MM - Dual Input - ST Connector

4321-SS11NA - Overview

• Features:

  • System consists of transmitter and receiver unit
  • No adjustments; pure digital processing and transmission
  • Optional redundant optical input/output 24 bit/96 kHz sampling; maximum audio level +24 dBu 20 Hz to 20 kHz frequency response
  • Line level, balanced or unbalanced audio operation
  • Indicator LEDs monitor audio signals and power
  • Wide range internal power supply
  • Unit stands 1 RU high
  • Rackmount ears are included
  • Multiple Audio Channels - This product supports multiple channels of audio. Refer to the datasheet for more information.
  • Single Mode and Multimode Fiber - This product supports both Single Mode and Multimode fiber types in the same unit with no special ordering, configuration or tweaks.


• Specifications:

  • General Specifications
  • LED Indicators: Power; Audio Present (per channel)
  • Power Requirements*: 95-250 volts AC, 47-63 Hz
  • Operating Temperature Range: 95 to 131°F
  • Relative Humidity: 10%-90% (non-condensing)
  • Optical Connectors: ST
  • Operating Wavelength: 850, 1310, or 1550 nm
  • Physical Size (HxWxD): 1.75 x 16.75 x 10" / Unit stands 1 RU high
  • Weight Approximately: 5 lbs.

    Audio Specifications
  • Number of Audio Channels: 32, balanced or unbalanced
  • Frequency Response: 20 Hz - 20 kHz, +0/-0.5 dB
  • Bits-per-Sample/Sampling Rate: 24 bits; 96 kHz
  • Maximum Audio Level: +24 dBu
  • SNR (A-Weighted): 95 dB
  • THD+N: 0.002%; 20 Hz - 20 kHz
  • Channel Phase Differential: 0.1o
  • System Latency: 200 us + fiber cable propagation delay (typically 5 us/km of fiber)
  • Input Impedance: 600 Ohms terminated; 24 k Ohms unterminated
  • Output Impedance: 50 Ohms
  • Audio Connectors: Removable screw terminal
  • Switches: Dip switches to select input termination, balanced or unbalanced input/output, Selectable on a per-channel basis

    Operating Loss Budget & Maximum Usable Distance*
  • SM = Single Mode Fiber / MM = MultiMode Fiber
  • Wavelength: 850 MM Loss(dB): 0-20 Distance(km): 0-2
  • Wavelength: 1310 MM Loss(dB): 0-25 Distance (km): 0-10
  • Wavelength: 1310 SM Loss(dB): 0-23 Distance (km): 0-55
  • Wavelength: 1550 SM Loss(dB): 0-25 Distance (km): 0-80
