    NE8250.70PED - Overview

    Multi-Channel, Network-Enabled Power Amplifier with Dante

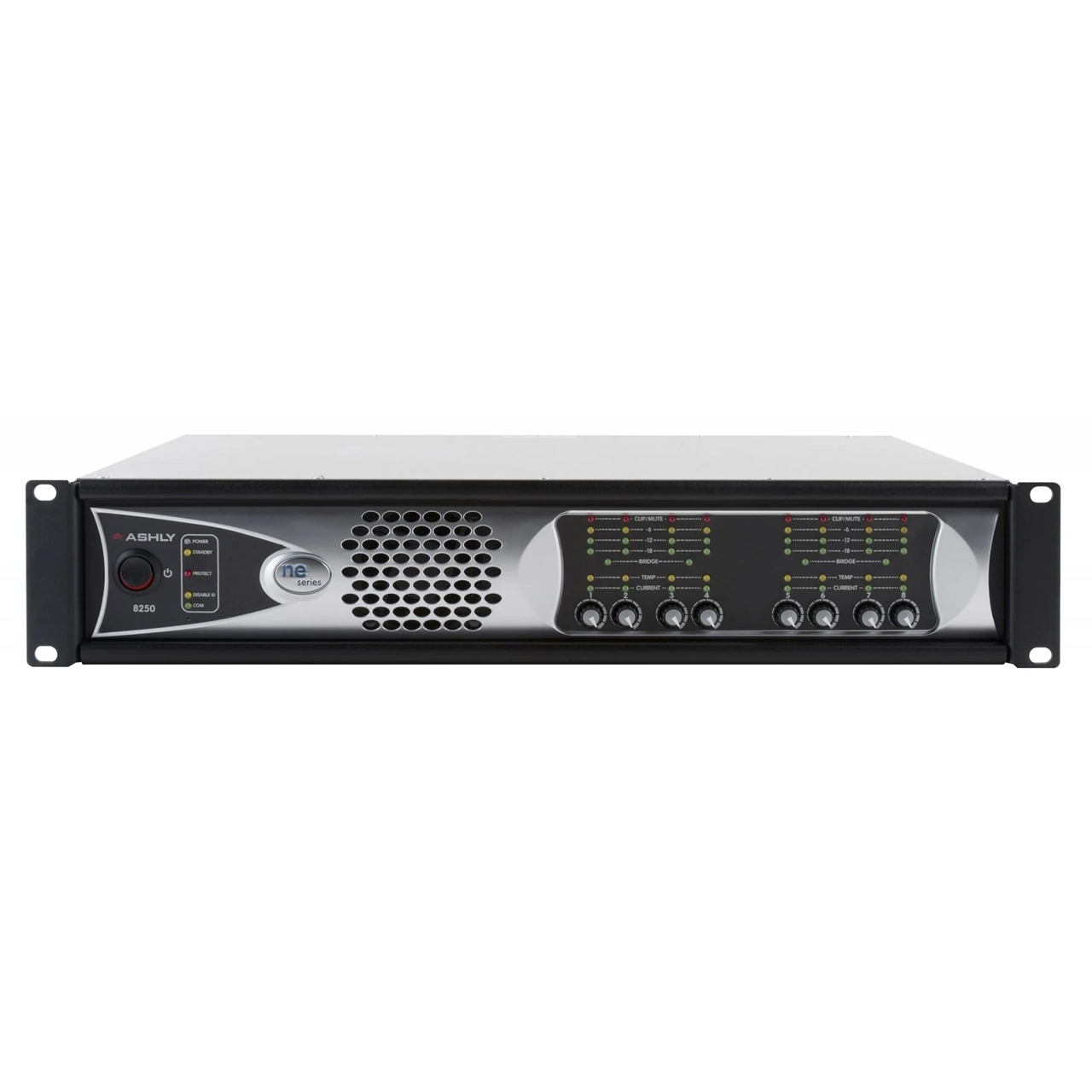

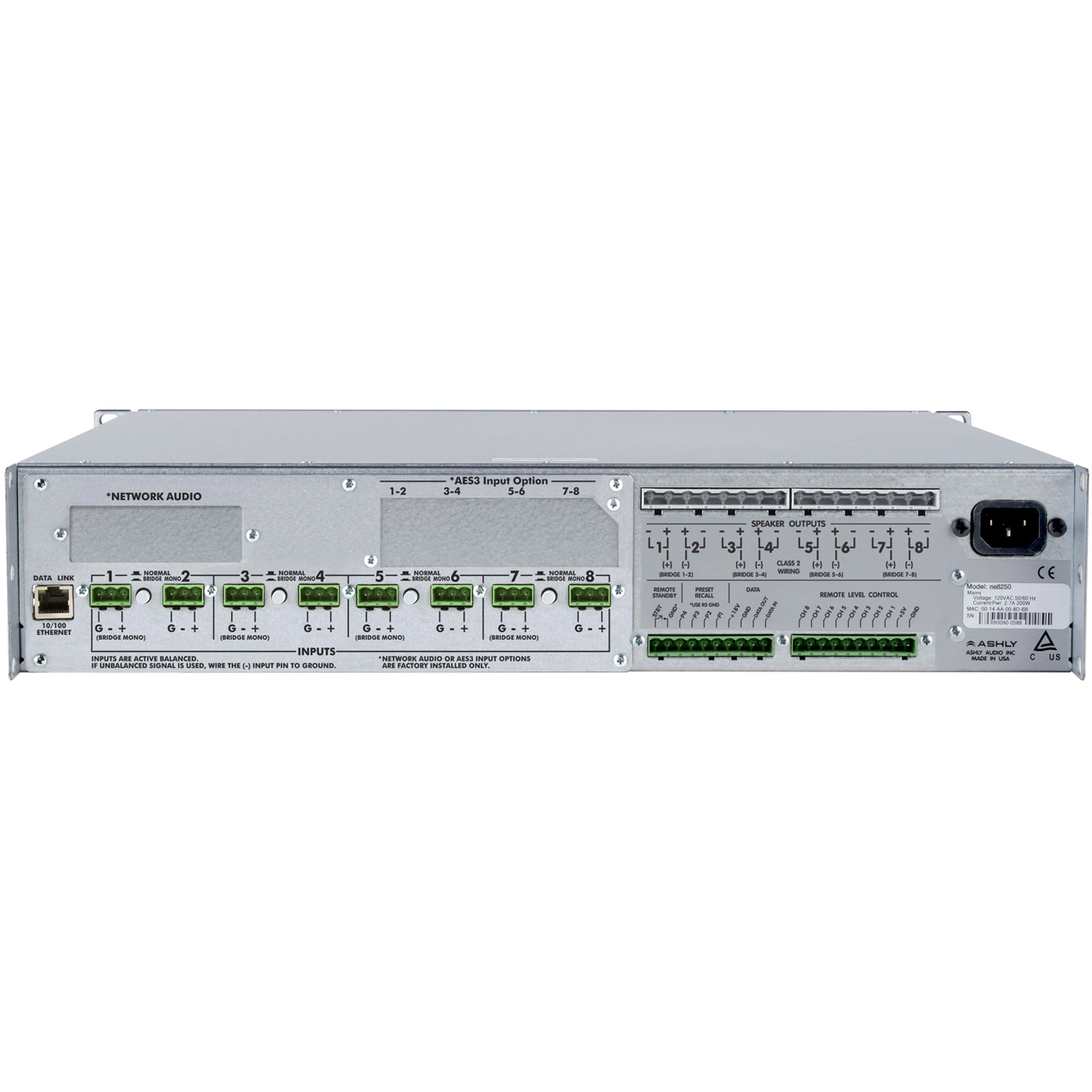

    The Ashly Audio NE8250.70PED is an ne Series, Network Enabled, 8-Channel, Class-D Power Amplifier with the Dante Option Card installed.

    Designed around an energy efficient Class-D platform with a switching power supply, ne Series amps offer ease of use, setup and control using standard 10/100 Ethernet protocol and Protea™ NE Software. No special outboard control units are needed. Connecting and controlling an amplifier for networked systems has now been simplified with ne Amplifiers.

    Dante®, created by Audinate, is an Ethernet based digital AV network technology that uses existing 100MB or 1GB network infrastructure for delivery of high performance, high channel count audio signals. Ashly products with network audio capability can be integrated into a Dante™ digital audio system by purchasing the OPTDante module as a factory installed option, and controlled using Protea ne software.

    • Features:

      • 10/100 Ethernet comes standard for remote control and monitoring
      • FIR Filter capable (with DSP)
      • DC voltage remote gain control
      • Switched-mode power supply, Class-D output
      • Stepped, calibrated input attenuators
      • Remote power standby
      • Disable all front panel controls via software
      • Temperature sensitive variable speed fan with side-to-front airflow
      • Selectable HPF frequencies (80Hz, 400Hz, off) on 25V, 70V, and 100V models
      • 4-stage level meters
      • Output current and temp indicators
      • Safety/Compliance: cTUVus, CE, FCC, RoHS

    • Specifications:

      • Rated Power 8 ohms (per channel): 150W
      • Rated Power 4 ohms (per channel): 250W
      • Rated Power 8 ohms (Bridged): 500W
      • S/N (20 Hz-20 kHz, unweighted): >105dB
      • Idle Power: 30W
      • Idle Current: 0.4A
      • Frequency Response (8 ohms): 20 Hz - 20kHz, (unweighted) ±1dB
      • Input Impedance: 20k ohms, balanced
      • Input Sensitivity: 6.2dBu
      • Maximum Input Level: +21dBu
      • Internal HPF (25V, 70V, 100V models): (controlled by software) 80Hz (12dB/oct), 400Hz (6dB/oct), and OFF
      • Damping Factor (8 ohms): > 250
      • Cooling Temperature: dependent speed-controlled fan (Front in, Side out)
      • Output Circuitry: Class D
      • Cordset: 15A Edison 3-Prong IEC
      • Weight: 21.0 lbs. (9.53kg)
      • Height: 3.50" (88.9 mm) 2RU
      • Width: 19" (483 mm)
      • Depth: 15.5" (394 mm)

    • Item Includes:

      • 1x NE8250.70PE with Dante Option Card

    • Warranty:

      • 5-Year

    • GTIN:

      0694970466845
