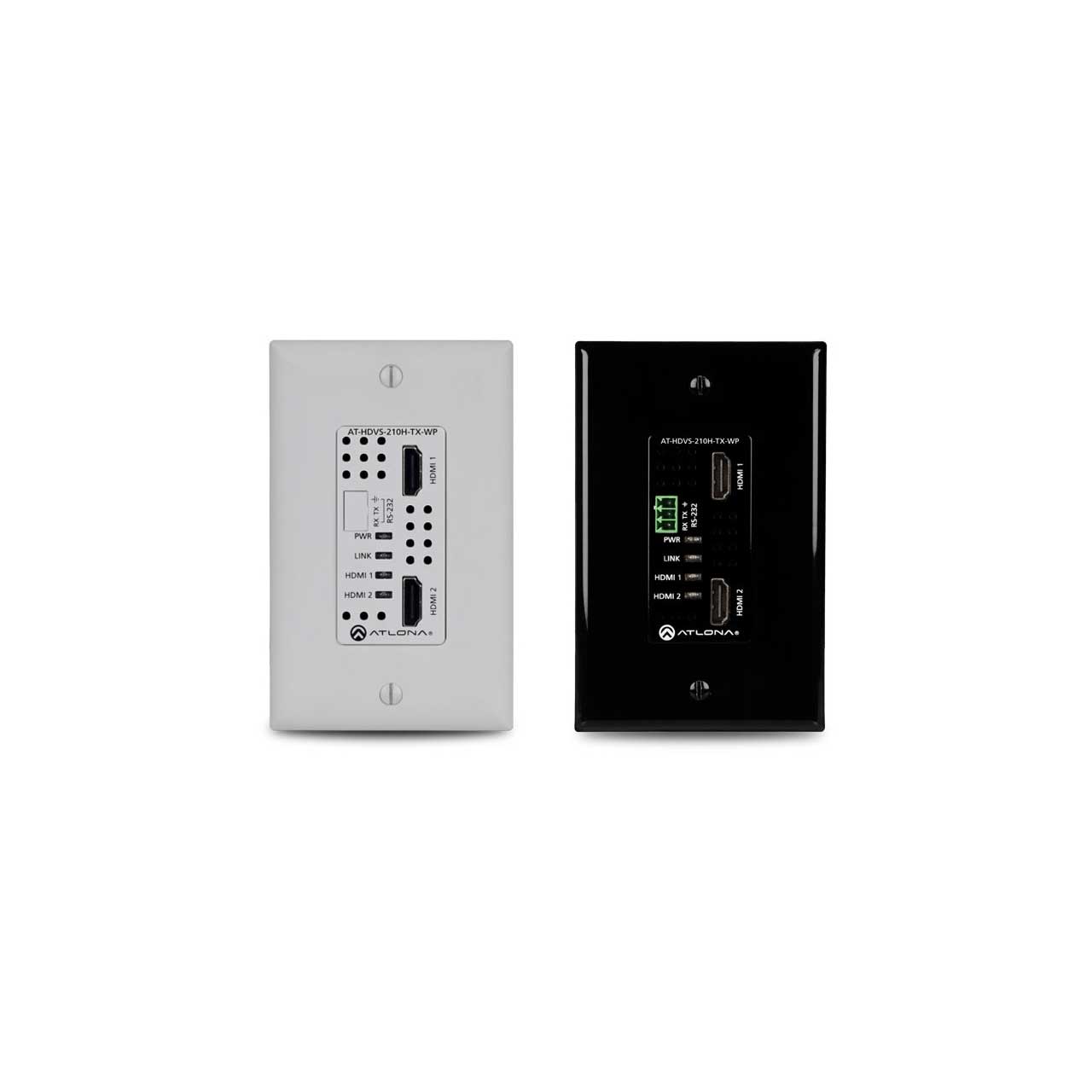

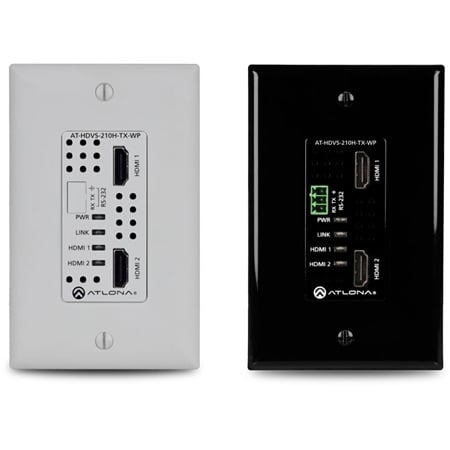

The Atlona AT-HDVS-210H-TX-WP is a 2x1 switcher and HDBaseT transmitter with two HDMI inputs. It features a US one-gang, Decora-style wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded audio and control can be transmitted up to 330 feet (100 meters). The HDVS-210H-TX-WP is HDCP 2.2 compliant.

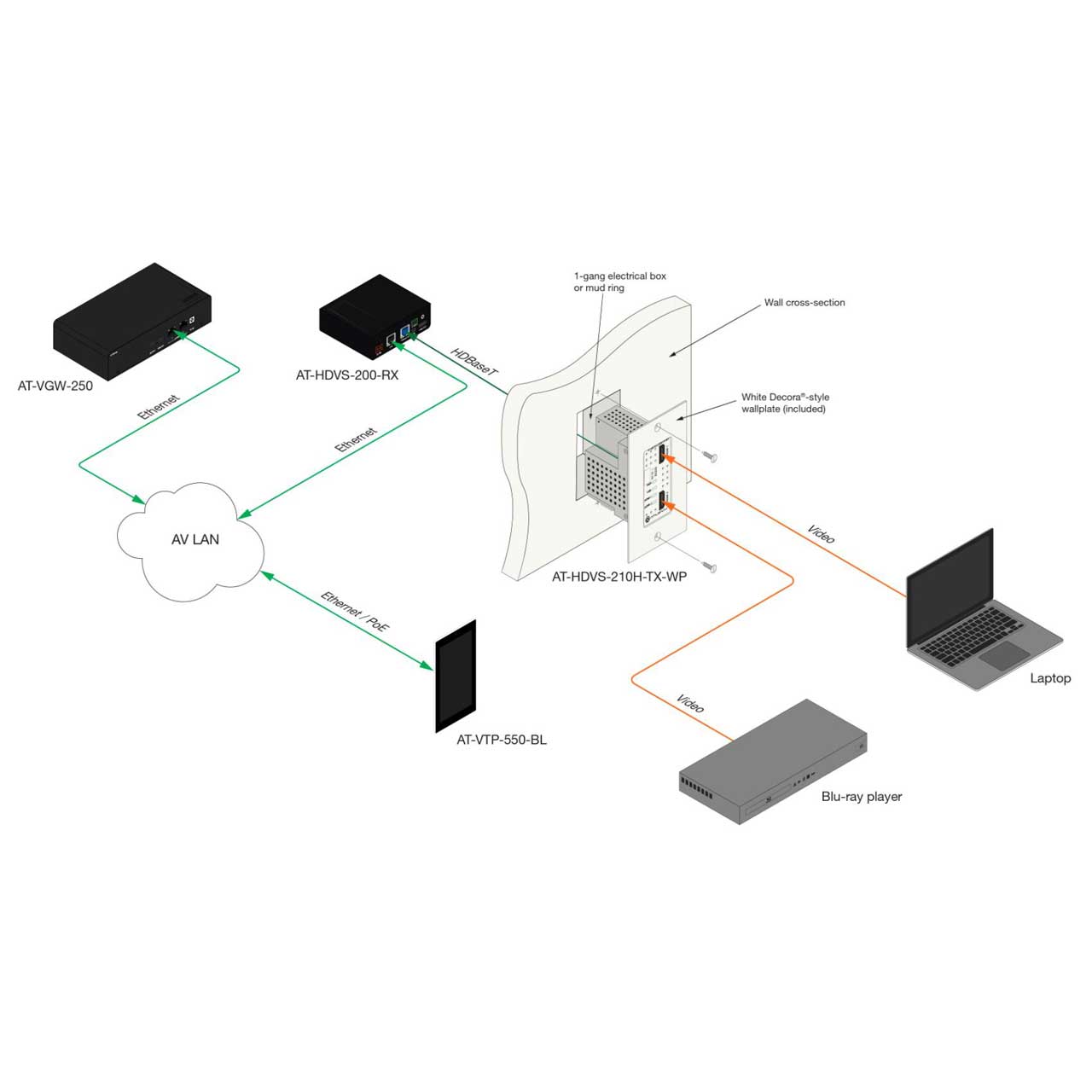

It is designed for use with select HDVS Series receivers and scalers, as well as the AT-UHD-EX-100CE-RX-PSE receiver, and Atlona switchers and matrix switchers with HDBaseT inputs. This transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control. It is remotely powered by the UHD-EX-100CE-RX-PSE or other Atlona HDBaseT-equipped devices through Power over Ethernet (PoE).

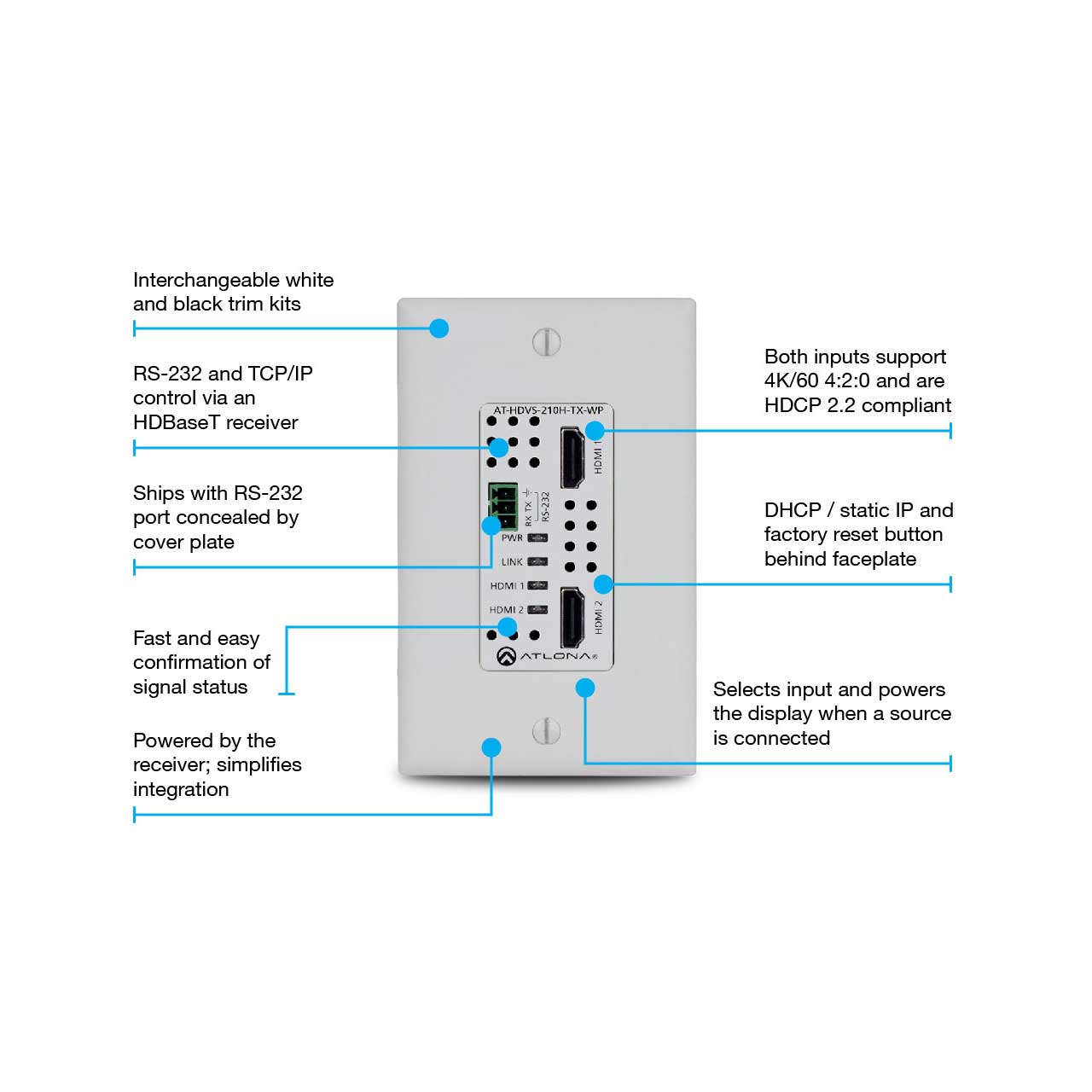

The HDVS-210H-TX-WP combines the benefits of auto-switching, integrated display control, and HDBaseT signal transmission. It also enables input selection, volume, and display on/off control from external RS-232 or TCP/IP commands. The HDVS-210H-TX-WP incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces.
