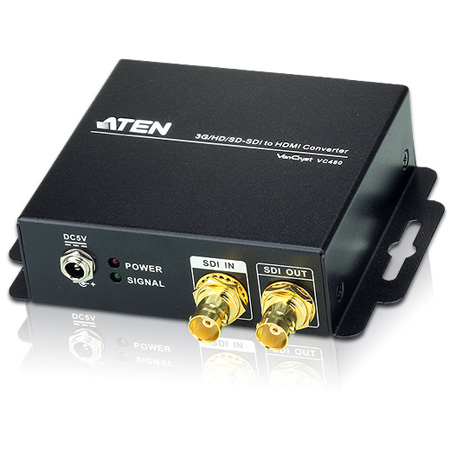

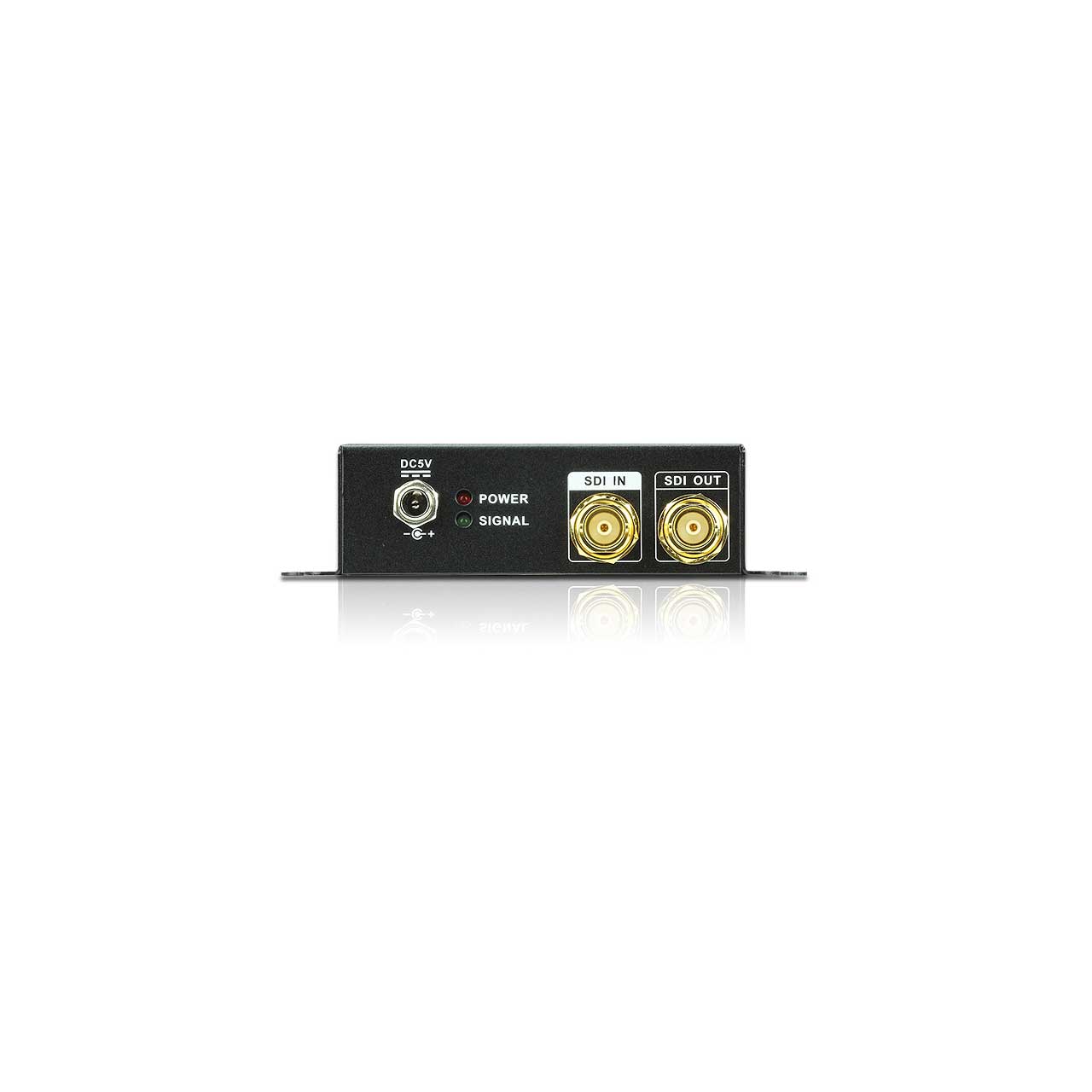

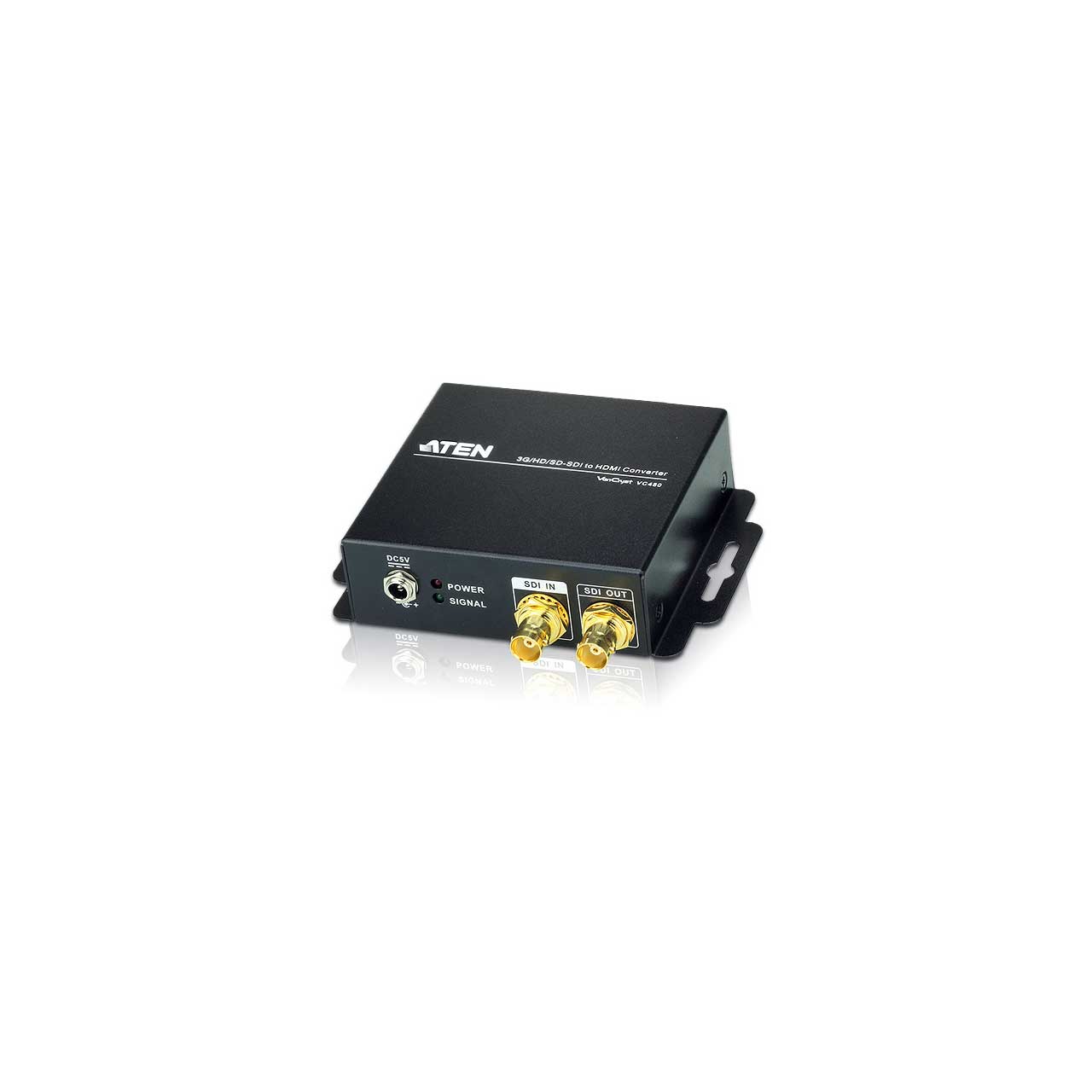

ATEN VC480 3G/HD/SD-SDI to HDMI Conveter

VC480 - Overview

• Features:

  • Converts an 3G/HD/SD-SDI input signal to HDMI formats in real time while avoiding transformation loss for both audio and video signals
  • Supports additional analog stereo audio and coaxial digital audio
  • HDMI (Deep Color)
  • LED indication of power and signal status
  • Supports an SDI distance of up to 295 ft. (90M) (3G-SDI), 492 ft. (150M) (HDSDI) or 985 ft. (300M) (SD-SDI) of RG6
  • Supported SDI formats:
  • SD-SDI (SMPTE 259M, up to 270Mbps)
  • HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)
  • 3G-SDI (SMPTE 424M, 425M level A,B, up to 2.97Gbps)
  • Video Support:
  • [email protected], 625i@50
  • [email protected]/24/25/29.94/30/50/59.94/60
  • 1080i@50/59.94/60
  • [email protected]/24/25/29.97/30/50/59.94/60
  • 2048 x 1080
  • Buffered loop-through output provides extended monitoring
  • Supports 8 audio channels @48kHz rate
  • Features automatic detection of 3G/HD/SD-SDI signals
  • Reclocking SDI signals for cascading and thus longer transmission
  • Locking power connector for secure communications


• Specifications:

  • Video Input
  • Interfaces 1 x BNC (Gold)
  • Impedance 75Ω
  • Video Output
  • Interfaces 1 x HDMI Type A Female (Black);
  • 1 x BNC (Gold)
  • Impedance 100Ω
  • Video
  • Max. Data Rate 2.97 Gbps
  • Max. Pixel Clock 148.5 MHz
  • Supported Resolutions [email protected], PAL@50 Hz;
  • 720p@50/59.94/60 Hz;
  • 1080i@50/59.94/60 Hz;
  • [email protected]/24/25/29.97/30/50/59.94/60 Hz
  • Max. Distance 90m (3G-SDI); 150m (HD-SDI); 300m (SD-SDI)
  • Audio
  • Output Analog: 2 x RCA (Red/White)
  • Digital: 1 x RCA (Yellow)
  • SDI Formats SD-SDI (SMPTE 259M, up to 270 Mbps)
  • HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps)
  • 3G-SDI (SMPTE 424M, 425M level A, up to 2.97 Gbps)
  • Power
  • Connectors 1 x DC Jack
  • Consumption 5 VDC, 10W
  • Environmental
  • Operating Temperature 0 - 40 °C
  • Storage Temperature -20 - 60 °C
  • Humidity 20 - 90% RH, Non-Condensing


• Item Includes:

  • 1x VC480 3G/HD/SD-SDI to HDMI Converter
  • 1x Power Adapter
  • 1x User Instructions


• Warranty:

  • 3 Years


• GTIN:

  0672792005633
