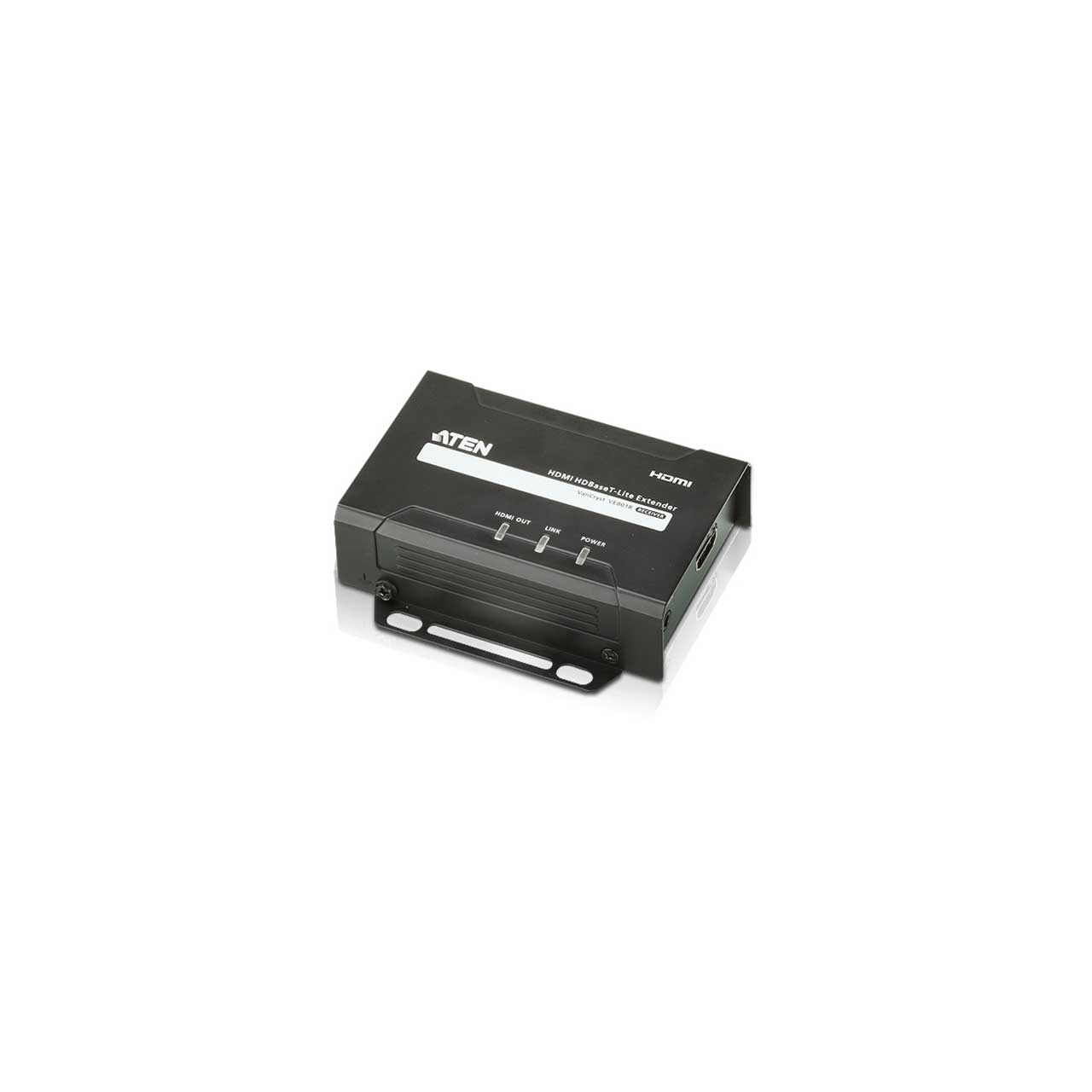

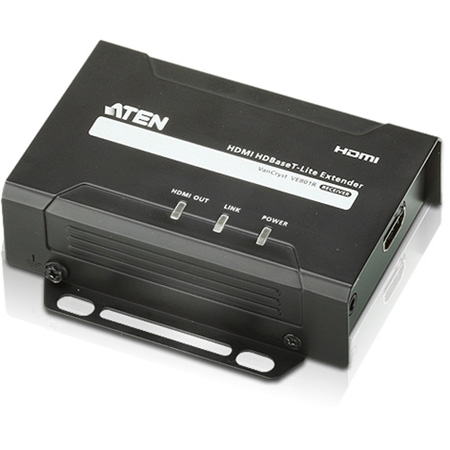

ATEN VE801R HDMI HDBaseT-Lite Receiver (HDBaseT Class B)-TAA Compliant - 1 Input Device

VE801R - Overview

• Features:

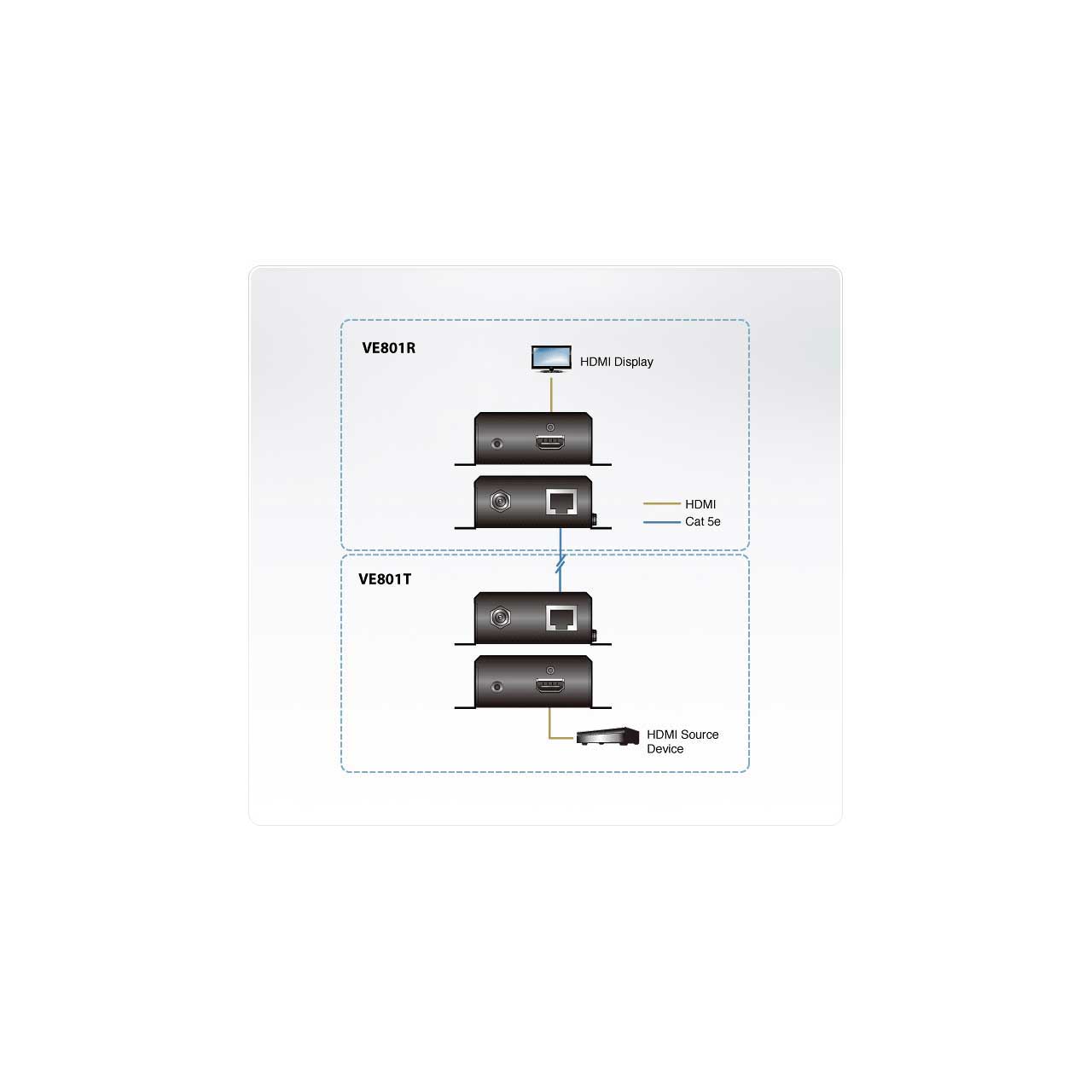

  • Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
  • HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
  • Superior video quality - up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
  • HDBaseT Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
  • Plug-and-play
  • Rack-mountable


• Specifications:

  • Video Output

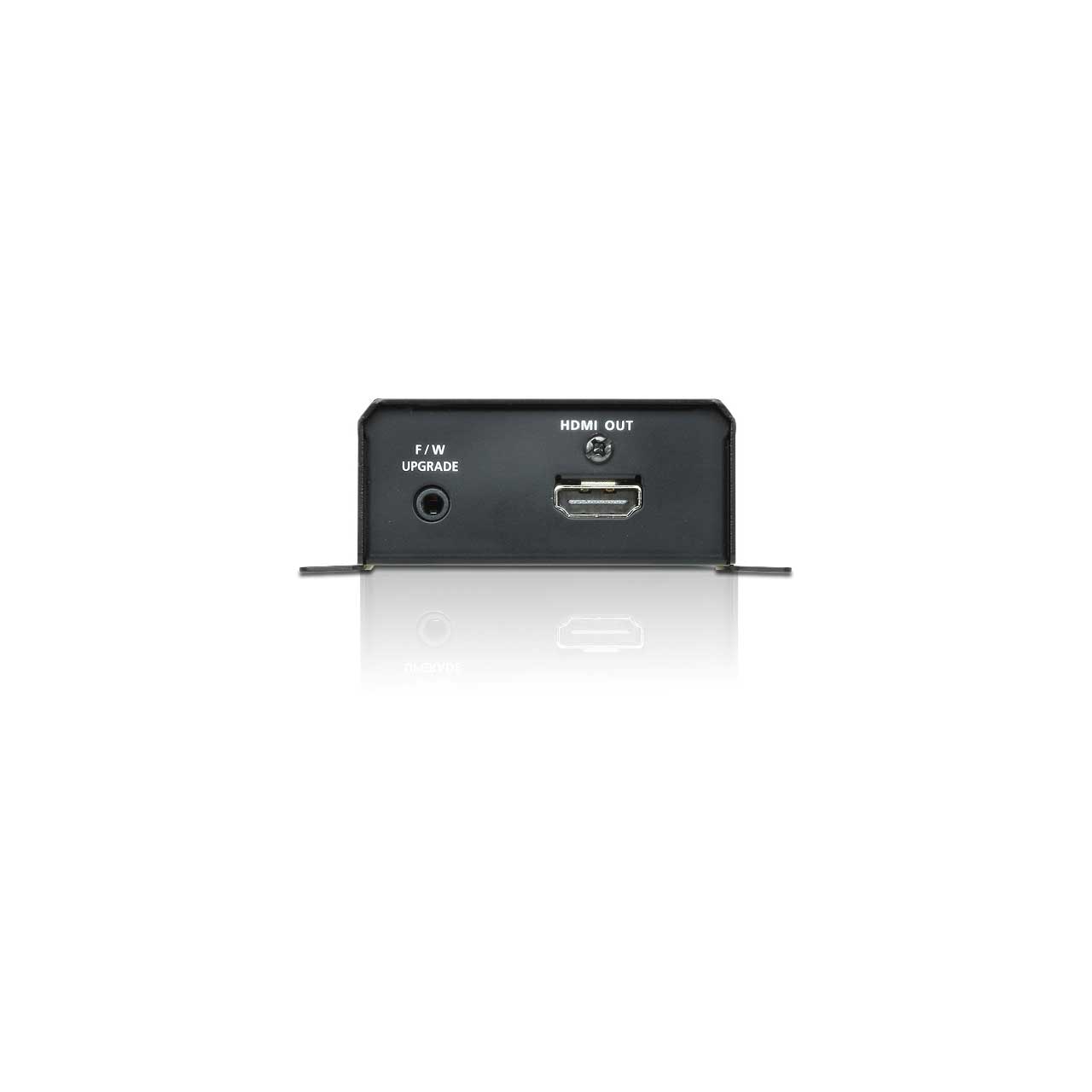

  • Interfaces: 1 x HDMI Type A Female (Black)
  • Impedance: 100Ω

    Video
  • Max. Data Rate: 10.2Gbps (3.4Gbps per lane)
  • Max. Pixel Clock: 340 MHz
  • Compliance: HDMI (3D, Deep Color, 4K) HDCP Compatible, Consumer Electronics Control (CEC)
  • Max. Resolutions / Distance: Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
    *4K supported:
  • 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
  • 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

    Audio
  • Output: 1 x HDMI Type A Female (Black)

    Connectors

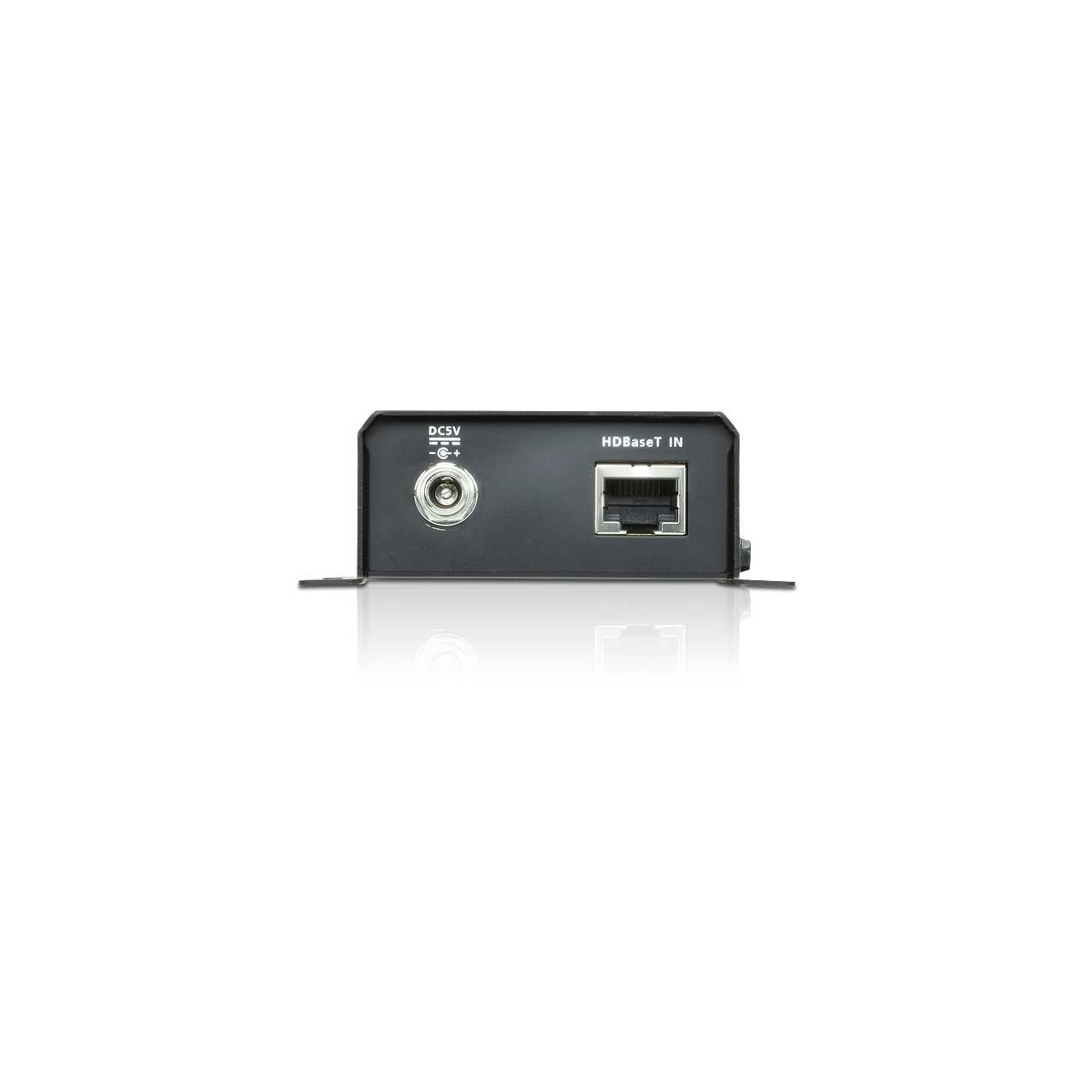

  • Power: 1 x DC Jack (Black) with locking
  • Unit To Unit: 1 x RJ-45 Female
  • Power Consumption: DC5V:4.24W:20BTU

    Environmental
  • Operating Temperature: 0 - 50°C
  • Storage Temperature: -20 - 60°C
  • Humidity: 0 - 80% RH, Non-Condensing

    Physical Properties
  • Housing: Metal
  • Weight: 0.25 kg ( 0.55 lb )
  • Dimensions (L x W x H) with bracket: 9.86 x 8.70 x 3.00 cm (3.88 x 3.43 x 1.18 in.)
  • Dimensions (L x W x H) without bracket: 9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.)


• Item Includes:

  • 1x VE801R HDMI HDBaseT-Lite Extender
  • 1x Power Adapter
  • 1x User Instructions


• GTIN:

  0672792006173
