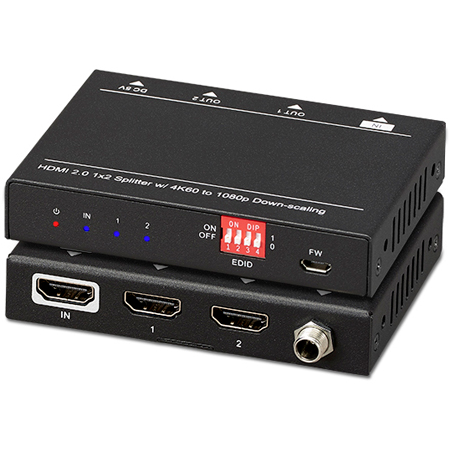

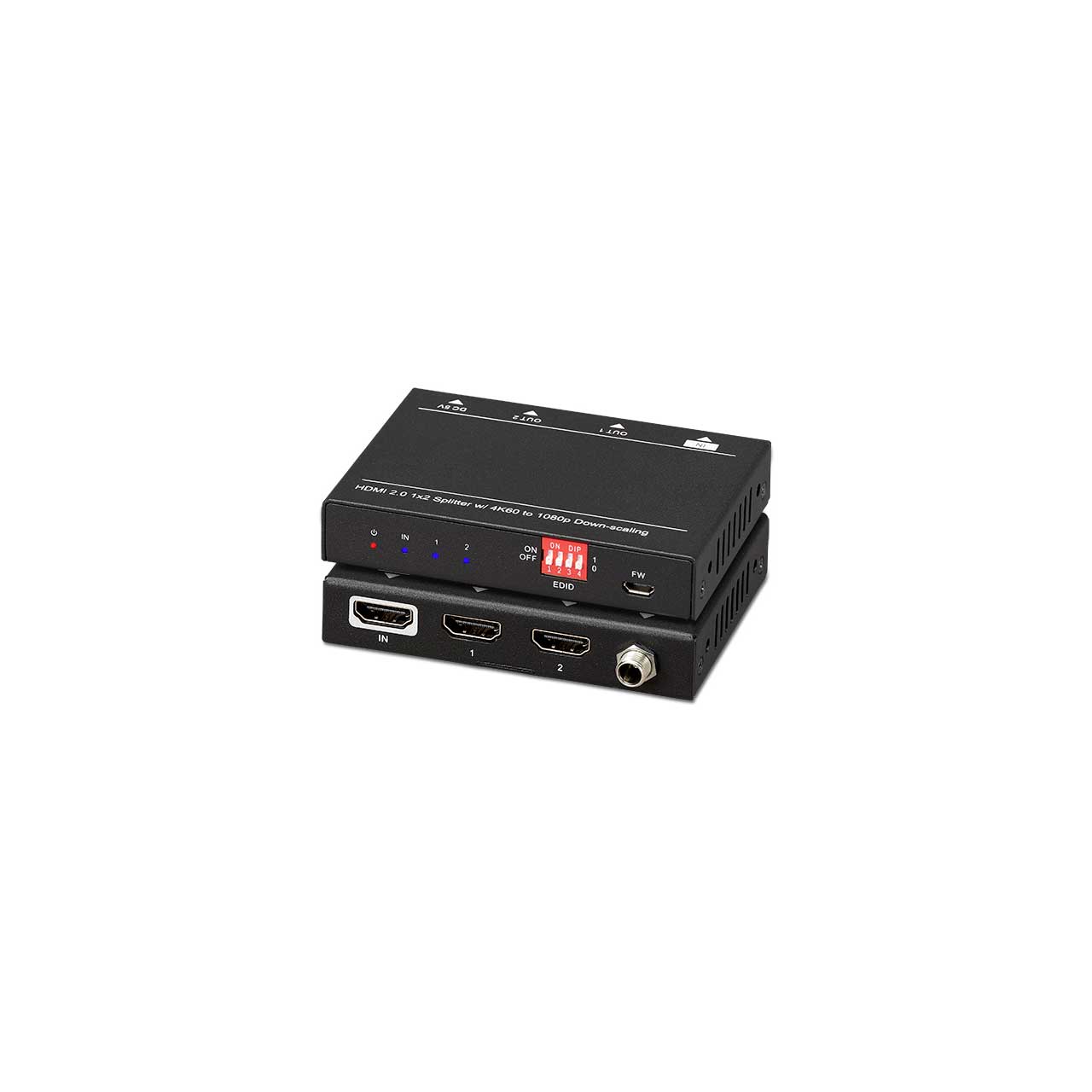

KanexPro SP-1X2SL18G UltraSlim 4K/60 1x2 HDMI 2.0 Splitter with Downscaling to HD 1080p/60

SP-1X2SL18G - Overview

• Features:

  • UltraSlim 1x2 HDMI DA with 4K UHD resolutions
  • Supports 1080p/60 & 4K/60Hz resolutions
  • Supports YUC 4:4:4 color space w/ HDR 10
  • Incredibly thin design - only 0.4" (11 mm) thick
  • High-bandwidth 18 Gbps
  • Transmits 4K up to 10m (32ft.)
  • HDCP 2.2 compliant
  • Auto-identifies input resolutions to match displays
  • Supports EDID management
  • Firmware update via micro USB
  • Perfect for installing behind a thin bezel display


• Specifications:

  • Signal Inputs/Output
  • Input DDC Signal: 5 volts p-p (TTL)
  • Maximum Single Link Range: 4K x 2K at 24.,30,50,60Hz
  • Output Video: HDMI 2.0 with full 3D and 4Kx2K at 60Hz + HDCP 2.2
  • CEC - Pass through enabled
  • Color Sampling and HDR: YUV 4:4:4, 4:2:2 and 4:2:0; 10 Bit

    Operation
  • Vertical Frequency Range: 50/60Hz
  • Max Data Rate: 18 Gbps
  • Resolutions (HDTV):
  • Interlaced (50/60Hz): 480i, 576i, and 1080i
  • Progressive (50/60Hz): 480p, 576p, 720p, 1080p, and 4Kx2K at 60

    Physical
  • External Power Supply: 5V DC at 1A
  • Power consumption (Max): 2.5 W
  • Size: (L-W-D): 3.93' x 2.75" x 0.43"
  • Weight: 0.17 lbs
  • Operating Temperature: 32°F ~ 104°F
  • Storage Temperature: -4°F ~ 140°F


• GTIN:

  0813982021150
