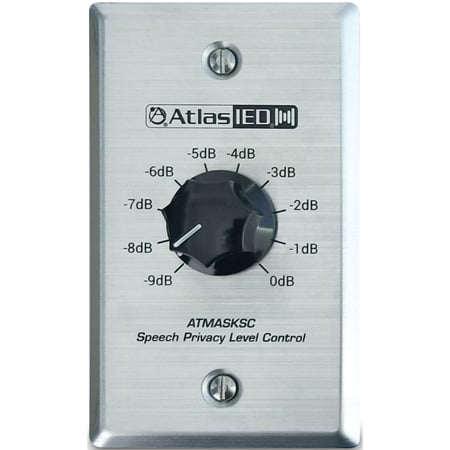

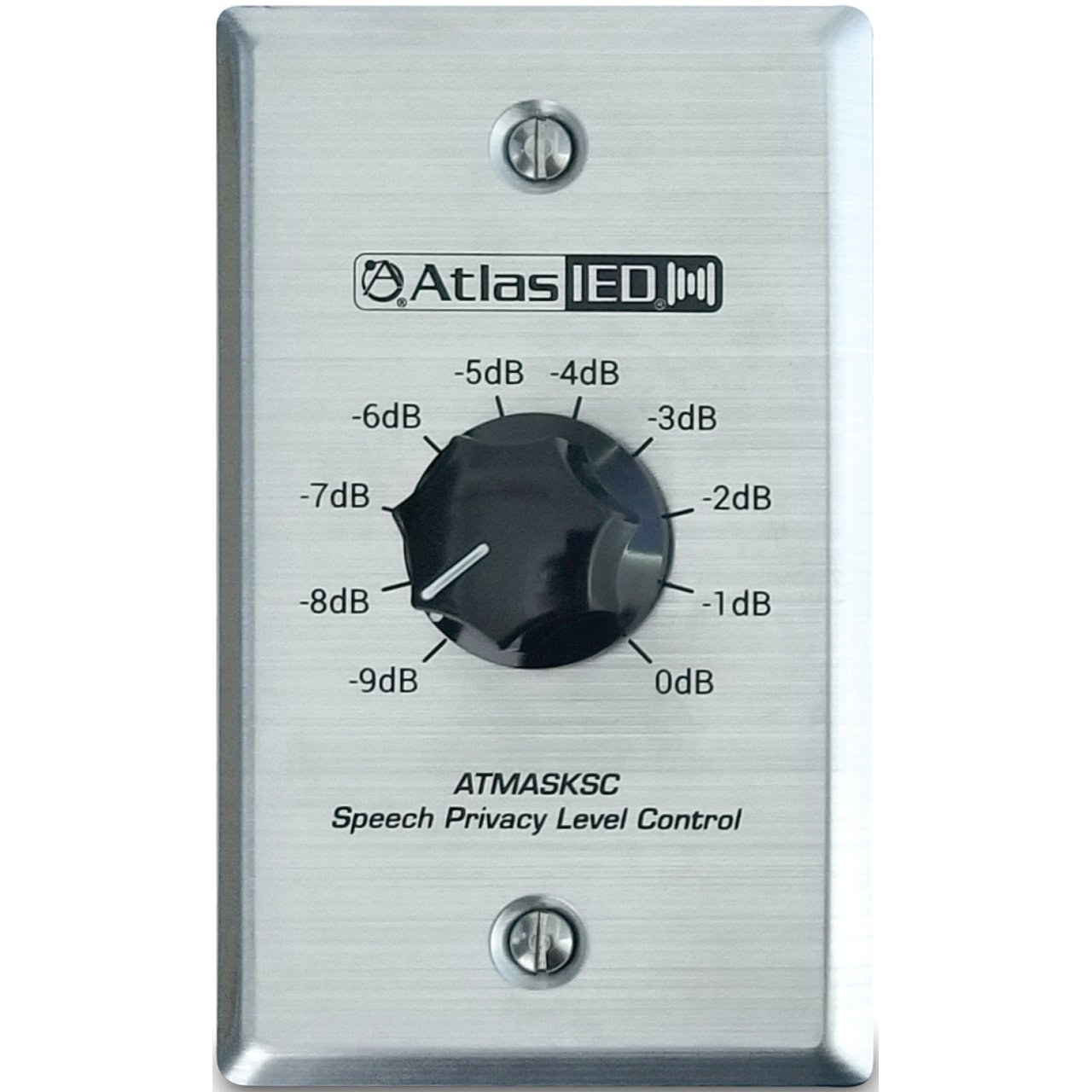

AtlasIED ATMASKSC Sound Masking & Commissioning Precision Level Control Wall Plate for use with M1000A35 Masking System

ATMASKSC - Overview

• Features:

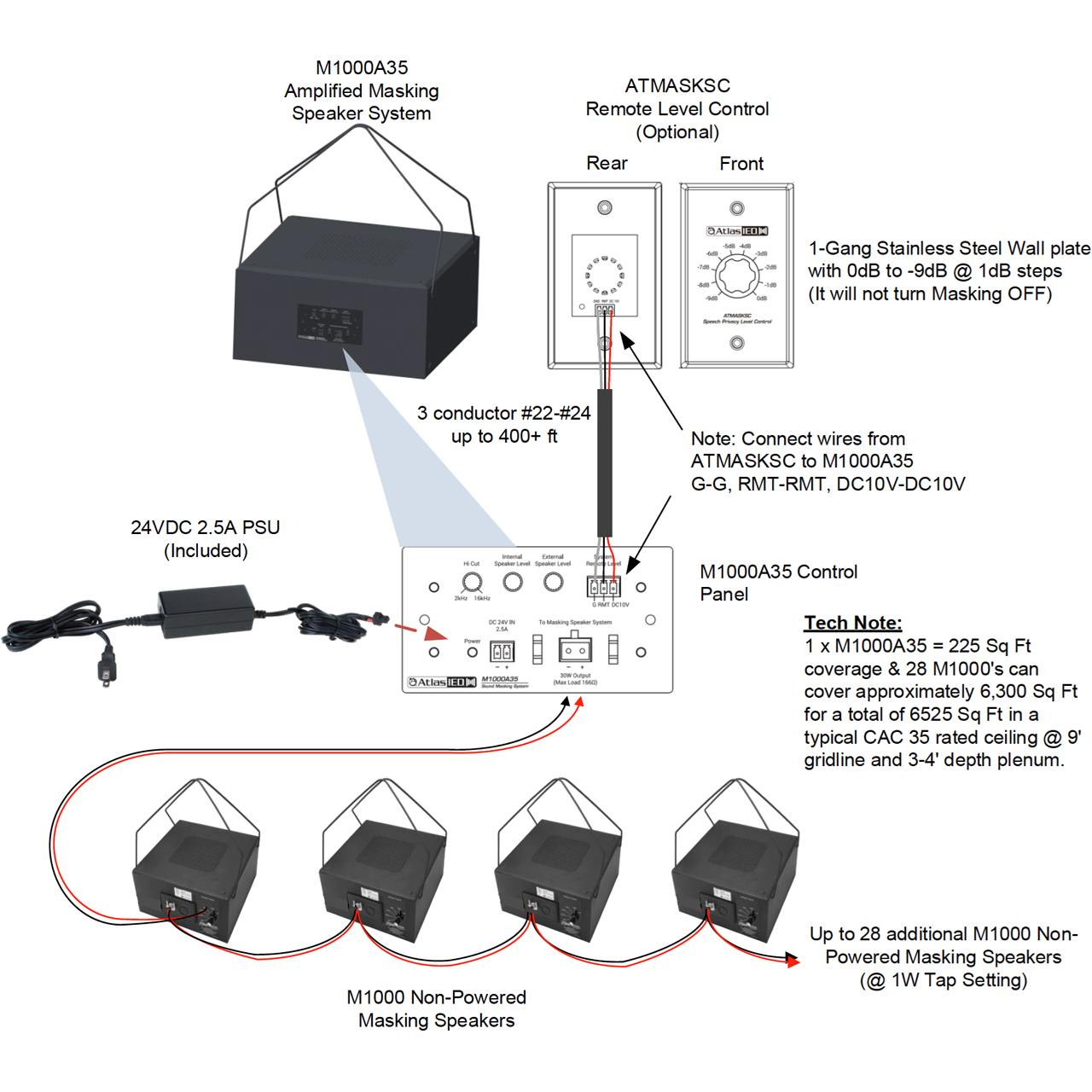

  • Designed to be used with M1000A35
  • 1dB Steps for Precision Sound Masking Settings
  • 2 or 3 Conductor Interface Connection
  • Works with other 10k Ohm VCA 2 or 3 Conductor Systems
  • Matches Stainless Steel Standard Volume Wall Plate
  • Maximum Tested Distance 500ft, 22-Gauge Wire


• Specifications:

  • System
  • Total Attenuation: 0dB to -9dB (It does not turn off the audio)
  • Impedance: 10kΩ

    Mechanical
  • Plate Size: 1-Gang
  • Plate Type: Stainless Steel
  • Product Dimensions (HxWxD): 4.5" x 2.75" x 1.6" (114mm x 70mm x 41mm)
  • Shipping Dimensions (HxWxD): 15.35" x 10.63" x 10.04" (390mm x 270mm x 255mm)
  • Net Weight: 0.16lbs (0.074kg)
  • Shipping Weight: 9.48lbs (4.3kg)

    Agency Approvals
  • North America Agency: UL2043 when used with the M1000A35


• Item Includes:

  • 1x AtlasIED ATMASKSC Sound Masking & Commissioning Precision Level Control Wallplate


• Warranty:

  • 5 Year Limited Warranty
