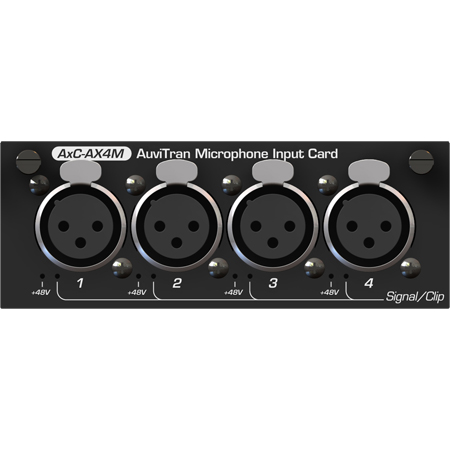

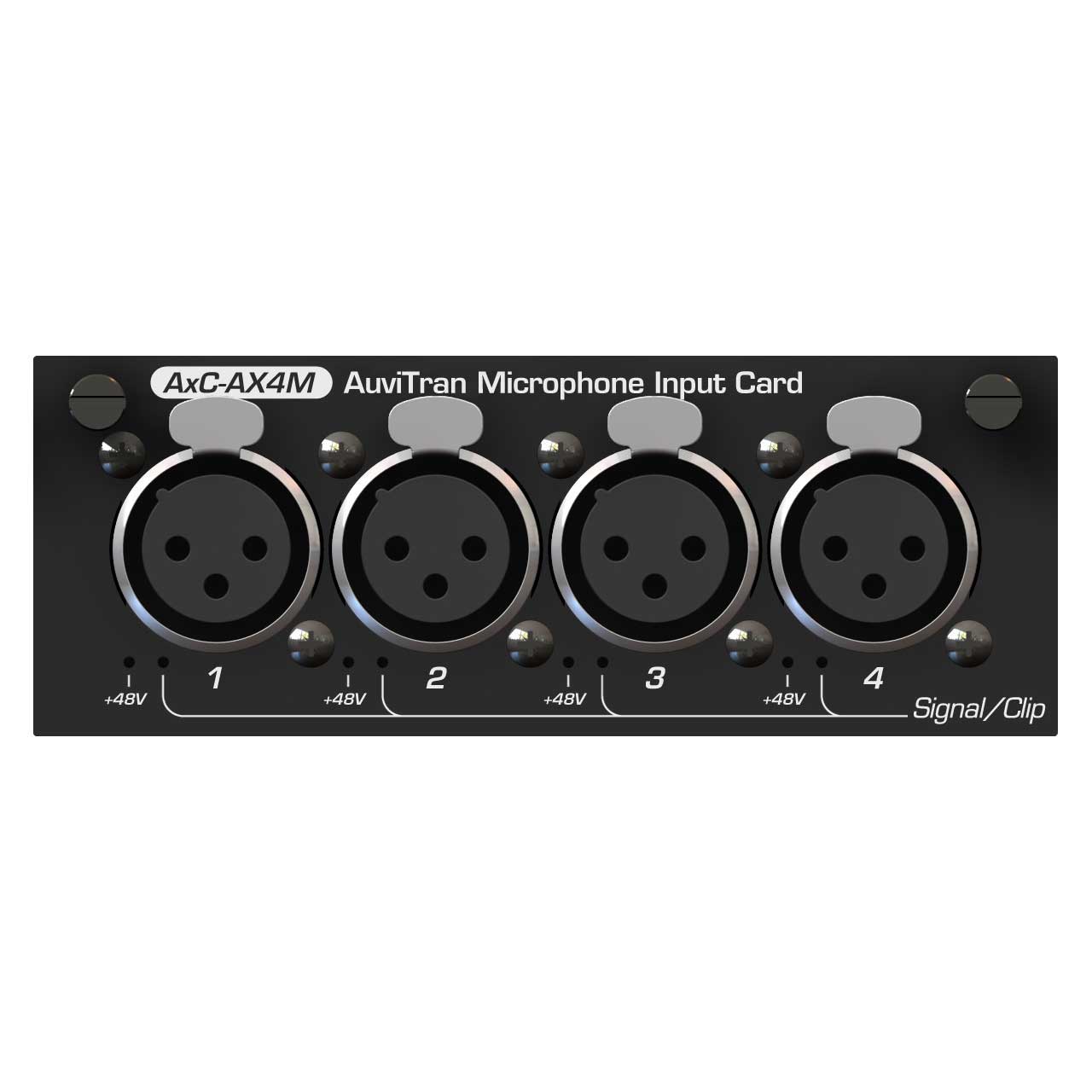

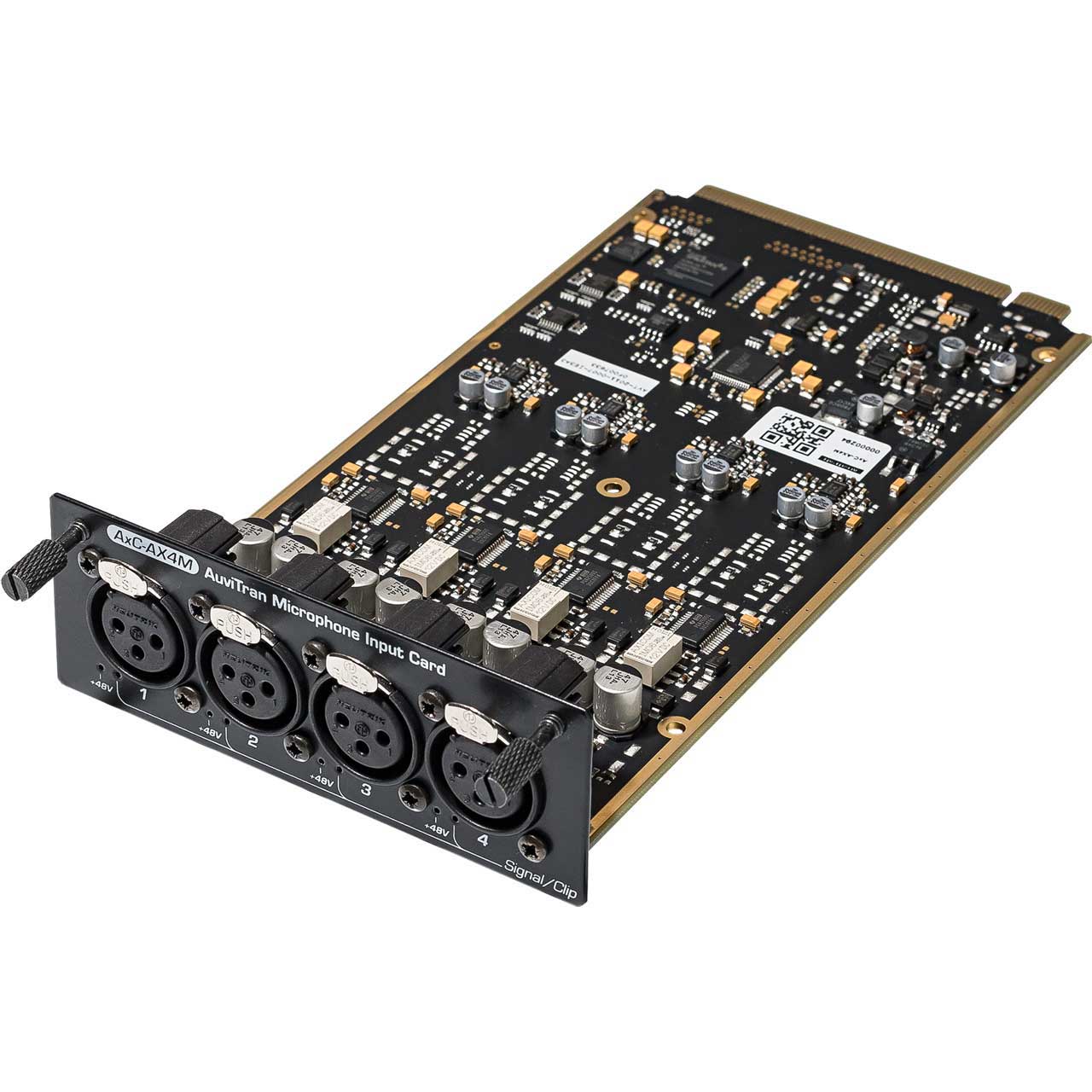

Just like every AxC card within the Audio ToolBox range, the Auvitran AxC-AX4M can equally be used in AVBx3 or AVBx7 platforms. Using one slot of either ToolBox, the AxC-AX4M provides four high-end analog inputs (both line and microphone level) with professional XLR connectors for the AuviTran Audio ToolBox platform.
Smart, expandable, and sustainable
Meet AuviTran's versatile and flexible platforms that brings convergence among network technologies and audio interfaces. With two 19" rack chassis AVBx7 and AVBx3 both available in StageBox or Installation modes, plus fourteen interface cards, build the configuration you need.
- Featuring 4 four high performance microphones and line pre-amplification, high class AD converter chips and excellent circuit design, the AxC-AX4M card sets a new quality/price ratio standard for professional applications.
- A linear 0.5 dB step digital attenuator/gain gives access to an input sensibility from -55 dBu to +24 dBu.
- +48V phantom power activation per channel, preamp value setting, attenuation/gain setting and vu-meter can be monitored and controlled individually per channel via network for a remote management from virtually anywhere.
- All individual gains and +48V phantom power activation remote controls are manageable by Yamaha HA remote protocol enabling direct control and monitoring from Yamaha console/mixer.
- Up to two AxC-AX4M cards can be inserted in an AVBx3-ES100 for live applications (concerts, recording, broadcast) or fixed installations (stadiums, concert halls, theaters).
