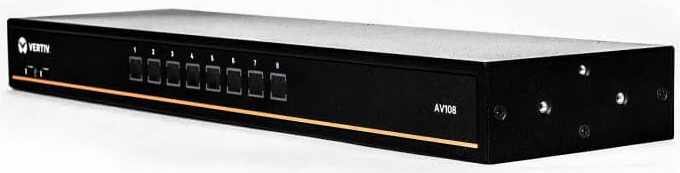

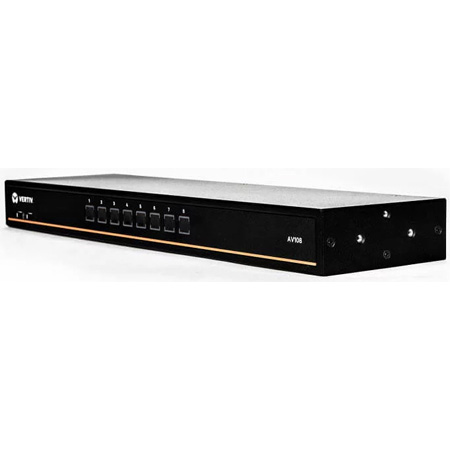

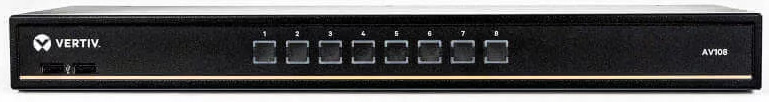

Avocent AV108BND8-400 8-Port Basic KVM Switch with OSD and 8 VGA Cables

AV108BND8-400 - Overview

• Features:

  • Consolidated Server Management provides simplified local access, management and control of server resources from a single console
  • Designed specifically for IT Rooms, small Data Centers and Branch Offices
  • Cost-efficient solution to streamline access and control to server resources and increase speed to remediation and operational efficiencies
  • Single-user, small 0U/1U or desktop form factor KVM switch allows local user to control up to 4 computers from single, keyboard, and mouse
  • Supports both VGA and DisplayPort (DP) targets with a resolution of up to 2048 x 1536
  • Switch between targets with the simple on-screen display (OSD), intuitive touch buttons, hot-key operation and scan mode
  • Dedicated USB port for firmware upgrades


• Specifications:

  • Graphic Mode
  • Extension Distance: 6 or 12 ft.

    Power Description
  • Power Supply(s): 100-240V, 50-60 Hz AC
  • Input Power (Maximum): 10W

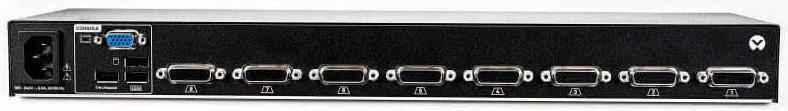

    Interfaces/Ports
  • USB ports: 5

    Operational Conditions
  • Operating Temperature: 32° to 122°F (0° to 50°C)
  • Humidity: 20% to 85% (operating), 5% to 95% (non-operating)
  • Storage Temperature: -22° to 158°F (-30° to 70°C)

    Physical Characteristics
  • Weight: 3.6 lbs
  • Height: 1.7 in
  • Width: 17.1 in
  • Depth: 4.75 in

    Miscellaneous
  • Agency Approvals: UL, FCC Class A, cUL, ICES Class A, CE, EAC, VCCI

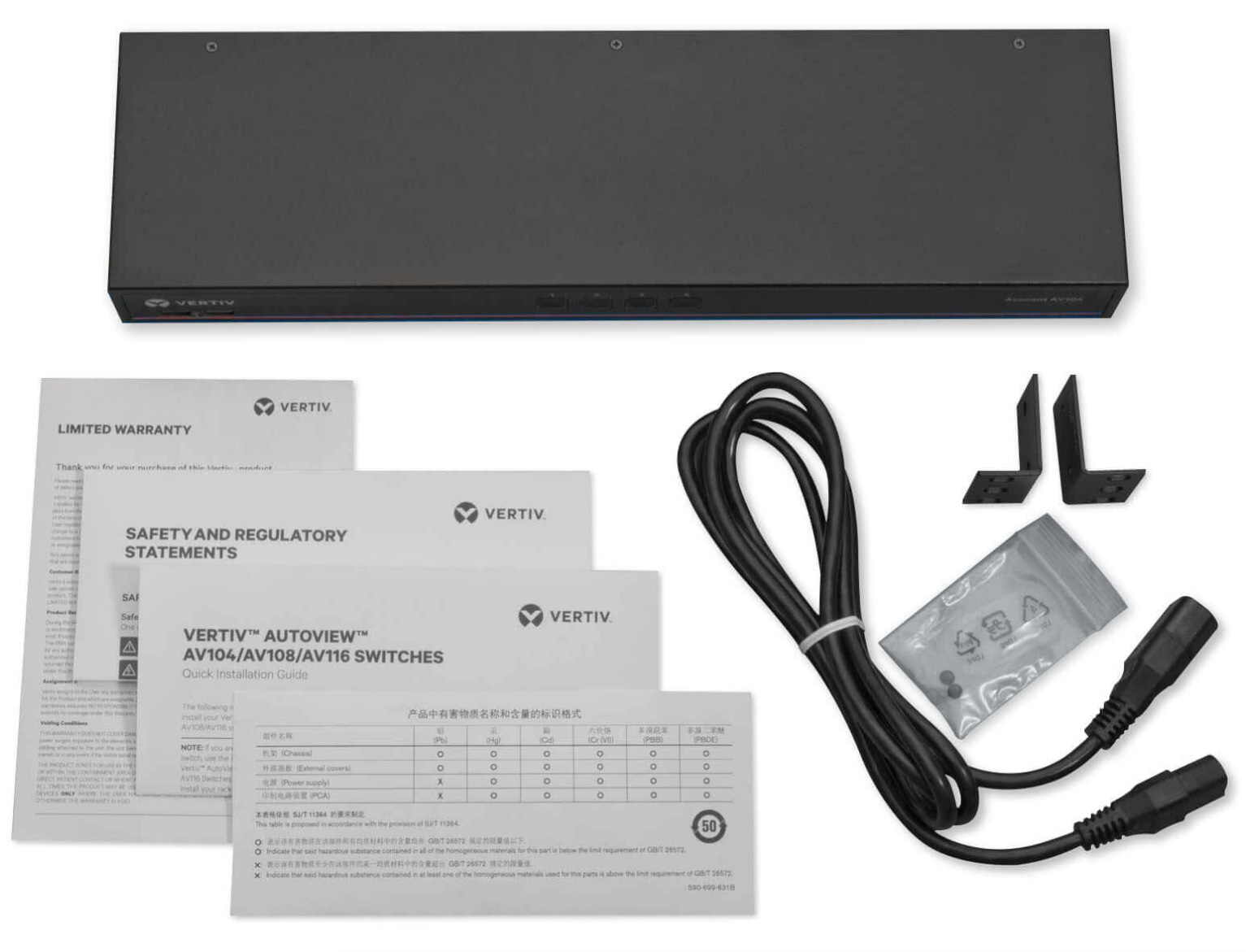

• Item Includes:

  • 1x Avocent AV108BND8-400 8-Port Basic KVM Switch
