AVMatrix PG4K 12G-SDI & 4K/60fps HDMI 2.0 Signal Generator

Name: AVMatrix PG4K 12G-SDI & 4K/60fps HDMI 2.0 Signal Generator
Brand: AVMATRIX
SKU: AVMX-PG4K
Price: 5599.00 USD
Availability: PreSale

ITEM #: AVMX-PG4K MFG #: PG4K

AVMATRIX

Our Price:

$5,599.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

PG4K - Overview

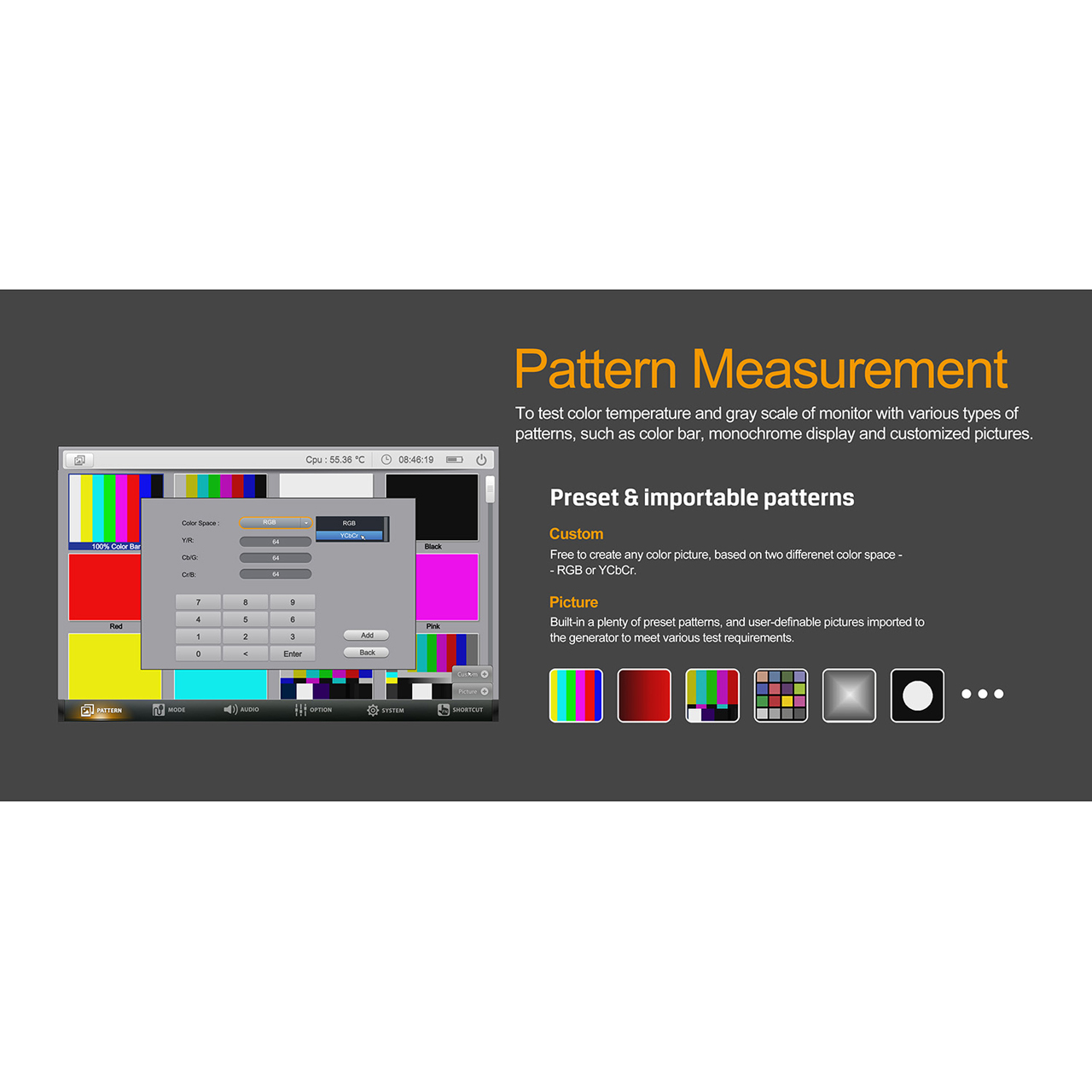

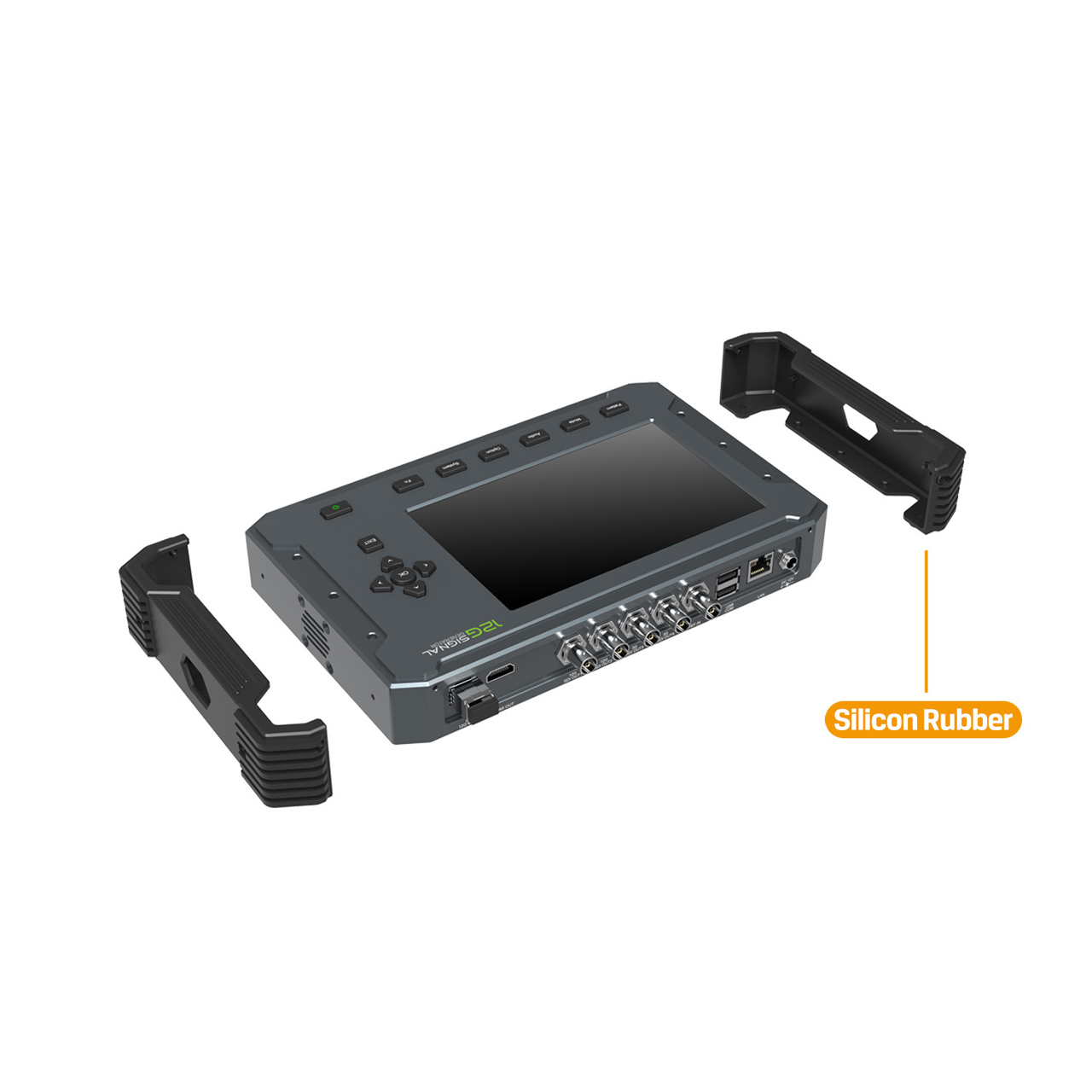

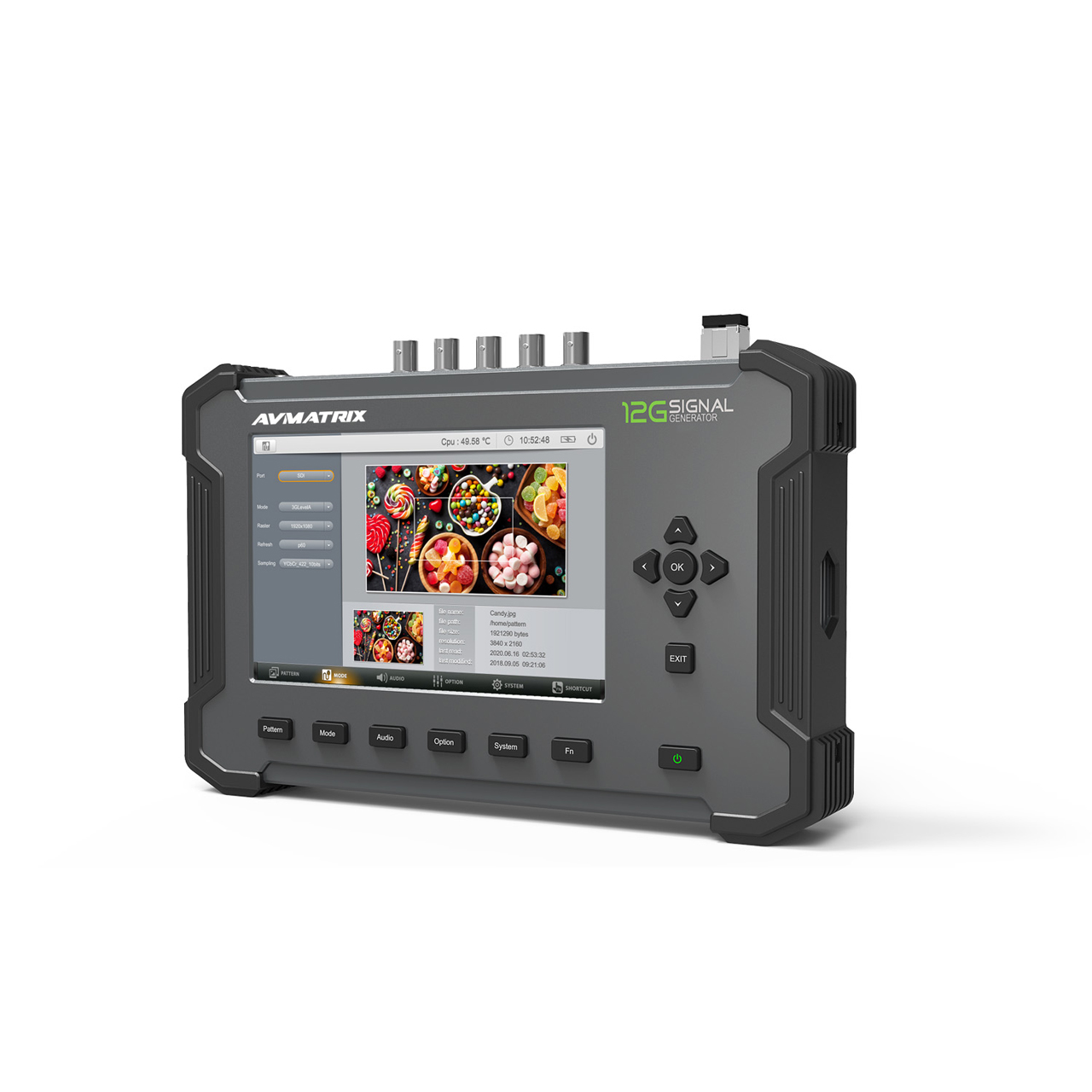

The AVMatrix PG4K is a 12G-SDI & 4K HDMI2.0 Pattern Generator. It can be used to test color temperature and gray scale of monitors with various types of patterns, such as color bar, monochrome display and customized pictures.

Signal Compatibility
The PG4K supports SD, HD, 3G, 6G, 12G-SDI and 4K HDMI signals; SDI, Fiber and HDMI signals up to 4K 60Hz. SDI conversion among of different link structures, SQ and 2SI.

Audio Output
The PG4K includes a comprehensive audio output tool that supports up to 8 or 16 channels of embedded AES/EBU audio, with -60dB to 0dB range and a 20 to 20000 frequency.

Features:
- 12G-SDI (4K60Hz) single link, dual link, quad link (SQD/2SI)
- Supports 6G-SDI, 3G-SDI level A and level B
- Supports 4K HDMI 2.0 video outputs
- Supports 12G-SDI fiber signal (SFP optional)
- 16-Channel SDI audio generation
- Built-in patterns: Color bar, pathology patterns, monochrome, etc.
- USB Port for import the patterns
- Ring pattern, time code, frame counter overlay test and moving test
- REF in for frame synchronization
Specifications:
- Display
- Display Screen: 7" IPS
- Physical Resolution: 1280x800
- Aspect Ratio: 16:10
- Brightness: 400cd/m²
- Contrast: 800:1
- Viewing Angle: 178°/178°(H/V)

  Input
- Ref: 1x
- USB: 2x

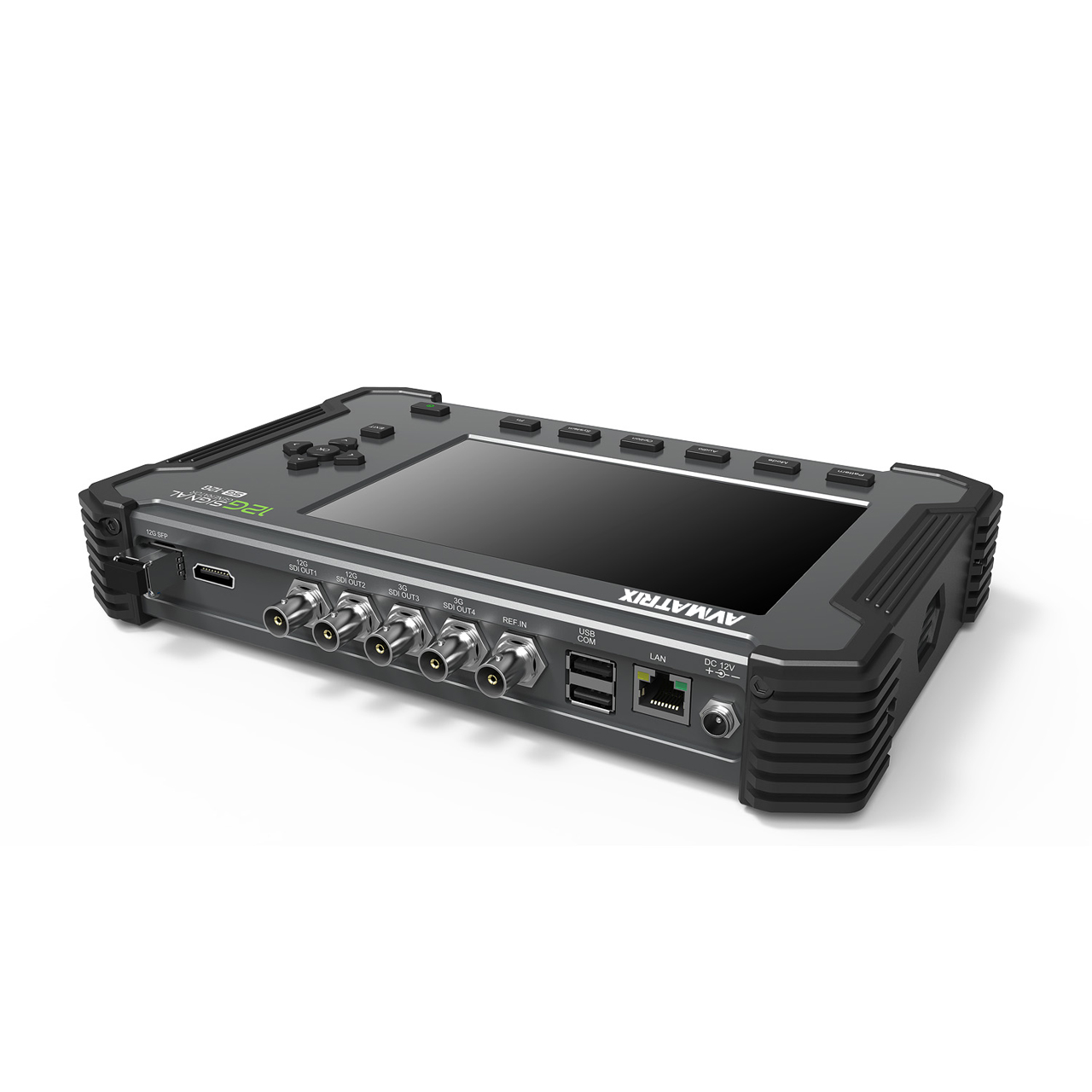

  Output

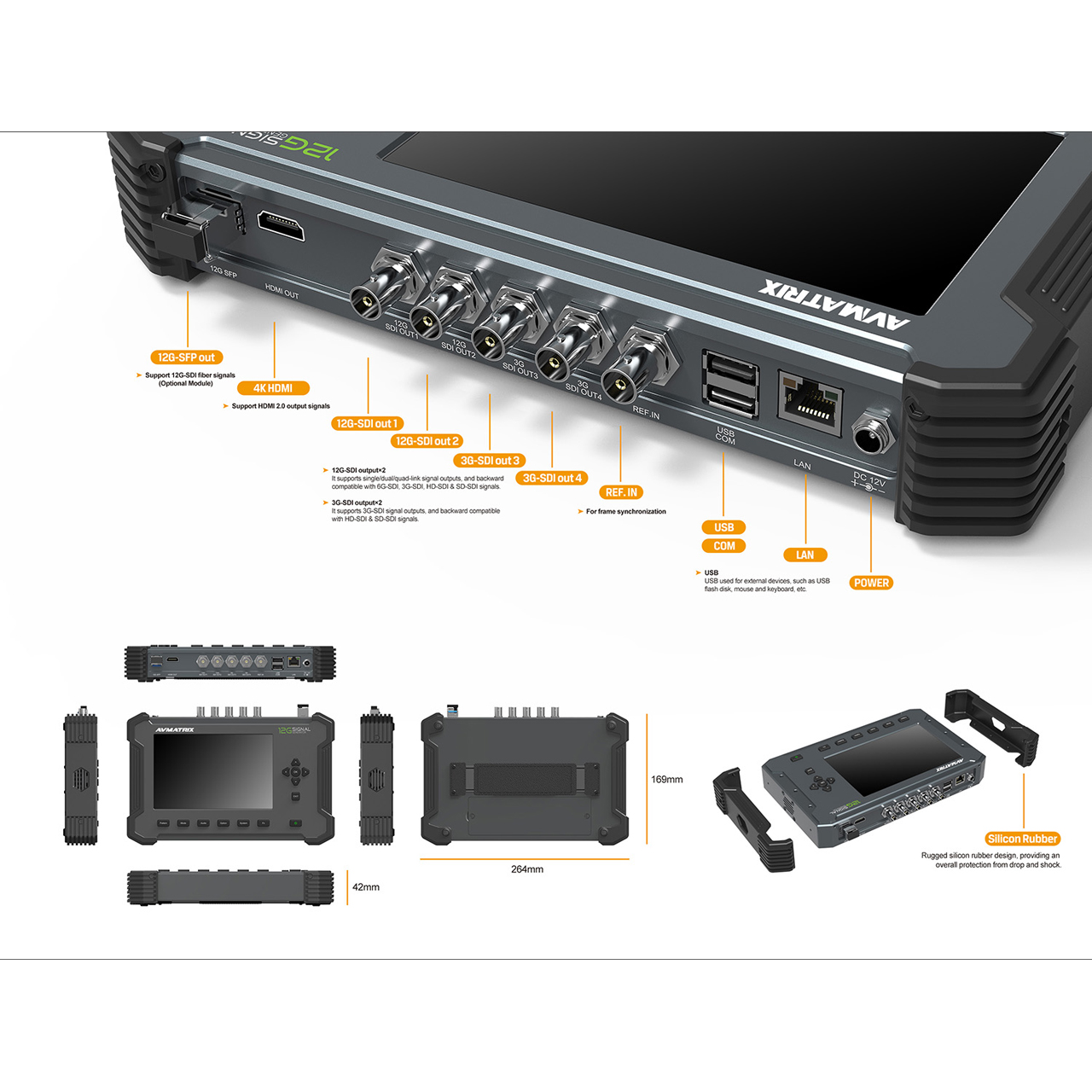

- 12G-SDI: 2x
- 3G-SDI: 2x
- HDMI: 1x
- Fiber SFP Slot: 1x (Optional Module)

  Standards
- Single Link: 12G-SDI, ST 2082-10 Mode 1
- Dual-Link 2x6G: ST 2081-11 Mode 1
- Quad Link SQD & 2SI: 4x 3G-SDI Level A/Level B, ST 425-5

  Supported Resolutions
- Single-Link 12G-SDI/Dual-Link 2x6G-SDI/Quad-Link 4x3G-SDI:
  - 4096 x 2160/3840 x 2160 at 30/29.97/25/24/23.98 fps
  - GBR 4:4:4 10 Bit
  - GBR+A 4:4:4:4 10 Bit
  - YCbCr 4:4:4 10 Bit
  - YCbCr+A 4:4:4:4 10 Bit
  - GBR 4:4:4 12 Bit
  - YCbCr 4:4:4 12 Bit
  - YCbCr 4:2:2 12 Bit
- HDMI Supported Resolutions: 4096 x 2160/3840 x 2160 at 60/59.94/50/48/47.9530/29.97/25/24/23.98 fps

  Power
- Current: ≤2.3 (12V)
- Input Voltage: DC 10V - 15V
- Power Consumption: ≤27W
- Built-In Battery: 5000mAh

  Environment
- Operating Temperature: 14°F - 140°F (-10°C - 60°C)
- Storage Temperature: -22°F - 158°F (-30°C - 70°C)

  Dimensions & Weight
- Dimensions (LxWxD): 10.3" x 6.65" x 1.65" (264mm x 169mm x 42mm)
- Weight: 6.61lbs (3kg)
Item Includes:
- 1x AVMatrix PG4K 12G-SDI & 4K HDMI2.0 Pattern Generator
- 1x 12V 3A Power Adapter
- 1x Water-Proof Suitcase
- 1x User Manual
Warranty:
- 2 Year Limited Warranty
