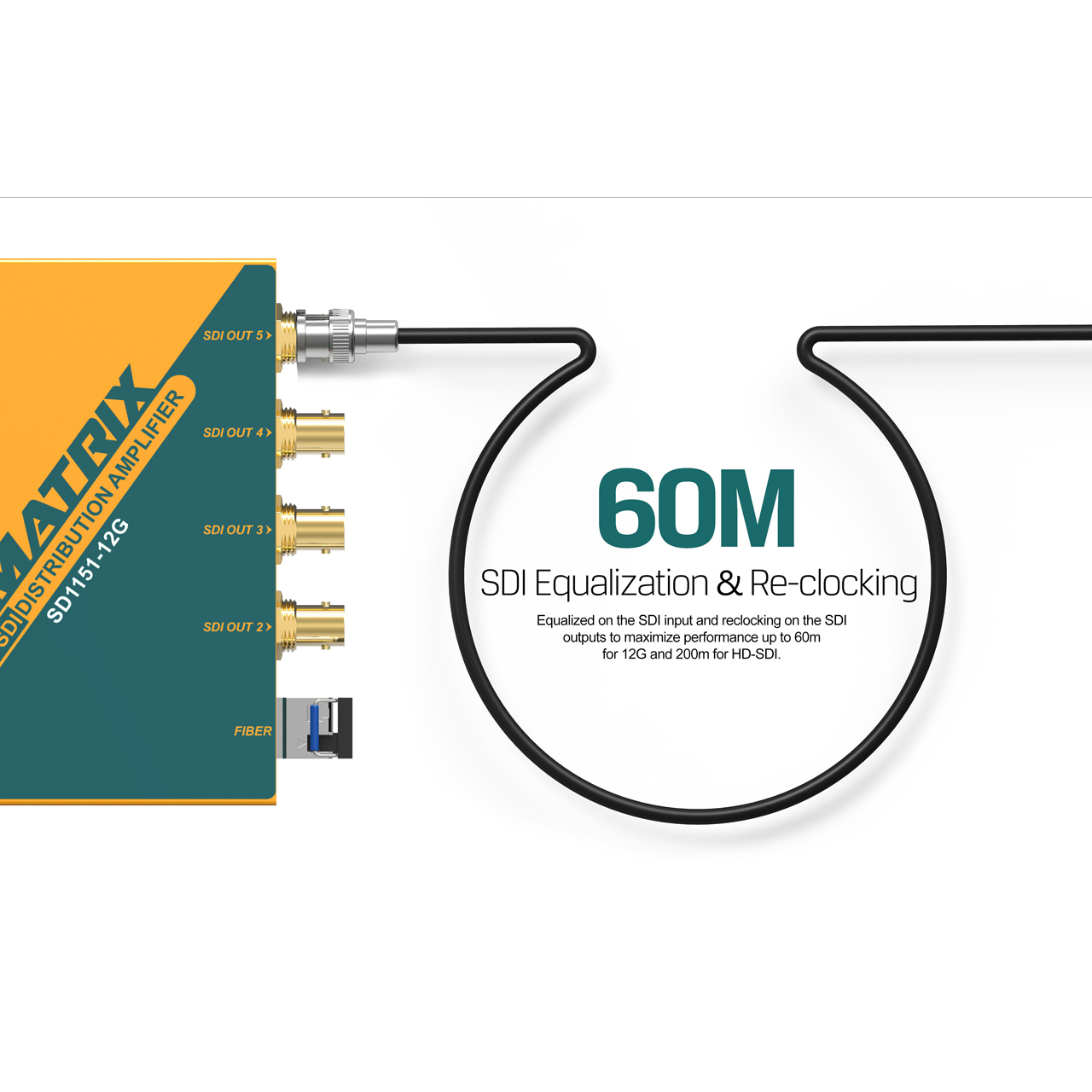

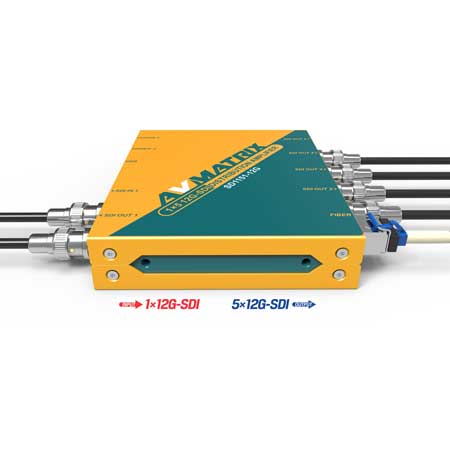

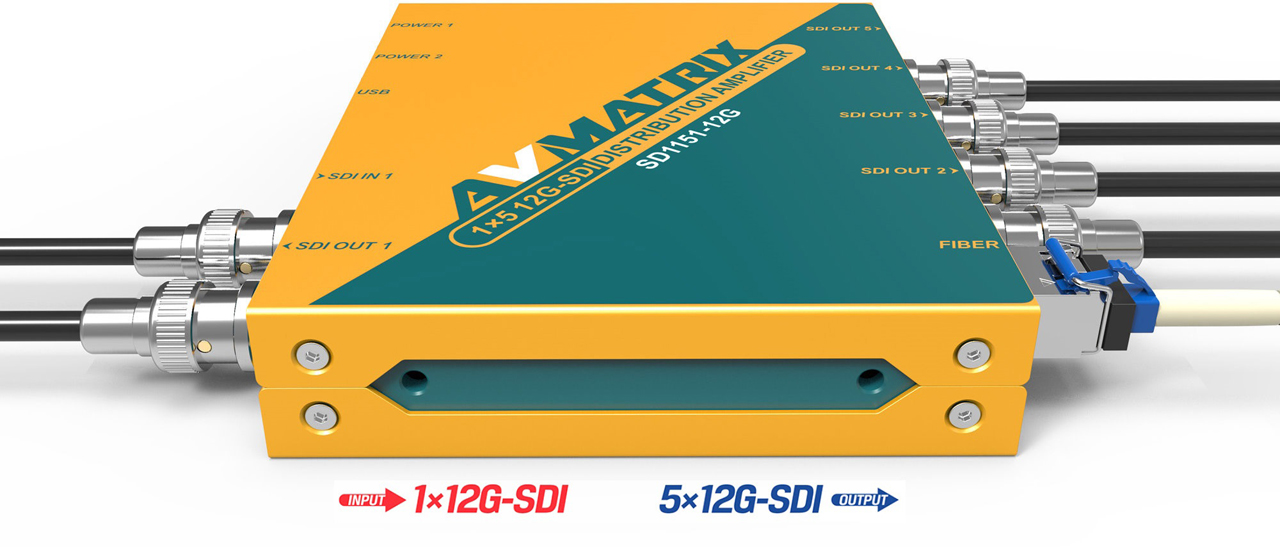

The AVMatrix SD1151-12G is a miniature 1x5, 12G-SDI re-clocking distribution amplifier. The SD/HD/3G/6G/12G-SDI input signal is automatically detected and it features cable equalization and re-clocking techniques that enable the following SDI cable distances -SD: 400m, HD: 200m, 3G: 120m, 12G: 60m. It is also an ASI distributor amplifier with all input and outputs compatible with ASI signals. Supported signals are downward compatible, and all inputs and outputs support DVB-ASI.

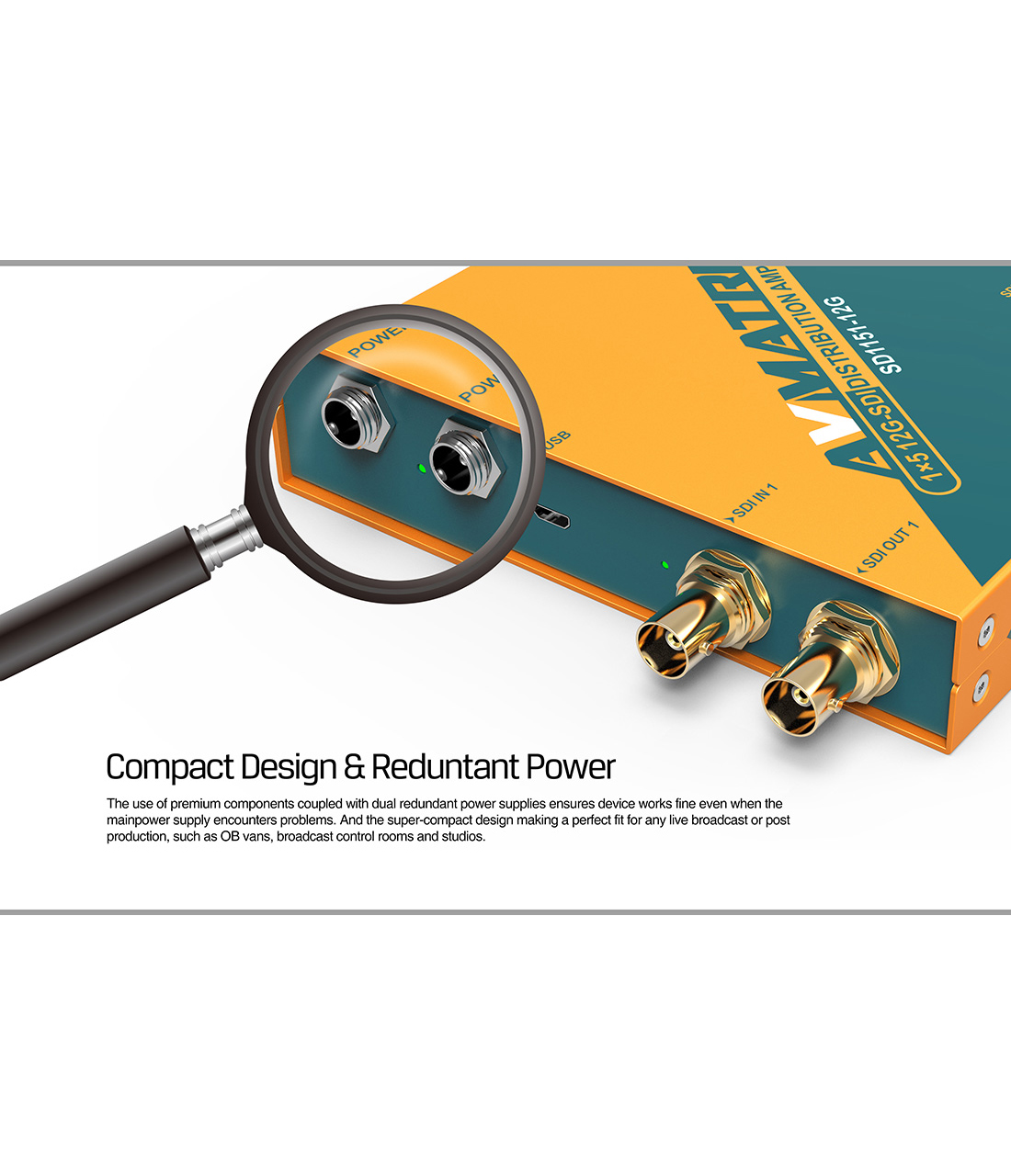

Compact Design & Redudant Power
The use of premium components coupled with dual redundant power supplies ensures the device works - even when the main power supply encounters problems. It's super-compact design makes a perfect fit for any live broadcast or post production - such as OB vans, broadcast control rooms and studios.
