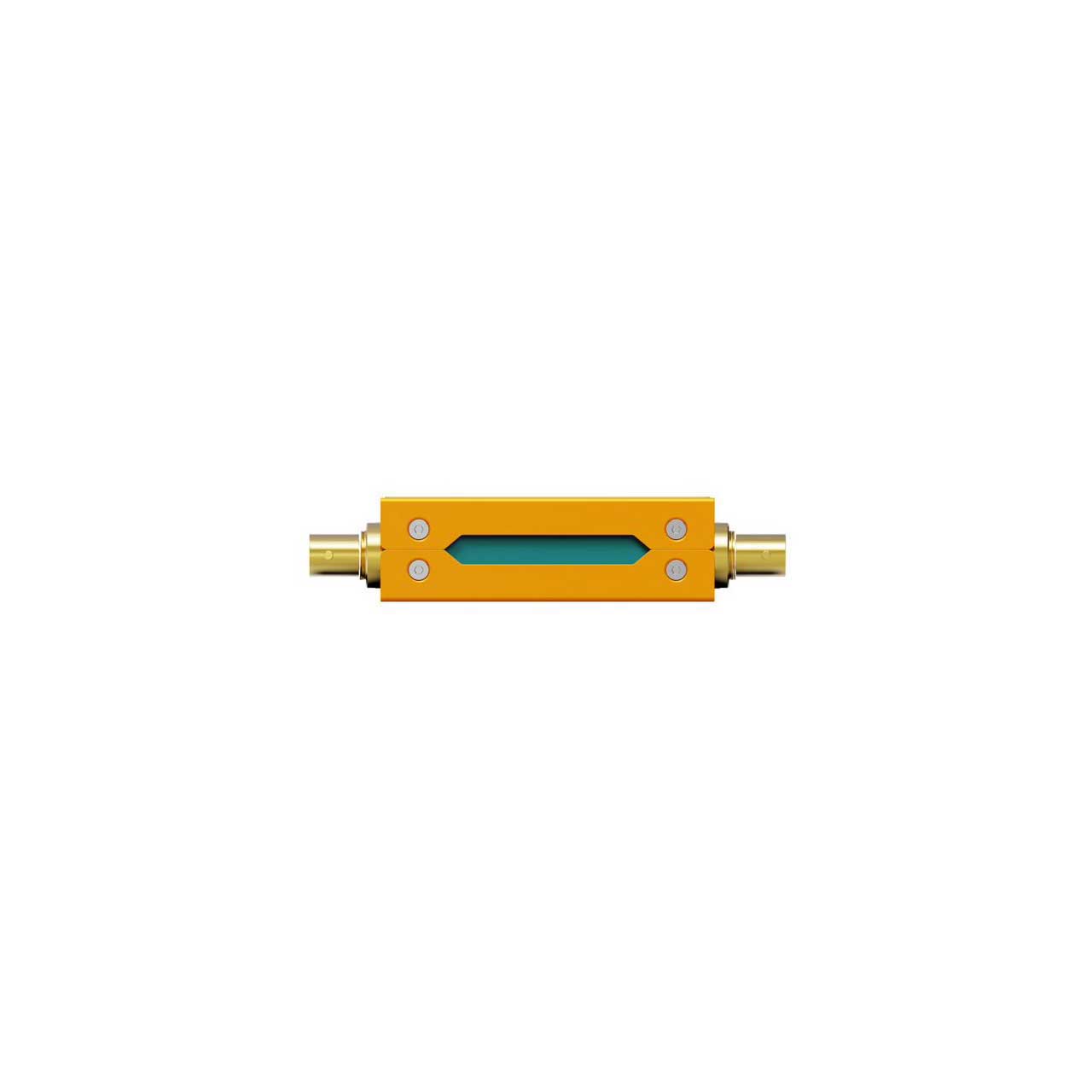

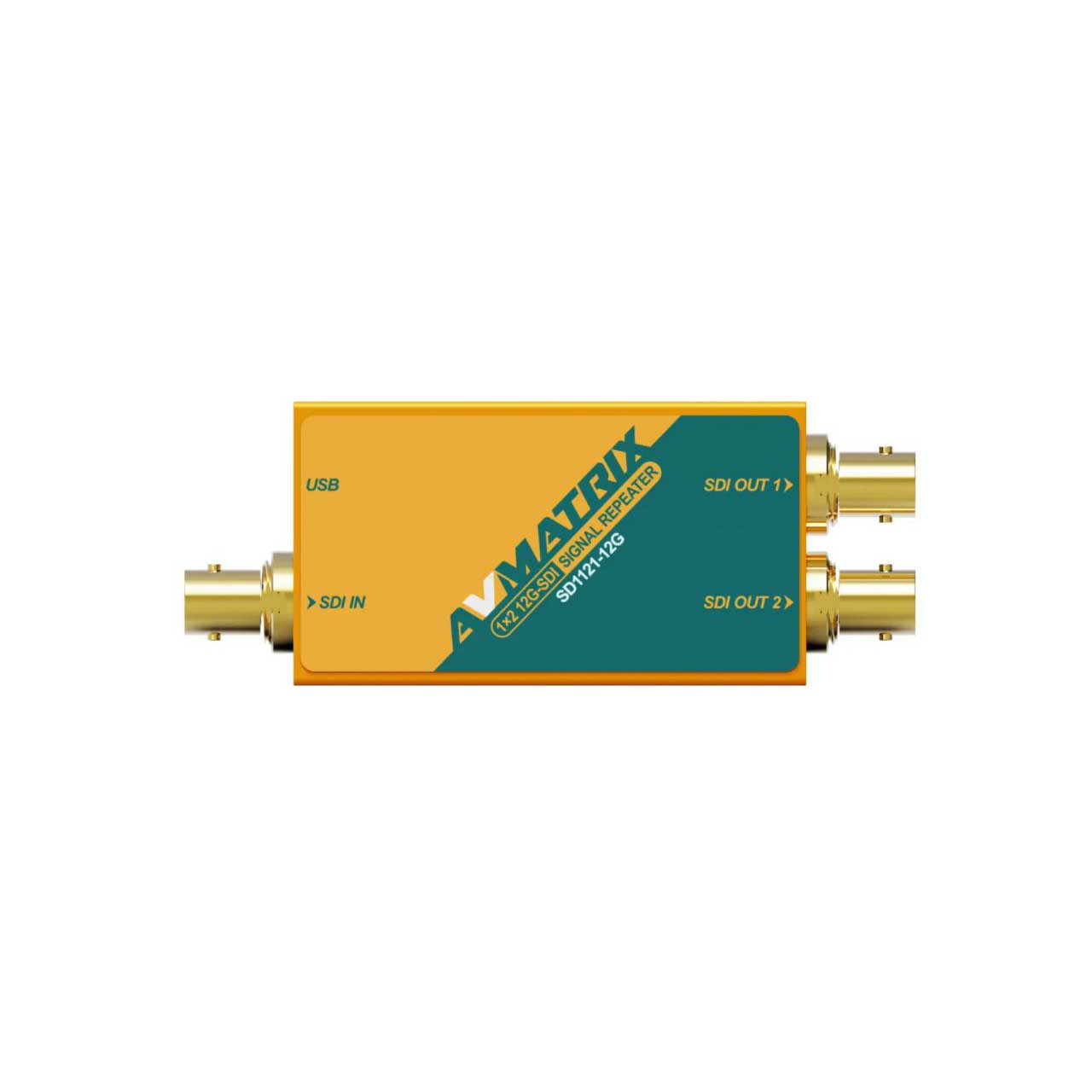

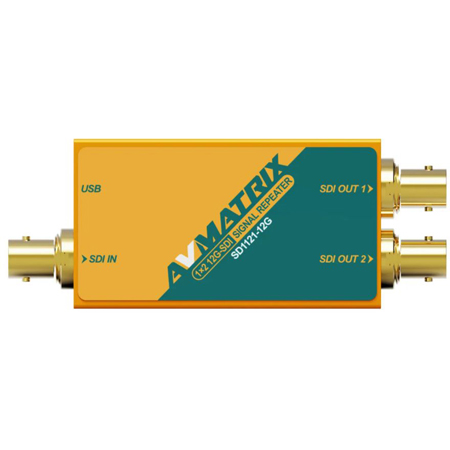

AVMATRIX SD1121-12G 1x2 12G-SDI Signal Repeater - Auto Detects SD/HD/3G/6G and 12G-SDI

SD1121-12G - Overview

• Features:

  • Automatically detects SD, HD, 3G, 6G, and 12G-SDI
  • Support DVB-ASI signal
  • Automatic cable equalization and signal retiming
  • Pass all ancillary data and embedded audio
  • 5V micro USB power
  • Detachable bracket design for wall mounting


• Specifications:

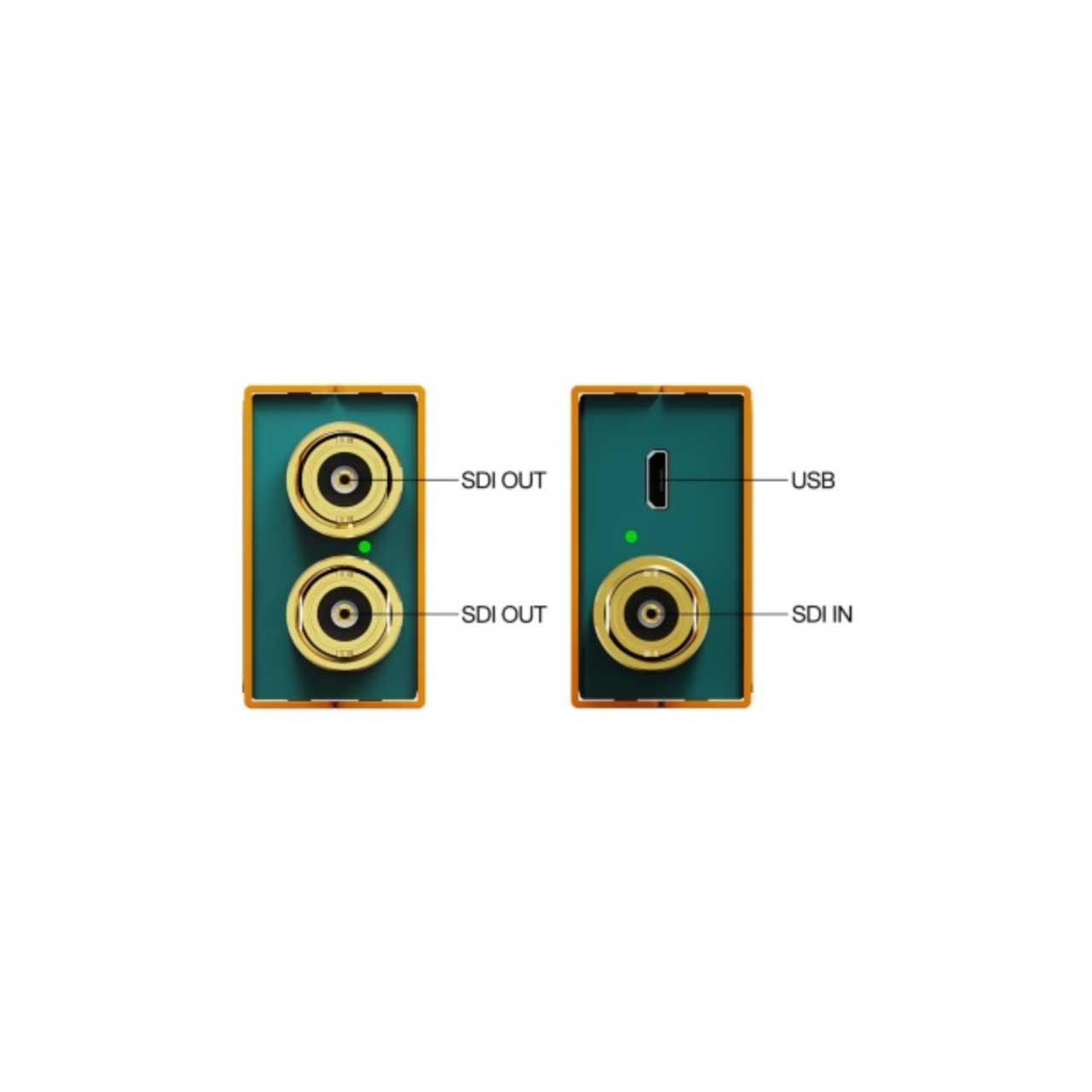

  • Input: 1x SD/HD/3G/6G/12G-SDI/DVB-ASI x1
  • Output: 2x SD/HD/3G/6G/12G-SDI/DVB-ASI x2
  • SDI Video Rate: SD/HD/3G/6G/12G-SDI
  • SDI Compliance: SMPTE ST-2081, SMPTE ST-2082, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, ITU-R BT.656, ITU-R BT.601, SMPTE 274M, SMPTE 425M
  • ASI Compliance: DVB-ASISDI Color Space: YUV, RGB
  • SDI Equalization and Re-Clocking: Yes, SDI input and output support up to 60m/100m for 12G/3G-SDI
  • Power Connector: Micro USB
  • Voltage Range: USB 5V
  • Power Consumption: 1W
  • Operating Temperature: -4°F - 140°F (-20°C - 60°C)
  • Storage Temperature: -22°F - 158°F (-30°C - 70°C)
  • Relative Humidity: 0% - 90% non-condensing
  • Size: 4.15" x 1.61" x 0.91" (105.5mm x 41mm x 23mm)
  • Weight: 5.50oz (156g)


• Item Includes:

  • 1x AVMATRIX SD1121-12G 1x2 12G-SDI Signal Repeater
  • 1x 5V power adapter x1


• Warranty:

  • 3 year limited


• GTIN:

  6971118001514
