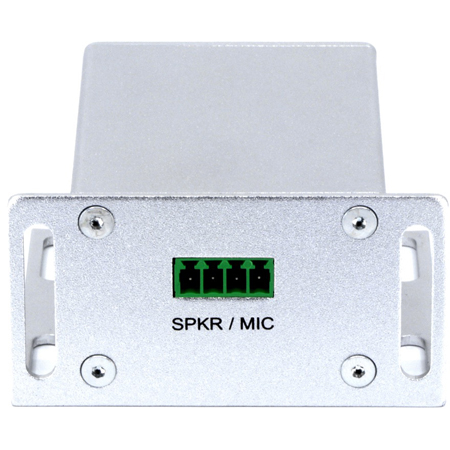

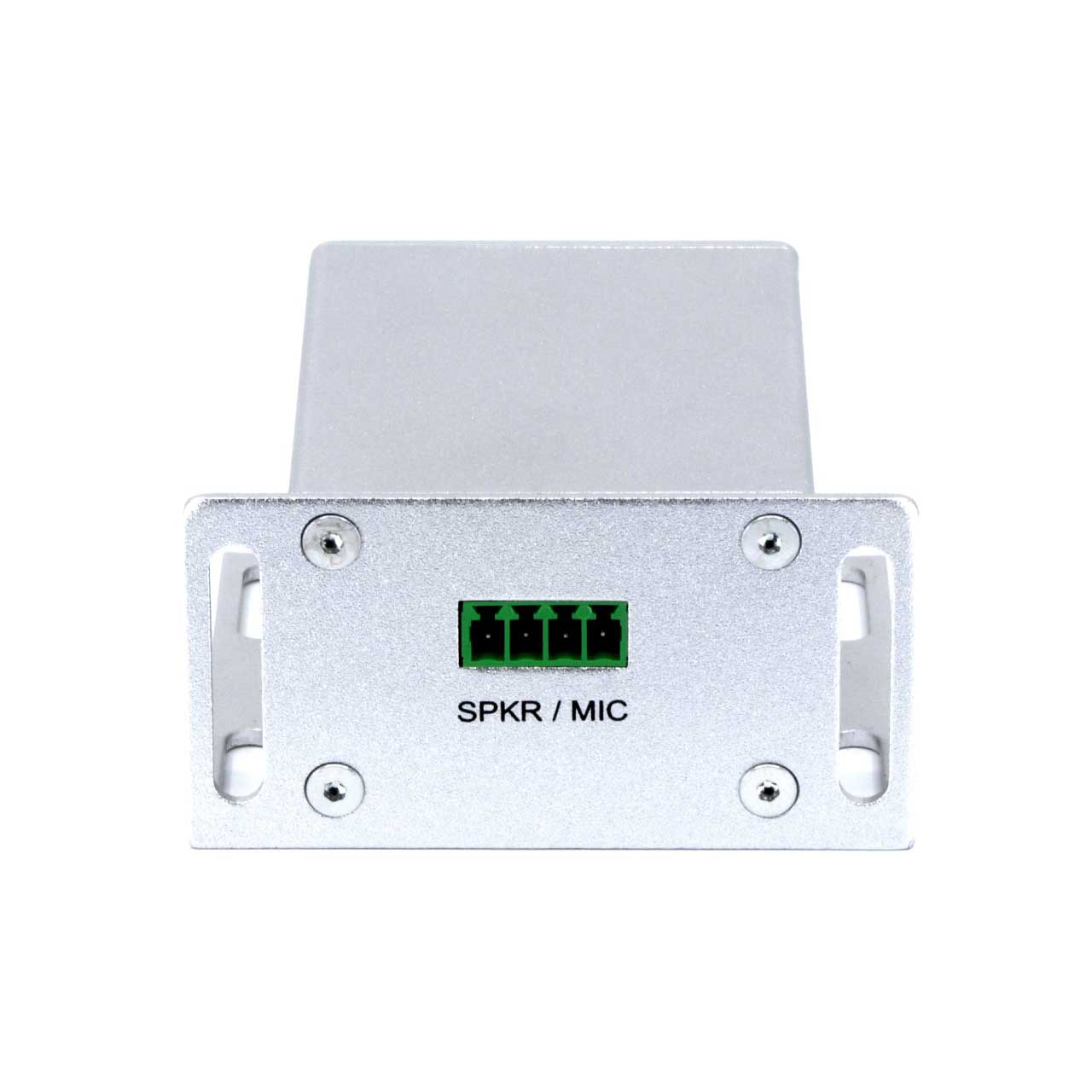

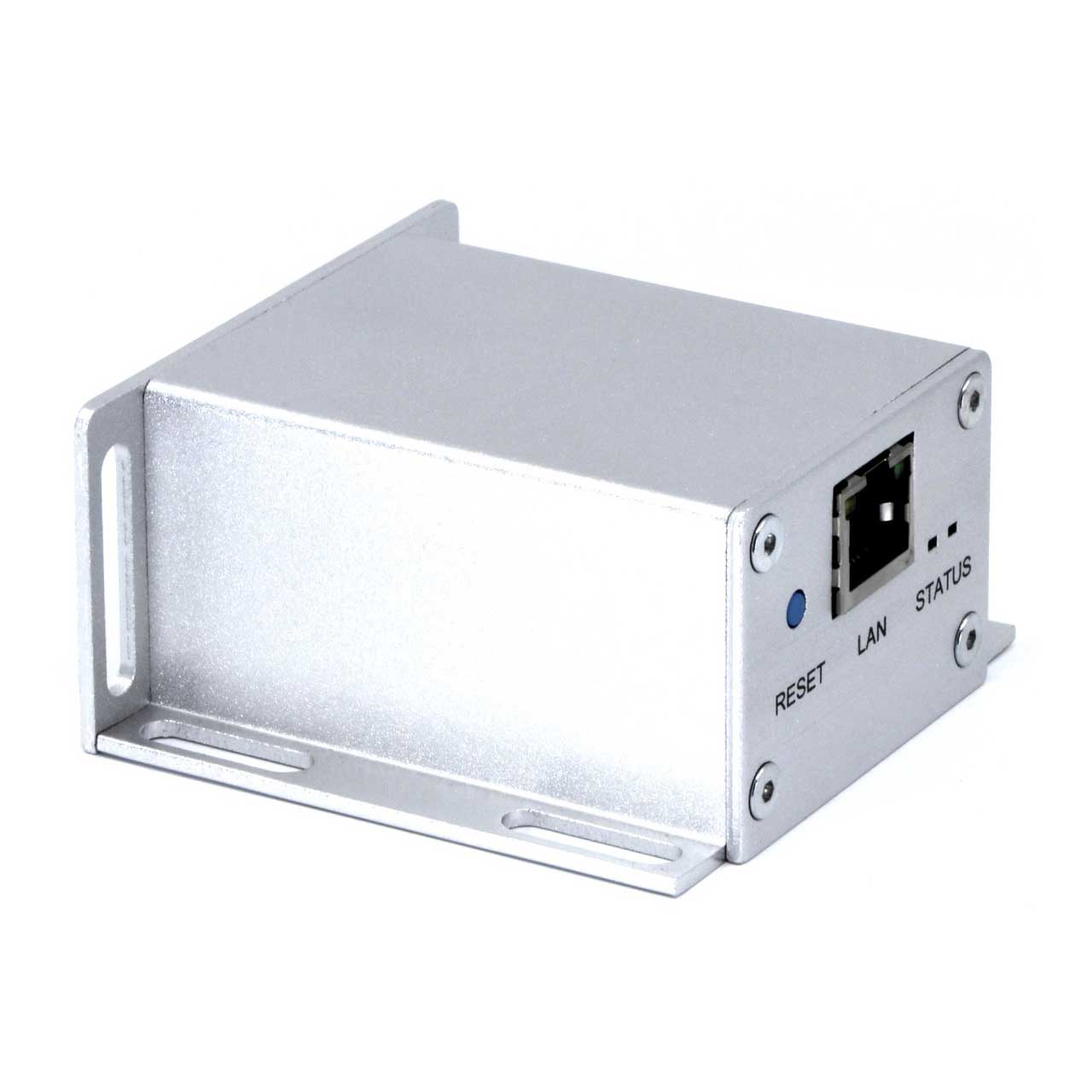

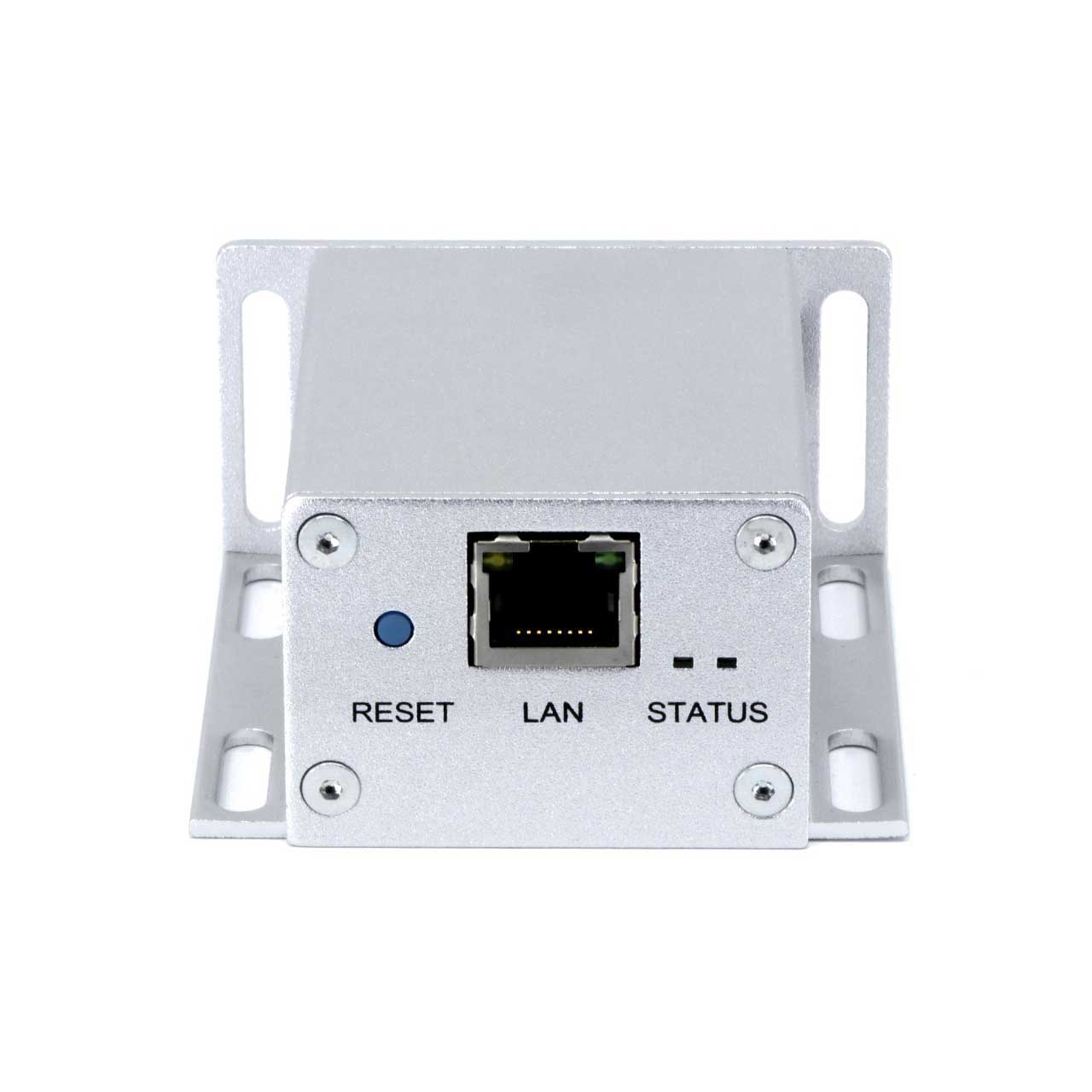

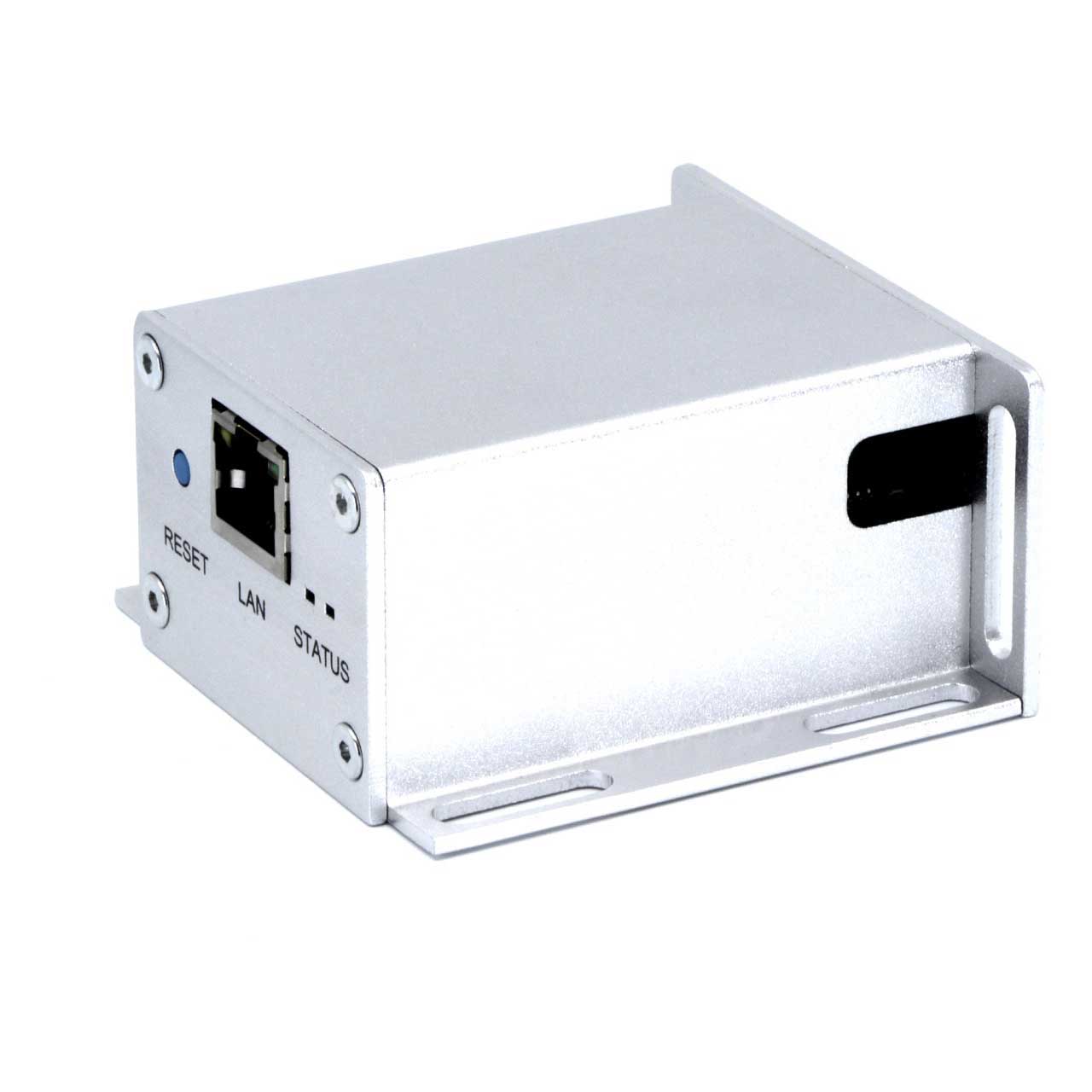

Barix 2020.9301P IP Former TPA400 InformaCast IP Audio Decoder with Software License - PoE - 6W Amplified Output

ITEM #: BARIX-2020-9301P MFG #: 2020.9301P

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$220.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


2020.9301P - Overview

IP FORMER TPA400 - Plenum Rated Per UL Standard 2043

IP Audio Decoder, PoE Powered with up to 6W Amplified Output on Screw Terminal Block to Drive Loudspeakers
The Barix 2020.9301P IP Former can be attached to any loudspeaker either while in production or in existing installations. It enables audio-streaming over the internet with a reliable, fast-reactive connection, storing capabilities and VoIP/SIP negotiation. Installers can just sell an upgrade to existing installations and setups. Producers can offer an IP speaker without additional R&D. Powered by PoE, it is as easy to install as any clever IP speaker. As a decoder it streams audio from radio stations, telephones and paging stations. It is ideal for speakers to play background music, live announcements in schools, retail, offices, for emergency warning systems or triggered message playback and announcements over SIP. For management and advanced functions, the IP former is ready for (optional) sound detection of the surrounding. Barix is offering adaptation to your business needs to grow together.

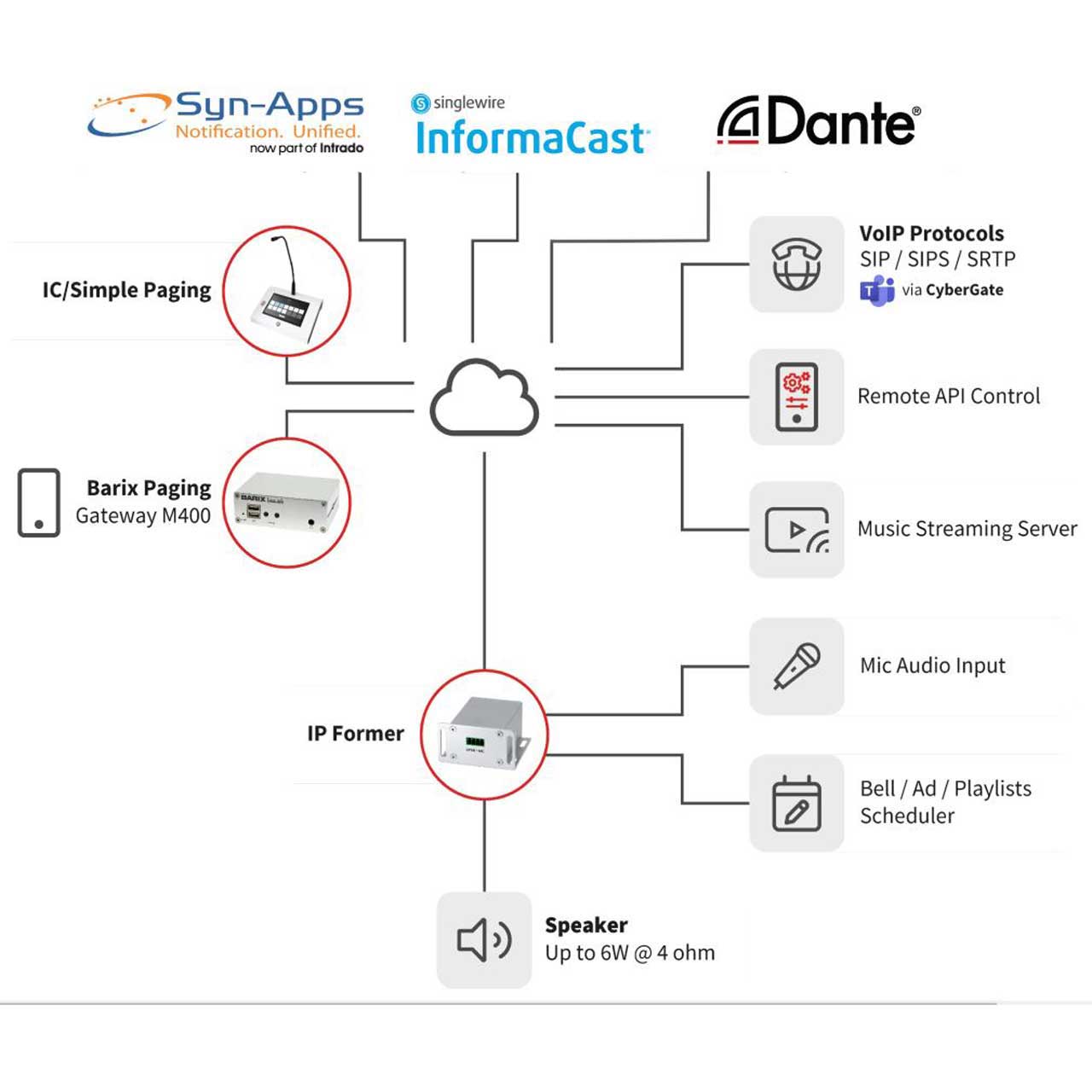

Applications:
SIP and IP Paging / Notification
Background music
Emergency evacuation
Singlewire InformaCast integration
Syn-Apps Revolution integration
MS Teams endpoint via CyberGate service
Dante® support - requires extra license

  • Features:

    • 6.5W RMS @ 4 Ohm Speaker Output
    • Plenum Rated per UL Standard 2043
    • IEEE 802.3af PoE
    • Syn-App certified
    • Singlewire certified
    • Multi-level message priority
    • AACplus, MP3, G.711, G.722 over RTP
    • SIP VoIP endpoint support

  • Specifications:

    • Operation System: Embedded Linux based on Yocto
    • Network Interfaces:
      1 x Ethernet (RJ45) Interface
      IPv4, IPv6 capable
      10/100 fdx/hdx, auto negotiation
    • Protocols:
      TCP/IP, UDP, RTP, SRTP SIP, SIPS, HTTP, HTTPS, DHCP, mDNS/DNS-SD (Avahi), NTP
      Dante® Support - Requires extra license
      Singlewire InformaCast compatibility - requires extra license
      SynApps Revolution compatibility
    • Audio Interface:
      6.5W RMS @ 4 Ohm on Screw Connector
      4 - 8 Ohm Speaker
      Microphone Input 3.3VDC Bias on Screw Conn
    • Audio Formats:
      MP3 CBR/VBR, up to 320 kbps, 8..48 kHz sample freq.
      AAC-HE (AAC, AAC plus, AAC plus V2)
      PCM linear 16bit @44.1 kHz
      711, 722, GSM, Opus, WAV, OGG Vorbis
    • CPU / Memory:
      Barix IPAM400 Processor Module
      Quad-Core ARM Cortex™ -A7
      256MB DDR3 L3
      16MB SPI Flash
      8GB SD-Card Flash
    • User Interface:
      Web interface for configuration
      2 x Multicolor LED Status indicators
      Reset & Factory Defaults Button
    • Power Requirements: IEEE 802.3af PoE
    • MTBF: > 200,000h
    • Measurement / Mechanics: 4" x 2.4" x 1.25". Various Mounting ears for 70/100V Transformer compatibility
    • Weight: 0.24lb

  • Item Includes:

    • 1x IP Former TPA400
    • 1x InformaCast License
    • 1x Speaker Connector
    • 1x Quick Install Guide

  • Warranty:

    • Two years
