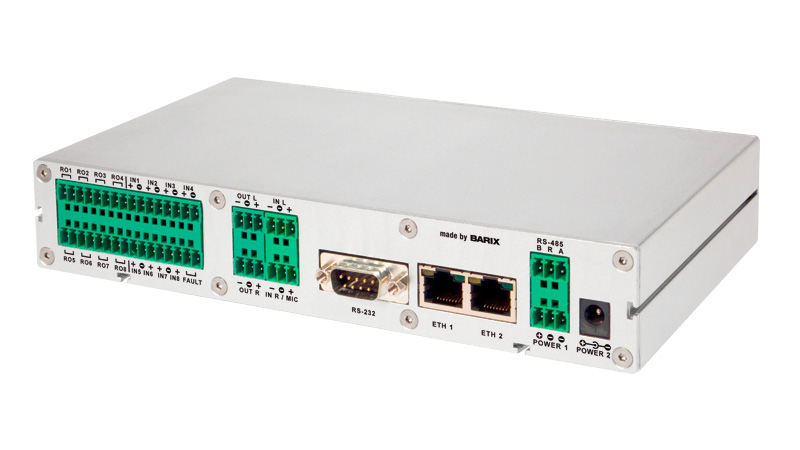

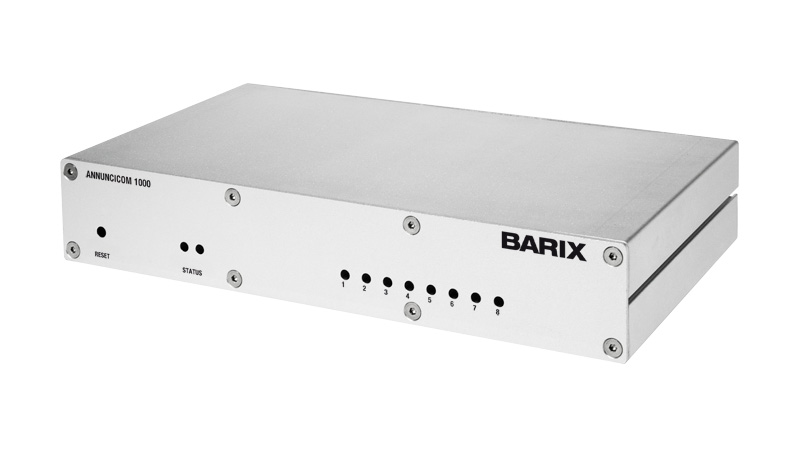

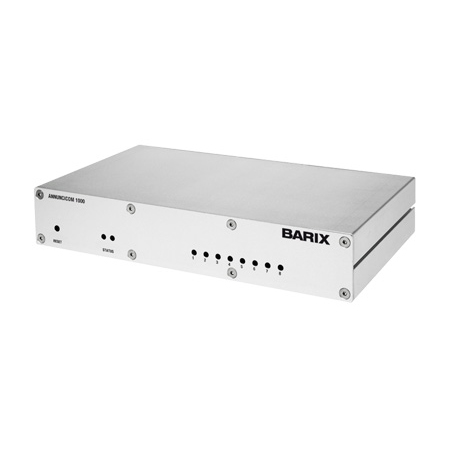

Barix Annuncicom 1000 IP Paging and Intercom Device

2007.9076 - Overview

• Features:

  • MP3, G.711, G.722*, PCM Encoding
  • MP3, G.711, G.722*, PCM Decoding
  • Audio Level Supervision with SNMP Trap generation
  • IP Streaming via TCP, UDP, RTP, Multicast
  • Microphone Input
  • Balanced Line Level Input (2)
  • Balanced Line Level Output (2)
  • Relay Output (8+1)
  • Supervised Contact Closure Input (8)
  • RS-232 Serial Port (1)
  • RS-485 Serial Port (1)
  • Supply Voltage (24-48VDC)
  • Battery Backup Supply Input


• Specifications:

  • Audio Formats
  • PCM: Decode: yes; Encode: yes
  • G.711: Decode: yes; Encode: yes
  • G.722: Decode: yes; Encode: yes
  • MP3, VBR, CBR* VBR, CBR*

    Discrete Interfaces
  • 8 supervised Inputs, 8 Relays (dry contacts)
  • 1 Fault Relay output

    Audio Interfaces
  • Mic In (Balanced, Phantom power) or Balanced
  • Stereo Line In (configurable), Balanced Stereo Line
  • Out, in / output level software adjustable

    Serial Interfaces
  • RS-232 DSub 9 pin male, 300..115200 Baud, RS-485 screw terminal block, 300..115200 Baud

    Control Interfaces
  • web server for control and configuration

    Network Interface
  • RJ45 10/100 Mbit Ethernet (Auto), TCP/IP, UDP, RTP, SIP, DHCP, SNMP, AutoIP, SonicIP, IPzator

    Misc
  • Ten status LEDs, reset/factory default button, Internal temperature sensor

    Power inputs
  • Two independent, level supervised inputs
  • 24 to 48 VDC ±20% (pos. or neg.), 8 Watt max.

    Case:
  • Aluminum, 745 g, 8.5“ x 1.5“ x 4.92“; 216 mm x 38 mm x 125 mm

    MTBF
  • Min. 300 000h acc. to MIL217F at 25°C ambient temperature
  • *Hardware revision 2 only


• Item Includes:

  • Annuncicom 1000
  • Power supply
  • Serial Cable
  • Screw block terminals (4 x 8 pin, 6 x 3 pin)
  • Label stickers for screw block terminals


• GTIN:

  7640113550769
