Black Box ACU1700A KVM Extender 4K@60Hz HDMI 1.4 USB 2.0 HDBT 2.0 CAT5e/6/6A

ITEM #: BBX-ACU1700A MFG #: ACU1700A

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$671.99

Our Price:

$589.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup
  • Extended Lead Time; estimated delivery in July.


ACU1700A - Overview

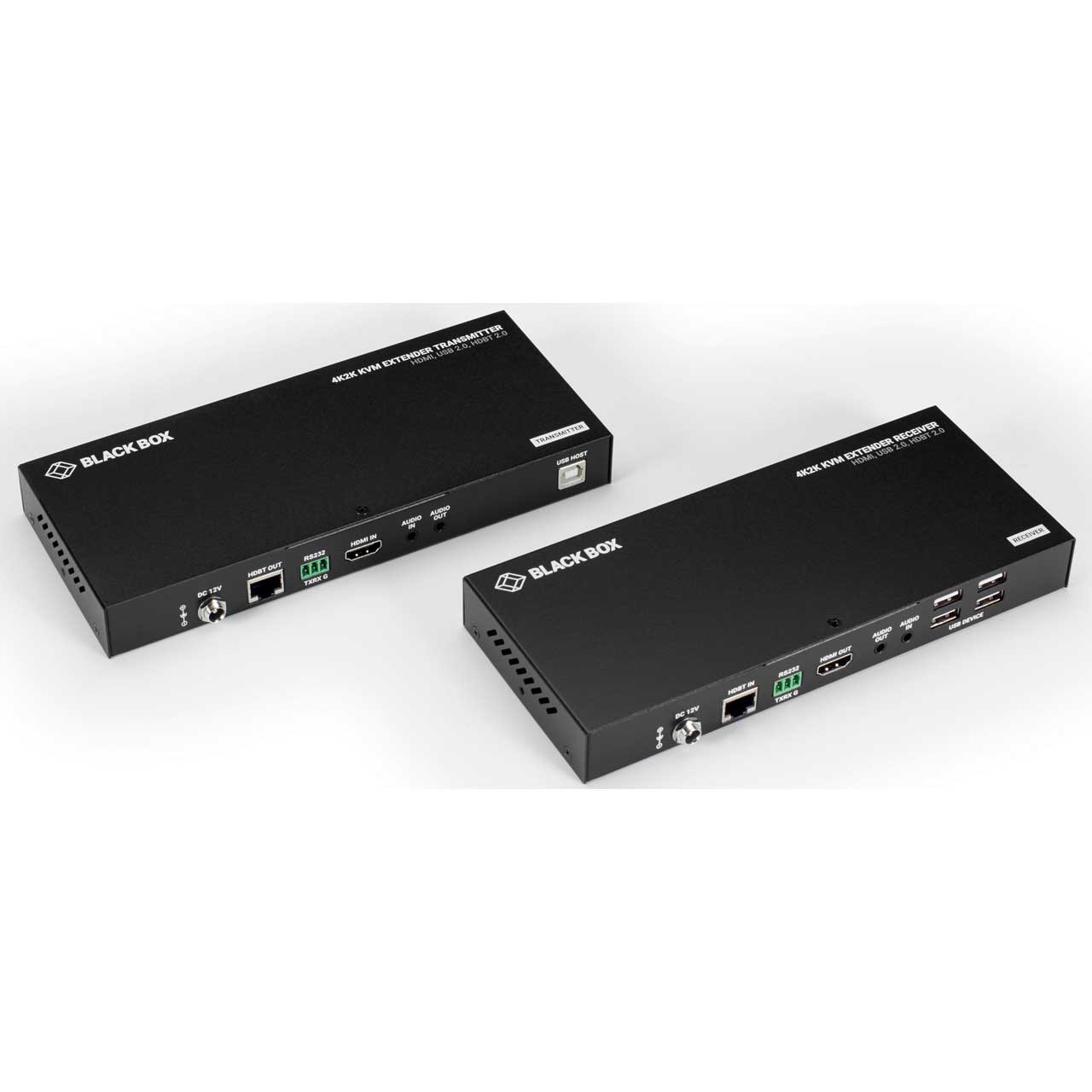

Use the Black Box ACU1700A KVM Extender to send high-resolution 4K@60Hz (4:2:0 8-bit only) video as well as signals for USB keyboards, mice and other human interface devices (HID), and power and control signals. The extender includes a local unit that attaches to the CPU and a remote unit that connects the user's KVM console. But you can also plug in a monitor on the local side-which is great for monitoring and administration right at the computer. Power over HDBaseT enables you to use just one power supply for both the transmitter and receiver.

  • Features:

    • Extend uncompressed 4Kx2K @60Hz (4:2:0 8-bit only) and 1080p@60Hz up to 100 meters over CAT6 and CAT6A cable
    • Transmit 4Kx2K@ 60 Hz (4:2:0 8-bit only) up to 90 meters and 1080p@60Hz up to 100 meters over CAT5e
    • HDMI 1.4 and HDBT 2.0 compliance
    • HDBaseT 2.0 carries video, analog stereo, power, RS-232 and USB 2.0 signals
    • With integrated 48V PoH (Power over HDBT), only one power supply is needed to power both units
    • Locking power supply prevents the power from being accidentally disconnected
    • Features analog audio pass through from TX to RX
    • Includes 4 x USB Type-A inputs for keyboard, mouse, or additional peripherals such as USB camera, etc

  • Specifications:

    • Video Impendance: 100-Ohms
    • Video Signal TX Input: HDMI 1.4, video level: 0.5~1.0V p-p, Output (1) HDBT 2.0, (1) 3.5-mm stereo; RX: Input: HDBT 2.0, video level: 0.5~1.0V p-p, Output: (1) HDMI 1.4, (1) 3.5-mm stereo
    • Pixel Clock: 297-MHz
    • Audio Support: TX: Input: 3.5-mm stereo pass through; Output: 3.5-mm stereo pass through; RX: Input: 3.5-mm stereo pass through; Output: 3.5-mm stereo pass through

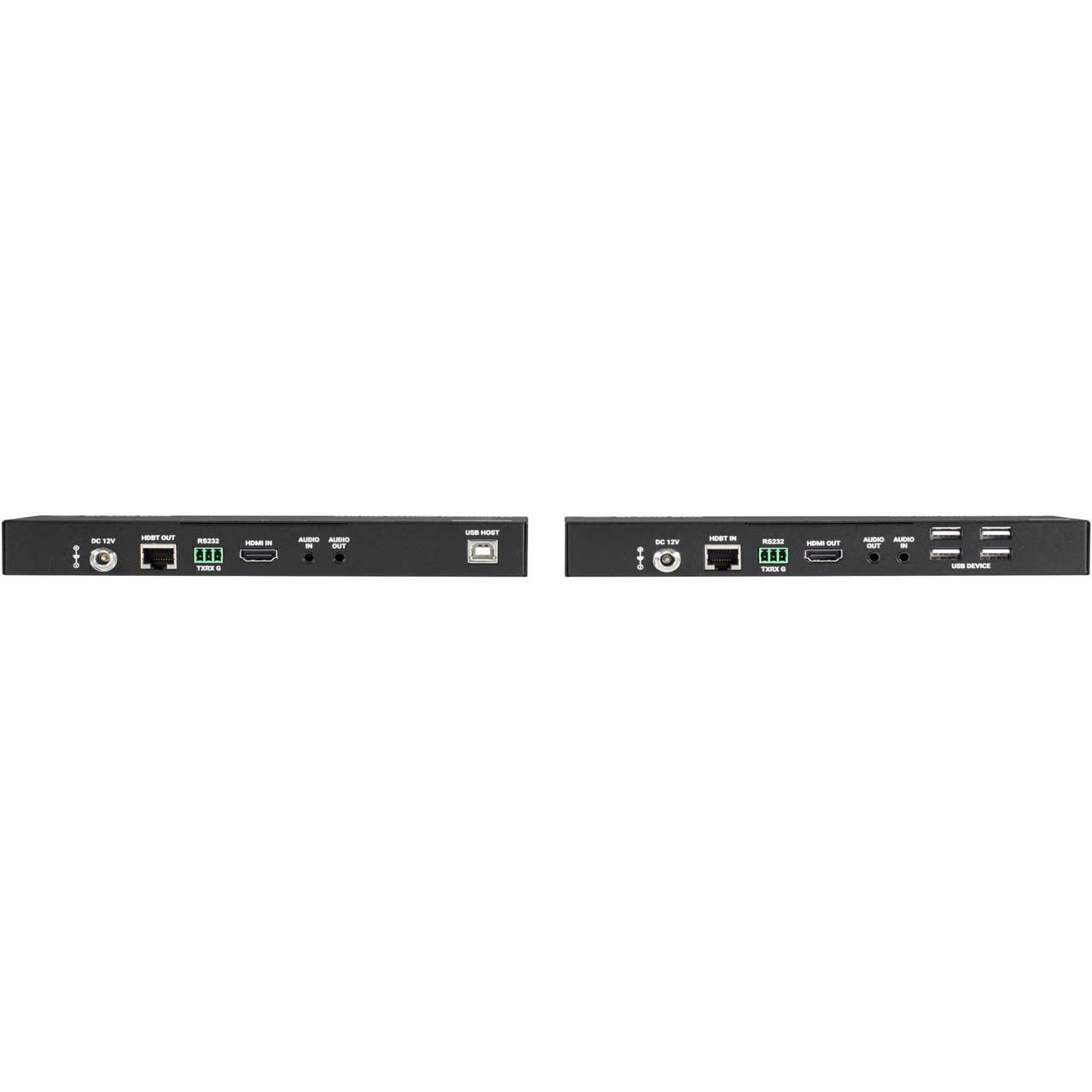

    • Connectors: TX(1) HDMI, (2) 3.5 mm stereo (in and out), (1) HDBT RJ-45, (1) USB Type B female input, (1) 3-position Phoenix; RX: (1) HDMI, (2) 3.5 mm stereo (in and out), (1) HDBT RJ-45, (4) USB Type A female, (1) 3-position Phoenix
    • Distance: CAT5e: 3840x2160 @ 90 m; 1080p @100 m; CAT6/CAT6A: 3840x2160@100 m; 1080p @ 100 m
    • Operating Humidity: 10-90%, non-condensing
    • Operating Temperature: 32 to + 113 °F (0 to + 45°C)
    • Power: 12 VDC power supply
    • Resolutions Supported: 4096x2160@24/25/330/50/60Hz; 380x2160@24/25/30/50/60Hz; Up to 1080p
    • Storage Temperature: -4 to + 158 °F (-20 to +70°C)
    • Dimensions (Receiver H x W x D): 0.99 in x 8.22 in x 3.6 in (2.5 x 9 x 20.8 cm)
    • Dimensions (Transmitter H x W x D): 0.99 in x 8.22 in x 3.6 in (2.5 x 9 x 20.8 cm)
    • Weight (Receiver): 1 lb. (0.16 kg)
    • Weight (Transmitter): 1 lb. (0.16 kg)

  • Item Includes:

    • (1) Transmitter
    • (1) Receiver
    • (1) 12V DC (2A) Power Supply
    • (2) 3.5mm, 3-pin Phoenix male connectors
    • (4) Mounting brackets

  • GTIN:

    0822088131021
