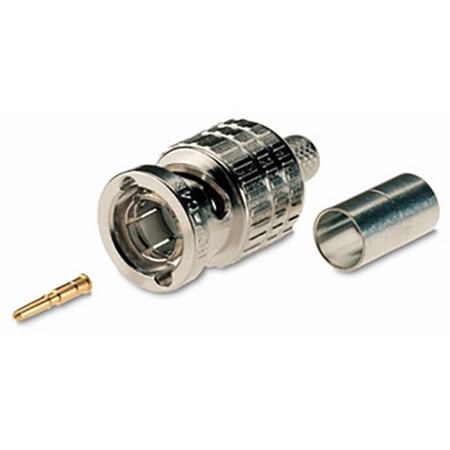

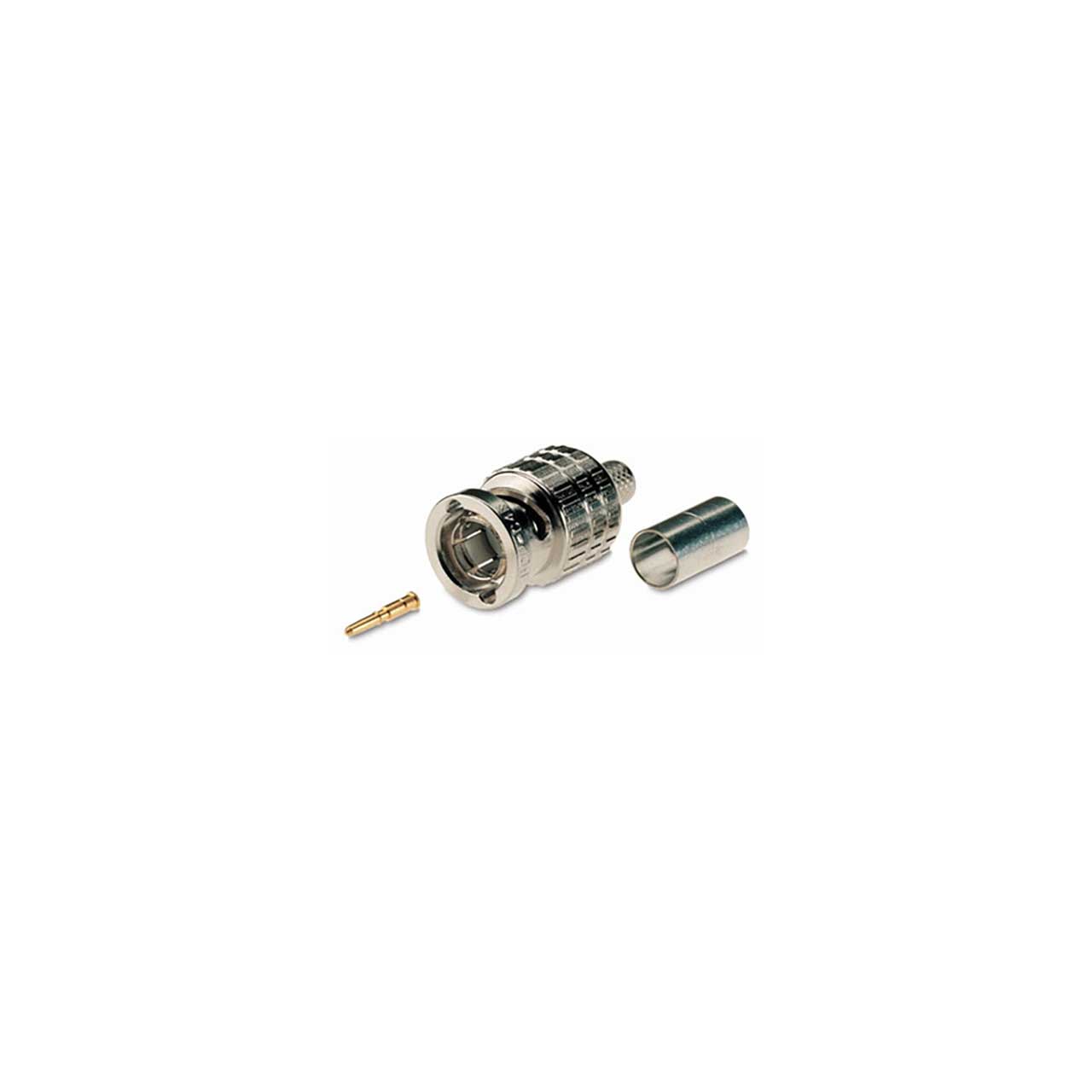

Canare BCP-A25F 3-Piece Crimp BNC Connector for Canare L-2.5CFB or Belden 1855A

ITEM #: BCP-A25F MFG #: BCP-A25F

Primary Image
Canare
Free Shipping with $49 Minimum Order

List Price:

$3.31

Our Price:

$3.14

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

BCP-A25F - Overview

Canare's premium 3G-SDI SMPTE 424M compatible BNC connectors for coaxial cables used on video camera feeds, jackfields and similar signal transmission in the studio and field. Connectors exceed the required SMPTE 424M television standard 3 Gbps signal/data serial interface. 75 ohm 3-piece BNC crimp plugs deliver high performance with 'snap lock' in place gold plated center pins and superior cable pull strength.

The BCP-A25F is designed for use with Canare L-2.5CFB and Belden 1855A coax cable.

  • Features:

    • True 75 ohm construction; Crimp Pin & Sleeve
    • DC to 2.0 GHz; >26dB Return Loss (<1.1 VSWR)
    • Mechanically mates with common 50 ohm BNC
    • Elongated Body for better finger grip
    • Superior cable pull strength
    • Gold plated center pins 'snap lock' in place
    • Beryllium copper outer contact
    • Easy Assembly using Canare Strip & Crimp Tools
    • Operating temperature -20 to +60 degrees Celsius
      APPLICATIONS:
    • SMPTE 259M & 292M Compliant
    • Serial Digital Video
    • HDTV Upgrades
    • NTSC Analog
    • Test Equipment
    • Satellite Headends
    • TELCOM
