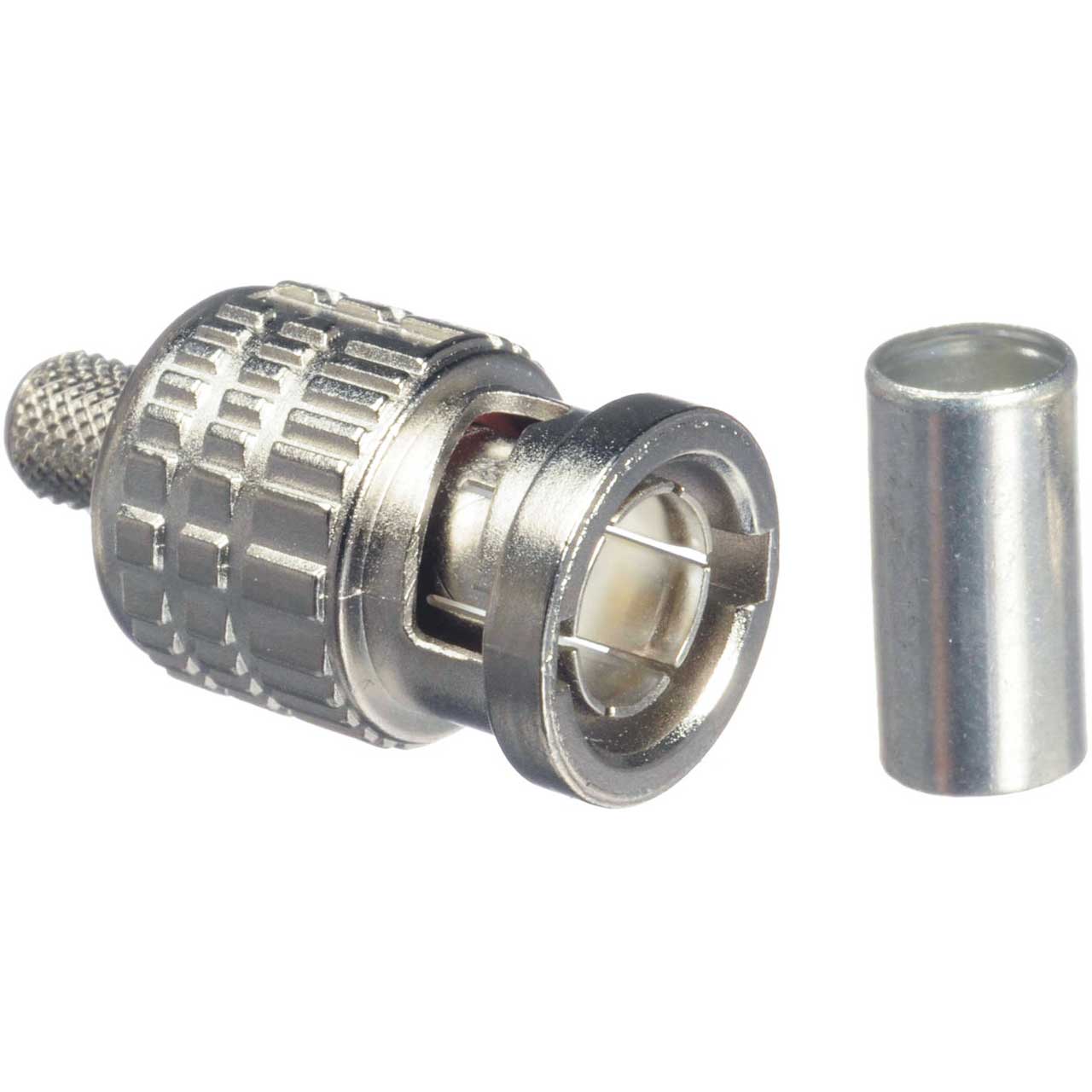

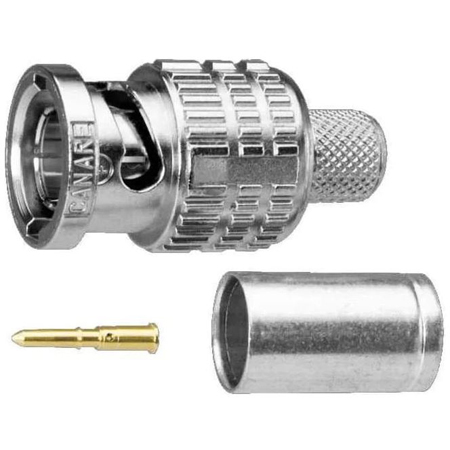

Part of the Canare BCP Series of high quality 75 Ohm BNC crimp plug connectors, the 100 pack of the Canare BCP-B4F is rated for all SMPTE 424M & 292M applications to confidently transmit 3G-SDI bit-rates in 1080p video production. Canare BCP BNC connectors feature an elongated body for better finger grip and a unique position mark on the body allows the connector bayonet fit to be checked easily. This is sold as a pack of 100.
The BCP-B4F BNC connector is designed for Canare L-4CFB / L-4CHD and Belden 1505A coaxial to deliver a combination of superior cable pull strength you won't find with other connectors. Its gold plated center pins 'snaps' into place to ensure perfect alignment with connected video gear and patch panels.
BCP-B4F Fits Canare Cable: L-4CHD, L-4CFB, V*-4CFB,
Non Canare Cable: 1505A, 1505ANH, VPM2000, HD PRO 0.8/3.7 AF
Center Pin: B11016E
Sleeve: BN7015A
Boot: CB04
Die Set: TCD-4C, TCD-451CA
